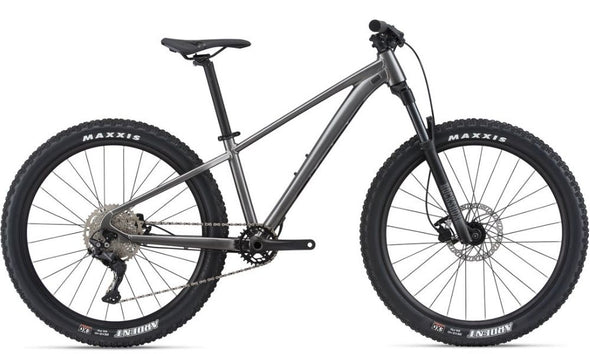

Giant 2022 STP 26
Make the world your playground with STP, a favorite for dirt jumping, street shredding and whatever style you dream up.
Trail-Inspired Geometry
Lightweight, durable aluminium frameset with a longer top tube, tighter rear triangle and slacker head angle for agile handling on dirt jumps, trail or street sessions.
Quick and Responsive
Frame geometry is designed for 26-inch wheels with a low saddle height and taller front end for quick, confident ride quality.
Maximum Control
Powerful disc brakes and 120mm suspension fork with remote lockout put maximum control in the rider’s hands. Grippy, high-volume 26-inch tires for streets, trail or park riding.
Giant 2022 STP 26
Frame
Colour: Metallic Black
Frame: ALUXX-Grade aluminium
Fork: RockShox Recon Silver RL, 15x110mm 120mm, with remote lockout
Shock: N/A
Weight: N/A
Drivetrain
Crankset: Alloy forged, 30t, Regular 155mm, Large 165mm
Pedals: N/A
Chain: KMC X10
Bottom Bracket: Cartridge
Rear Derailleur: Shimano Deore RD-M5120
Front Derailleur: N/A
Derailleur Shifter: Shimano Deore, 1x10
Freewheel/Cassette: Shimano CSM-4100, 11x46
Wheels
Tires: Maxxis Ardent, 26x2.25"
Wheels/Rims: Giant 26", alloy
Hubs: Giant Disc, 28h, QR, alloy, disc
Braking System
Brakes: Tektro TDK143, hydraulic [F]160mm, [R]160mm rotors
Brake Levers: Tektro TDK143
Other
Handle Bar: Giant Sport, alloy, 31.8mm
Stem Headset: Forged alloy, 0-degree
Grips: Giant Sole-O
Saddle: Giant Sport
Seat Post: Alloy, two-bolt, 30.9mm
Giant 2022 STP 26
| REGULAR | LARGE | ||
|---|---|---|---|
| B | SEAT TUBE ANGLE | 73.5° | 73.5° |
| C | TOP TUBE LENGTH (mm) | 545 | 575 |
| D | HEAD TUBE LENGTH (mm) | 100 | 110 |
| E | HEAD TUBE ANGLE | 67.0° | 67.0° |
| H | WHEELBASE (mm) | 1086 | 1117 |
| I | CHAIN STAY LENGTH (mm) | 435 | 435 |
| K | STACK (mm) | 579 | 588 |
| L | REACH (mm) | 374 | 401 |
| P | CRANK LENGTH (mm) | 155 | 155 |
