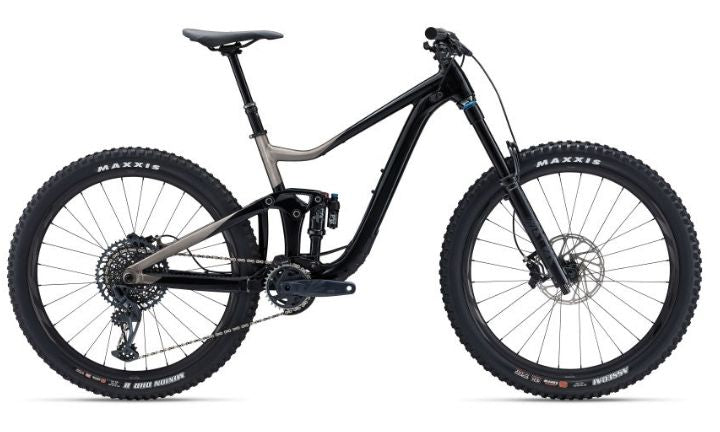

Giant 2022 Trance X 1
Adjustable frame geometry
New flip chip feature lets you change the headtube and seattube angles, as well as the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style.
27.5 agility and control
27.5-inch wheels balance agility and control, giving you the ability to roll over rugged terrain, flick the bike at speed, change lines, and explode out of corners.
Progressive suspension
Updated Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 145mm of rear travel (and 160mm up front), it has an Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frame weight.
Giant Trance X 1
Frame
Frame: ALUXX SL-Grade aluminium front and rear triangles, 145mm Maestro suspension, flip chip, 12x148mm thru-axle
Fork: Fox 36 Performance Elite, Grip 2 damper, 37mm offset, 160mm, 15x110 Kabolt X, custom tuned for Giant
Drivetrain
Crankset: SRAM GX Eagle, 32t S:165mm, M:170mm, L:170mm, XL:170mm
Chain: SRAM GX Eagle
Bottom Bracket: SRAM DUB, press fit
Rear Derailleur: SRAM GX Eagle
Front Derailleur: N/A
Derailleur Shifter: SRAM GX Eagle, 1x12
Freewheel/Cassette: SRAM XG-1275, 10x52
Wheels:
Tires: [F] Maxxis Assegai 27.5x2.6, 3C MaxxTerra, EXO, TR [R] Maxxis Minion DHRII 27.5x2.6, 3C MaxxTerra, EXO, TR, tubeless
Wheels/Rims: Giant TR-1 27.5 WheelSystem
Hubs: Giant TR-1 27.5 WheelSystem
Braking System
Brakes: SRAM Code R, hydraulic, SRAM CenterLine rotors [F]200mm, [R]180mm
Brake Levers: SRAM Code R
Other
Handlebar: Giant Contact TR35, alloy, 35mm
Stem Headset: Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
Saddle: Giant Romero
Seat Post: TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 525mm XL: 170-200mm travel / 30.9 x 525mm
| S | M | L | XL | ||
|---|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
| A | SEAT TUBE LENGTH (mm) | 420 | 430 | 465 | 496 |
| B | SEAT TUBE ANGLE | 77.2° | 78.0° | 76.3° | 77.0° | 76.3° | 77.0° | 76.3° | 77.0° |
| C | TOP TUBE LENGTH (mm) | 562 | 560 | 595 | 593 | 622 | 620 | 649 | 647 |
| D | HEAD TUBE LENGTH (mm) | 95 | 105 | 115 | 125 |
| E | HEAD TUBE ANGLE | 63.7° | 64.5° | 63.8° | 64.5° | 63.8° | 64.5° | 63.8° | 64.5° |
| F | FORK RAKE (mm) | 37 | 37 | 37 | 37 |
| G | TRAIL (mm) | 138 | 132 | 138 | 132 | 138 | 132 | 138 | 132 |
| H | WHEELBASE (mm) | 1179 | 1177 | 1203 | 1202 | 1233 | 1231 | 1262 | 1260 |
| I | CHAIN STAY LENGTH (mm) | 433 | 430 | 433 | 430 | 433 | 430 | 433 | 430 |
| J | BOTTOM BRACKET DROP (mm) | 30 | 20 | 30 | 20 | 30 | 20 | 30 | 20 |
| K | STACK (mm) | 596 | 590 | 605 | 599 | 614 | 608 | 623 | 617 |
| L | REACH (mm) | 427 | 435 | 447 | 455 | 472 | 480 | 497 | 505 |
| M | STAND OVER HEIGHT (mm) | 709 | 718 | 714 | 723 | 740 | 750 | 762 | 772 |
| O | STEM LENGTH (mm) | 40 | 40 | 50 | 50 |
| P | CRANK LENGTH (mm) | 165 | 170 | 170 | 170 |
| Q | WHEEL SIZE | 27,5" | 27,5" | 27,5" | 27,5" |
*Specifications are subject to change. Please read our Terms & Conditions
