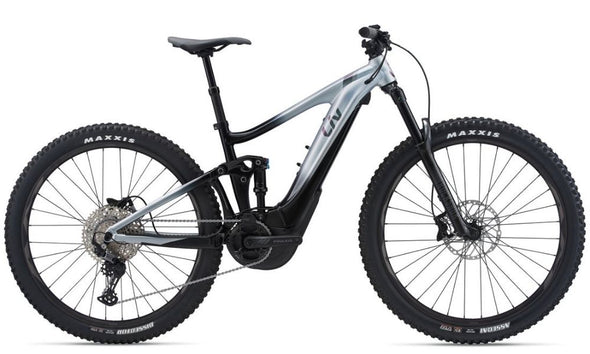

    Liv 2022 Intrigue X E+ 3 Pro

    SLAY TECHNICAL TRAILS ON THE E-BIKE THAT NEVER HOLDS BACK.

    Adventure Ready

    With the ultra-reliable EnergyPak Smart 625Wh battery, SyncDrive Pro motor and the versatility of flip chip adjustable frame geometry the Intrigue X E+ allows you to explore more than ever before.

    Integrated Design

    The easy-to-access EnergyPak Smart is beautifully integrated into a lightweight and durable ALUXX SL aluminium frame designed and tuned for women.

    Balanced Agility

    Ample Maestro suspension and Smart Assist Technology with 6-sensor measurements smooth out bumps for a natural ride feel.




    Liv 2022 Intrigue X E+ 3 Pro

    Frame

    Colour: Supernova/Black
    Frame: ALUXX SL-Grade Aluminium, 140mm Maestro Suspension, flip chip, 12x148mm thru-axle Giant EnergyPak Plus Range Extender Compatible
    Fork: Rock Shox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControl rebound and lockout control, 15x110mm Boost, Maxle Stealth, e-MTB optimised
    Shock: Fox Float DPS Performance, EVOL Large Volume sleeve, 3-position lever
    Weight: N/A

    Drivetrain

    Crankset: Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, XS:160mm, S:160mm, M: 165, L:170mm)
    Pedals: N/A
    Chain: KMC e.12 Turbo, EcoProteq, e-bike optimised
    Bottom Bracket: N/A
    Rear Derailleur: Shimano Deore 12-speed
    Front Derailleur: MRP 1X CS custom
    Derailleur Shifter: Shimano Deore
    Freewheel/Cassette: Shimano CS-M6100-12, 10-51T, 12-speed
    Drive Unit: SyncDrive Pro 80Nm, Powered by YAMAHA
    Battery: EnergyPak Smart 625Wh, EnergyPak Plus range extender compatible

    Wheels

    Tires: Maxxis Assegai 29x2.6" foldable, Tubeless, EXO [F] Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+ [R] (XS: 27.5+ / S-L: 29)
    Wheels/Rims: Giant AM 29 / 27.5+, Tubeless ready
    Hubs: Shimano MT410 Boost, Center-Lock

    Braking System

    Brakes: Shimano BR-M420, 4-piston, hydraulic disc, [F] 203mm, [R] 203mm
    Brake Levers: Shimano Deore BL-M4100, I-spec EV

    Other

    Handle Bar: Giant Contact TR35, alloy, 35mm
    Stem Headset: Giant Contact SL 35 XS: 40mm, S:40mm, M:50mm, L:60mm
    Grips: Liv Supera Lock-on
    Saddle: Liv Sylvia E+
    Seat Post: Giant Contact Switch dropper, remote XS: 100mm travel / 30.9 x 345mm S: 150mm travel / 30.9 x 345mm M: 125mm travel / 30.9 x 395mm L: 150mm travel
    Controller: RideControl Ergo
    Display: Wireless display compatible

    • XS
        152 cm to 163 cm
    • S
        158 cm to 169 cm
    • M
        164 cm to 175 cm
    • L
        170 cm to 181 cm

    bike diagram with measurements referenced in table that follows

        XS S M L
        LOW | HIGH LOW | HIGH LOW | HIGH LOW | HIGH
    A SEAT TUBE LENGTH (mm) 385 405 435 460
    B SEAT TUBE ANGLE 74.5° | 75.2° 76.0° | 76.7° 76.0° | 76.7° 76.0° | 76.7°
    C TOP TUBE LENGTH (mm) 565 | 565 568 | 568 585 | 585 605 | 605
    D HEAD TUBE LENGTH (mm) 95 95 100 110
    E HEAD TUBE ANGLE 65.0° | 65.7° 65.8° | 66.5° 65.8° | 66.5° 65.8° | 66.5°
    F FORK RAKE (mm) 44 44 44 44
    G TRAIL (mm) 129.6 | 124.2 123.4 | 118.1 123.4 | 118.1 123.4 | 118.1
    H WHEELBASE (mm) 1190 | 1193 1195 | 1198 1213 | 1216 1235 | 1238
    I CHAIN STAY LENGTH (mm) 472 | 472 472 | 472 472 | 472 472 | 472
    J BOTTOM BRACKET DROP (mm) 11 | 1 30 | 20 30 | 20 30 | 20
    K STACK (mm) 585 | 579 608 | 602 613 | 607 622 | 616
    L REACH (mm) 403 | 412 416 | 426 432 | 442 450 | 459
    M STAND OVER HEIGHT (mm) 729 | 738 751 | 760 766 | 775 774 | 783
    O STEM LENGTH (mm) 40 40 50 60
    P CRANK LENGTH (mm) 160 165 165 170
    Q WHEEL SIZE 27.5+ 29" 29" 29"

    *Specifications are subject to change. Please read our Terms & Conditions

    *Giant & Liv Bicycles are available for purchase online, but due to warranty regulations, must be shipped to qualified Giant dealers, as bicycles must be assembled by a qualified bike mechanic in an approved store - This is an international policy and usually will require an additional fee to build the bike. This will be confirmed by one of our online staff after purchase of the bike.
