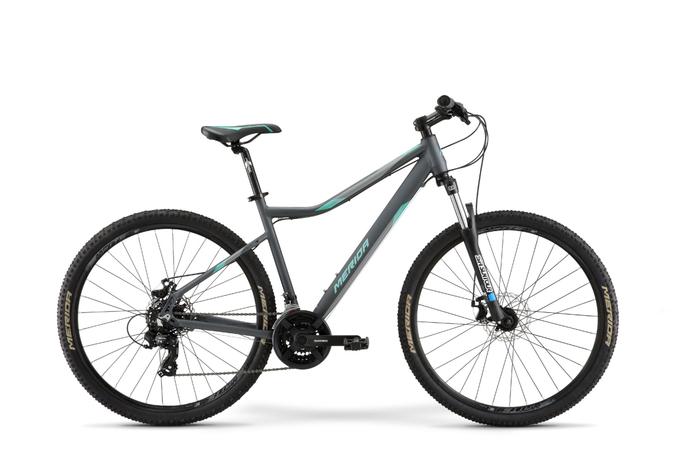

Merida Matts 7.10-MD W
The Merida Matts 7.10-MD is a versatile hardtail mountain bike designed specifically for female riders, offering a comfortable and efficient ride with mechanical disc brakes and trail proven Shimano components at an introductory price.
Merida Matts 7.10-MD W
Frame
Colour: Anthracite/Teal
Frame: BIG.SEVEN SPEED; MAT aluminium; 27.5"
Fork: Suntour XCE28
Shock: NA
Drivetrain
Crankset: Shimano TY301
Pedals: Chain: CN-7s
Bottom Bracket: Cartridge Bearing
Rear Derailleur: Shimano TY300, TOURNEY
Front Derailleur: Shimano TY300, TOURNEY
Derailleur Shifter: Shimano ST-EF500
Freewheel/Cassette: Shimano CS-HG200-12-32, 7s
Braking System
Brakes: [F] and [R] Jak-7 Mechanical Disc, 160mm rotor
Brake Levers:
Wheels
Tyres: [F] and [R] INNOVA IA-2569 (27.5x2.1")
Wheels/Rims: MERIDA double D, alloy
Hubs: [F] and [R] Alloy Disc, Quick Release
Other
Handlebar: MERIDA Comp
Stem: MERIDA Comp
Saddle: Merida Comfort L DDK-258
Seat Post: MERIDA Speed
Merida Matts 7.10-MD W
| Frame Size | XS | S | M | L |
| Tyre Sizes | 27.5" | 27.5" | 27.5" | 27.5" |
| ST seat tube [mm] | 343 | 381 | 432 | 470 |
| TT top tube [mm] | 550 | 560 | 575 | 585 |
| CS chain stay length [mm] | 430 | 430 | 430 | 430 |
| HTA head tube angle [°] | 70 | 70 | 70.5 | 70.5 |
| STA seat tube angle [°] | 73.5 | 73.5 | 73 | 73 |
| BD bottom bracket drop [mm] | 53 | 53 | 53 | 53 |
| HT head tube [mm] | 100 | 105 | 115 | 125 |
| FL fork length [mm] | 490 | 490 | 490 | 490 |
| R reach [mm] | 374 | 383 | 389 | 396 |
| S stack [mm] | 593 | 598 | 609 | 619 |
| WB wheel base [mm] | 1042 | 1053 | 1057 | 1068 |
| SH stand over height [mm] | 650 | 686 | 731 | 764 |
