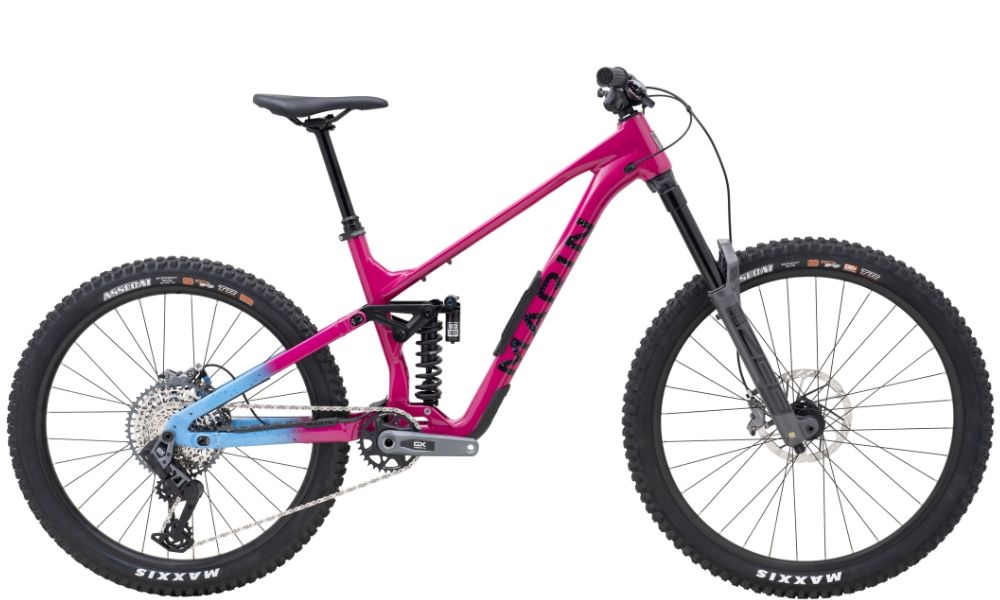

    Marin 2025 Alpine Trail XR AXS

    The all-new Alpine Trail series is our boldest and most capable line of enduro bikes ever, built upon our most advanced, most adjustable frames to date.

    Series 4 aluminum MultiTrac 2 LT frames feature mixed 29”/27.5” wheels, 170mm front and 160mm rear travel, and the utmost in adjustability. Riders can alter the head tube angle and bottom bracket/chainstay length, as well as run 29” rear wheels if desired. “Bear Box” downtube storage includes a zippered nylon bag to house trail essentials, and a 34.9mm seatpost increases strength and is compatible with the latest dropper posts.

    "XR" = "Xtra Rad" here at Marin, and we pulled out all the stops with the XR AXS take on the Alpine Trail. Not only did we grace the bike with Ultimate-level RockShox suspension, but took the drivetrain up a notch with SRAM's GX Eagle AXS wireless 12-speed drivetrain. SRAM's Code Bronze brakes provide tenacious stopping power with their 4-piston calipers and 203mm rotors.

    Marin 2025 Alpine Trail XR AXS

    Frame

    Colour: Gloss Magenta/Blue/Black
    Frame: All New Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Boost Thru- Axle, 73mm Threaded BB w
    Fork: RockShox Zeb Ultimate, 170mm Travel, 29", 110x15mm Maxle Stealth, 44mm Offset
    Shock: RockShox Super Deluxe Coil Ultimate, 205x65, 30xM8 Lower Hardware, Custom Tune, Spring Rates S/M: 350lbs, L/XL:400lbs

    Drivetrain

    Crankset: SRAM GX Eagle, 32T, 55MM CL, 170MM Length
    Chain: SRAM GX Eagle T-Type
    Bottom Bracket: SRAM DUB MTB 73
    Rear Derailleur: SRAM GX Eagle AXS T-Type
    Front Derailleur:
    Derailleur Shifter: SRAM AXS POD MMX
    Freewheel/Cassette: SRAM GX 1275 T-Type 10-52T

    Braking System

    Brakes: [F] SRAM Code Bronze 4-Piston Hydraulic Disc, HSC 200mm Rotor [R] SRAM Code Bronze 4-Piston Hydraulic, HSC 200mm Rotor
    Brake Levers: SRAM Code Bronze Stealth Hydraulic

    Wheels

    Tyres: [F] Maxxis Assegai MAXX GRIP 29x2.5 EXO+ [R] Maxxis Assegai MAXX GRIP 27.5x2.5" DoubleDown, Tubeless compatible
    Wheels/Rims: Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
    Hubs: [F] Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h [R] Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H

    Other

    Handlebar: Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
    Stem: Marin CNC, 35mm Length, 35mm Bar Bore
    Saddle: Marin Speed Concept

    Marin Alpine Trail XR AXS

      S M L XL
    STACK 620.08 633.51 642.6 646.93
    REACH 430 460 490 520
    HEADTUBE ANGLE 63.5° 63.5° 63.5° 63.5°
    HEADTUBE LENGTH 100 115 125 130
    TOPTUBE EFFECTIVE 79.2° 79° 78.8° 78.6°
    SEATTUBE ANGLE 400 420 430 460
    SEATTUBE LENGTH 556 592 626 659
    BB HEIGHT 352 352 352 352
    BB DROP (REAR/FRONT) 7/24 7/24 7/24 7/24
    CHAINSTAY 435 435 435 435
    WHEELBASE 1211.42 1248.11 1282.57 1317.8
    STANDOVER HEIGHT 683.32 68 9.88 695.6 698.13
    FORK OFFSET 44 44 44 44
    *Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products at the time of sale. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs. Please read our Terms & Conditions

    *Giant & Liv Bicycles are available for purchase online, but due to warranty regulations, must be shipped to qualified Giant dealers, as bicycles must be assembled by a qualified bike mechanic in an approved store - This is an international policy and usually will require an additional fee to build the bike. This will be confirmed by one of our online staff after purchase of the bike.

    *Specialized Bicycles are available for home delivery nation wide.

    *AMFLOW Bicycles are available for purchase online, but MUST be collected from the store.

    *TREK Bicycles are available for purchase online, but MUST be collected from the store.
