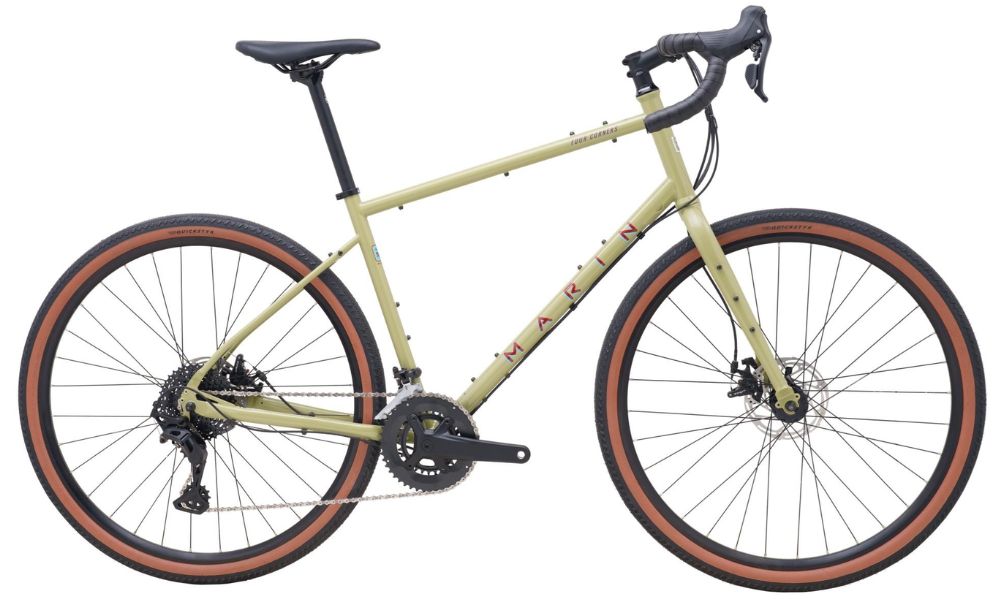

Marin 2025 Four Corners 1
Midweek commute or weekend adventures? A three day audax or a 12 month round the world tour? The Four Corners 1 now comes with a fresh 2x9 MicroShift Sword drivetrain offering improved reliability and a wider range of useable gears. The butted 4130 CroMo steel frame and fork are designed to be comfortable on rough roads but to also handle fully loaded touring and bike packing. We’ve included six bottle mounts, rack and fender eyelets, lowrider fork mounts, generous tire clearance and disc brakes to set you up for all conditions and all terrain.
Whatever you choose is no problem for the Marin Four Corners, our steel-framed explorer that’s as comfortable on the asphalt as it is in the dirt. Life is about the journey, not the destination, and that's what the Four Corners is here for.
Marin 2025 Four Corners 1
Frame
Size: S - 27.5, M, L, XL - 29
Colour: Tan Burgundy
Frame: Series 1 CrMo, Size-Specific Wheels (XS, S = 27.5, M, L, XL = 700C) , Biometric Geometry, Fender and Rack Mounts, Disc Mount
Fork: Series 1 CrMo, Fender, Rack, and Bottle Cage Eyelets, IS Disc Mount
Shock:
Drivetrain
Crankset: Forged Aluminum, 46-29T
Pedals:
Chain: KMC X9
Bottom Bracket: Square Taper, Sealed Bearing
Rear Derailleur: MicroSHIFT Sword Black, 9-Speed
Front Derailleur: MicroSHIFT Sword Black
Derailleur Shifter: MicroSHIFT Sword Black, 2x9-Speed
Freewheel/Cassette: MicroSHIFT, 9-Speed, 11-38T
Braking System
Brakes: [F] and [R] Tektro Spyre-C Road Mechanical Disc, 160mm Rotor
Brake Levers: MicroSHIFT Sword w/ Integrated Shifters
Wheels
Tyres: [F] and [R] Vee Tire Co., GPVee, 700/27.5x1.5
Wheels/Rims: [F] and [R] Marin Aluminum, Double Wall, Disc Specific
Hubs: [F] and [R] Forged Aluminum Alloy, Disc, 32H
Other
Handlebar: Marin Butted Alloy, Compact 16Âş Flared Drop
Stem: Marin 3D Forged Alloy
Seat Post: Marin Alloy, 27.2mm
Saddle: Marin MTB
Marin 2025 Four Corners 1
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 560 | 580 | 618 | 648 | 679 |
| Reach | 376.7 | 381 | 403.3 | 412.6 | 426.6 |
| Headtube Angle | 70° | 70° | 71° | 71° | 71° |
| Headtube Length | 167 | 188 | 188 | 209 | 252 |
| Seattube Angle | 74.5° | 73.5° | 73.5° | 72.5° | 72° |
| Seattube Length | 381 | 422 | 462 | 495 | 528 |
| Toptube Effective | 532 | 553 | 586 | 617 | 647 |
| BB Height | 291 | 291 | 288.5 | 288.5 | 288.5 |
| BB Drop | 53.5 | 53.5 | 72 | 72 | 72 |
| Chainstay | 432 | 432 | 450 | 450 | 450 |
| Wheelbase | 1035 | 1047 | 1087 | 1107 | 1132 |
| Standover Height | 668 | 707 | 745 | 777 | 810 |
| Fork Offset | 43 | 43 | 49 | 49 | 49 |
| Seatpost Diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| Handlebar Width | 400 | 400 | 420 | 420 | 440 |
| Stem Length | 70 | 70 | 70 | 70 | 70 |
| Crank Length | 170 | 170 | 175 | 175 | 175 |
All lengths in millimeters
