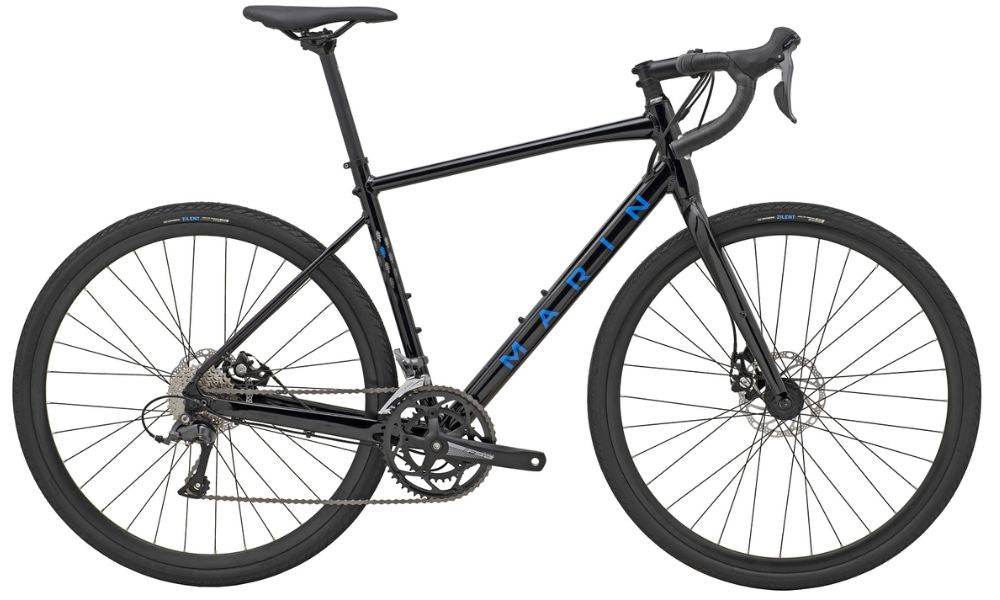

Marin 2025 Gestalt
ADVENTURE ROAD RIDING
LONG DISTANCE COMMUTING
ENDURANCE AND ALL-WEATHER PAVEMENT
The Marin Gestalt takes you Beyond Road.
Tarmac and trail, rough roads and muddy commutes, bikepacking, touring and adventure. Daily trips and weekend escapes are all within the Gestalt’s wheelhouse, with no stopping when the asphalt turns to dirt.
Our most affordable Gestalt, we’ve taken our Series 2 aluminum frame and created a killer value all-terrain explorer that won’t stretch your budget. Aluminum straight-blade fork, WTB Exposure 36mm wide tires, Tektro mechanical disc brakes, Shimano Claris 2x8-speed groupset and plenty of quality Marin components all add up to bags of value and heaps of fun.
Marin 2025 Gestalt
Frame
Size: 50, 52, 54, 56, 58
Colour: Black
Frame: Series 2 Beyond Road, 6061 Aluminum, 700C Wheels, Relieved Head Tube and BB, Internal Cable Routing, Disc Specific Forged Dropouts w/ Mudguard and Rack Mounts
Fork: 6061 Aluminum, Straight-Blade, Post-Mount Disc
Shock:
Drivetrain
Crankset: FSA Tempo Compact, 50/34T
Pedals:
Chain: KMC Z8
Bottom Bracket: Sealed Bearing Square Taper
Rear Derailleur: Shimano Claris 8-Speed
Front Derailleur: Shimano Claris
Derailleur Shifter: Shimano Claris 2x8-Speed
Freewheel/Cassette: SunRace 8-Speed, 11-32T
Braking System
Brakes: [F] and [R] Tektro MD-C400 Road Mechanical, 160mm Rotor
Brake Levers: Shimano w/ Integrated Shifters
Wheels
Tyres: [F] and [R] WTB Exposure Comp 700x36
Wheels/Rims: [F] and [R] Marin Aluminum Double Wall, 19mm Inner, 25mm Tall, Disc Specific
Hubs: [F] and [R] Forged Aluminum Alloy, 6-Bolt Disc, 32H
Other
Handlebar: Marin Butted Alloy, Compact 12Âş Flared Drop
Stem: Marin 3D Forged Alloy
Seat Post: Marin Alloy, 27.2mm
Saddle: Marin Beyond Road Concept
Marin 2025 Gestalt
| 50 | 52 | 54 | 56 | 58 | 60 | |
|---|---|---|---|---|---|---|
| Stack | 552 | 568 | 582 | 601 | 620 | 641 |
| Reach | 367 | 372 | 377 | 387 | 402 | 404 |
| Headtube Angle | 71° | 71.5° | 71.5° | 71.5° | 71.5° | 71.5° |
| Headtube Length | 120 | 135 | 150 | 170 | 190 | 210 |
| Seattube Angle | 74.5° | 74° | 73.5° | 73.5° | 73.5° | 73° |
| Seattube Length | 460 | 480 | 500 | 520 | 540 | 560 |
| Toptube Effective | 520 | 535 | 550 | 565 | 585 | 600 |
| BB Height | 276 | 276 | 276 | 276 | 276 | 276 |
| BB Drop | 78 | 78 | 78 | 78 | 78 | 78 |
| Chainstay | 432 | 432 | 432 | 432 | 432 | 432 |
| Wheelbase | 1008 | 1014 | 1024 | 1040 | 1060 | 1070 |
| Standover Height | 714 | 732 | 755 | 775 | 794 | 814 |
| Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 |
| Seatpost Diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| Handlebar Width | 420 | 420 | 440 | 440 | 460 | 460 |
| Stem Length | 70 | 70 | 90 | 90 | 110 | 110 |
| Crank Length | 170 | 170 | 175 | 175 | 175 | 175 |
All lengths in millimeters
