- Description
- Specifications
- Geometry
Marin 2026 DSX FS
LONG DISTANCE MIXED SURFACE COMMUTING
GRAVEL RIDING
ADVENTURE ON AND OFF-ROAD RIDING
Is it a gravel bike? Is it a mountain bike? We’ve got no idea - we just know that it’s a whole mountain of fun. The Marin DSX FS breaks the gravel bike mold even further by adding a 60mm SR/Suntour front suspension fork for hard-charging, off-road adventures. There’s also a 12-speed 1X Shimano SLX drivetrain, Vee Tire Co tires, Shimano hydraulic brakes and plenty of reliable Marin components.

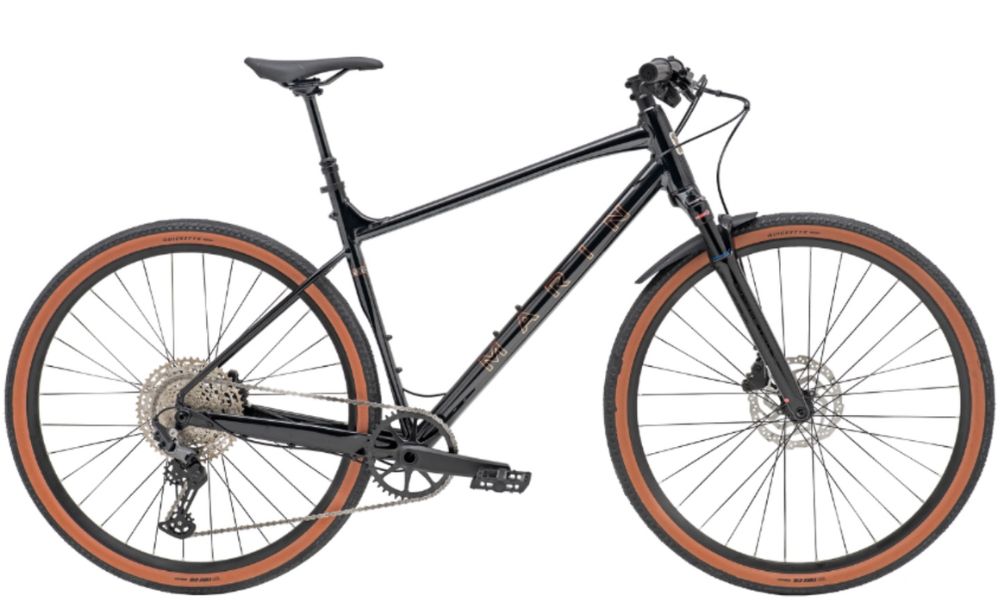

Marin 2026 DSX FS
Frame
Size: S, M, L, XL
Colour: Black/Orange
Frame: Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Fork: SR/Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts
Shock:
Drivetrain
Crankset: Forged Aluminum, 42T Steel Narrow Wide Chainring
Pedals:
Chain: KMC X12
Bottom Bracket: Sealed Outboard Bearing
Rear Derailleur: Shimano Deore, RD6100, 12-Speed
Front Derailleur:
Derailleur Shifter: Shimano Deore, SLM6100, 12-Speed
Freewheel/Cassette: SunRace, 12-Speed, 11-51T
Braking System
Brakes: [F] and [R] Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor
Brake Levers: Tektro Hydraulic
Wheels
Tyres: [F] and [R] Vee Tire Co., QuikStyk, 700x45,Folding Bead, Tubeless Compatible
Wheels/Rims: [F] [R] Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible
Hubs: [F] Forged Aluminum, 100x12mm, Disc, 32H [R] Forged Aluminum, 142x12mm, Disc Specific, 32H
Other
Handlebar: Marin Mini Riser
Stem: Marin 3D Forged Alloy
Seat Post: Marin Alloy
Saddle: Marin DSX
Marin 2026 DSX FS
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 583.2 | 601.8 | 629.7 | 657.6 |
| Reach | 400 | 425 | 440 | 455 |
| Headtube Angle | 68.5° | 68.5° | 68.5° | 68.5° |
| Headtube Length | 100 | 120 | 150 | 180 |
| Seattube Angle | 74° | 74° | 74° | 74° |
| Seattube Length | 430 | 480 | 520 | 558 |
| Toptube Effective | 567.23 | 597.6 | 620.6 | 643.6 |
| BB Height | 277.5 | 277.5 | 277.5 | 277.5 |
| BB Drop | 82 | 82 | 82 | 82 |
| Chainstay | 425 | 425 | 425 | 425 |
| Wheelbase | 1065 | 1097.3 | 1123.3 | 1149.3 |
| Standover Height | 667 | 708 | 738 | 761 |
| Fork Offset | 47 | 47 | 47 | 47 |
| Seatpost Diameter | 27.2 | 27.2 | 27.2 | 27.2 |
| Handlebar Width | 680 | 680 | 680 | 700 |
| Stem Length | 70 | 70 | 70 | 70 |
| Crank Length | 170 | 175 | 175 | 175 |
