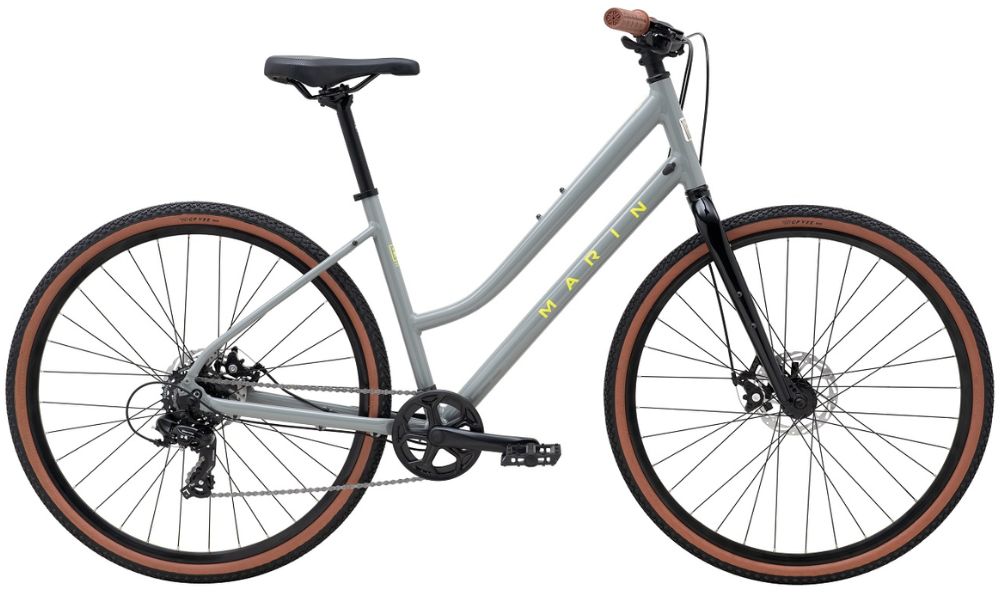

Marin 2026 Kentfield 1 ST
COMFORTABLE TRANSPORT
CASUAL COMMUTER
BIKE PATH SUNDAY DRIVER
The Kentfield ST1 is the step-through version of our most-affordable Kentfield. Designed to be affordable, comfortable and reliable it’ll go the distance, every day of the week.
Our Series 1 aluminum frame is lightweight and responsive, and comes decked out with plenty of rack and fender mounts to suit your setup. There’s a Shimano 7-speed drivetrain, Vee Tire tires, Clark’s mechanical disc brakes and plenty of reliable Marin components.
Why choose a step-through bicycle frame? Traditionally designed for female riders wearing skirts, the step-through has evolved to suit anyone that prefers a frame that’s far easier to swing a leg over. They’re ideal for less flexible riders, slow-speed urban cycling and riders that need to load their bike up with bags or kids.
Marin 2026 Kentfield 1 ST
Frame
Size: S, M, L
Colour: Grey
Frame: Series 1 City + Sport, 6061 Aluminum, 700C Wheels, Step Through Design, Fender and Rack Mounts
Fork: Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets
Shock:
Drivetrain
Crankset: Forged Alloy Crank, Steel 38T Chainring, Ring Guard
Pedals:
Chain: KMC Z8
Bottom Bracket: Sealed Cartridge Bearings, Square Taper
Rear Derailleur: Shimano Tourney 7-Speed
Front Derailleur:
Derailleur Shifter: Shimano Altus 7-Speed RapidFire
Freewheel/Cassette: Shimano CSHG200, 7-Speed, 12-32T
Braking System
Brakes: [F] and [R] Tektro MDM280 Mechanical Disc, 160mm Rotor
Brake Levers: Aluminum Lever
Wheels
Tyres: [F] and [R] Vee Tire, GPVee, 700Cx40mm, Wire Bead, Flat Protection, Mixed Terrain Ready
Wheels/Rims: Marin Aluminum Double Wall, Disc Specific
Hubs: Forged Aluminum Alloy, 32H
Other
Handlebar: Marin Alloy, 30mm Rise, 12? Backsweep
Stem: Marin Aluminum, 31.8mm Clamp
Seat Post: Marin Alloy, 27.2mm
Saddle: Marin Adventure Plush
Marin 2026 Kentfield 1 ST
| S | M | L | |
|---|---|---|---|
| Stack | 633.6 | 648.4 | 666.5 |
| Reach | 380 | 400 | 415 |
| Headtube Angle | 70° | 70° | 70° |
| Headtube Length | 190 | 205 | 225 |
| Seattube Angle | 73.5° | 73.5° | 73.5° |
| Seattube Length | 381 | 422 | 462 |
| Toptube Effective | 567.7 | 591.9 | 612.4 |
| BB Height | 294.5 | 294.5 | 294.5 |
| BB Drop | 70 | 70 | 70 |
| Chainstay | 450 | 450 | 450 |
| Wheelbase | 1082.9 | 1108 | 1130 |
| Standover Height | 510.61 | 523.8 | 543.04 |
| Fork Offset | 50 | 50 | 50 |
| Seatpost Diameter | 27.2 | 27.2 | 27.2 |
| Handlebar Width | 680 | 740 | 740 |
| Stem Length | 45 | 45 | 45 |
| Crank Length | 170 | 170 | 175 |
All lengths in millimeters
