Marin Kentfield 1

$899.00

Size

Quantity

Some products are available in multiple variants, and not all variants have images. Please make sure you’ve selected the correct option for each product before proceeding to checkout.

Please manually select shipping rates at checkout

Finance Plans Available

Description
Specifications
Geometry

Description

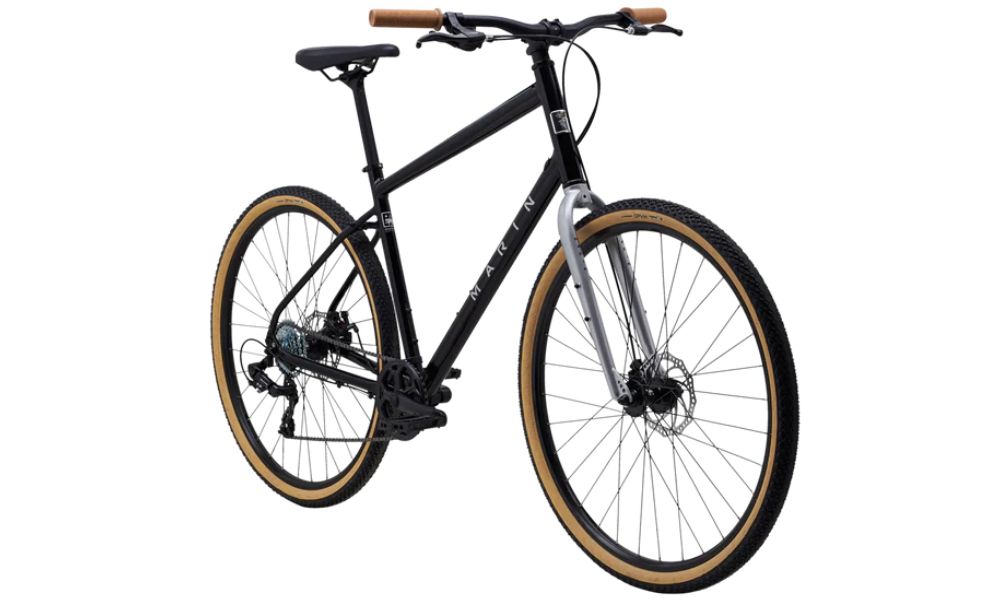

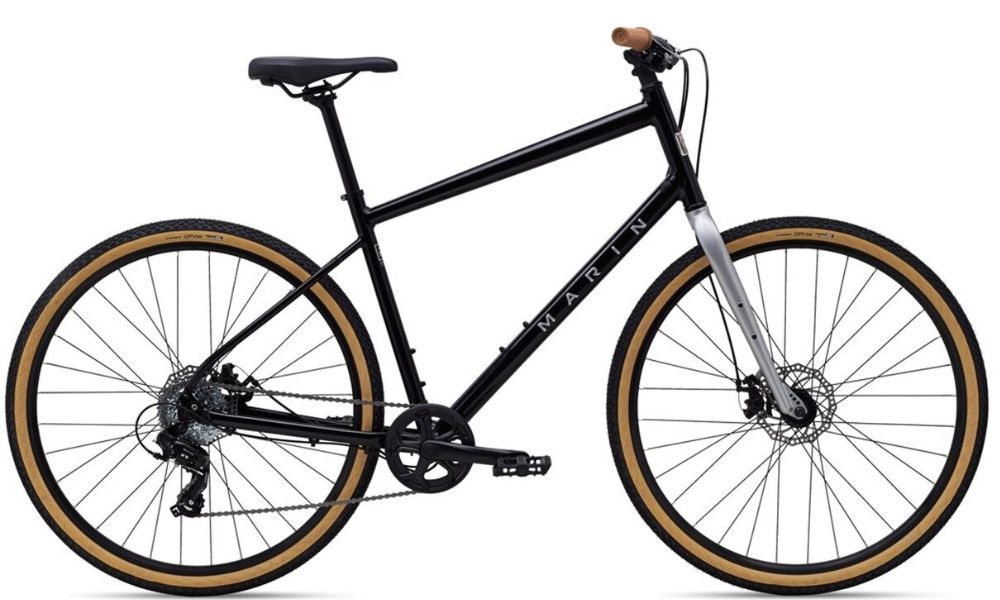

Marin Kentfield 1

The Kentfield 1 is our most-affordable Kentfield. Designed to be affordable, comfortable and reliable it’ll go the distance, every day of the week.

Our Series 1 aluminum frame is lightweight and responsive, and comes decked out with plenty of rack and fender mounts to suit your setup. There’s a Shimano 7-speed drivetrain, Vee Tire tires, Tektro mechanical disc brakes and plenty of reliable Marin components.

Specifications

Marin Kentfield 1

Frame

Size: SM, MD, LG, XL
Colour: Black/Chrome
Frame: Series 1 6061 Aluminum
Fork: Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets
Shock:

Drivetrain

Crankset: Forged Alloy Crank, Steel 38T Chainring, Ring Guard
Pedals:
Chain: KMC Z8
Bottom Bracket: Sealed Cartridge Bearings, Square Taper
Rear Derailleur: Shimano Tourney 7-Speed
Front Derailleur:
Derailleur Shifter: Shimano Altus 7-Speed RapidFire
Freewheel/Cassette: SunRace 7-Speed, 11-34T

Braking System

Brakes: Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Brake Levers: Aluminum Lever

Wheels

Tyres: Vee Tire, GPVee, 700x40, Wire Bead, Flat Protection, Mixed Terrain Ready
Wheels/Rims: Marin Aluminum Double Wall, Disc Specific
Hubs: [F] and [R] Forged Alloy, Disc, 32H

Other

Handlebar: Marin Alloy, 30mm Rise, 12˚ Backsweep
Stem: Marin Aluminum, 31.8mm Clamp
Seat Post: Marin Alloy, 27.2mm
Saddle: Marin Adventure Plush

Geometry

Marin Kentfield 1

	S	M	L	XL
AStack	633.6	648.4	666.5	685.3
BReach	380	400	415	430
CHeadtube angle	70°	70°	70°	70°
DHeadtube length	190	205	225	245
ESeattube length	422	462	495	528
FSeattube angle	73.5°	73.5°	73.5°	73.5°
GToptube effective	567.7	591.9	612.4	633
HBb height	294.5	294.5	294.5	294.5
IBb drop	70	70	70	70
JChainstay	450	450	450	450
KWheelbase	1082.9	1108	1130	1151.7
LStandover height	718.86	754.41	784.94	815.14
MFork offset	50	50	50	50
NSeatpost diameter	27.2	27.2	27.2	27.2
OHandlebar width	680	740	740	740
PStem length	45	45	45	45
QCrank length	170	170	175	175
