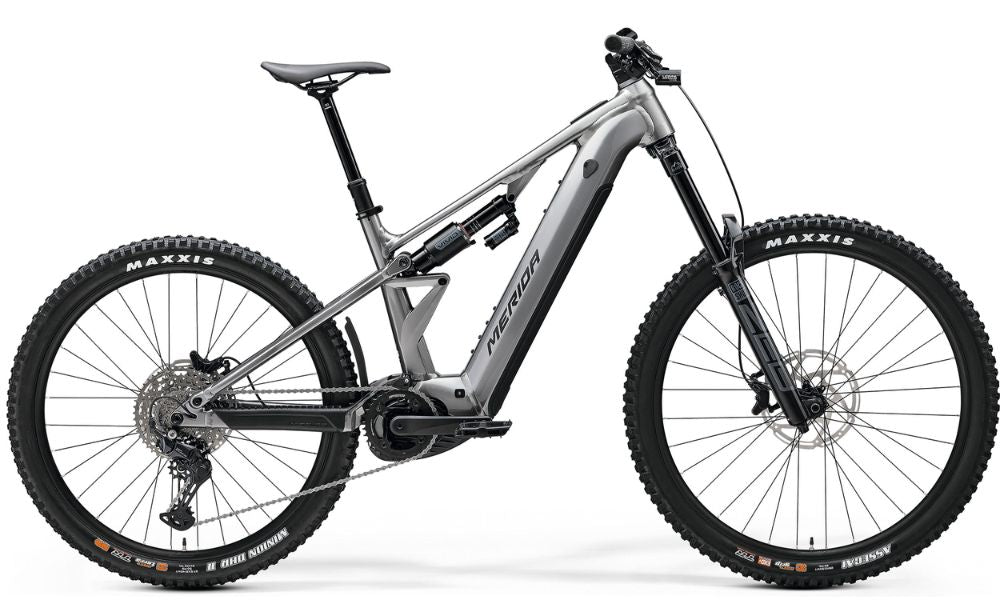

    Merida 2025 eONE EIGHTY 500

    The eONE-EIGHTY 500 is built for taking on the gnarliest trails wherever you find them. With 180 mm of travel at either end from our robust aluminium frame, a RockShox Zeb Base fork and Vivid Base shock mean this bike is ready to eat up rock gardens for breakfast, drops for lunch and some gaps for dinner - or whatever you're hungry for. The Bosch CX drive unit and a huge 800 Wh battery mean you can repeat that for as long as you like too, while our mixed wheel size setup means this is a bruiser that can dance.

    Calling all heavy hitters, bike park senders and big mountain brawlers, this one’s for you. The new eONE-EIGHTY has landed, and it’s ready to ride the biggest lines and burliest tracks - and you can say goodbye to waiting in the uplift queue because it can rip and repeat all day long thanks to a big 800 Wh battery and Bosch CX power.It’s our longest travel e-bike ever, with 180 mm of suspension at either end on a robust aluminium frame with a new suspension platform that builds on our award-winning FAST kinematic from the eONE-SIXTY and sends it to new heights. Add in coil shock compatibility, mixed-wheel size only setup, plus a whole host of other features and getting rowdy is where the eONE-EIGHTY starts, not finishes. Up or down, it’s ready to rock.It’s also our first e-MTB to use the Bosch Performance Line CX drive unit, which offers powerful assistance and silent performance with 85 Nm on tap. There’s a serious amount of range on offer too, thanks to the new 800 or 600 Wh battery - plus the option of a 250 Wh range extender. You can easily remove the battery for off-bike charging or replacement on a really big ride, plus we’ve also got a new cover that protects from dirt, impacts and moisture - and it holds itself in place with the magic of Fidlock magnets.It’s rated for Category 5 riding too, so you can get stuck into as many bike park laps or downhill tracks as you like without voiding the 5-year warranty.

    • Tough aluminium frame with 180 mm rear wheel travel and mixed wheel sizes as standard for fun and agile handling
    • RockShox Zeb Base fork with 180 mm travel, RockShox Vivid Base rear shock
    • Shimano CUES U6000 10-speed drivetrain
    • MERIDA TEAM TR II tubeless ready wheelsetUser removable 800 Wh battery with optional 250 Wh range extender, powerful Bosch CX drive unit
    • Reach-based AGILOMETER sizing system with MERIDA EXPERT TR II size-specific dropper post (XS: 125 mm, S: 150 mm, M/L: 200 mm, XL: 230 mm travel seatpost)

    Merida 2025 eONE EIGHTY 500

    Frame

    Colour: Gunmetal Grey
    Frame: eONE-EIGHTY LITE, material: aluminium, 180mm suspension travel, 27.5" x 2.6" max. Wheelsize, 148x12mm axle standard
    Fork: Rock Shox Zeb Base eMTB, Air, 180mm suspension travel, 29x2.6" max wheelsize
    Shock: Rockshox Zeb Base eMTB

    Drivetrain

    Crankset: FSA CK-220 wide E-Bike Forged Crankset, 165mm for all sizes
    Chain: Shimano LG500
    Bottom Bracket: NA
    Rear Derailleur: Shimano CUES U6000
    Front Derailleur: NA
    Derailleur Shifter: Shimano SL -MT500-L / Shimano Cues U6000-10
    Freewheel/Cassette: Shimano Cues LG400, 11-48 teeth, 10 speed

    Braking System

    Brakes: Tektro Gemini M535, 4 piston, Tektro TR203-45, 203mm
    Brake Levers:

    Wheels

    Tyres: [F] Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip [R] Maxxis Minion DHR II, 27.5x2.4 ", fold, 3C DD TR MaxxTerra
    Wheels/Rims: MERIDA EXPERT TR II, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5”
    Hubs: Shimano TC500, 32 spoke holes, Centerlock

    Other

    Handlebar: MERIDA EXPERT eTR, 780mm width, XS,S 20RHB, M,L,XL 30RHB
    Stem: MERIDA EXPERT eTR II, material: aluminium, 35mm diameter, 0° stem angle, Supernova mount, 40 mm all sizes
    Saddle: MERIDA COMP SL, V-mount
    Seat Post: MERIDA TEAM TR II, 34.9mm diameter, 0mm setback, XSHORT 30-200mm travel seatpost, SHORT, MID, LONG and XLONG 30-230mm travel seatpost

    E-Bike

    Drive Unit: Bosch Performance Line CX
    Display: Bosch Purion 400
    Controller:
    Battery: Bosch PowerTube 800 Wh

    Extras

    Lights: [F] Lezyne Hecto StVZO E350+ Reverse [R] USB REAR Light CG-214RG
    Pannier Rack: NA
    Fenders:
    Kickstand:

    Merida 2025 eONE EIGHTY 500

    *Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products at the time of sale. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs. Please read our Terms & Conditions

    *Giant & Liv Bicycles are available for purchase online, but due to warranty regulations, must be shipped to qualified Giant dealers, as bicycles must be assembled by a qualified bike mechanic in an approved store - This is an international policy and usually will require an additional fee to build the bike. This will be confirmed by one of our online staff after purchase of the bike.

    *Specialized Bicycles are available for home delivery nation wide.

    *AMFLOW Bicycles are available for purchase online, but MUST be collected from the store.

    *TREK Bicycles are available for purchase online, but MUST be collected from the store.
