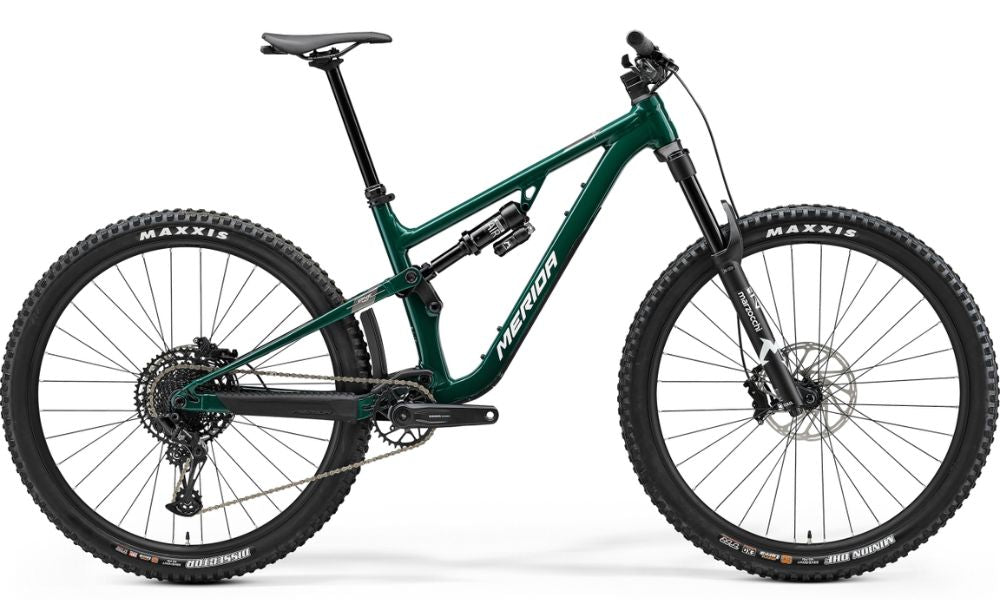

    Merida 2025 One Forty 700

    Bikeradar's Trail Bike of the Year 2023, the ONE-FORTY 700 marries a high-value all-aluminium frame to high-performance equipment that won't let you down. Our radical trail geometry delivers the sort of climbing ability that would make a mountain goat proud while shaming enduro bikes with descending speed. Wide range, 12-speed SRAM drivetrain and four-piston brakes, high-performance Marzocchi suspension plus our long travel adjustable dropper post deliver unwavering performance.

    The test and award-winning ONE-FORTY is the ultimate trail bike, made for the toughest trails in the world. It’s the pinnacle of modern trail riding, with a super-steep 80° seat angle, low front end and bottom bracket allow it to clear the most technical climbs, while longer reach figures across all sizes and a well-balanced 65° head angle mean it’s still more than capable of ripping any descent. With our AGILOMETER sizing system, riders can run a longer or shorter reach frame independently of their height, with suspension that becomes more progressive as you size up to better cope with heavier/harder riders. We’ve focussed on weight reduction and rolling speed too, for improved efficiency. All bikes come with long travel dropper posts, WIRE PORT cable routing and a reliable threaded bottom bracket plus carbon frames have on-board tool storage and Fidlock magnetic bottle cages.

    • Full aluminium frame with FAST kinematic suspension and AGILOMETER sizing
    • Radical trail geometry with full 29er wheels
    • 230 mm travel-adjustable dropper post
    • Marzocchi suspension, 150 mm front, 143 mm rear
    • Wide-range SRAM 12-speed drivetrain
    • Powerful 4-piston hydraulic disc brakes

    Merida 2025 One Forty 700

    Frame

    Colour: Dark Forest Green
    Frame: ONE-FORTY LITE III; 143 STR 29"; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR
    Fork: Marzocchi Z1; Air; 150 STR; Tapered; 44mm fork offset; 29.5x2.6" max. WHS
    Shock: Marzocchi Bomber Air; Air; platform

    Drivetrain

    Crankset: Sram Eagle S1000 Eagle; 32 ATC
    Chain: Sram SX Eagle
    Bottom Bracket: Sram BB DUB BSA 73 MTB WIDE
    Rear Derailleur: Sram NX Eagle
    Front Derailleur:
    Derailleur Shifter: Sram NX
    Freewheel/Cassette: Sram PG-1210 Eagle; 11-50 ATC; 12 GER

    Braking System

    Brakes: Sram DB8 stealth; 4 piston, Sram CenterLine; 200mm
    Brake Levers:

    Wheels

    Tyres: [F] Maxxis Minion DHF; 29x2.5"; fold; TR EXO 3C MaxxTera [R] Maxxis Dissector; 29x2.4"; fold; TR EXO+ MaxxTerra
    Wheels/Rims: MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); 29"
    Hubs: [F] Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock [R] Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock

    Other

    Handlebar: MERIDA EXPERT TR II; MAT aluminium; 780 WHB; XS/S 18 RHB; M/L/XL 30 RHB
    Stem: MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD
    Saddle: MERIDA COMP SL; 25% recycled material; V-mount; incl. MERIDA minitool
    Seat Post: MERIDA TEAM TR II; 34.9 DSP; 10 SSB; all sizes 30-230 SPT\

    Merida 2025 One Forty 700

      XShort Short Mid Long XLong
    Tyre Sizes 29" 29" 29" 29" 29"
    ST seat tube [mm] 400 410 425 445 470
    TT top tube [mm] 532 559 586 618 649
    CS chain stay length [mm] 437.5 437.5 437.5 437.5 437.5
    HTA head tube angle [°] 65 65 65 65 65
    STA seat tube angle [°] 80 80 80 80 80
    BD bottom bracket drop [mm] 35 35 35 35 35
    HT head tube [mm] 95 95 95 105 120
    FL fork length [mm] 557 557 557 557 557
    R reach [mm] 426 453 480 509 535
    S stack [mm] 607 607 607 616 629
    WB wheel base [mm] 1177 1204 1232 1265 1298
    SH stand over height [mm] 730 735 738 735 730
