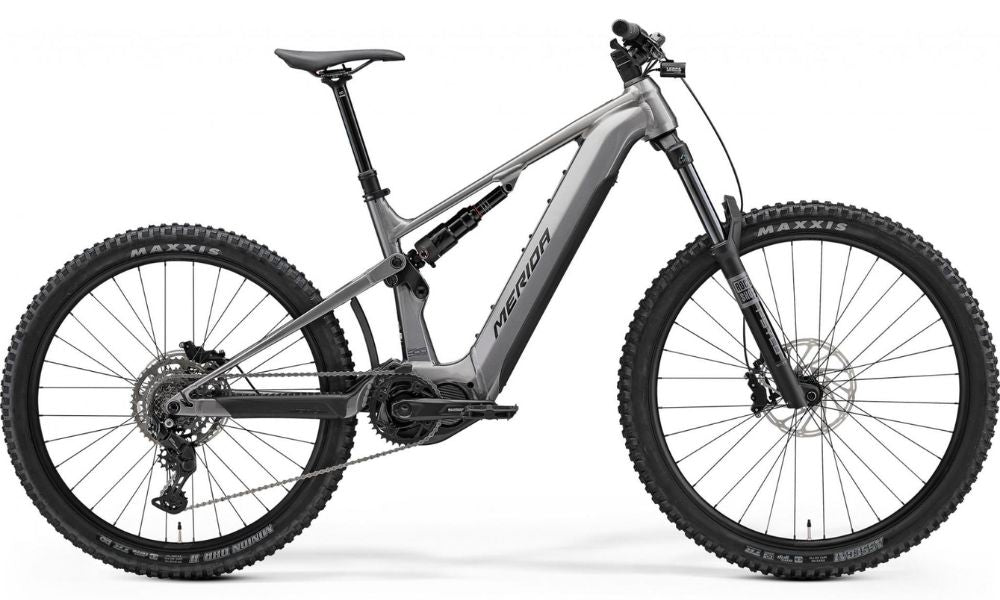

Merida 2026 eONE Sixty 400
Say hello to enduro adventures. Incredible value and proven handling make this the perfect machine to start your e-MTB journey. A powerful Shimano EP801 drive unit and 630 Wh battery will make light work of the hills, and sorted suspension will keep you in control.
Merida 2026 eONE Sixty 400
Frame
Size: Short, Mid, LongColour: Gunmetal Grey/Black
Frame: eONE-SIXTY LITE IV, MAT aluminium, 160 STR, 29x2.6" max. WHS, 148x12 AST
Fork: Rock Shock Psylo Silver R, 160 STR, Tapered, 44mm fork offset, 29x2.6" max WHS
Shock: Rock Shock Deluxe
Drivetrain
Crankset: FSA 1x Steel Chainring, 36tPedals:
Chain: Shimano LG500,
Bottom Bracket:
Rear Derailleur: Shimano Cues U4000, GS
Front Derailleur:
Derailleur Shifter: [F] Shimano SL -MT500-L (Need to check if SL-MT500-L is competible with LIMOTEC post), [R] Shimano Cues U4000-9,
Freewheel/Cassette: Shimano LG400-9, 11-46,9,
Braking System
Brakes: [F] and [R] Sram DB4 stealth, 4 pistonBrake Levers:
Wheels
Tyres: [F] Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip, [R] Maxxis Minion DHR II, 27.5x2.4 ", fold, 3C DD TR MaxxTerra,Wheels/Rims: MERIDA EXPERT TR II, 110x15 WHF, 148x12 WHR, 28 IWR, MAT aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"
Hubs: [F] Shimano TC500-B, 15x100 WHF, 32 SPH, Centerlock [R] Shimano TC500, 12x148 WHR, 32 SPH, Centerlock
Other
Handlebar: MERIDA EXPERT eTR, 780 WHBStem: MERIDA EXPERT eTR II, MAT aluminium, 35 DSH, 0 ASD, Supernova mount,
Seat Post: MERIDA EXPERT TR II, 34.9 DSP, 0 SSB, XS: 125mm travel - S: 150mm travel - M: 170SPT - L: 200mm travel - XL: 230mm travel
Saddle: MERIDA COMP SL, V-mount, incl. MERIDA minitool,
E-Bike
Drive Unit: Shimano EP801, 85NmBattery: Shimano EN806, 630Wh
Display: Shimano SC-EN500
Charger:
Extras
Lights: [F] Lezyne Hekto StVZO E350+ Reverse, reverse MERIDA Custom Mount [R] USB REAR Light CG-214RG,Merida 2026 eONE Sixty 400
| Frame Size | XShort | Short | Mid | Long | XLong |
| Tyre Sizes | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" |
| ST seat tube [mm] | 400 | 410 | 425 | 445 | 465 |
| TT top tube [mm] | 546 | 567 | 589 | 610 | 632 |
| CS chain stay length [mm] | 446 | 446 | 446 | 446 | 446 |
| HTA head tube angle [°] | 64.4 | 64.4 | 64.4 | 64.4 | 64.4 |
| STA seat tube angle [°] | 78.5° | 78.5° | 78.4° | 78.4° | 78.3° |
| BD bottom bracket drop [mm] | 9 | 9 | 9 | 9 | 9 |
| HT head tube [mm] | 100 | 105 | 110 | 115 | 120 |
| FL fork length [mm] | 581 | 581 | 581 | 581 | 581 |
| R reach [mm] | 419 | 439 | 459 | 479 | 499 |
| S stack [mm] | 624 | 628 | 633 | 637 | 642 |
| WB wheel base [mm] | 1199 | 1221 | 1244 | 1266 | 1288 |
| SH stand over height [mm] | 763 | 757 | 751 | 749 | 744 |
