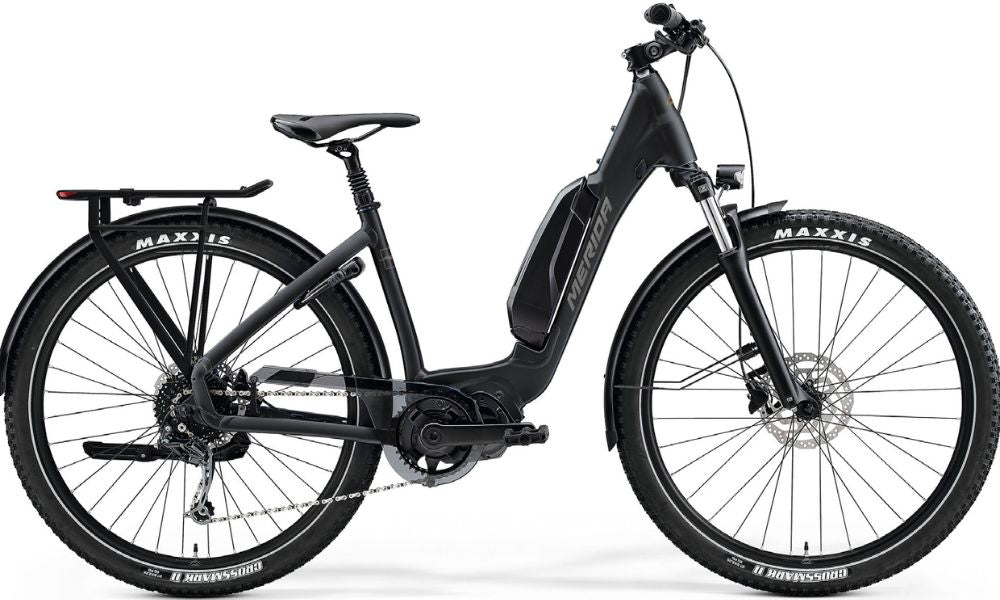

Merida 2026 eSPRESSO CC 400 EQ SE
Whether your commute takes in forest trails and gravel tracks or you just want the freedom to explore at weekends, the eSPRESSO CC 400 EQ delivers all the convenience of a city e-bike with added off-road ability. That's because our low step-through ENERGY CRADLE frame is stiff enough to cope with dirt tracks while also housing an internal 504 Wh battery and the latest Shimano EP6 drive unit. While the suspension fork and seat post help keep you comfortable when it gets bumpy, we've fitted it with a host of kit to make city life easier and safer, with mudguards, rack, lights, lock and a kickstand as standard. A smooth-shifting Shimano 9-speed drivetrain and strong, low-maintenance hydraulic disc brakes add fuss-free control.
The eSPRESSO CC range is the rugged sibling of the regular eSPRESSO CITY, with wider and grippier high-volume tyres on 650b wheels. While it's happy working hard in the urban jungle thanks to standard-fit mudguards, lights, lock, rack and kickstand, it's also capable of taking trips along forest trails and gravel tracks for fun. Featuring the super-strong low step-through ENERGY CRADLE frame design that gives the bike the necessary rigidity, the eSPRESSO CC models are equipped with a 750, 630 or 504 Wh fully-integrated battery. All come with a refined but powerful Shimano EP6 STEPS pedal-assist motor, delivering 85 Nm of torque. Smooth and comfortable progress is assured with suspension forks on all models, while powerful hydraulic disc brakes allow effortless and controlled stopping. All have a high system weight of 150 kg which means plenty of capacity for rider and luggage.
Merida 2026 eSPRESSO CC 400 EQ SE
Frame
Size: XS, S, M
Colour: Metallic Black/Gunmetal Greybr> Frame: eSPRESSO LITE 650, MAT aluminium, 27,5x2,25 max. WHS, 135x9 AST, external, max. 504 Wh
Fork: Suntour NVX30 DS, Coil, 80 STR, 27,5x2,4" max WHS
Shock:
Drivetrain
Crankset: Shimano CRE61, 38T
Pedals:
Chain: KMC xGlide
Bottom Bracket:
Rear Derailleur: Shimano Cues U4000
Front Derailleur:
Derailleur Shifter: Shimano Cues U4000
Freewheel/Cassette:Shimano LG300, 11-46,9
Braking System
Brakes: [F] and [R] Shimano MT-200, 2 piston
Brake Levers:
Wheels
Tyres: [F] and [R] Maxxis Crossmark II, 27.5x2.25", wire, reflecting line,
Wheels/Rims: MERIDA COMP TK, 20 IWR, MAT aluminium,
Hubs: [F] Shimano QC300, 100x9 WHF, 32 SPH, Centerlock [R] Shimano QC300, 135x9 WHR, 32 SPH, Centerlock
Other
Handlebar: MERIDA EXPERT, MAT aluminium, 660 WHB, 15 RHB
Stem: MERIDA Expert CT, 31.8 DSH, adjustable
Seat Post: MERIDA COMP CC, MAT aluminium, 30.9 DSP, 0 SSB
Saddle: MERIDA Expert TK, 152 width
E-Bike
Drive Unit: Shimano EP6, 85Nm
Battery: Shimano EN604 Battery, 504Wh
Display: Shimano SC-EN500
Charger:
Extras
Lights: [F] Herrmans H-Black MR4 E, [R] Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier,
Rack: MERIDA MIK HD carrier
Merida 2026 eSPRESSO CC 400 EQ SE
| Frame Size | XS | S | M | L |
| Tyre Sizes | 27.5" | 27.5" | 27.5" | 27.5" |
| ST seat tube [mm] | 380 | 430 | 480 | 530 |
| TT top tube [mm] | 580 | 595 | 615 | 635 |
| CS chain stay length [mm] | 470 | 470 | 470 | 470 |
| HTA head tube angle [°] | 70 | 70 | 70 | 70 |
| STA seat tube angle [°] | 73.5 | 73.5 | 73.5 | 73.5 |
| BD bottom bracket drop [mm] | 65 | 65 | 65 | 65 |
| HT head tube [mm] | 170 | 175 | 180 | 190 |
| FL fork length [mm] | 476 | 476 | 476 | 476 |
| R reach [mm] | 385 | 399 | 417 | 435 |
| S stack [mm] | 656 | 661 | 666 | 675 |
| WB wheel base [mm] | 1113 | 1129 | 1149 | 1170 |
| SH stand over height [mm] | 403 | 403 | 402 | 402 |
