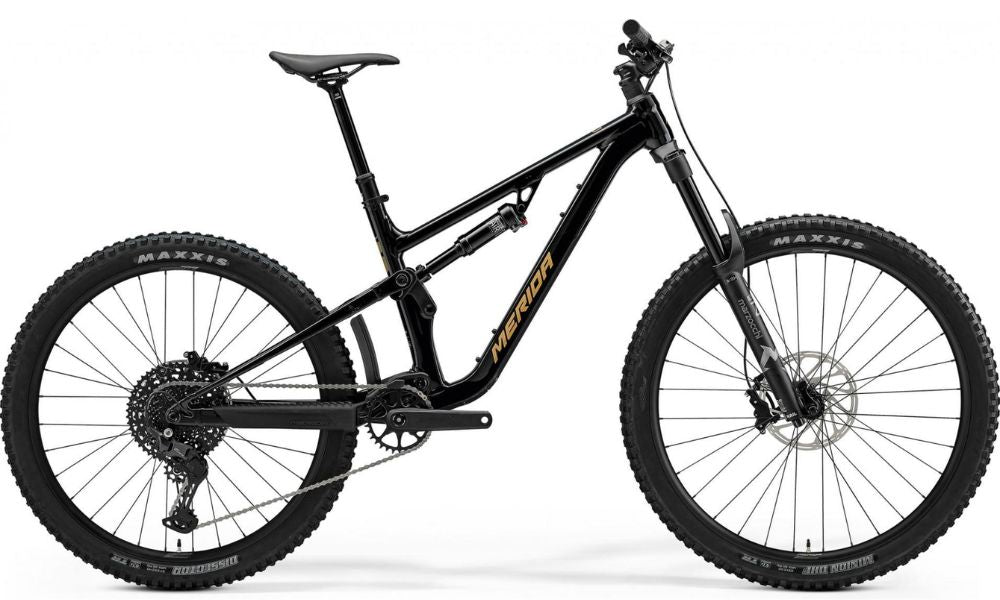

Merida 2026 One Sixty 400
You don't need a big budget to ride hard. Our entry-level enduro bike pairs a fun ride with kit that performs under pressure. The legendary bump eating capability of Marzocchi suspension is paired with Shimano's utterly reliable drivetrain and SRAM stoppers.
Our entry-level ONE-SIXTY keeps the price low but the performance high, because we use suspension from legendary brand Marzocchi, super grippy rubber from Continental and Shimano's durable Deore drivetrain. Add in our progressive geometry, the option of mixed 29/27.5" or full 29" wheels and award winning FAST kinematic suspension and you can race, rip and rally any enduro trail you fancy, even if you're not flush with cash.
Evolution or revolution? How about both? The ONE-SIXTY is a radical, award-winning design that pushes our hard-hitting enduro platform to new heights. Just as well, because once it’s there it’s ready to rip the longest, toughest descents too. Our proven suspension system uses a flexstay design with an adjustable rocker, so whether you choose to run it as a full 29er (162 mm travel) or mixed 29/27.5” setup (171 mm travel), the geometry is preserved. There’s a radically steep 79° seat tube angle for goat-like climbing and slack 64° head angle plus 170 mm fork to deal with downhill trail chaos. Our AGILOMETER sizing allows riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. WIRE PORT cable routing plus reliable threaded bottom bracket round out the package, while carbon frames offer on-board tool storage and FidLock magnetic bottle cages.
- Full aluminium frame with FAST kinematic suspension and radical enduro geometry
- Mixed or full 29er wheels with AGILOMETER sizing
- Marzocchi Z1 fork and Bomber Air suspension, proven Shimano 11-speed drivetrain
- Super tough Continental Kryptotal F + R tyresLong-travel dropper post
- Powerful SRAM DB4 4-piston hydraulic disc brakes
Merida 2026 One Sixty 400
Frame
Size: Short, Mid, Long, X-Long
Colour: Black/River Clay
Frame: ONE-SIXTY LITE III, 171 STR mullet / 162 STR 29", MAT aluminium, 29x2.5" max. WHS, 148x12 AST, BSA BBR,\
Fork: Marzocchi Z1, Air, 170 STR, Tapered, 44mm fork offset, 29x2.6" max. WHS
Shock: Marzocchi Z1, Air, 170 STR, Tapered, 44mm fork offset, 29x2.6" max. WHS,
Drivetrain
Crankset: MERIDA Expert TR II, 32t
Pedals:
Chain: KMC xGlide
Bottom Bracket: Samox BSA 24mm EB2401,
Rear Derailleur: Shimano CUES U6000, GS
Front Derailleur:
Derailleur Shifter: Shimano CUES U6000
Freewheel/Cassette: SunRace 10-50t ZX11, CS-UX700 EA5, 10-50t, 11sp Linkglide,
Braking System
Brakes: [F] and [R] Sram DB4, 4 piston
Brake Levers:
Wheels
Tyres: [F] Maxxis Minion DHF, 29x2.5", EXO wire, tubeless ready [R] Maxxis Dissector, 27.5x2.4" XS/S/M 29x2.4" L/XL, EXO wired, tubeless ready
Wheels/Rims: MERIDA COMP TR II, 28 IWR, MAT aluminium, Tubeless ready (tubeless tape and valves not included), rear 27.5" up to Size M / L & XL rear 29",
Hubs: [F] Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock [R] Shimano TC500-HM-B, 148x12 WHR, 32 SPH, Centerlock
Other
Handlebar: MERIDA COMP TR II, MAT aluminium, 780 WHB, 35 RHB
Stem: MERIDA COMP TR, MAT aluminium, 35 DSH, 0 ASD
Seat Post: MERIDA EXPERT TR II, 34.9 DSP, 0 SSB, XSHORT/SHORT: 150mm travel - MID: 170mm travel - LONG: 200mm travel - XLONG: 230mm travel
Saddle: MERIDA COMP SL, 25% recycled material, V-mount,
Merida 2026 One Sixty 400
| Frame Size | XShort | Short | Mid | Long | XLong |
| Tyre Sizes | 29/27.5" | 29/27.5" | 29/27.5" | 29" | 29" |
| ST seat tube [mm] | 400 | 410 | 425 | 445 | 470 |
| TT top tube [mm] | 535 | 562 | 589 | 621 | 653 |
| CS chain stay length [mm] | 434 | 434 | 434 | 437.5 | 437.5 |
| HTA head tube angle [°] | 64 | 64 | 64 | 64 | 64 |
| STA seat tube angle [°] | 79 | 79 | 79 | 79 | 79 |
| BD bottom bracket drop [mm] | 7 | 7 | 7 | 27.5 | 27.5 |
| HT head tube [mm] | 95 | 95 | 95 | 105 | 120 |
| FL fork length [mm] | 581 | 581 | 581 | 581 | 581 |
| R reach [mm] | 415 | 442 | 470 | 498 | 525 |
| S stack [mm] | 615 | 615 | 615 | 625 | 638 |
| WB wheel base [mm] | 1188 | 1215 | 1242 | 1275 | 1308 |
| SH stand over height [mm] | 735 | 740 | 743 | 740 | 735 |
