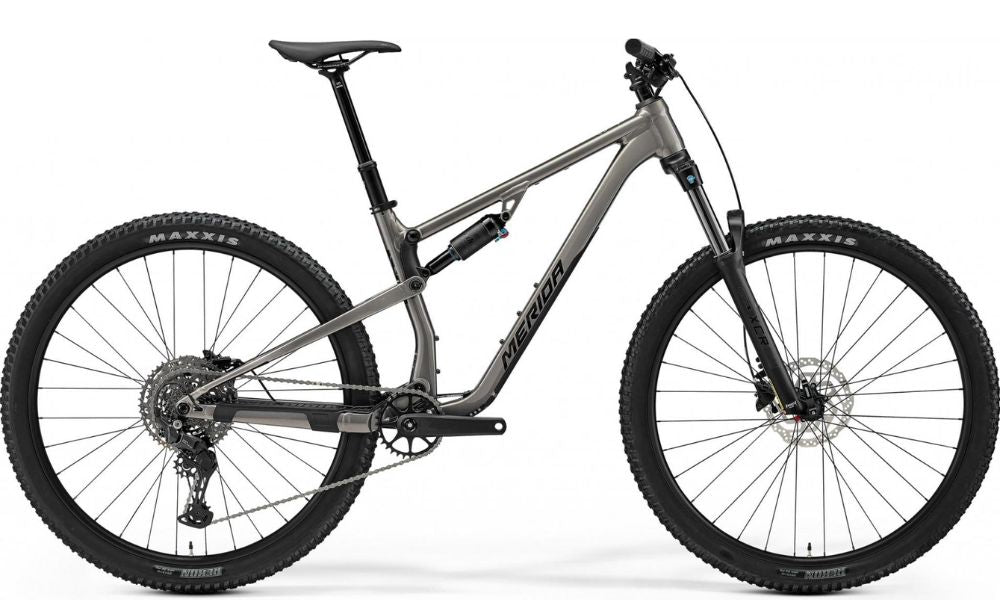

Merida 2026 One Twenty 300
Open up new trails - and ride like you're never ridden before. The ONE-TWENTY 300 marries amazing value with a high-performance 130 mm travel aluminium frame, making it the perfect introduction to full-suspension mountain biking. Our P-FLEX suspension keeps maintenance down but fun and control at a maximum, with adjustable SR Suntour shocks taming the bumps. The Shimano CUES drivetrain gives precise yet durable shifting, hydraulic disc brakes give stopping power you can rely on, and our dropper post gives you extra control on tough descents.
The ONE-TWENTY is a bike that doesn't need to be shoehorned into a category. Short travel trail, downcountry - call it whatever you want, but this is a fun mountain bike for doing fun mountain bike things. Light enough to climb all day but planted on the descents - and the perfect balance everywhere else. Whether you're into flowing singletrack sessions or big mileage in the mountains, the ONE-TWENTY is our do-it-all Swiss Army Knife of a bike. Our high-value, high-quality LITE aluminium frame is paired with our proven P-FLEX flexstay suspension design, keeping maintenance needs low, but performance high. We've also used our progressive geometry concept but tweaked it to suit a fun, short-travel machine and, thanks to the AGILOMETER sizing concept from our award-winning ONE-SIXTY and ONE-FORTY range, you can pick stable or agile handling independently of bike fit. The hardest part will be getting the smile off your face.
- Trail-ready LITE aluminium frame with P-FLEX technology
- Progressive geometry and AGILOMETER sizing
- 130 mm travel front and rear with SR Suntour air sprung suspension
- Tough and precise Shimano CUES 10-speed drivetrain
- Strong and controllable Shimano hydraulic disc brakes
- MERIDA dropper seat post
Merida 2026 ONe Twenty 300
Frame
Size: X-Short, Short, Mid, Long, X-Long
Colour: Warm Slate Grey/Black
Frame: ONE-TWENTY LITE V, 130 STR, MAT aluminium, 29x2.5" max. WHS, 148x12 AST, BSA BBR,
Fork: Suntour XCR34 2CR, Air, 130 STR, Tapered, lockout, 44mm fork offset, 29x2.4" max WHS
Shock: SR Suntour Edge Plus 2CR, lockout
Drivetrain
Crankset: MERIDA Expert TR II, 32t
Pedals:
Chain: KMC xGlide
Bottom Bracket: Samox BSA 24mm EB2401,
Rear Derailleur: Shimano CUES U6000, GS
Front Derailleur:
Derailleur Shifter: Shimano CUES U6000
Freewheel/Cassette: Shimano LG400, 11-48t, 10sp
Braking System
Brakes: [F] and [R] Shimano MT200, 2 piston
Brake Levers:
Wheels
Tyres: [F] and [R] Maxxis Rekon, 29x2.4", wire
Wheels/Rims: MERIDA COMP CC II, 25 IWR, MAT aluminium, tubeless ready
Hubs: [F] Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock [R] Shimano TC500-HM-B, 148x12 WHR, 32 SPH, Centerlock
Other
Handlebar: MERIDA COMP TR, MAT aluminium, 780 WHB, 20 RHB
Stem: MERIDA COMP TR, MAT aluminium, 35 DSH, 0 ASD
Seat Post: MERIDA EXPERT TR II, 34.9 DSP, 0 SSB, XSHORT/SHORT: 150mm travel - MID: 170mm travel - LONG, XLONG: 200mm travel,
Saddle: MERIDA COMP SL, 25% recycled material, V-mount,
Merida 2026 One Twenty 300
| Frame Size | XShort | Short | Mid | Long | XLong |
| Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
| ST seat tube [mm] | 400 | 410 | 425 | 445 | 470 |
| TT top tube [mm] | 548 | 569 | 590 | 611 | 632 |
| CS chain stay length [mm] | 435 | 435 | 435 | 435 | 435 |
| HTA head tube angle [°] | 66 | 66 | 66 | 66 | 66 |
| STA seat tube angle [°] | 78.5 | 78.5 | 78.5 | 78.5 | 78.5 |
| BD bottom bracket drop [mm] | 40 | 40 | 40 | 40 | 40 |
| HT head tube [mm] | 95 | 100 | 105 | 110 | 115 |
| FL fork length [mm] | 541 | 541 | 541 | 541 | 541 |
| R reach [mm] | 425 | 445 | 465 | 485 | 505 |
| S stack [mm] | 604 | 609 | 613 | 618 | 622 |
| WB wheel base [mm] | 1155 | 1177 | 1199 | 1221 | 1243 |
| SH stand over height [mm] | 748 | 750 | 752 | 754 | 756 |
