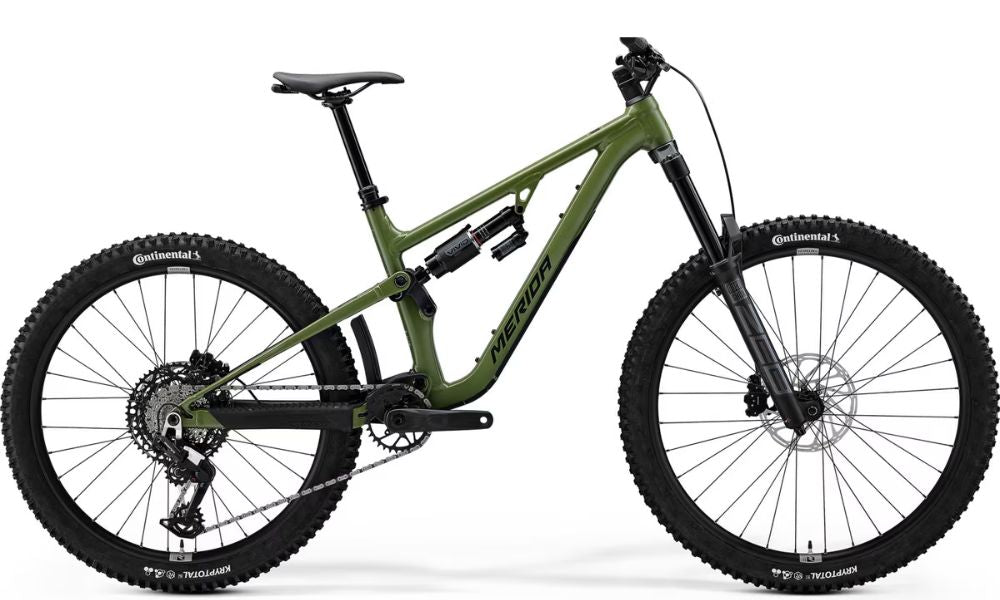

Merida 2027 One-Sixty 700
Performance and value - it’s what every enduro rider wants and what this bike delivers, joining an all-aluminium frame with radical enduro geometry to high-performance kit to deliver a stunning ride.
The ONE-SIXTY 700 gets all the cutting edge enduro performance of our radical test and award-winning design but with a high-value and fully featured all-aluminium frame. That means hard-hitting modern geometry with our FAST kinematic suspension that delivers a chaos taming ride alongside quality RockShox suspension. SRAM’s latest 12-speed wide-range drivetrain means reliable shifts time after time, while four-piston brakes make short work of keeping everything under control.
Evolution or revolution? How about both? The ONE-SIXTY is a radical, award-winning design that pushes our hard-hitting enduro platform to new heights. Just as well, because once it’s there it’s ready to rip the longest, toughest descents too. Our proven suspension system uses a flexstay design with an adjustable rocker, so whether you choose to run it as a full 29er (162 mm travel) or mixed 29/27.5” setup (171 mm travel), the geometry is preserved. There’s a radically steep 79° seat tube angle for goat-like climbing and slack 64° head angle plus 170 mm fork to deal with downhill trail chaos. Our AGILOMETER sizing allows riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. WIRE PORT cable routing plus reliable threaded bottom bracket round out the package, while carbon frames offer on-board tool storage and FidLock magnetic bottle cages.
- Full aluminium frame with FAST kinematic suspension and radical enduro geometry
- Mixed or full 29er wheels with AGILOMETER sizing
- RockShox ZEB fork and Vivid rear shock, SRAM mechanical Eagle 12-speed drivetrain
- Super tough Continental Kryptotal F + R tyresLong-travel dropper post
- Powerful SRAM Maven 4-piston hydraulic disc brakes
Merida 2027 One-Sixty 700
Frame
Size: SM, MD, LG, XL
Colour: Anaconda Green/Black
Frame: ONE-SIXTY LITE III 171 STR Mullet / 162 STR 29" MAT Alloy 29 x 2.5" max. WHS 148 x 12 AST BSA BBR
Fork: Rock Shox Zeb Select Air 170 STR Tapered 44mm Fork Offset 29 x 2.6" max. WHS
Shock: Rock Shox Vivid Select platform
Drivetrain
Crankset: SRAM Eagle 70 Transmission 32 ATC 1 Guard 165mm For All Sizes
Pedals:
Chain: SRAM Eagle 70 Transmission Flattop
Bottom Bracket: SRAM Dub BSA 73 MTB Wide
Rear Derailleur: SRAM Eagle 90 Transmission T-Type
Derailleur Shifter: [F] SRAM Dropper Lever MMX / [R] SRAM Eagle 90 Transmission MMX
Freewheel/Cassette: SRAM XS-1270 Eagle Transmission 11-52 ATC 12 GER
Braking System
Brakes: SRAM Maven, SRAM CenterLine 200mm
Brake Levers:
Wheels
Tyres: [F] Continental Kryptotal-F 29 x 2.4" Folding TR Enduro Casing Soft Compund [R] Continental Kryptotal-R 27.5 x 2.4" XS/S/M 29 x 2.4" L/XL Folding Enduro Casing, Soft Compound
Wheels/Rims: Reynolds 309 Enduro Comp 30 IWR MAT Alloy Tubeless Ready (Tubeless Tape installed) Rear 27.5" up to Size M / L & XL Rear Full 29"
Hubs:
Other
Handlebar: MERIDA EXPERT TR II MAT Alloy 780 WHB 30 RHB
Stem: MERIDA EXPERT eTRII MAT Alloy 35 DSH 0 ASD
Seat Post: MERIDA EXPERT TR IV 34.9 DSP 0 SSB 25mm Travel Adjustability XSHORT: 170mm, SHORT/MID: 200mm, LONG/XLONG: 230mm
Saddle: MERIDA COMP SL 25% Recycled Material V-Mount incl. Merida Minitool
Merida 2027 One-Sixty 700
| Frame Size | XShort | Short | Mid | Long | XLong |
| Tyre Sizes | 29/27.5" | 29/27.5" | 29/27.5" | 29" | 29" |
| ST seat tube [mm] | 400 | 410 | 425 | 445 | 470 |
| TT top tube [mm] | 535 | 562 | 589 | 621 | 653 |
| CS chain stay length [mm] | 434 | 434 | 434 | 437.5 | 437.5 |
| HTA head tube angle [°] | 64 | 64 | 64 | 64 | 64 |
| STA seat tube angle [°] | 79 | 79 | 79 | 79 | 79 |
| BD bottom bracket drop [mm] | 7 | 7 | 7 | 27.5 | 27.5 |
| HT head tube [mm] | 95 | 95 | 95 | 105 | 120 |
| FL fork length [mm] | 581 | 581 | 581 | 581 | 581 |
| R reach [mm] | 415 | 442 | 470 | 498 | 525 |
| S stack [mm] | 615 | 615 | 615 | 625 | 638 |
| WB wheel base [mm] | 1188 | 1215 | 1242 | 1275 | 1308 |
| SH stand over height [mm] | 735 | 740 | 743 | 740 | 735 |
