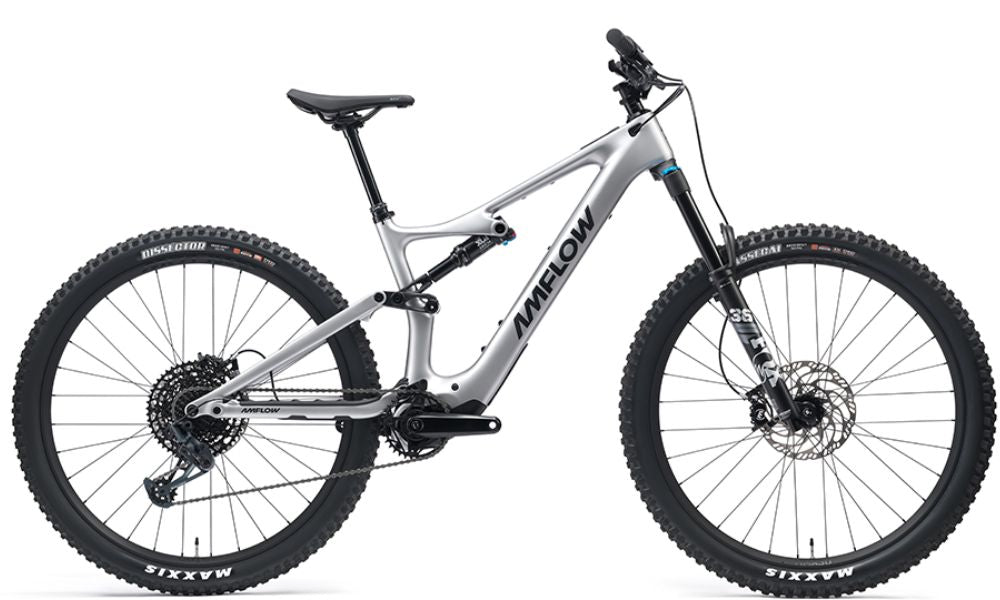

    Amflow 2026 PL Carbon

    Power to the Peak

    The Amflow PL electric mountain bike offers 850 watts of peak power in an ultra-light build weighing 19.2 kg. With its unrivaled combination of power, range, weight, and intelligent features, this groundbreaking eMTB is built for the trailblazers.

    Drive Assistance

    Powerful Drive, Smooth Assistance

    Designed and manufactured by DJI, the Avinox Drive System is seamlessly integrated into Amflow PL, infusing the type of cutting-edge hardware and software that has made DJI an industry leader in drones and camera stabilization technology. The Avinox M1 Drive Unit features a compound planetary gearset with an industry-leading power-to-size ratio.

    The durable, high-strength polymer material inside the Avinox M1 Drive Unit effectively suppresses noise during high-speed gearbox operation. With multiple precision sensors built-in, combined with advanced DJI algorithms, it provides a strong, smooth assistance for a wide range of scenarios and conditions.

    • Max Continuous Torque: 105 N·m
    • M1 Drive Unit Weight: 2.52 kg
    • Peak Power: 850 W

    Amflow 2026 PL Carbon

    Frame

    Colour: Satin Silver
    Frame: Amflow PL Carbon Frame, 150mm rear travel, Compatible with 27.5" and 29" rear wheels
    Fork: FOX 36 Performance, 160mm travel, GRIP Damper, 15×110mm, 44mm rake
    Shock: FOX Float Performance, Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever

    Drivetrain

    Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
    Pedals:
    Chain: SRAM NX Eagle
    Bottom Bracket: NA
    Rear Derailleur: SRAM GX Eagle 12-speed
    Front Derailleur:
    Derailleur Shifter: SRAM GX Eagle Trigger Shifter｜Single Click
    Freewheel/Cassette: SRAM PG-1230, 11-50T

    Braking System

    Brakes: Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear)
    Brake Levers: HC lever

    Wheels

    Tyres: [F] Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR [R] Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR
    Wheels/Rims: Amflow HMA-30, Alloy, 29'', 30mm internal width, 32H, tubeless ready
    Hubs: [F] Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt [R] Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T

    Other

    Handlebar: Amflow Enduro Alloy Handlebar, 35mm rise, 800mm wide, 5-degree upsweep, 9-degree backsweep
    Stem: Amflow Enduro Stem, One-piece CNC, 35mm
    Saddle: Selle Royal SRX Plus
    Seat Post: KS Rage-i, M: 150mm, L: 170mm, XL/XXL: 190mm

    E-Bike

    Drive Unit: Avinox M1 Drive Unit: 105 N·m
    Battery: Avinox Integrated Battery: 800Wh
    Display: Avinox Screen: 2-inch OLED Control Display
    Controller: Avinox Wireless Controllers: Right and left sides
    Charger: Avinox Fast Charger: 12A/508W

    Amflow 2026 PL Carbon

    M L XL XXL
    A Reach 452mm 475mm 500mm 525mm
    B Stack Height 618mm 628mm 641mm 655mm
    C Standover Height 780mm 785mm 790mm 795mm
    D Front Center 782mm 810mm 844mm 873mm
    E Fork Length 570mm 570mm 570mm 570mm
    F Wheelbase 1227mm 1255mm 1289mm 1318mm
    G Chainstay Length 445mm 445mm 445mm 445mm
    H Bottom Bracket Drop 29mm 29mm 29mm 29mm
    I Bottom Bracket Height 345.5mm 345.5mm 345.5mm 345.5mm
    J Effective Top Tube Length 595mm 620mm 648mm 676mm
    K Head Tube Angle 64.5° 64.5° 64.5° 64.5°
    L Head Tube Length 105mm 115mm 130mm 145mm
    M Actual Seat Tube Angle 70° 70° 70° 70°
    N Effective Seat Tube Angle 77° 77° 77° 77°
    O Seat Tube Height 430mm 450mm 470mm 500mm
    *Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products at the time of sale. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs. Please read our Terms & Conditions

    *Giant & Liv Bicycles are available for purchase online, but due to warranty regulations, must be shipped to qualified Giant dealers, as bicycles must be assembled by a qualified bike mechanic in an approved store - This is an international policy and usually will require an additional fee to build the bike. This will be confirmed by one of our online staff after purchase of the bike.

    *Specialized Bicycles are available for home delivery nation wide.

    *AMFLOW Bicycles are available for purchase online, but MUST be collected from the store.

    *TREK Bicycles are available for purchase online, but MUST be collected from the store.
