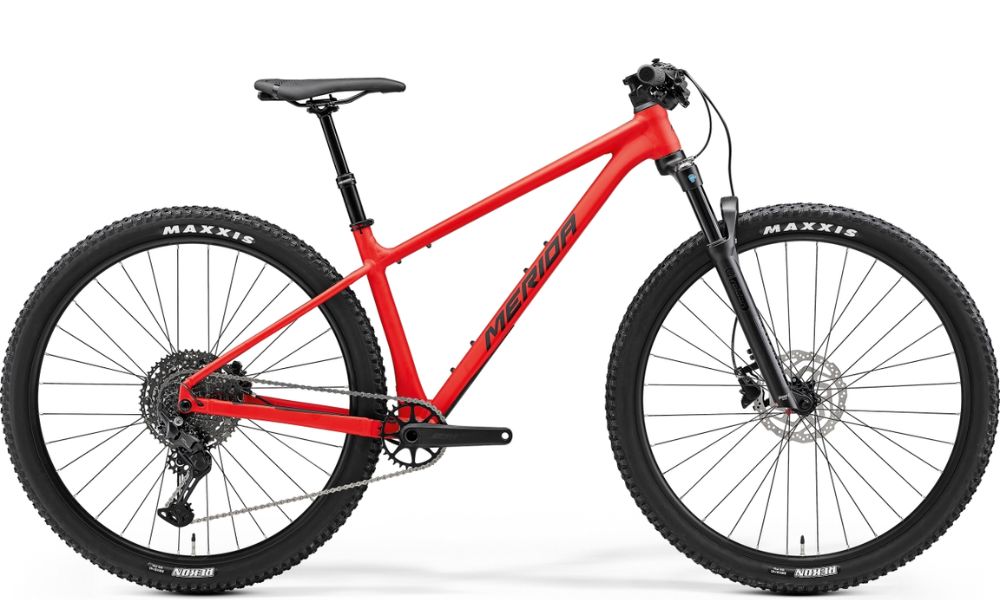

    Merida 2024 Big NINE TR 600

    Progressive performance, without the big price. The BIG.NINE 600 TR uses our latest LITE aluminium frame to deliver cutting-edge geometry and handling that's also high on comfort and control thanks to a 120 mm SR Suntour fork, clearance for 2.4" tyres and our own dropper post. Whether you want to sprint singletrack or rip around race tracks, it's the perfect place to get started thanks to dependable Shimano 11-speed shifting and confident performance from hydraulic disc brakes.

    Mountain biking is one of the most varied cycling disciplines and probably the most demanding when it comes to equipment. While full suspension bikes offer amazing riding characteristics, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes in carbon and aluminium and features multiple geometry options. The updated CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today, with downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. The more relaxed geometry of the BIG.NINE TFS and SPEED offers a more comfortable, upright riding position. Our classic hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan' symbolises.

    • High-performance LITE aluminium frame with 2.4" tyre clearance
    • Progressive geometry with AGILOMETER sizing for confident handling
    • SR Suntour fork with 120 mm travel for improved descending ability
    • Wide range Shimano 11-speed drivetrain
    • MERIDA wheelset with trail-ready Maxxis tyres
    • MERIDA dropper seatpost with remote lever

    Merida 2024 Big NINE TR 600

    Frame

    Colour: Matt Red/Black
    Frame: BIG.NINE TR LITE III, material: aluminium, 29x2.4" max. Wheelsize, 148x12 mm axle standard, BSA bottom bracket standard
    Fork: SR Suntour Raidon 34 2CR, Air, 120 mm suspension travel, Tapered, platform, 46 mm fork offset
    Shock:

    Drivetrain

    Crankset: MERIDA Expert TR, 32 teeth, 170 mm-S, 175 mm-M up
    Chain: Shimano LG500
    Bottom Bracket:
    Rear Derailleur: Shimano CUES U6000
    Front Derailleur:
    Derailleur Shifter: Shimano SL-MT500-L / Shimano CUES U6000
    Freewheel/Cassette: Shimano CUES LG400, 11-50 teeth, 11 speed

    Braking System

    Brakes: Shimano MT200
    Brake Levers:

    Wheels

    Tyres: [F] and [R] Maxxis Rekon; 29x2.4"; wire
    Wheels/Rims: MERIDA COMP CC II, 25 mm inner width, material: aluminium, tubeless ready
    Hubs: [F] himano TC500-B / Shimano TC500-HM-B, 110x15 mm width front hub, 32 spoke holes, Centerlock [R] 148x12 mm width rear hub, 32 spoke holes, Centerlock

    Other

    Handlebar: MERIDA EXPERT CC, material: aluminium, 760 mm width, flat
    Stem: MERIDA EXPERT CC, material: aluminium, 760 mm width, flat
    Saddle: MERIDA COMP SL; 25% recycled material; V-mount
    Seat Post: MERIDA COMP TR, 30.9 mm diameter, 0 mm setback,S/M 125 mm travel seatpost -L/XL/XXL 150 mm travel seatpost

    Merida 2024 Big NINE TR 600

    FRAME SIZE S M L XL XXL
    TYRE SIZES 29" 29" 29" 29" 29"
    ST SEAT TUBE [MM] 380 410 440 470 500
    TT TOP TUBE [MM] 594 614 637 659 681
    CS CHAIN STAY LENGTH [MM] 430 433 436 439 442
    HTA HEAD TUBE ANGLE [°] 66.9 66.9 66.9 66.9 66.9
    STA SEAT TUBE ANGLE [°] 74.2 74.2 74.2 74.2 74.2
    BD BOTTOM BRACKET DROP [MM] 57 57 57 57 57
    HT HEAD TUBE [MM] 95 95 105 115 125
    FL FORK LENGTH [MM] 530 530 530 530 530
    R REACH [MM] 420 440 460 480 500
    S STACK [MM] 614 614 624 633 643
    WB WHEEL BASE [MM] 1132 1155 1182 1209 1235
    SH STAND OVER HEIGHT [MM] 711 711 717 738 759
    *Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products at the time of sale. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs. Please read our Terms & Conditions

    *Giant & Liv Bicycles are available for purchase online, but due to warranty regulations, must be shipped to qualified Giant dealers, as bicycles must be assembled by a qualified bike mechanic in an approved store - This is an international policy and usually will require an additional fee to build the bike. This will be confirmed by one of our online staff after purchase of the bike.

    *Specialized Bicycles are available for home delivery nation wide.

    *AMFLOW Bicycles are available for purchase online, but MUST be collected from the store.

    *TREK Bicycles are available for purchase online, but MUST be collected from the store.
