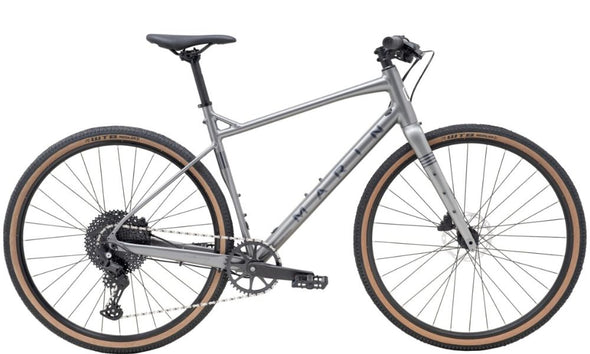

Marin 2025 DSX 1

LONG DISTANCE MIXED SURFACE COMMUTING

GRAVEL RIDING

ADVENTURE ON AND OFF-ROAD RIDING

Hopping up to a higher-spec Series 3 aluminum frame, the Marin DSX 1 has a whole heap of upgrades over the base spec version. Bolt-thru axles add stiffness and a carbon fork drops the weight and adds even more mounting points for bikepacking bags. There’s also an 11-speed 1X Shimano Deore drivetrain, WTB Riddler tires, Tektro hydraulic brakes and plenty of reliable Marin components.

Specifications

Marin 2025 DSX 1

Frame

Colour: Grey
Frame: Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Fork: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Shock:

Drivetrain

Crankset: Forged Aluminum, 42T Steel Narrow Wide Chainring
Chain: KMC X11
Bottom Bracket: Sealed Cartridge
Rear Derailleur: Shimano Deore, RDM5100, 11-Speed
Front Derailleur:
Derailleur Shifter: Shimano Deore, SLM5100, 11-Speed
Freewheel/Cassette: Shimano, CSM5100, 11-Speed, 11-51T

Braking System

Brakes: [F] and [R] Tektro HD-R280 Flat Mount Hydraulic Disc, 160mm Rotor
Brake Levers: Tektro Hydraulic

Wheels

Tyres: [F] and [R] WTB Riddler, 700Cx45mm
Wheels/Rims: [F] and [R] Marin Aluminum Double Wall, 21mm Inner, Disc Specific
Hubs: [F] Forged Aluminum, 100x12mm, Disc, 32H [R] Forged Aluminum Alloy, 142x12mm, Disc, 32H

Other

Handlebar: Marin Mini-Riser
Stem: Marin 3D Forged Alloy
Saddle: Marin DSX
Seat Post: Marin Alloy

Geomerty

Marin 2025 DSX 1

	S	M	L	XL
STACK	583.2	601.8	629.7	657.6
REACH	400	425	440	455
HEADTUBE ANGLE	68.5°	68.5°	68.5°	68.5°
HEADTUBE LENGTH	100	120	150	180
SEATTUBE ANGLE	74°	74°	74°	74°
SEATTUBE LENGTH	430	480	520	558
TOPTUBE EFFECTIVE	567.23	597.6	620.6	643.6
BB HEIGHT	277.5	277.5	277.5	277.5
BB DROP	82	82	82	82
CHAINSTAY	425	425	425	425
WHEELBASE	1065	1097.3	1123.3	1149.3
STANDOVER HEIGHT	667	708	738	761
FORK OFFSET	47	47	47	47
