- Description
- Specifications
- Geomerty

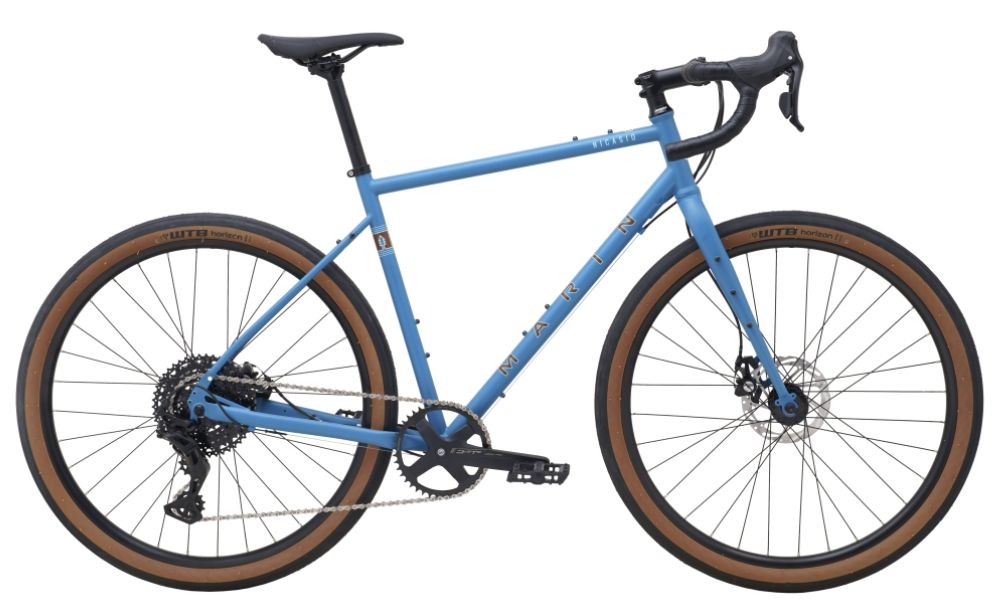

Marin 2025 Nicasio +
ADVENTURE ROAD AND OFF-ROAD RIDING
LONG DISTANCE COMMUTING
ENDURANCE AND ALL-WEATHER PAVEMENT
The Marin Nicasio+ is our Nic’ with a modern twist, switching in big-volume 47mm rubber, 650b wheels and a sleek and straightforward 1X drivetrain. We also specced a microSHIFT Sword Black 1x9 drivetrain, powerful Tektro mechanical discs and plenty of Marin components. Those WTB Horizon 650Bx47mm tires not only provide a cloud-like ride, but also look super dreamy with tan sidewalls.
Marin 2025 Nicasio +
Frame
Size: 50, 52, 54, 56, 58
Colour: Matte Tea/Brown
Frame: Steezy Double Butted CrMo Beyond Road, 650B Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount
Fork: CrMo, Fender and Rack Eyelets, IS Disc Mount
Shock:
Drivetrain
Crankset: FSA Vero Pro, Narrow Wide, 42T
Pedals:
Chain: KMC X9
Bottom Bracket: Sealed Cartridge Bearings, Square Taper
Rear Derailleur: microSHIFT SWORD Black, 1x9 w/ Clutch Mech
Front Derailleur:
Derailleur Shifter: microSHIFT SWORD Black, 1x9 Specific
Freewheel/Cassette: microSHIFT 9-Speed, 11-46T
Braking System
Brakes: [F] and [R] Tektro MDC400, Road Mechanical, 160mm Rotor
Brake Levers: microSHIFT SWORD Black
Wheels
Tyres: [F] and [R] WTB Horizon, 650Bx47mm
Wheels/Rims: [F] and [R] Marin Aluminum Double Wall, 25mm Inner, Disc Specific
Hubs: [F] and [R] Forged Aluminum Alloy, Disc, 32H
Other
Handlebar: Marin Butted Alloy, Compact 16Âş Flared Drop
Stem: Marin 3D Forged Alloy
Seat Post: Marin Alloy, 27.2mm
Saddle: Marin Beyond Road Concept
Marin 2025 Nicasio +
| 50 | 52 | 54 | 56 | 58 | 60 | |
|---|---|---|---|---|---|---|
| Stack | 546 | 564 | 578 | 592 | 606 | 620 |
| Reach | 375 | 375 | 380 | 390 | 402 | 415 |
| Headtube Angle | 70.5° | 71.5 | 71.5 | 71.5 | 71.5 | 71.5 |
| Headtube Length | 105 | 120 | 135 | 150 | 165 | 180 |
| Seattube Angle | 74.5° | 74° | 74° | 74° | 74° | 73.5° |
| Seattube Length | 460 | 480 | 500 | 520 | 540 | 560 |
| Toptube Effective | 526 | 537 | 546 | 560 | 575 | 599 |
| BB Height | 269 | 269 | 269 | 269 | 269 | 269 |
| BB Drop | 76 | 76 | 76 | 76 | 76 | 76 |
| Chainstay | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbase | 1017 | 1014 | 1024 | 1039 | 1055 | 1073 |
| Standover Height | 713 | 733 | 752 | 770 | 788 | 806 |
| Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 |
| Seatpost Diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| Handlebar Width | 400 | 400 | 420 | 420 | 440 | 440 |
| Stem Length | 75 | 75 | 90 | 90 | 90 | 90 |
| Crank Length | 170 | 170 | 175 | 175 | 175 | 175 |
All lengths in millimeters
