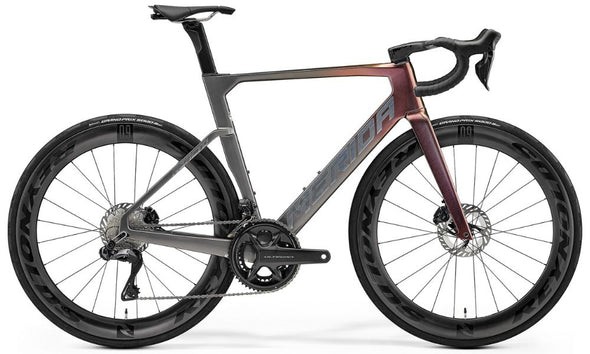

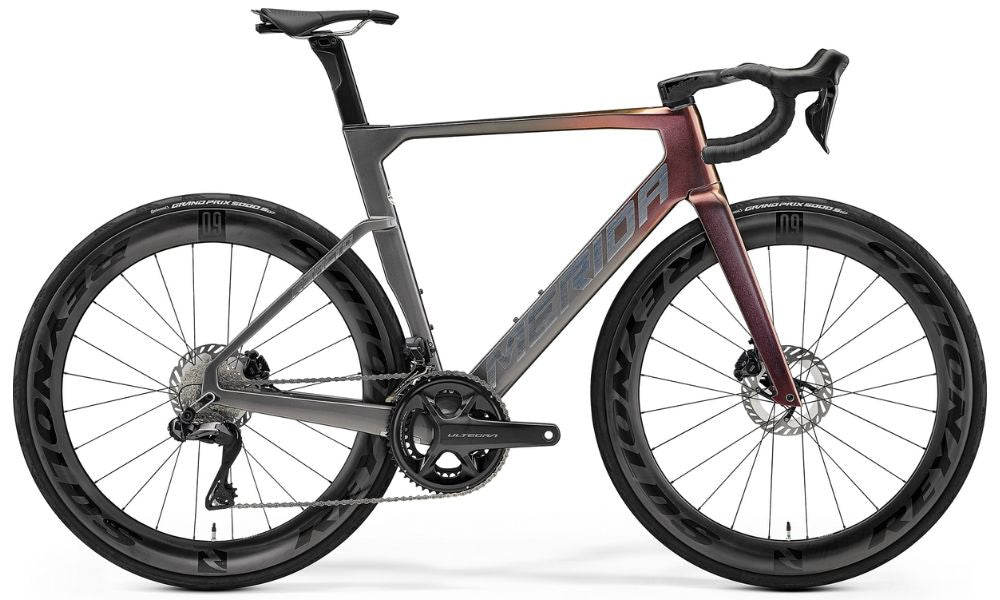

Merida 2026 Reacto 8000
Built around Shimano's latest Ultegra 12-speed groupset and the impressive Reynolds AR60 DB carbon wheelset, the 8000 is one of the top bikes on our REACTO line-up. It loves to be raced hard but equally enjoys challenging your club buddies on the ups, the downs and the flats.
It's cutting edge frame features like our WIRE PORT cable integration for a clean look and outstanding aerodynamics and our DISC COOLER technology for reliable braking performance even on the longest of descents that give our REACTO 8000 the edge. Combined with the beautifully crafted CF3 carbon frame, the 8000 impresses with remarkable acceleration and power transfer, low weight, impressive aerodynamics, perfect cable integration and outstanding aero bike comfort.
Unadulterated aero road speed. The latest version of the REACTO took the cycling press by storm. A long string of test wins, perfect scores and awards confirm our successful symbiosis of the race-proven DNA of the previous model with the latest trends and technologies. Cycling Weekly calls it 'without doubt one of the most complete bikes available on the market', Cyclingnews 'an utterly brilliant and faultless machine' and Cycling Plus were 'hugely impressed'. From serious racer via enthusiast to the ambitious road rider, the REACTO is a great bike for many people. Its outstanding aerodynamic performance, reduced weight, sharp handling and super quick acceleration makes it the perfect bike for criterium racers and sprinters. At the same time, the class-leading comfort gives it the ability to play out its aerodynamic advantage also on the cobblestones – or the idyllic but potholed littered lanes of your favourite training ride.
- Lightweight CF3 carbon aero frame (approx. 1,150 g - in size M)
- Shimano Ultegra 12-speed Di2 groupset
- Vision Metron 5D ACR EVO one-piece cockpit
- Reynolds AR60 DB carbon wheelset with Continental 5000S TR 28 mm tyres
- MERIDA S-FLEX carbon aero postDISC COOLER technology
Merida 2026 Reacto 8000
Frame
Size: XS, S, M, L, XL
Colour: Rainbow/Gunmetal Grey/Silver
Frame: REACTO CF3 IV, MAT carbon, 700x30C max. WHS, 100x12/ 142x12 AST, BB86,5 BBR
Fork: REACTO CF3 IV DISC, MAT carbon, 700x30C max. WHS
Shock:
Drivetrain
Crankset: Shimano Ultegra, 52-36t
Pedals:
Chain: Shimano M6100-12
Bottom Bracket: Shimano SM-BB72-41B, Pressfit 86.5
Rear Derailleur: Shimano Ultegra Di2
Front Derailleur: Shimano Ultegra Di2
Derailleur Shifter: Shimano Ultegra disc Di2,
Freewheel/Cassette: Shimano Ultegra R8101, 11-30, 12sp
Braking System
Brakes: Shimano Ultegra, Hydraulic disc
Brake Levers:
Wheels
Tyres: Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready
Wheels/Rims: Reynolds AR 60 DB, 100x12 WHF, 142x12 WHR, 21 IWR, 60 HRI, Centerlock
Hubs:
Other
Handlebar: Vision Metron 5D ACR EVO, MAT carbon, 380mm (3S-XXS-XS-S), 400mm (M-L), 420mm (XL)
Stem: Vision Metron 5D ACR EVO, MAT carbon
Seat Post: MERIDA Team CW, Aero shape, 15 SSB, Carbon
Saddle: Prologo Scratch M5, V-mount adapter, incl. MERIDA minitool
Merida 2026 Reacto 8000
| Frame Size | 3XS | XXS | XS | S | M | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" | 28" |
| ST seat tube [mm] | 440 | 470 | 500 | 520 | 540 | 560 | 590 |
| TT top tube [mm] | 505 | 520 | 536 | 545 | 560 | 575 | 590 |
| CS chain stay length [mm] | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| HTA head tube angle [°] | 70.5 | 70.5 | 72 | 72.5 | 73.5 | 73.5 | 74 |
| STA seat tube angle [°] | 75.5 | 74.5 | 74 | 74 | 73.5 | 73 | 73 |
| BD bottom bracket drop [mm] | 70 | 70 | 70 | 66 | 66 | 66 | 66 |
| HT head tube [mm] | 100 | 105 | 112 | 128 | 140 | 155 | 176 |
| FL fork length [mm] | 385 | 385 | 385 | 385 | 385 | 385 | 385 |
| R reach [mm] | 373 | 377 | 384 | 390 | 395 | 400 | 409 |
| S stack [mm] | 512 | 517 | 529 | 542 | 557 | 571 | 593 |
| WB wheel base [mm] | 979 | 985 | 983 | 990 | 990 | 999 | 1010 |
| SH stand over height [mm] | 727 | 746 | 771 | 792 | 810 | 826 | 853 |
