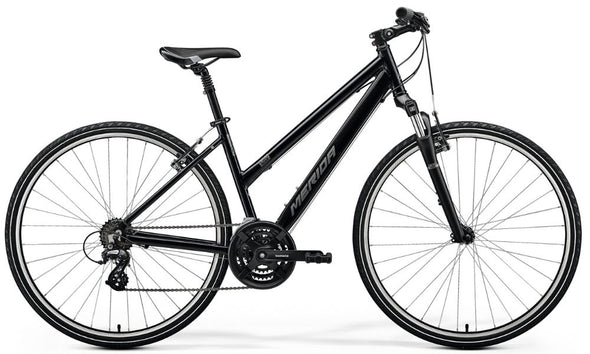

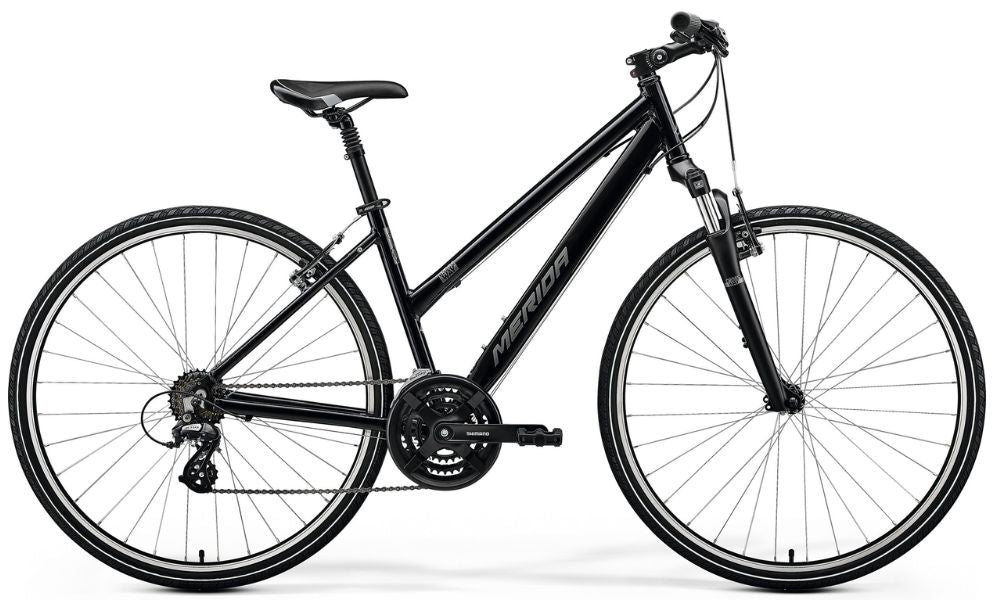

Merida Crossway 10-V ST
You don't always have to spend big-ticket money to get a reliable lightweight aluminium hybrid that delivers when it comes to day-to-day usability, built-in weekend fun and all-round riding comfort. Our CROSSWAY 10-V comes with powerful and easy to service V-brakes, a broad gear range that gets you to your destination quickly as well as climbs steeper slopes with ease. A suspension fork and seat post provide extra comfort and riding safety.
The CROSSWAY family has been the MERIDA range's backbone since its introduction. They are used worldwide and are proven as a reliable, versatile and fun-packed way of getting around. Designed to provide a comfortable place to take in the surroundings thanks to an upright riding position and comfort focused equipment such as suspension fork and adjustable stems on selective models, they offer the perfect blend of comfort, enjoyment and all-round functionality. They are suitable for fitness training, commuting and leisurely rides through forests and on trails. Made from high-quality, lightweight aluminium with the ability to mount mudguards, racks and kickstands, the CROSSWAY range is the perfect choice for everyday riding.
Merida Crossway 10-V ST
Frame
Colour: Black/Silver
Frame: CROSSWAY DT
Fork: SR Suntour NEX
Shock: NA
Drivetrain
Crankset: Shimano TY301
Pedals: Chain: SunRace CNM 84
Bottom Bracket: FSA TH-7420ST, 68-124
Rear Derailleur: Shimano RD-M310
Front Derailleur: Shimano FD-TY510-3
Derailleur Shifter: Shimano ST-EF500-L / Shimano ST-EF500-7R
Freewheel/Cassette: Shimano MF-TZ500
Braking System
Brakes: [F] and [R] Promax MTV-117A
Brake Levers:
Wheels
Tyres: [F] and [R] MERIDA K1171
Wheels/Rims: MERIDA CC
Hubs: [F] and [R] Joytech JY-751DSE / Joytech JY-752DSE
Other
Handlebar: MERIDA CC
Stem: MERIDA TK
Saddle: MERIDA Cross Sport
Seat Post: MERIDA TK
Merida Crossway 10-V ST
| Frame Size | XS | S | S/M | M/L | L | XL | XXL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" | 28" |
| ST seat tube [mm] | 440 | 460 | 480 | 520 | 550 | 580 | 610 |
| TT top tube [mm] | 565 | 575 | 585 | 595 | 605 | 620 | 635 |
| CS chain stay length [mm] | 450 | 450 | 450 | 450 | 450 | 450 | 450 |
| HTA head tube angle [°] | 71 | 71.5 | 71.5 | 72 | 72 | 72 | 72.5 |
| STA seat tube angle [°] | 74 | 73.5 | 73.5 | 73.5 | 73 | 73 | 72.5 |
| BD bottom bracket drop [mm] | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| HT head tube [mm] | 125 | 125 | 135 | 135 | 145 | 170 | 200 |
| FL fork length [mm] | 450 | 450 | 450 | 450 | 450 | 450 | 450 |
| R reach [mm] | 394 | 397 | 405 | 414 | 415 | 423 | 422 |
| S stack [mm] | 597 | 599 | 609 | 611 | 620 | 644 | 675 |
| WB wheel base [mm] | 1073 | 1072 | 1082 | 1087 | 1091 | 1107 | 1110 |
| SH stand over height [mm] | 711 | 727 | 743 | 774 | 798 | 825 | 852 |
