2026

NEW!!

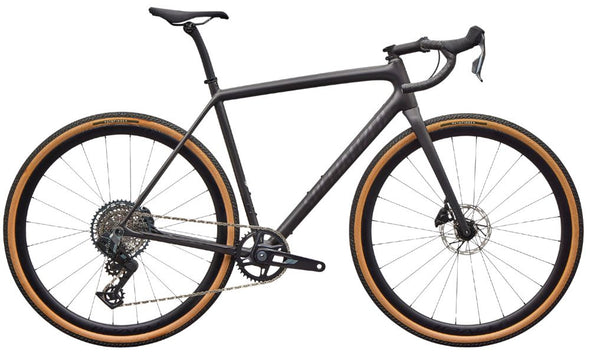

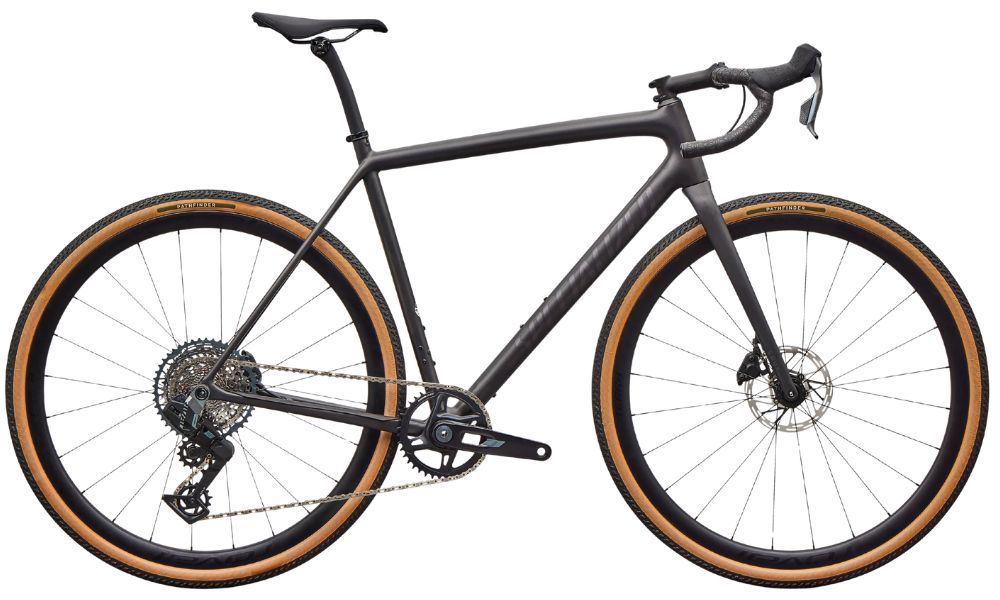

Specialized 2026 Crux Expert

$9,900.00

Size

Quantity

Please manually select shipping rates at checkout

Finance Plans Available

Description
Specifications
Geomerty

Description

Specialized 2026 Crux Expert SRAM Rival XPLR AXS

Please contact store for availability on 04 589 2822 or support@cyclescience.co.nz

The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.

This Crux Expert comes spec'd with all-new SRAM Rival XPLR AXS for effortless braking, lighter weight, with massive 13 speed gear range, lightweight and durable Roval Terra C Disc wheels, and 2Bliss Ready, 700x40mm Pathfinder Pro tires that hookup over nasty terrain.

Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.

Specifications

Specialized 2026 Crux Expert SRAM Rival XPLR AXS

Frame

Size: 49, 52, 54, 56, 58, 61
Colour: Satin Carbon/nebula Metallic
Frame: Crux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Fork: S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Shock: NA

Drivetrain

Crankset: NEW SRAM Rival XPLR E1
Pedals:
Chain: NEW SRAM Rival E1
Bottom Bracket: SRAM DUB BSA
Rear Derailleur: NEW SRAM Rival XPLR AXS E1
Front Derailleur:
Derailleur Shifter: NEW SRAM Rival AXS E1 HRD
Freewheel/Cassette: NEW SRAM Rival XPLR XG-1351, 13sp, 10-46t

Braking System

Brakes: [F] and [R] NEW SRAM Rival AXS E1, hydraulic disc 160mm rotor
Brake Levers:

Wheels

Tyres: [F] and [R] Pathfinder 700x40, Tubeless Ready
Wheels/Rims: Roval Terra C, 25mm inner width carbon rim, 32mm depth, DT 370 hub, 24h, DT Swiss Comp Race spokes
Hubs:

Other

Handlebar: Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare
Stem: Specialized Pro SL, alloy, 4-bolt
Seat Post: Roval Terra Carbon Seat Post, 20mm Offset
Saddle: Body Geometry Power Expert

Geomerty

Specialized 2026 Crux Expert SRAM Rival XPLR AXS

	49	52	54	56	58	61
Crank Length	165	170	172.5	172.5	175	175
Handlebar Width	380	400	420	420	440	440
Stem Length	70	80	90	100	110	110
Saddle Width	155	155	143	143	143	143
Seatpost Length	330	330	330	380	380	380
Stack	530	547	560	578	598	621
Reach	375	382	388	397	405	415
Head Tube Length	100	115	130	147	167	190
Head Tube Angle	70.5	71.25	71.5	72	72.25	72.5
BB Height	284	284	286	286	286	286
BB Drop	74	74	72	72	72	72
Trail	74	69	67	64	62	60
Fork Length, Full	401	401	401	401	401	401
Fork Rake/Offset	50	50	50	50	50	50
Front Center	594	600	608	618	630	644
Chainstay Length	425	425	425	425	425	425
Wheelbase	1008	1014	1023	1033	1045	1059
Top Tube Length, Horizontal	512	539	549	568	582	599
Bike Standover Height	749	772	794	816	841	866
Seat Tube Length	466	496	521	546	576	606
Seat Tube Angle	75.5	74	74	73.5	73.5	73.5

*Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products at the time of sale. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs. Please read our Terms & Conditions

*Giant & Liv Bicycles are available for purchase online, but due to warranty regulations, must be shipped to qualified Giant dealers, as bicycles must be assembled by a qualified bike mechanic in an approved store - This is an international policy and usually will require an additional fee to build the bike. This will be confirmed by one of our online staff after purchase of the bike.

*Specialized Bicycles are available for home delivery nation wide.

*AMFLOW Bicycles are available for purchase online, but MUST be collected from the store.

*TREK Bicycles are available for purchase online, but MUST be collected from the store.
