Trek 2026 CheckOUT SL 5

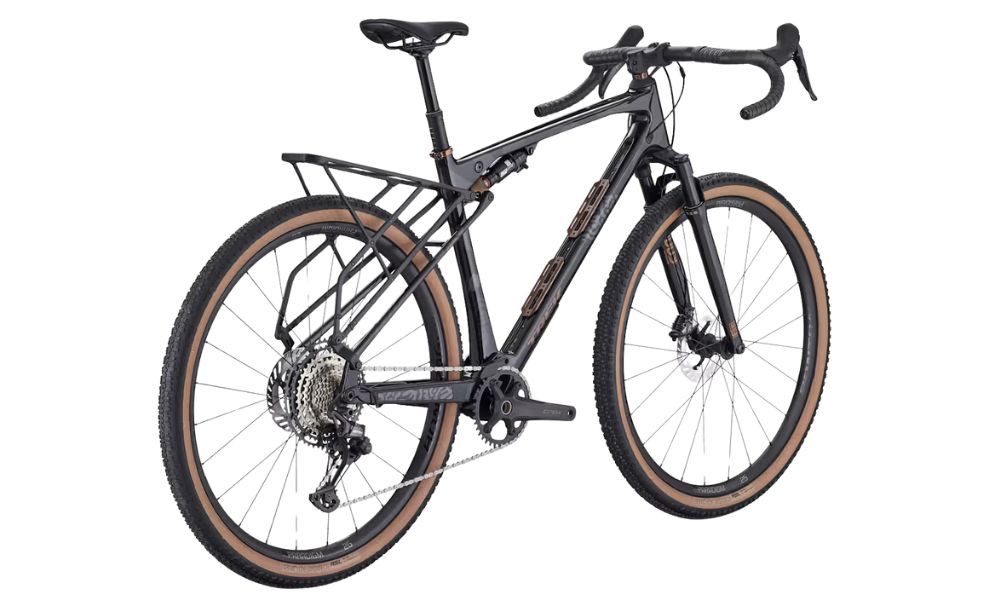

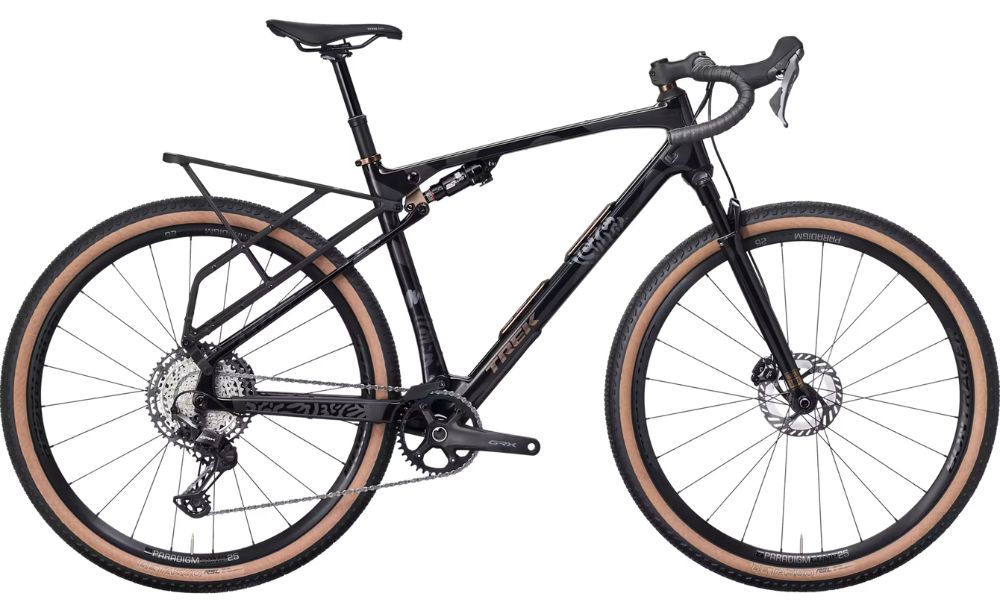

The CheckOUT SL 5 is an adventure-ready full-suspension gravel bike for getting far, far out there. Its carbon frame delivers 55 mm of rear travel from a RockShox SIDluxe IsoStrut shock, while a RockShox Rudy XL fork smooths rowdy roads and trails with 60 mm of travel. It comes ready to explore with Bontrager Paradigm Comp wheels, a 12-speed Shimano GRX drivetrain and TranzX dropper post.
Trek 2026 CheckOUT SL 5
Frame
Size: S, M, ML, L, XL
Colour: Dark Star/Dark Web

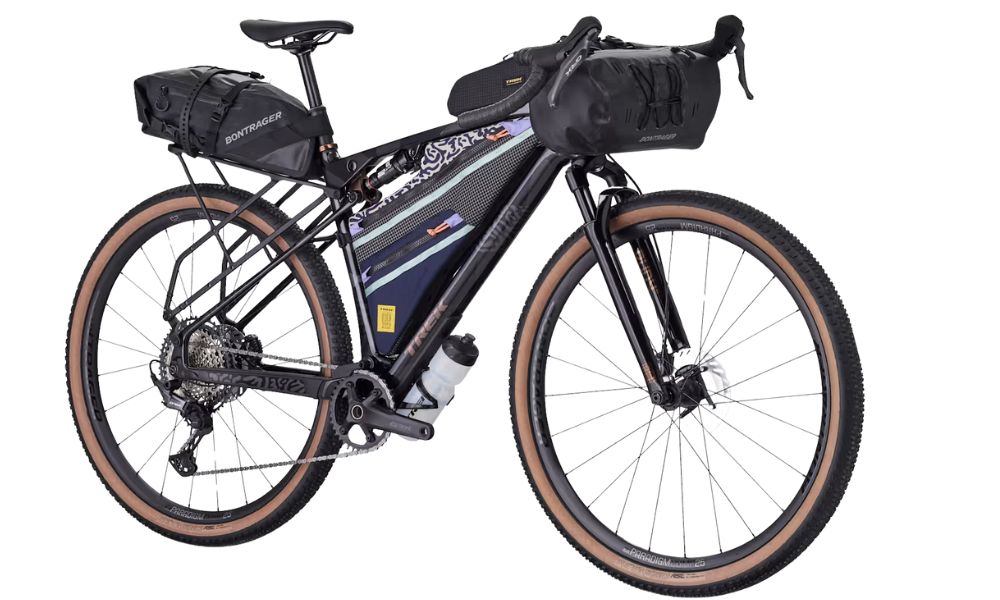

Frame: 500 Series OCLV Carbon, integrated frame bag mounts, integrated rack, T47, UDH, 142x12 mm chamfered thru axle, 55 mm travel

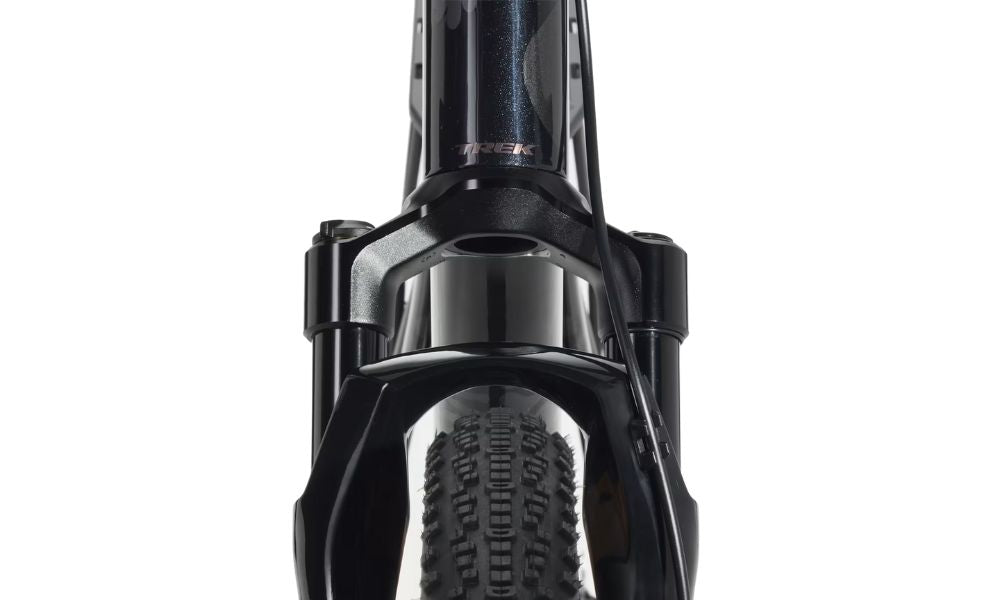

Fork: RockShox Rudy XL Ultimate, Charger Race Day 2 Solo Air spring, tapered steerer, 45 mm offset, 12x100 mm thru axle, 60 mm travel
Shock: RockShox SIDluxe Ultimate 3P, 170 mm x 27.5 mm

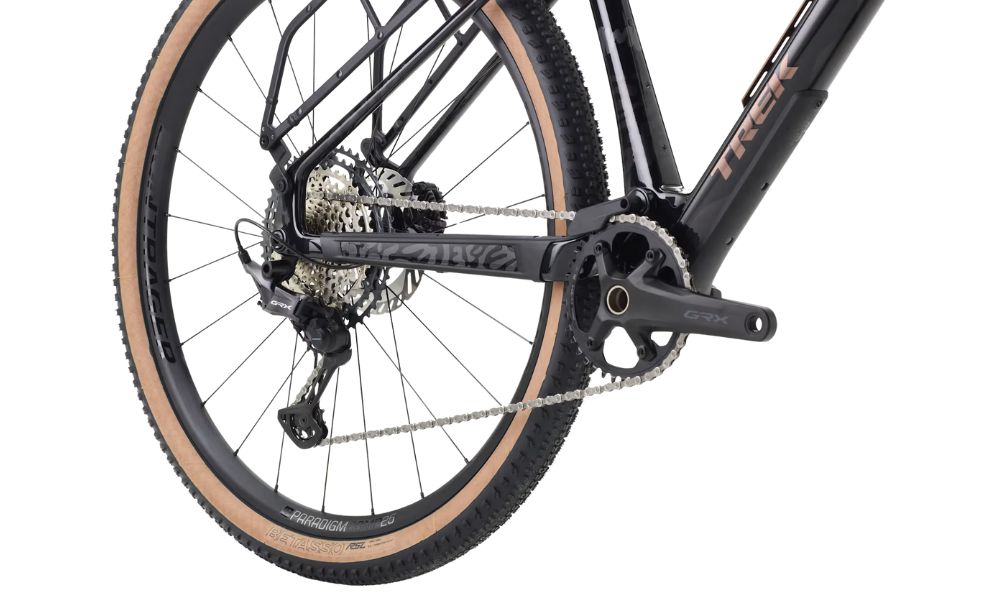

Drivetrain
Crankset: S: Shimano GRX RX610, 38T, 160 mm length M, ML: Shimano GRX RX610, 38T, 170 mm length L, XL: Shimano GRX RX610, 38T, 172.5 mm length
Pedals:
Chain: Shimano XT M8100, 12-speed
Bottom Bracket: Praxis, T47 threaded, internal bearing
Rear Derailleur: Shimano GRX RX822, 51T max cog
Front Derailleur:
Derailleur Shifter: Shimano GRX RX820, 12-speed
Freewheel/Cassette: Shimano XT M8200, 10-51, 12-speed
Braking System
Brakes:
Brake Levers:
Wheels
Tyres: Bontrager Betasso RSL GX, Tubeless ready, aramid bead, 60 tpi, 700x55 mm
Wheels/Rims: [F] S: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5" M, ML, L, XL: 29" [R] Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 27.5"
Hubs: [F] [R]
Other

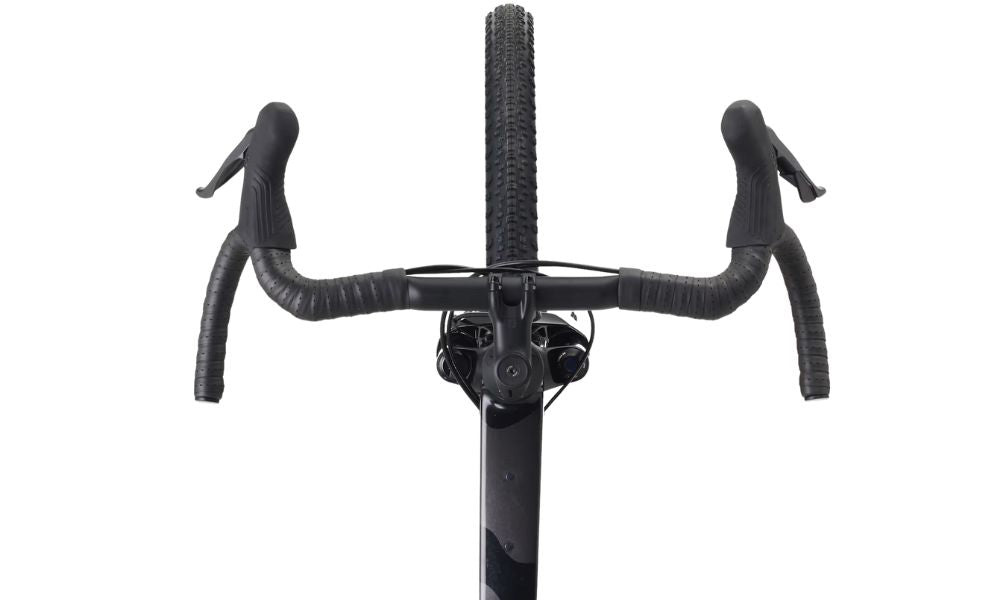

Handlebar: S: Bontrager GR Checkout, 42 cm M: 44cm ML, L: 46cm XL: 48cm
Stem: S, M: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length ML, L: 70mm XL: 80mm
Seat Post: TranzX JD-YSI36, 100 mm travel, internal routing, 31.6 mm, 328 mm length
Saddle: Verse Short Comp, steel rails, 145 mm width
Trek 2026 CheckOUT SL 5
All measurements provided in cm unless otherwise stated.
| Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 700c | 44.0 | 74.6° | 8.3 | 68.8° | 56.4 | 7.0 | 44.2 | 4.8 | 9.2 | 108.1 | 77.2 | 39.5 | 58.0 |
| M | 700c | 47.0 | 74.2° | 12.2 | 69.0° | 58.9 | 7.0 | 44.2 | 4.8 | 9.1 | 110.5 | 80.4 | 40.7 | 61.7 |
| ML | 700c | 52.0 | 73.7° | 13.8 | 69.4° | 59.7 | 7.0 | 44.2 | 4.8 | 8.8 | 111.7 | 84.0 | 41.7 | 63.4 |
| L | 700c | 54.0 | 73.0° | 15.9 | 69.5° | 61.3 | 6.8 | 44.2 | 4.8 | 8.8 | 113.5 | 86.1 | 42.7 | 65.2 |
| XL | 700c | 56.0 | 72.6° | 18.2 | 69.4° | 62.8 | 6.8 | 44.2 | 4.8 | 8.8 | 115.0 | 86.1 | 43.5 | 67.3 |
