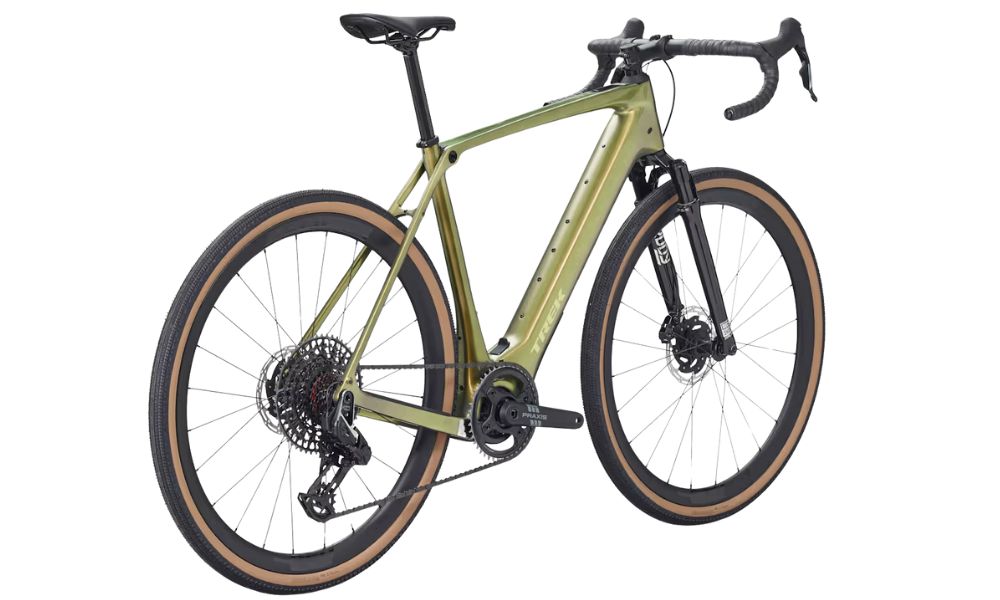

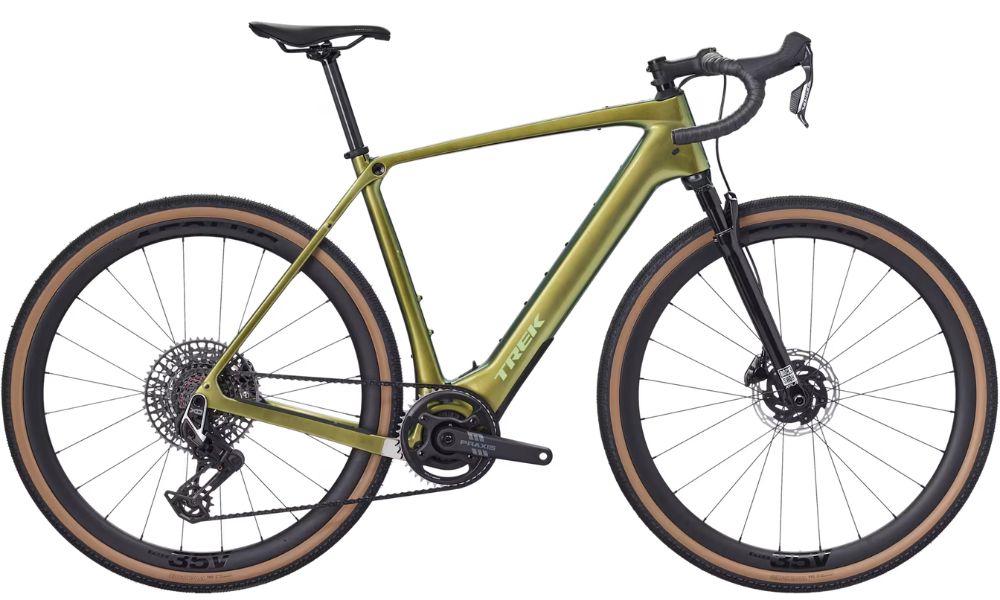

Trek 2026 Checkpoint+ SL 7 AXS

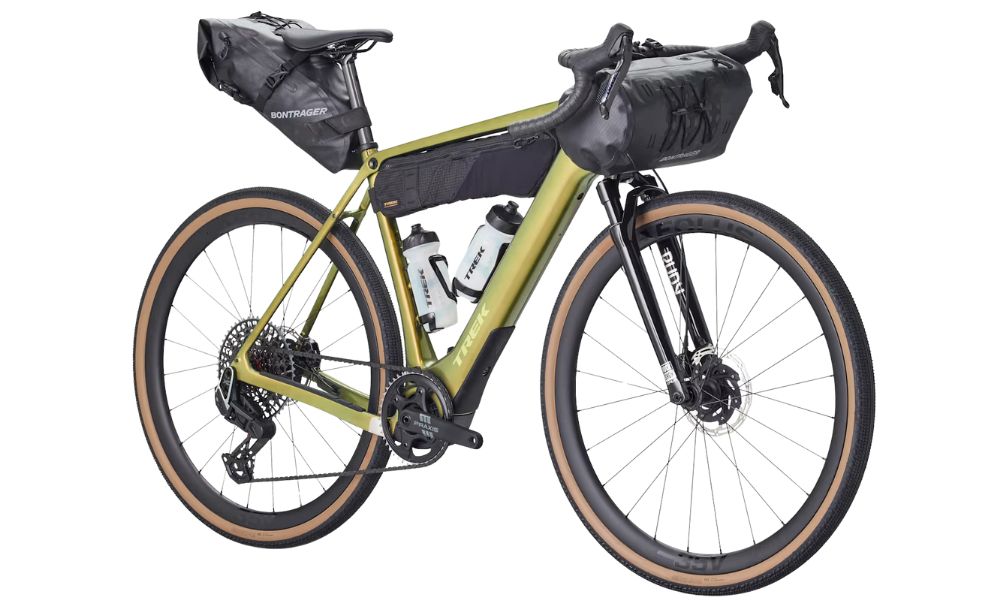

The Checkpoint+ SL 7 AXS is an electric gravel bike built to take you on your most wide-ranging adventures. An OCLV Carbon frame keeps things light, a TQ HPR60 motor provides a smooth and quiet boost, while a 40 mm RockShox Rudy XPLR suspension fork keeps handling confident and relaxed on the roughest roads. SRAM's Force AXS 12-speed drivetrain delivers smooth, wireless shifting, and OCLV Carbon Bontrager Aeolus Elite 35V wheels and a carbon seat post damp vibrations while keeping the weight down.
Trek 2026 Checkpoint+ SL 7 AXS
Frame
Size: S, M, ML, L, XL
Colour: Chameleon Green
Frame: 500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat-mount disc, mudguard mounts, UDH, 142x12 mm chamfered thru axle

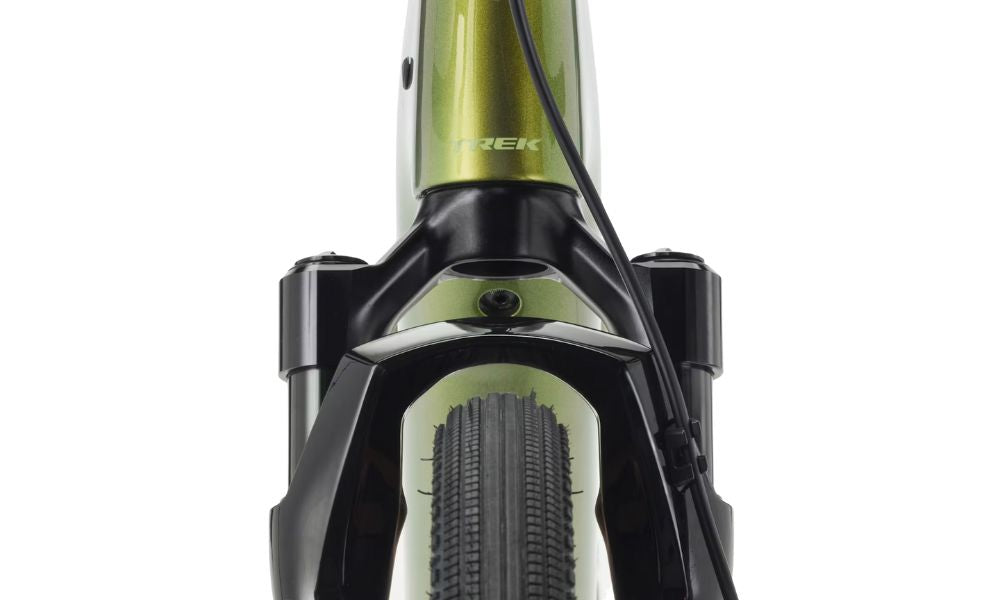

Fork: RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45 mm offset, 12x100 mm thru axle, 40 mm travel
Shock: NA
Drivetrain

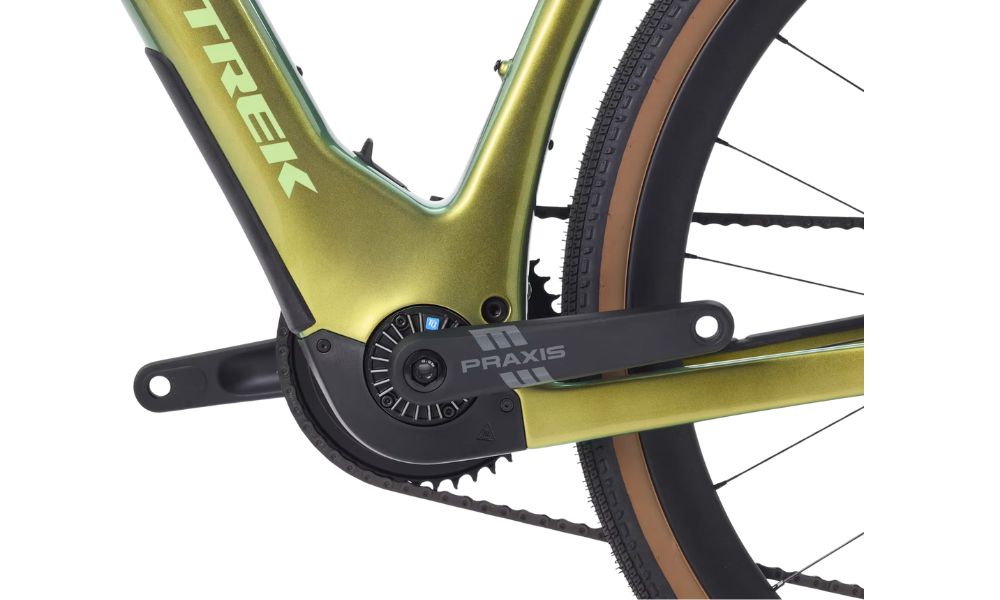

Crankset: Praxis Alloy
Pedals:
Chain: SRAM X0 Eagle, T-Type, 12-speed
Bottom Bracket:
Rear Derailleur: SRAM X0 Eagle AXS, T-Type
Front Derailleur:
Derailleur Shifter: SRAM Force AXS E1
Freewheel/Cassette: SRAM Eagle XS-1295, T-Type, 10-52, 12-speed
Braking System
Brakes:
Brake Levers:
Wheels
Tyres: Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42 mm
Wheels/Rims: [F] Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, 100x12 mm thru axle [R] Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, SRAM XD-R driver, 142x12 mm thru axle
Hubs:
Other

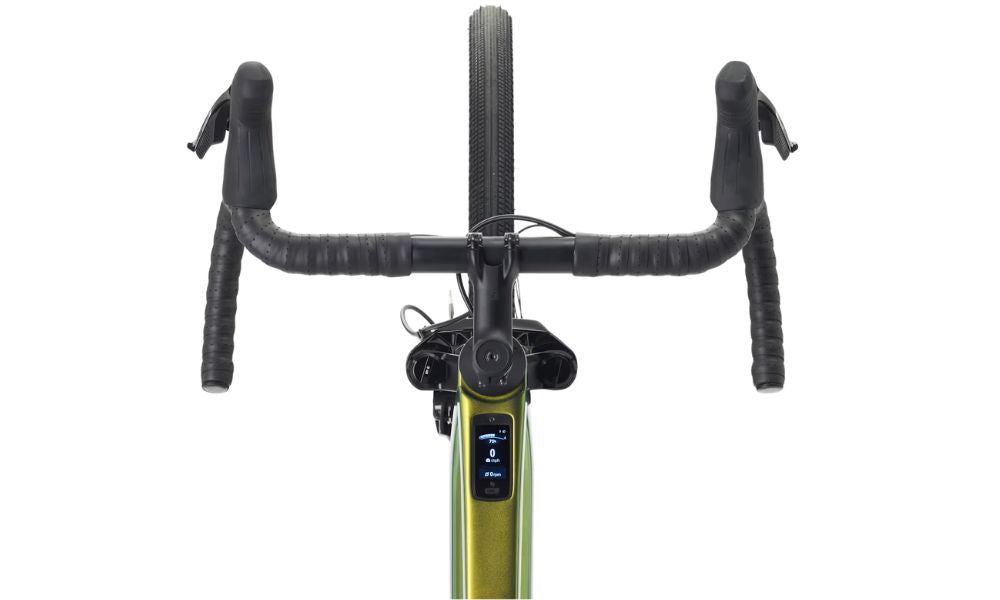

Handlebar: Bontrager Pro Gravel
Stem: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree
Seat Post: Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
Saddle: Verse Short Elite, hollow magnesium rails, 145 mm width
E-Bike
Drive Unit: TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
Battery: TQ 360Wh
Controller: TQ color LED display with Bluetooth & ANT+ connectivity
Display: TQ color LED display with Bluetooth & ANT+ connectivity
Charger: TQ 4A charger
Trek 2026 Checkpoint+ SL 7 AXS
All measurements provided in cm unless otherwise stated.
| Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 700c | 48.0 | 74.0° | 73.0° | 10.6 | 71.4° | 54.7 | 7.6 | 44.0 | 4.9 | 6.8 | 103.2 | 77.2 | 38.6 | 55.6 |
| M | 700c | 50.5 | 73.3° | 72.8° | 13.0 | 71.6° | 56.6 | 7.6 | 44.0 | 4.9 | 6.8 | 104.4 | 79.9 | 39.1 | 57.9 |
| ML | 700c | 53.0 | 73.3° | 72.8° | 15.1 | 72.0° | 57.8 | 7.6 | 44.0 | 4.9 | 6.4 | 105.2 | 81.3 | 39.7 | 60.1 |
| L | 700c | 55.0 | 73.3° | 72.8° | 17.1 | 72.1° | 58.9 | 7.6 | 44.0 | 4.9 | 6.4 | 106.3 | 83.7 | 40.2 | 62.0 |
| XL | 700c | 57.5 | 73.3° | 72.8° | 19.1 | 72.4° | 60.1 | 7.6 | 44.0 | 4.9 | 6.2 | 107.2 | 86.1 | 40.8 | 64.0 |
