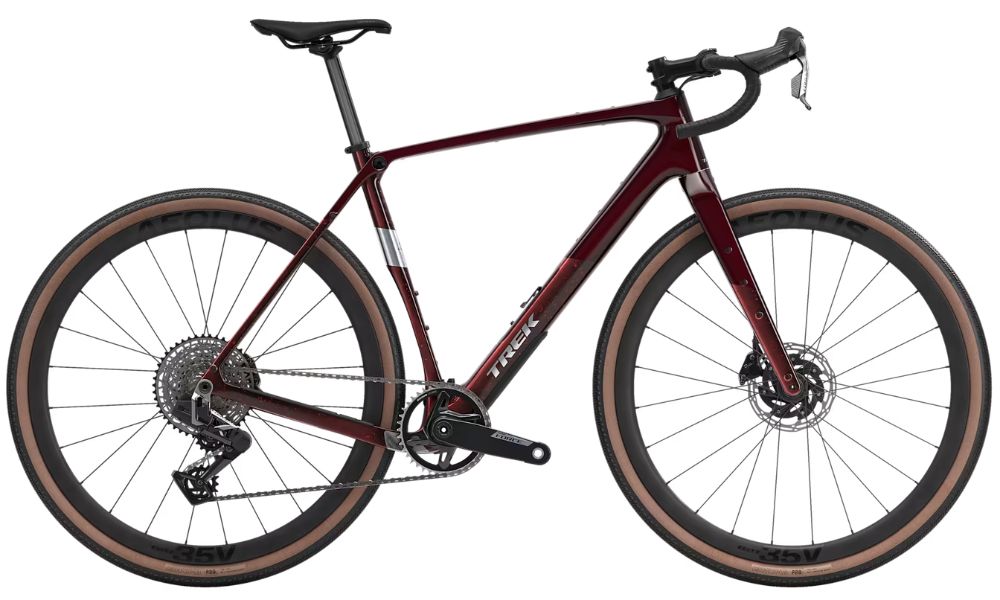

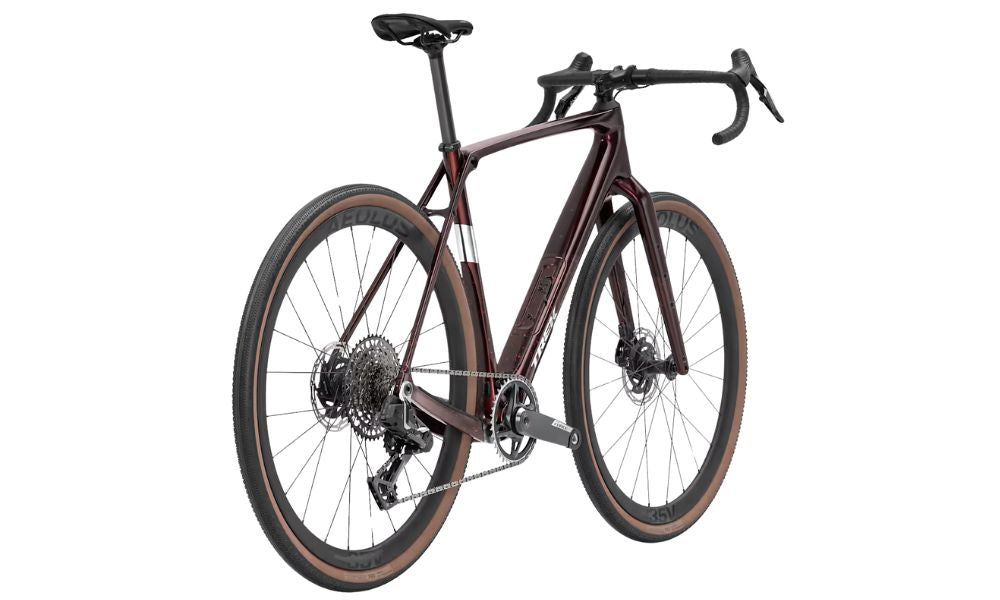

Trek 2026 Checkpoint SL 7 AXS Gen 3

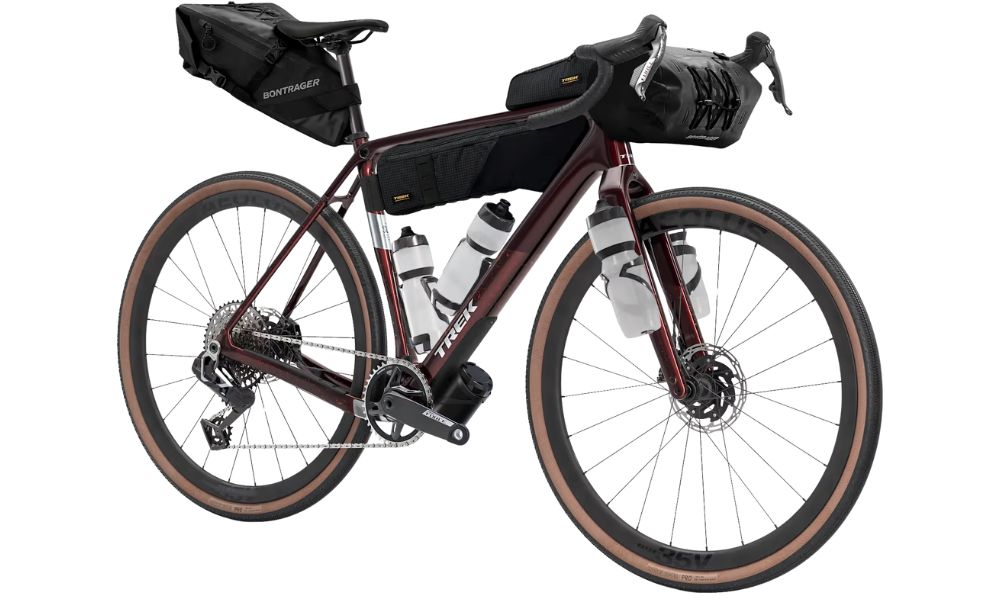

The Checkpoint SL 7 AXS Gen 3 is a carbon gravel bike built to explore the beyond. Its lightweight carbon frame is designed with a Gravel Endurance geometry, tons of mounts and clearance for up to 50 mm tyres (as measured). Plus, IsoSpeed comfort tech helps soak up jarring vibrations so you can float over chatter and potholes. It's decked out with upgrades where you want them most, like carbon wheels and seat post, and a wireless SRAM Force AXS XPLR E1 drivetrain.
Trek 2026 Checkpoint SL 7 AXS Gen 3
Frame
Size: XS, S, M, ML, L, XL
Colour: Dark Red/Carbon Red Smoke Splatter
Frame: 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle

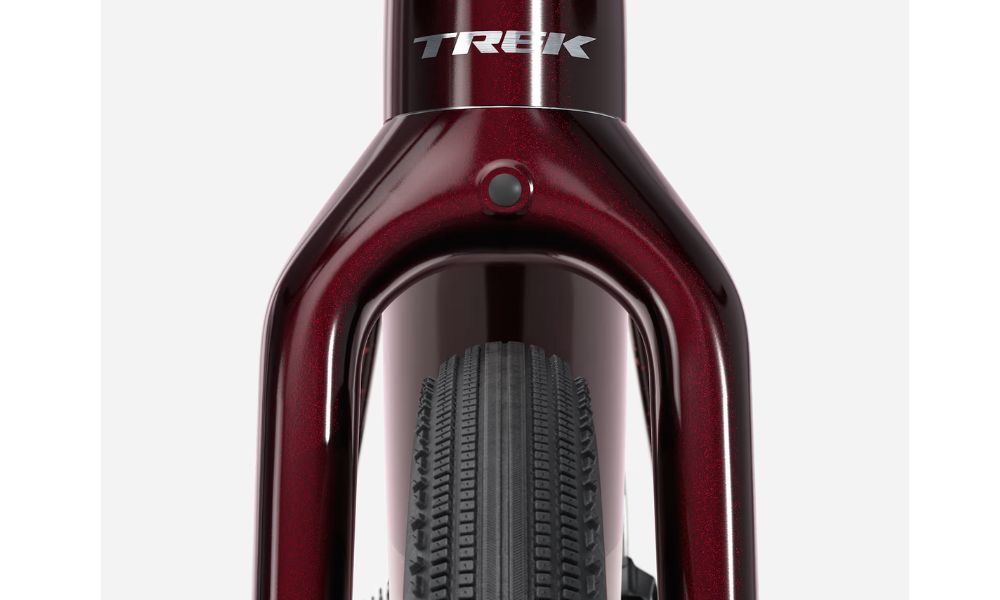

Fork: Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12x100 mm chamfered thru axle
Shock: NA
Drivetrain

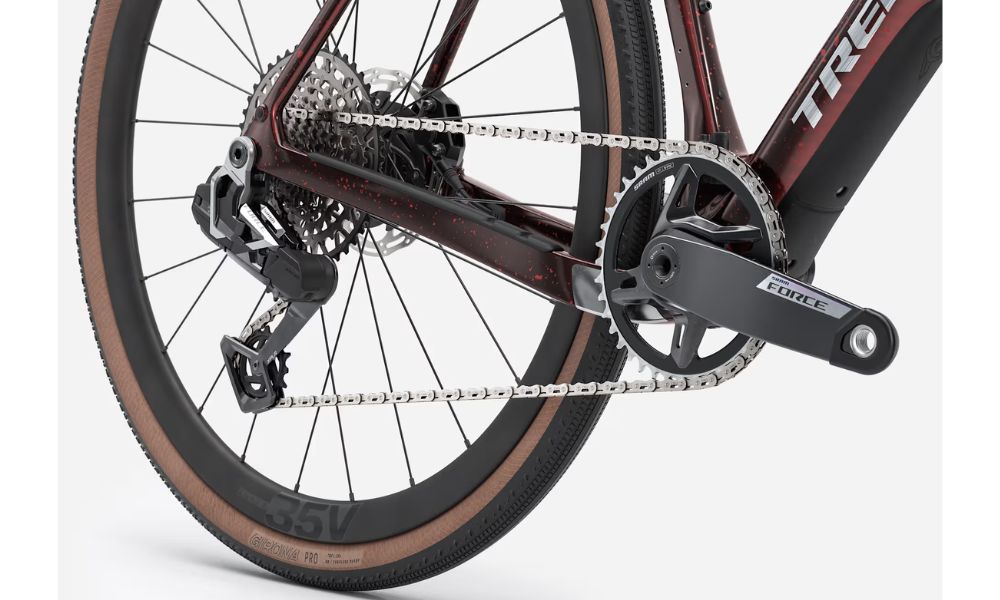

Crankset: SRAM Force XPLR, 40T, DUB Wide
Pedals:
Chain: SRAM Force E1, 12/13-speed
Bottom Bracket: SRAM DUB Wide, T47 threaded, internal bearing
Rear Derailleur: SRAM Force XPLR AXS, 46T max cog
Front Derailleur:
Derailleur Shifter: SRAM Force AXS E1
Freewheel/Cassette: SRAM Force XPLR XG-1371, 10-46, 13-speed
Braking System
Brakes: SRAM Force AXS hydraulic disc, flat mount
Brake Levers:
Wheels
Tyres: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
Wheels/Rims: [F] Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, 100x12 mm thru axle [R] Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, SRAM XD-R driver, 142x12 mm thru axle
Hubs:
Other

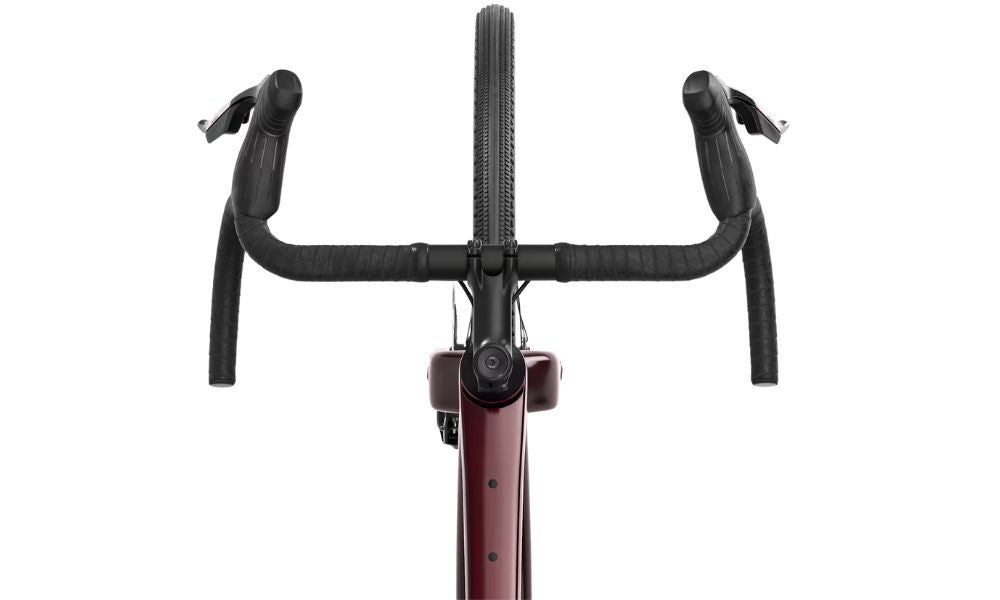

Handlebar: Bontrager Pro Gravel
Stem: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree
Seat Post: Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
Saddle: Verse Short Elite, hollow magnesium rails, 145 mm width
Trek 2026 Checkpoint SL 7 AXS Gen 3
All measurements provided in cm unless otherwise stated.
| Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 700c | 44.5 | 74.0° | 72.7° | 8.6 | 71.0° | 53.6 | 7.6 | 43.0 | 4.9 | 7.1 | 101.3 | 74.6 | 38.0 | 53.5 |
| S | 700c | 48.0 | 74.0° | 73.0° | 10.6 | 71.4° | 54.7 | 7.6 | 43.0 | 4.9 | 6.8 | 102.2 | 77.2 | 38.6 | 55.6 |
| M | 700c | 50.5 | 73.3° | 72.8° | 13.0 | 71.6° | 56.6 | 7.6 | 43.0 | 4.9 | 6.8 | 103.4 | 79.9 | 39.1 | 57.9 |
| ML | 700c | 53.0 | 73.3° | 72.8° | 15.1 | 72.0° | 57.8 | 7.6 | 43.0 | 4.9 | 6.4 | 104.2 | 81.3 | 39.7 | 60.1 |
| L | 700c | 55.0 | 73.3° | 72.8° | 17.1 | 72.1° | 58.9 | 7.6 | 43.0 | 4.9 | 6.4 | 105.2 | 83.7 | 40.2 | 62.0 |
| XL | 700c | 57.5 | 73.3° | 72.8° | 19.1 | 72.4° | 60.1 | 7.6 | 43.0 | 4.9 | 6.2 | 106.2 | 86.1 | 40.8 | 64.0 |
