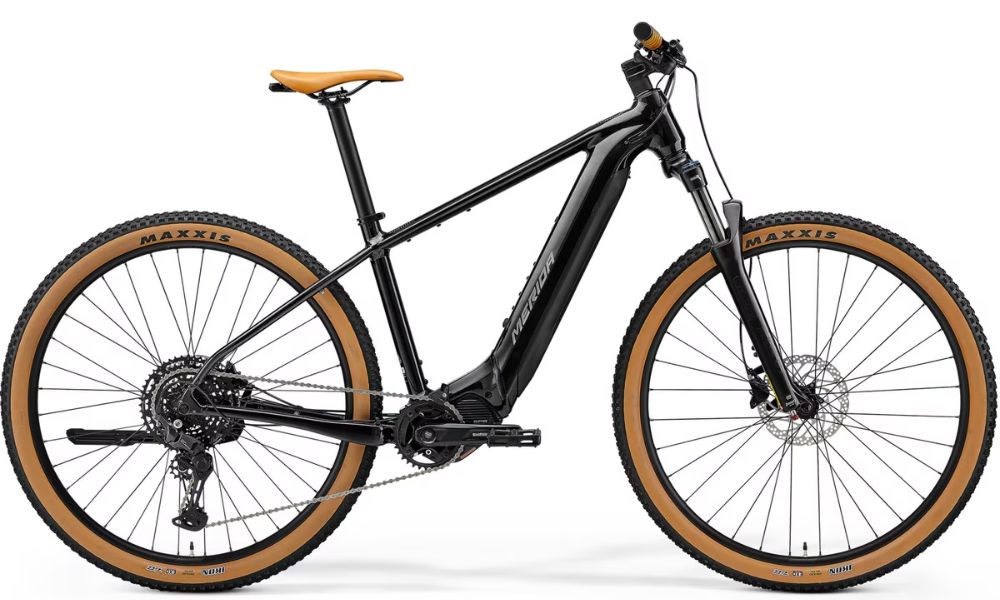

Merida 2027 eBIG.NINE 400
Arguably the most versatile e-bikes in our range, the tried and tested eBIG.NINE embodies the perfect balance of day-to-day usability and sporty leisure riding. It’s a bike that can handle off-road trails thanks to smooth rolling 29" wheels but can also dispatch the commute to work with ease - especially if you want to have some fun on the way. All models feature strong and smooth Shimano drive units to power you up any hill - and on to any adventure.
Merida 2027 eBIG.NINE 400
| Frame Size | S | M | L | XL |
| Tyre Sizes | 29" | 29" | 29" | 29" |
| ST seat tube [mm] | 380 | 430 | 480 | 530 |
| TT top tube [mm] | 588 | 605 | 625 | 645 |
| CS chain stay length [mm] | 465 | 465 | 465 | 465 |
| HTA head tube angle [°] | 67.5 | 67.5 | 67.5 | 67.5 |
| STA seat tube angle [°] | 74.5 | 74.5 | 74.5 | 74.5 |
| BD bottom bracket drop [mm] | 62.5 | 62.5 | 62.5 | 62.5 |
| HT head tube [mm] | 115 | 120 | 130 | 140 |
| FL fork length [mm] | 527 | 527 | 527 | 527 |
| R reach [mm] | 411 | 427 | 445 | 462 |
| S stack [mm] | 636 | 640 | 650 | 659 |
| WB wheel base [mm] | 1165 | 1183 | 1204 | 1225 |
| SH stand over height [mm] | 719 | 750 | 794 | 835 |
