Specialized 2026 Turbo Creo 2 Comp E5
Frame
Size: 49, 52, 54, 56, 58

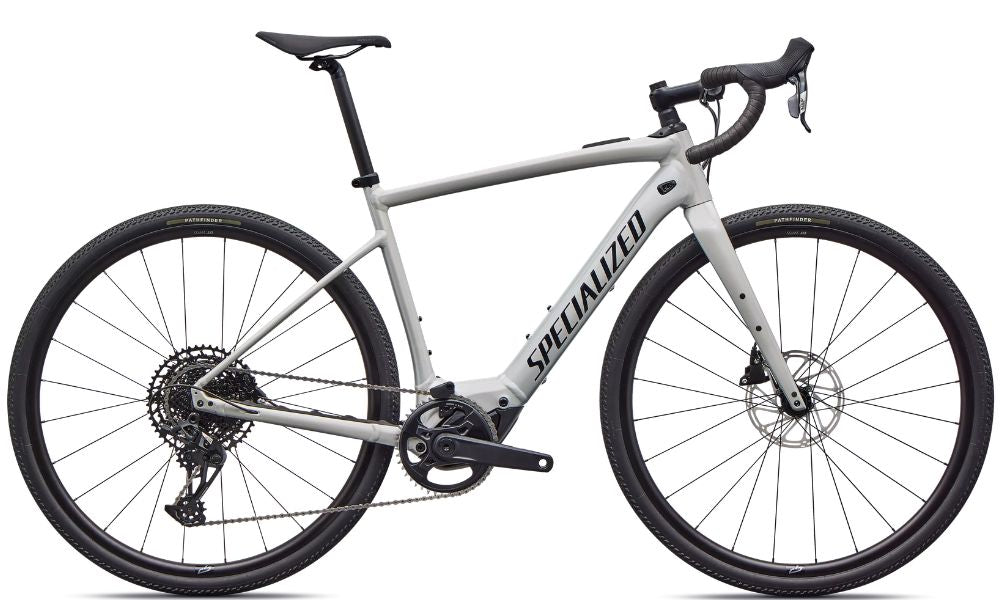

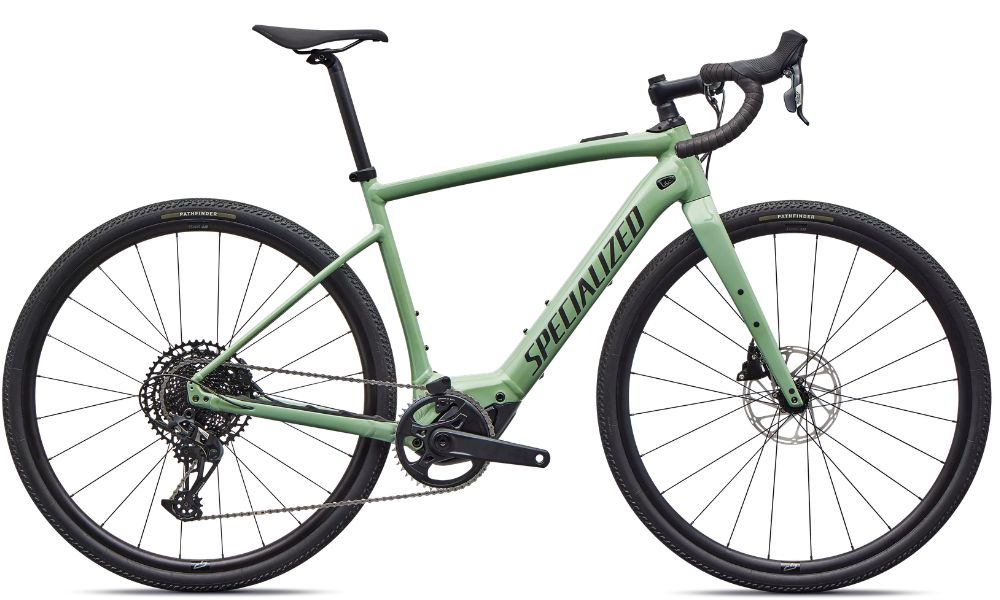

Colour: Gloss Pistachio/smoke or Gloss Dolomite Metallic/Dark Navy Metallic
Frame: Specialized E5 Premium Aluminum frame, front/rear thru-axles, fully integrated down tube battery, internal cable routing, fender/rack mounts, 12x142mm, flat-mount disc brakes
Fork: Future Shock 2.0 w/Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount
Shock:
Drivetrain
Crankset: SRAM Alloy Crankset, DUB interfac
Pedals:
Chain: SRAM NX Eagle, 12-speed
Bottom Bracket:
Rear Derailleur: SRAM Apex Eagle 12-speed
Front Derailleur:
Shifter: SRAM Apex 12-speed
Freewheel/Cassette: SRAM PG-1210 Eagle, 12-speed, 11-50t
Braking System
Brakes: SRAM Apex, Hydraulic disc
Brake Levers:
Wheels
Tyres: Pathfinder TLR Fast Gravel Tire 700x40c, GRIPTON T2/T5
Wheels/Rims: DT G540 DISC ASVN
Hubs: [F] [R]
Other
Handlebar: Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
Stem: Future Stem, Comp
Seat Post: Carbon, single-bolt, 27.2mm
Saddle: Body Geometry Power Sport, steel rails
E-Bike
Drive Unit: Specialized 1.2 SL Custom Lightweight Motor
Battery: Specialized SL1-320, fully integrated, 320Wh
Controller: Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
Display:
Charger: Custom charger, 48V System w/ SL system charger plug
Specialized 2026 Turbo Creo 2 Comp E5
| Crank Length |
165 |
170 |
172.5 |
172.5 |
175 |
175 |
| Handlebar Width |
380 |
400 |
420 |
420 |
440 |
440 |
| Stem Length |
60 |
70 |
80 |
90 |
100 |
100 |
| Saddle Width |
155 |
155 |
143 |
143 |
143 |
143 |
| Seatpost Length |
350 |
350 |
350 |
400 |
400 |
400 |
| Stack |
571 |
577 |
590 |
608 |
630 |
655 |
| Reach |
365 |
374 |
383 |
392 |
401 |
410 |
| Head-Tube Length |
99 |
104 |
116 |
133 |
159 |
185 |
| Head-Tube Angle |
70 |
70.5 |
71.25 |
72 |
72 |
72 |
| B-B Height |
270 |
270 |
272 |
272 |
275 |
275 |
| B-B Drop |
80 |
80 |
78 |
78 |
76 |
76 |
| Trail |
61 |
57 |
57 |
58 |
69 |
66 |
| Fork Length (full) |
389 |
389 |
389 |
389 |
389 |
389 |
| Fork Rake/Offset |
55 |
55 |
55 |
55 |
55 |
55 |
| Front-Center |
607 |
614 |
620 |
629 |
646 |
664 |
| Chain-Stay Length |
440 |
440 |
440 |
440 |
440 |
440 |
| Wheelbase |
1035 |
1041 |
1048 |
1058 |
1075 |
1093 |
| Top-Tube Length (horizontal) |
529 |
542 |
558 |
566 |
588 |
604 |
| Bike Stand-Over Height |
705 |
718 |
746 |
772 |
800 |
826 |
| Seat-Tube Length |
390 |
430 |
470 |
500 |
530 |
560 |
| Seat-Tube Angle |
74 |
73.75 |
73.5 |
73.5 |
73.5 |
73.5 |
