Marin 2025 Alcatraz Jr 24

Please manually select shipping rates at checkout

Finance Plans Available

Description
Specifications

Description

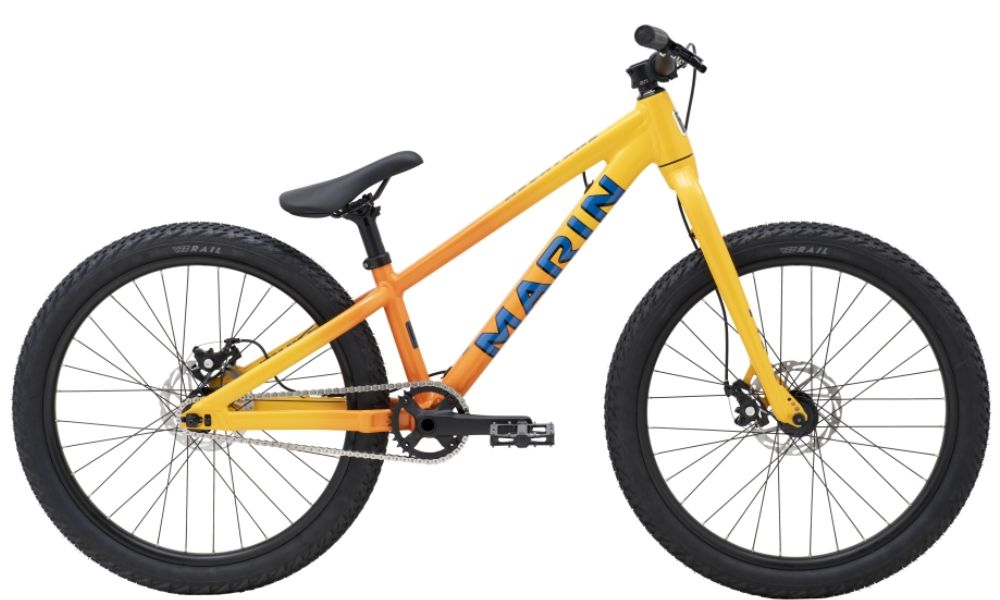

Marin 2025 Alcatraz Jr 24

We've taken the Alcatraz 1 and scaled it down for smaller riders. Built upon the same tubing as the larger models, it features a 360mm reach, 69° headtube angle, and 72° seattube angle, with 369mm chainstays. A suspension-corrected rigid CrMo fork is designed to handle rough-and-rowdy riding, and a simple and stout single-speed drivetrain and Tektro mechanical disc brakes ensure a fun and safe ride.

Specifications

Marin 2025 Alcatraz Jr 24

Frame

Colour: Orange Yellow Fade
Frame: Series 3 6061 Aluminum, 24” Wheels, 135x10mm Horizontal Single Speed Dropouts, 73mm Threaded BB, ISCG 05 Tabs
Fork: Marin Series 2 CroMo 24", Suspension Corrected, 100x9mm Dropouts
Shock:

Drivetrain

Crankset: Marin Forged Alloy, Alloy 32T DM Chainring, 155mm Length
Chain: KMC HL-1
Bottom Bracket: Sealed Cartridge Bearings, Square Taper
Rear Derailleur:
Front Derailleur:
Derailleur Shifter:
Freewheel/Cassette: 14T Single Speed Cog

Braking System

Brakes: [F] and [R] Tektro MD-M280 Mechanical Disc 160mm Rotor
Brake Levers: Tektro CL-330TS Alloy

Wheels

Tyres: [F] and [R] Vee Tire, Rail 24x2.25”, LSG Compound, Wire Bead
Wheels/Rims: Marin Custom Extrusion, 27mm Inner, Pinned Joint
Hubs: [F] Forged Alloy, Bolt On 3/8" Axle, 100mm Spacing [R] Forged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, Disc, 32H

Other

Handlebar: Marin Riser, 6061 Double Butted Aluminum, 31.8mm at center bulge, 38mm Rise, 700mm Width, 4º Up, 9º Back
Stem: Marin 3D Forged Alloy, 31.8mm clamp, 35mm extension
Saddle: Marin DJ Saddle
Seat Post: Marin Alloy, 30.9mm
