Merida 2026 Matts J 24
Adult riders know all too well that having the right equipment is essential to enjoying riding - so why do people accept low quality, heavy and unreliable kit for their kids? The MATTS J24 delivers the same quality ride as our adult bikes because it uses the same advanced aluminium frame technology, along with high-quality, big brand equipment such as the smooth shifting Shimano drivetrain and SR Suntour fork with custom tuned spring. Suits heights from approx. 129-137 cm tall.
Our MATTS J range is designed for the heroes of tomorrow, which is why we put all the know-how gained from years of making adult bikes into lightweight, high-quality machines for kids to enjoy. High-quality components chosen specifically for the needs of children are married to our aluminium frames that are created with the same painstaking attention to detail and quality of finish as the rest of our bikes. That’s the only way to guarantee that young riders get the same enjoyment of cycling, safe in the knowledge that their bike will never let them down. Whatever your age, your level of ability or your size, we have the perfect first MERIDA ready for you. See you on the start line!
- Lightweight double butted aluminium frame
- 24” wheels with fast rolling tyres
- Suspension fork
- Shimano drivetrain
- Hydraulic disc brakes
- Kid specific finishing kit
Merida 2026 Matts J 24
Frame
Size: S, M, L, XL

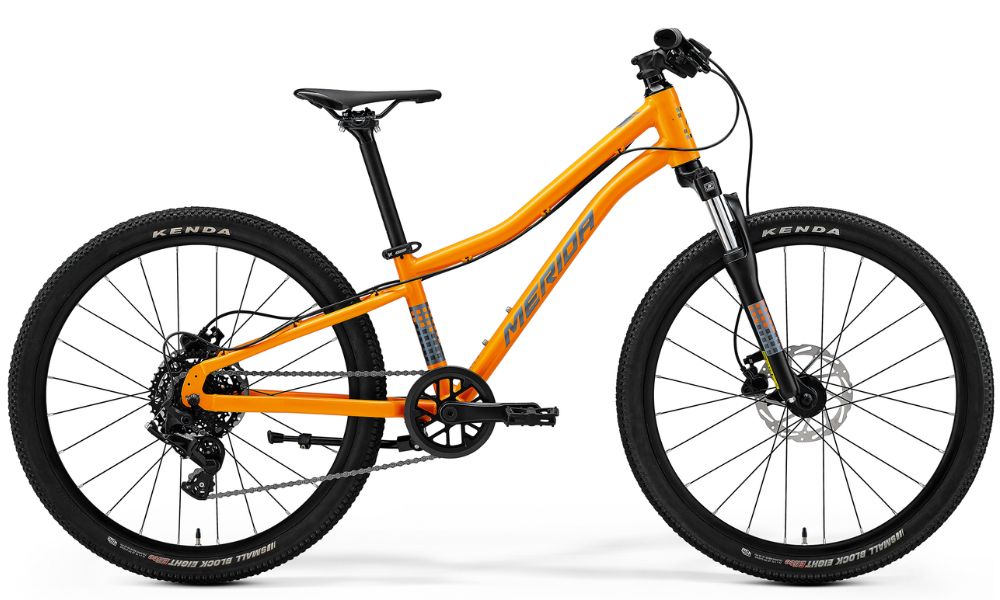

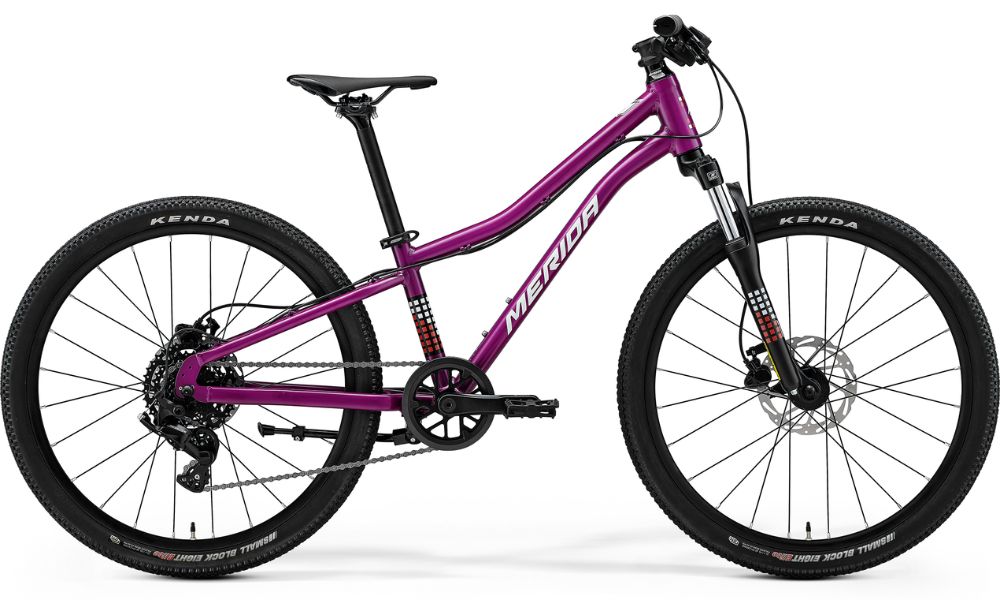

Colour: Silk Purple(White/Red/Black) or Silk Ornag(Steel Blue/Grey)
Frame: MATTS J. 24, MAT aluminium, 24x2.4" max. WHS, 135x9/100x9 AST, BSA BBR,
Fork: SR Suntour XCT-JR DS, Custom coil, 50 STR, 24x2.1" max. WHS,
Shock:
Drivetrain
Crankset: Prowheel A10PP, 32t, MAT Aluminium,
Pedals:
Chain: KMC Z8.3,
Bottom Bracket: Squared LL116,
Rear Derailleur: Microshift Acolyte Speed Super Short Cage, RD-M5180S, Super short cage,
Front Derailleur:
Shifter: Microshift Acolyte Quick Trigger Pro, Super short reach, Gear indicator,
Freewheel/Cassette: Microshift CS-083, 11-38t, 8sp
Braking System
Brakes: Tektro HD-J2820, hydraulic disc brake, short reach, Tektro TR160-52, 160mm
Brake Levers:
Wheels
Tyres: Kenda Small Block 8, 24x1.95", wired,
Wheels/Rims: MERIDA JR 24+, MAT aluminium
Hubs: [F] KT-K68F, 100x9 WHF, 24 SPH, [R] KT-K68R-8/9/10S, 135x9 WHR, 24 SPH,
Other
Handlebar: MERIDA EXPERT JR, MAT aluminium, 600 WHB, 25 RHB
Stem: MERIDA COMP CC, MAT aluminium, 31.8 DSH, 7 ASD
Seat Post: MERIDA COMP CC, 27.2 DSP, 0 SSB, MAT aluminium
Saddle: MERIDA EXPERT JR,
Merida Matts J
| Frame Size | 11.5" |
| Tyre Sizes | 24" |
| ST seat tube [mm] | 275 |
| TT top tube [mm] | 500 |
| CS chain stay length [mm] | 410 |
| HTA head tube angle [°] | 68 |
| STA seat tube angle [°] | 72 |
| BD bottom bracket drop [mm] | 30 |
| HT head tube [mm] | 120 |
| FL fork length [mm] | 415 |
| R reach [mm] | 335 |
| S stack [mm] | 509 |
| WB wheel base [mm] | 986 |
| SH stand over height [mm] | 560 |
