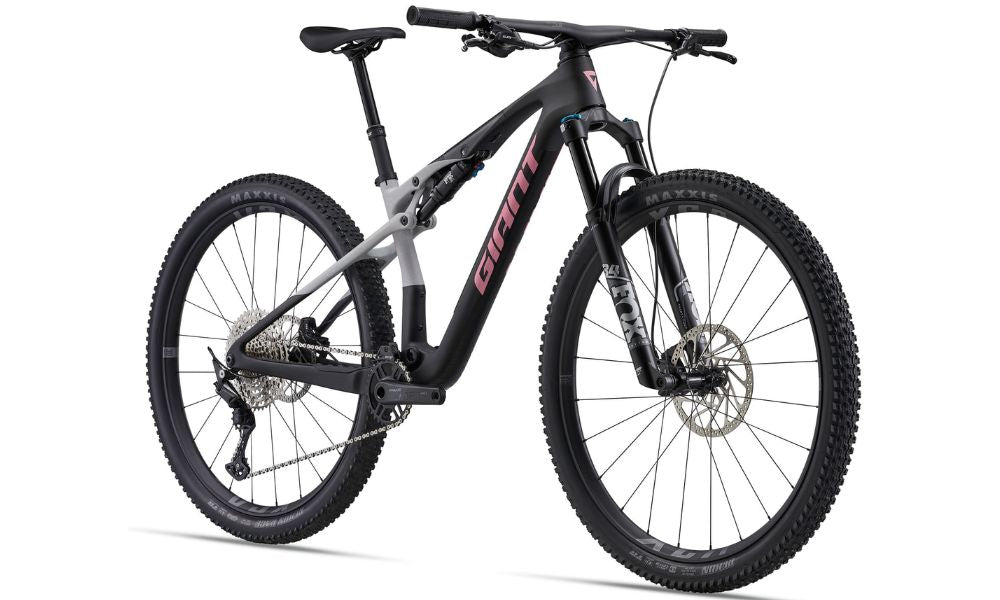

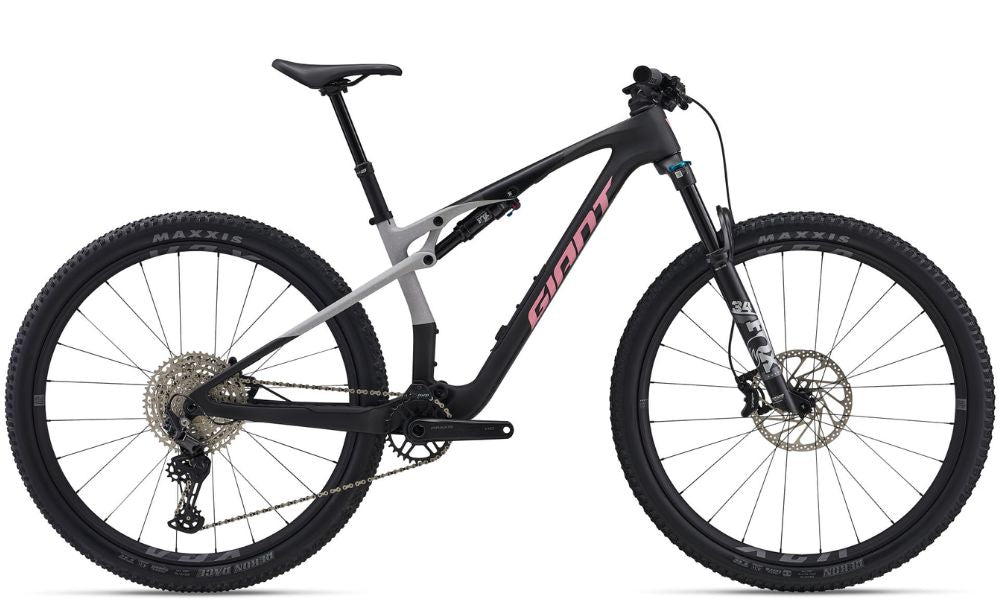

Giant 2026 Anthem X Advanced SL 3
Please contact store for PRE-ORDER on 04 589 2822 or support@cyclescience.co.nz
Built to slay singletrack with blazing speed, the new Anthem X Advanced SL blurs the lines between XC and trail performance. The lightweight composite frame features a new semi-integrated FlexPoint Pro rear suspension setup with 120mm of travel plus a flip chip to adjust geometry. Combined with a 130mm fork and an integrated handlebar with clean cable routing, it’s fast, fun and ready to rip.
RACE-BRED TRAIL SPEED
A full-composite frameset is both ultra-light and highly efficient to help you power up climbs and make every watt count. The WheelSystems and integrated handlebar/stem units are designed for maximum efficiency and instantaneous response to rider input. The rear shock is repositioned and semi-integrated with the top tube, shaving weight and creating space for a second water bottle cage.
TOTAL CONTROL
The new FlexPoint Pro suspension delivers 120mm of smooth, active rear travel paired with a 130mm fork—helping you fly down rough descents and power up technical climbs. A flip chip lets you fine tune handling for all types of terrain. Superlight composite or alloy Giant WheelSystems (depending on model) with a next-generation 120-tooth helical ratchet drive system for immediate power and robust 5mm rim sidewalls for greater protection against impacts and punctures.
SYSTEM INTEGRATION

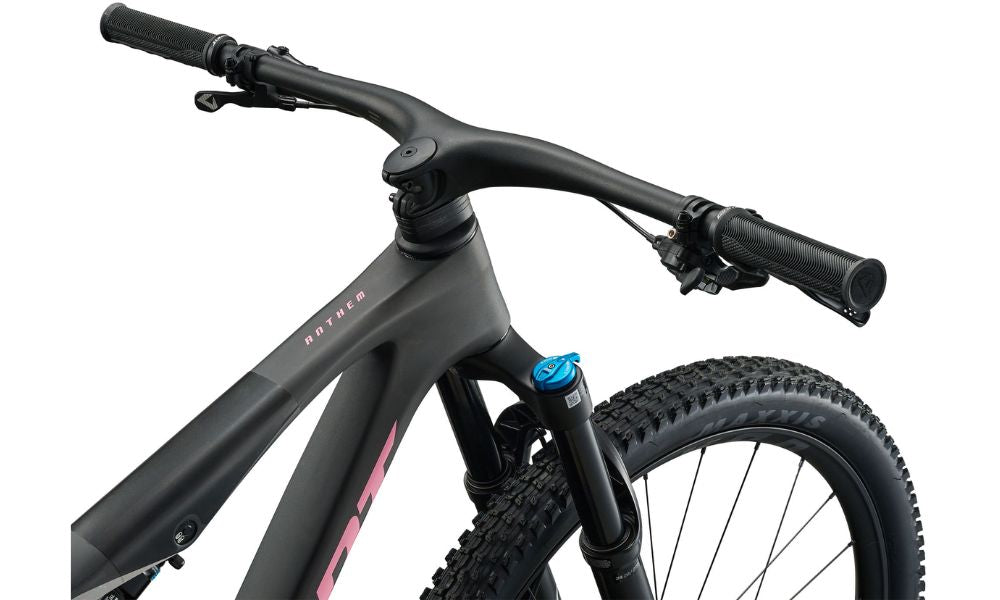

A new one-piece integrated handlebar/stem unit adds compliance to reduce shocks and vibrations, improving control and hand comfort. It’s available in two models—the Contact SLR XC Integrated composite and Contact SL XC Integrated alloy. Both feature the same seamless cable routing and versatile sizing with a 780mm standard width and stem lengths ranging from 50-90mm.
Giant 2026 Anthem X Advanced SL 3
Frame
Size: S, M, L, XL
Colour: Carbon/Moon Dust

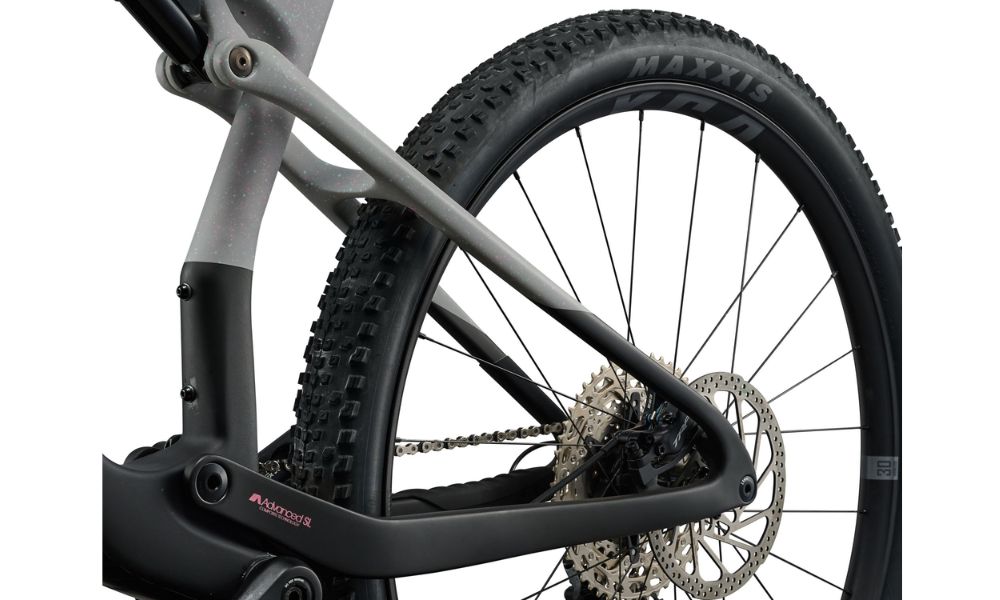

Frame: Advanced SL-grade composite front and rear triangles, 120mm FlexPoint Pro suspension, flip chip, 12x148mm thru-axle, internal storage

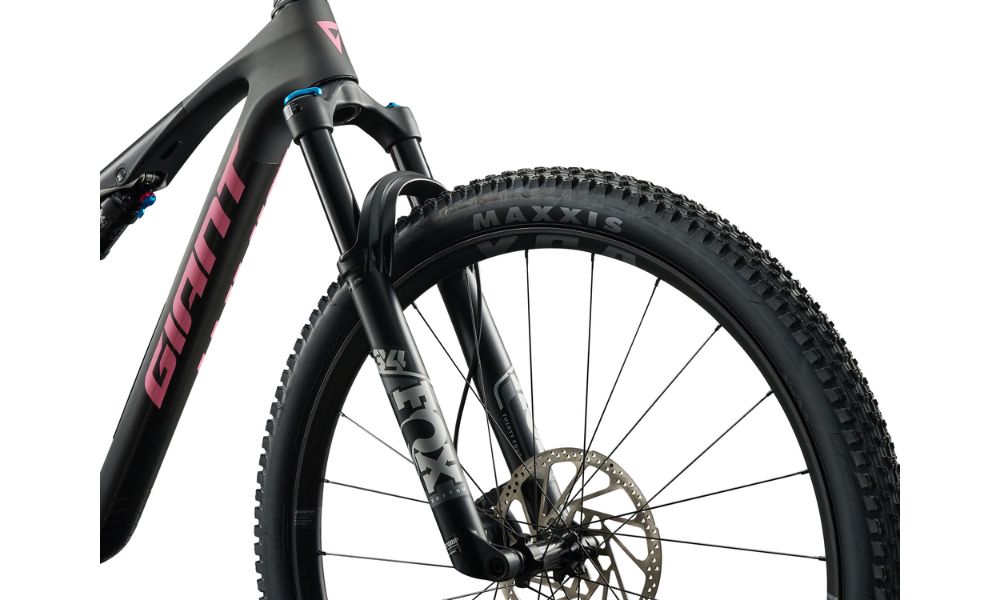

Fork: Fox 34 Rhythm, 130mm, GRIP damper, Boost 15x110, 44mm offset

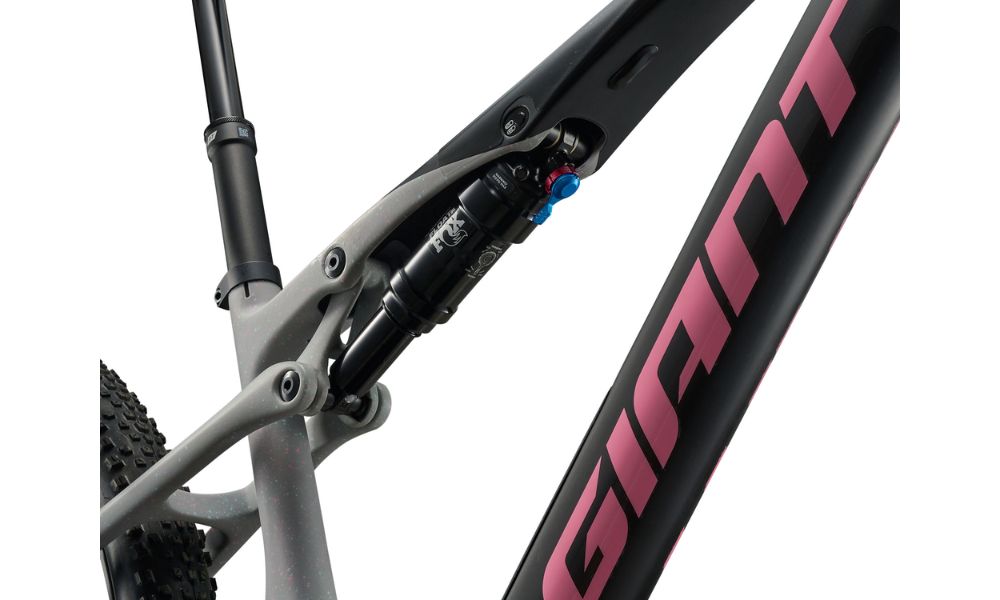

Shock: Fox Float SL Performance

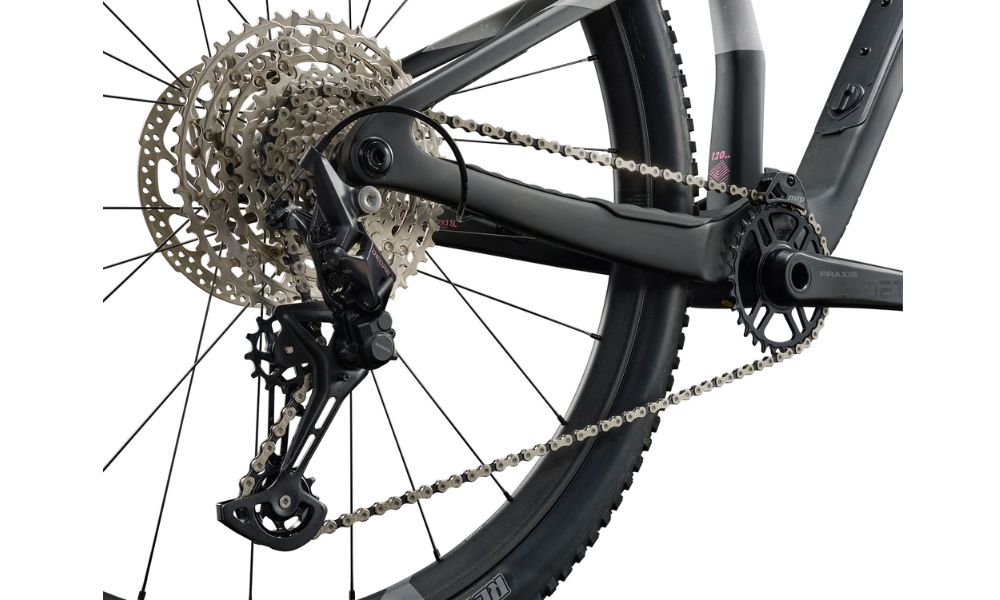

Drivetrain
Crankset: Praxis Cadet HD M24, 32t, 55mm chainline S:165mm, M:170mm, L:175mm, XL:175mm
Pedals:
Chain: KMC X-12
Bottom Bracket: Praxis, press fit
Rear Derailleur: Shimano Deore SL-M6100 Shadow +
Front Derailleur:
Derailleur Shifter: Shimano Deore SL-M6100, 1x12
Freewheel/Cassette: Shimano Deore M6100, 10x51
Braking System
Brakes: TRP Slate EVO hydraulic, stainless, 6-bolt rotors [F]203mm, [R]180mm
Brake Levers: TRP Slate EVO
Wheels
Tyres: [F] Maxxis Rekon 29.x2.4", TLR, EXO, tubeless, [R] Maxxis Rekon Race 29x2.4", TLR, EXO, tubeless
Wheels/Rims: XCA 29 Alloy Wheelsystem
Hubs: [F] Giant alloy, 6-bolt [R] Giant Alloy, 120T Helical-Bevel Ratchet Driver, 6-Bolt
Other
Handlebar: Giant Integrated XC, alloy, 9-degree upsweep
Stem: Giant Integrated XC Alloy S:50mm, M:50mm, L:60mm, XL:70mm
Seat Post: Giant Contact Switch AT dropper, adjustable travel, remote S: 110-140mm travel / 30.9 x 395mm M: 110-140mm travel / 30.9 x 395mm L: 140-170mm travel / 30.9
Saddle: Giant Grit Core
Giant 2026 X Advanced SL 3
-
- S
-
163 cm
172 cm
-
- M
-
171 cm 180 cm
-
- L
-
179 cm 188 cm
-
- XL
-
187 cm 198 cm
| S | M | L | XL | ||
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
| A | Seat Tube Length (MM) | 400 | 420 | 465 | 495 |
| B | Seat Tube Angle | 75.0° | 75.5° | 75.1° | 75.5° | 75.1° | 75.6° | 75.1° | 75.6° |
| C | Top Tube Length (MM) | 577 | 575 | 603 | 602 | 625 | 624 | 653 | 651 |
| D | Head Tube Length (MM) | 90 | 95 | 105 | 115 |
| E | Head Tube Angle | 66.0° | 66.5° | 66.1° | 66.5° | 66.1° | 66.6° | 66.1° | 66.6° |
| F | Fork Rake (MM) | 44 | 44 | 44 | 44 |
| G | Trail (MM) | 119.5 | 115.7 | 119.3 | 115.6 | 119.2 | 115.5 | 119.0 | 115.4 |
| H | Wheelbase (MM) | 1145 | 1144 | 1172 | 1171 | 1196 | 1195 | 1225 | 1224 |
| I | Chain Stay Length (MM) | 437 | 435 | 437 | 435 | 437 | 435 | 437 | 435 |
| J | Bottom Bracket Drop (MM) | 48 | 42 | 48 | 42 | 48 | 42 | 48 | 42 |
| K | Stack (MM) | 606 | 602 | 611 | 607 | 620 | 616 | 629 | 625 |
| L | Reach (MM) | 415 | 420 | 440 | 445 | 460 | 465 | 485 | 490 |
| M | Stand Over Height (MM) | 774 | 780 | 770 | 776 | 762 | 769 | 757 | 764 |
| O | Stem Length (MM) | 50 | 50 | 60 | 70 |
| P | Crank Length (MM) | 170 | 170 | 175 | 175 |
