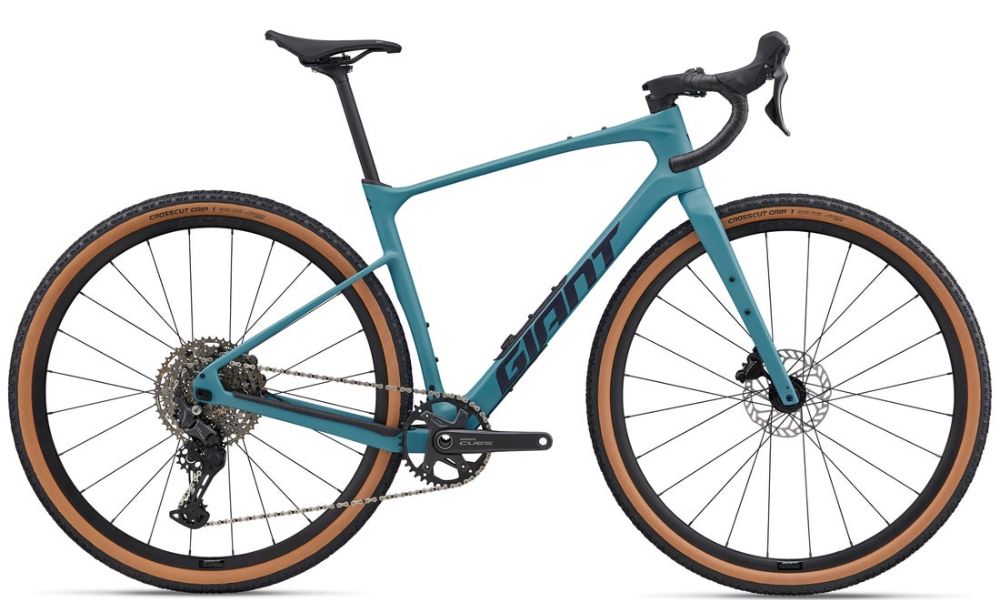

Giant 2026 Revolt Advanced 3
Please contact store for availability on 04 589 2822 or support@cyclescience.co.nz
Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.
Fast and light
Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.
Tuned compliance
Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
Giant 2026 Revolt Advanced 3
Frame
Size: S, M, ML, L, XLColour: Aquarium
Frame: Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Shock:
Drivetrain
Crankset: Shimano Cues U6030, 42 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mmPedals:
Chain: KMC X11
Bottom Bracket: Shimano, press fit
Rear Derailleur: Shimano Cues U6000, Shadow+
Front Derailleur:
Derailleur Shifter: Shimano Cues U6030, 1x11
Freewheel/Cassette: Shimano Cues U6030, 1x11
Braking System
Brakes: Shimano Cues U6030 hydraulic, Giant MPH rotors [F]160mm, [R]160mmBrake Levers: Shimano Cues U6030 hydraulic
Wheels
Tyres: Giant CrossCut Grip, 700x45c, tubelessWheels/Rims: Giant P-X2 Disc wheelset, alloy
Hubs: Giant alloy, 12mm thru-axle
Other
Handlebar: Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cmStem: Giant Contact Aerolight XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seat Post: Giant D-Fuse, composite, 14mm offset
Saddle: Giant Grit
Giant 2026 Revolt Advanced 3
| XS | S | M | ML | L | XL | |
|---|---|---|---|---|---|---|
| SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | |
| A Seat Tube Length (mm) | 430 | 450 | 470 | 490 | 510 | 530 |
| B Seat Tube Angle | 74.0° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| C Top Tube Length (mm) | 540 | 550 | 560 | 575 | 585 | 600 |
| D Head Tube Length (mm) | 125 | 135 | 150 | 165 | 180 | 195 |
| E Head Tube Angle | 70.0° | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
| F Fork Rake (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| G Trail (mm) | 78 | 82 | 72 | 75 | 68 | 72 | 65 | 68 | 65 | 68 | 65 | 68 |
| H Wheelbase (mm) | 1024 | 1034 | 1020 | 1030 | 1026 | 1036 | 1031 | 1041 | 1041 | 1051 | 1056 | 1066 |
| I Chain Stay Length (mm) | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 |
| J Bottom Bracket Drop (mm) | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 |
| K Stack (mm) | 556 | 570 | 586 | 602 | 616 | 630 |
| L Reach (mm) | 381 | 381 | 387 | 391 | 397 | 407 |
| M Stand Over Height (mm) | 724 | 731 | 740 | 747 | 757 | 764 | 774 | 780 | 791 | 797 | 807 | 814 |
| O Stem Length (mm) | 50 | 60 | 70 | 80 | 80 | 90 |
| P Crank Length (mm) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
