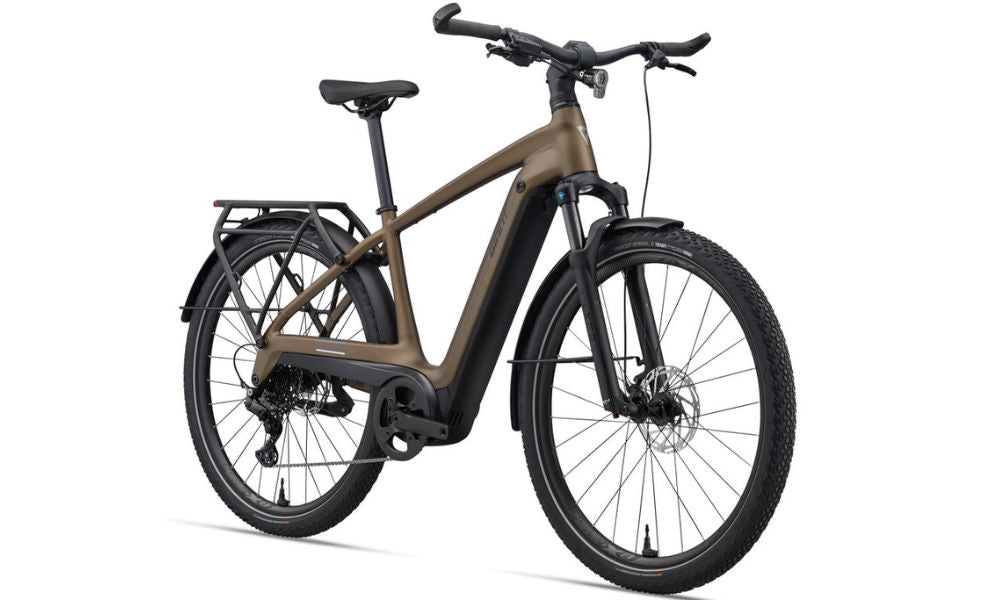

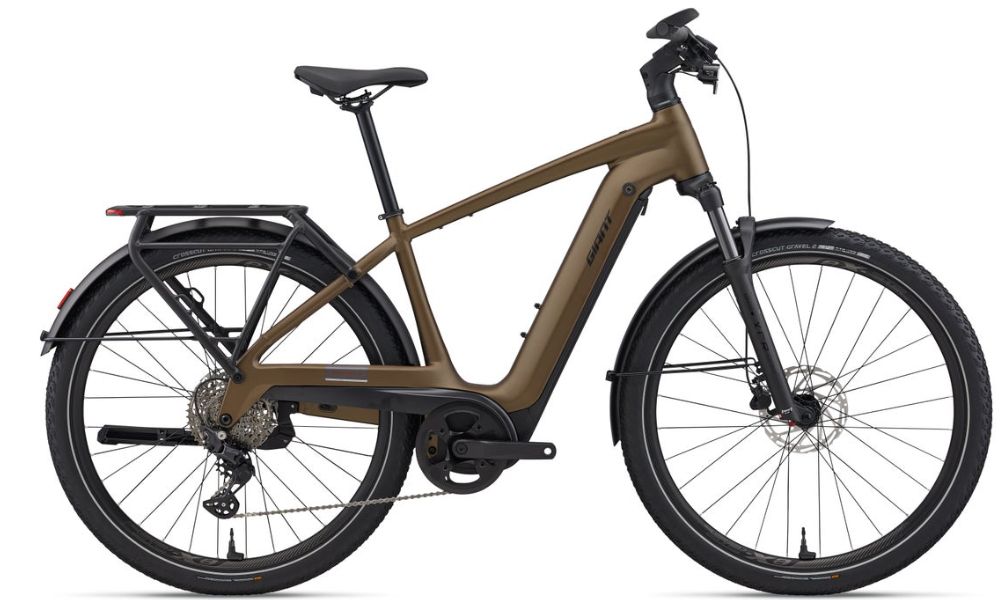

Giant 2026 Explore E+ 3
Built for adventure, the Explore E+ turns commutes and escapes into open horizons. With versatile design and seamless integration, it delivers smooth support, confidence, and freedom to ride farther—wherever the journey leads.
CONFIDENCE & COMFORT
Built for adventure, the Explore E+ is a highly capable and adaptable machine to discover new routes and new experiences on roads, gravel or dirt. With versatile design and seamless integration, it delivers smooth support, confidence, and freedom to ride farther—wherever the journey leads.
POWER THAT LASTS
Endurance comes from the EnergyPak 625w battery, running cooler and more efficient with up to 2300 charge cycles. Paired with the SyncDrive Pro 2 motor delivering 85Nm of torque, it makes climbs manageable and distance effortless. Smart Assist adapts support automatically, while E-Shift with belt drive (Explore E+2 only) provides quiet, low-maintenance shifting for dependable power on every ride.
PROTECTION YOU TRUST
Safety and security are built into the Explore E+. Aegis safety technology includes E-Lock with alarm, Apple Find My for tracking, the Aegis Tire Checker for real-time pressures. Integrated lighting syncs with Radar to increase visibility. Combined with racks, mounts, and a one-piece carrier, it’s a complete solution for connected, protected riding.
Giant 2026 Explore E+ 3
Frame
Size: S, M, L, XL
Colour: Pyrite Brown
Frame: ALUXX-Grade aluminium, disc, KSA40 kickstand compatible

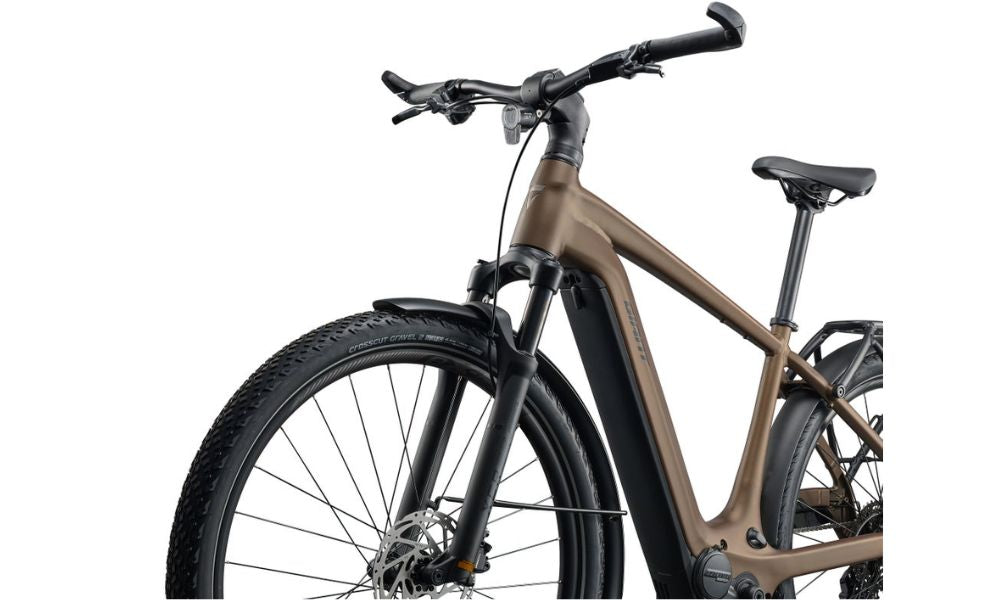

Fork: SR Suntour XCR 34 2CR Coil Boost, 100mm travel 15x110mm thru axle
Shock:
Drivetrain
Crankset: Forged alloy, 42T 170mm
Pedals:
Chain: Shimano Linkglide CN-LG500
Bottom Bracket:

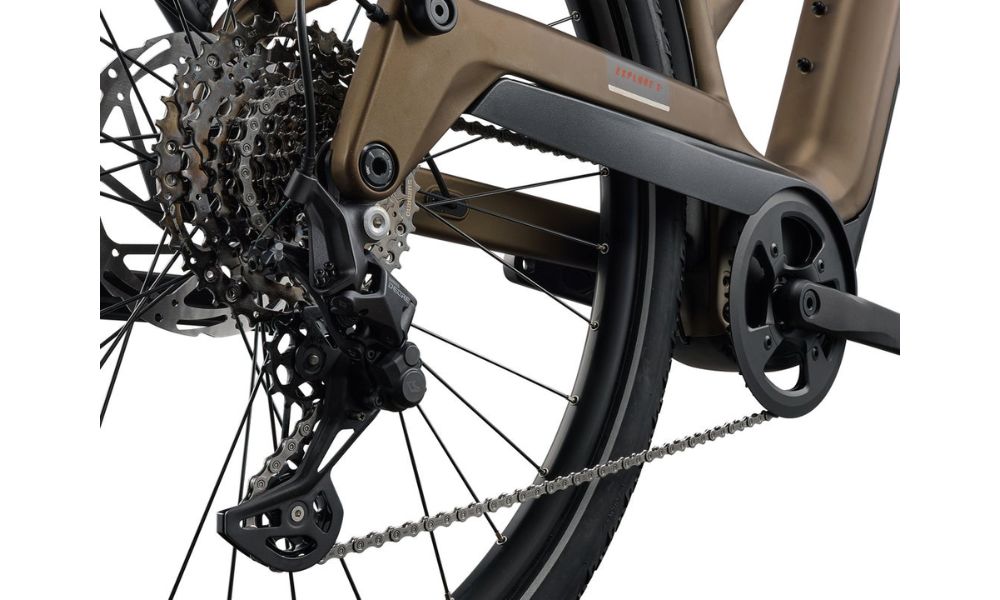

Rear Derailleur: Shimano Deore Linkglide, 10-speed
Front Derailleur:
Derailleur Shifter: Shimano Deore Linkglide
Freewheel/Cassette: Shimano Cues CS-LG700 Linkglide, 11-43T, 10-speed
Braking System
Brakes: Tektro HD-M280, hydraulic disc, [F]180mm, [R] 180mm
Brake Levers: Tektro HD-M288, hydraulic disc
Wheels
Tyres: Crosscut Gravel 2, 700x57c, Wire Bead, Tubeless Ready, w/ Reflection Strip
Wheels/Rims: Giant eX25, Tubeless Ready, Alloy
Hubs: Giant eTracker Boost 6-bolt disc 15x110mm [F] 12x148mm [R]
Other
Handlebar: Giant Contour Comfort Riser 31.8mm
Stem: Giant Contour EVO integrated 16⁰ (M:80mm L/XL 100mm)
Seat Post: Giant 30.9mm, 2-bolt Micro Adjust, alloy
Saddle: Selle Royal Vivo Ergo Moderate Unisex
E-Bike

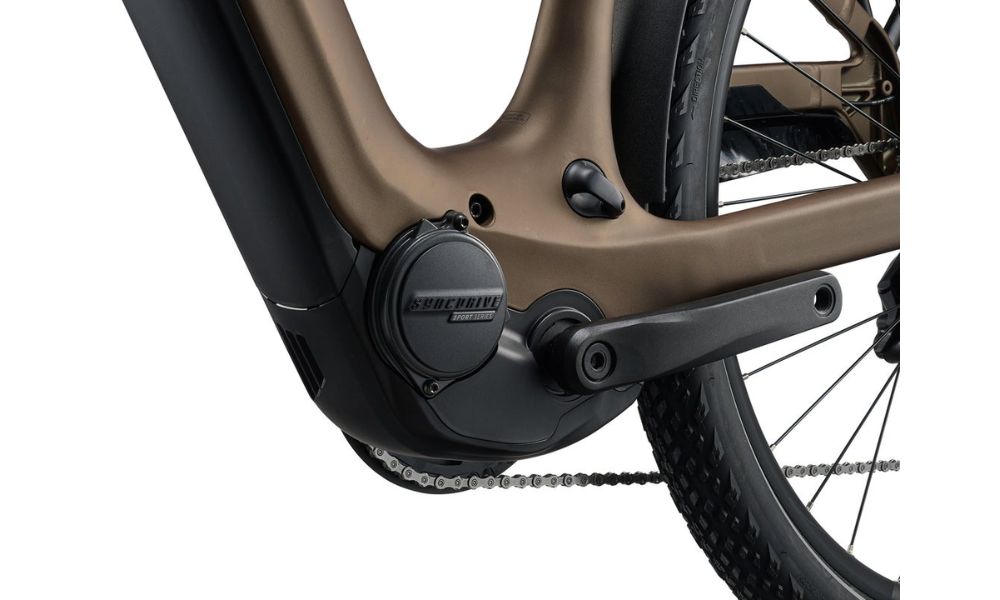

Drive Unit: SyncDrive Sport 2, 75Nm, Powered by Yamaha
Battery: EnergyPak Smart 625Wh EnergyPak Plus range extender compatible (excludes Step Through frame size)
UI/Remote: Giant RideControl Go 2 Giant RideControl Ergo 4 Remote

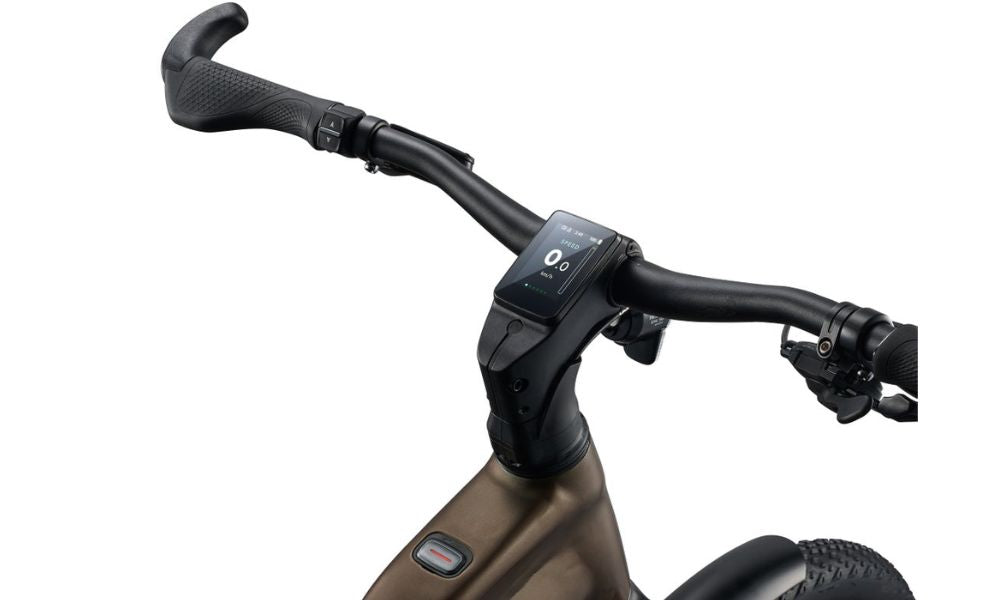

Display: RideDash Evo 2.0, full colour LCD screen
Extras

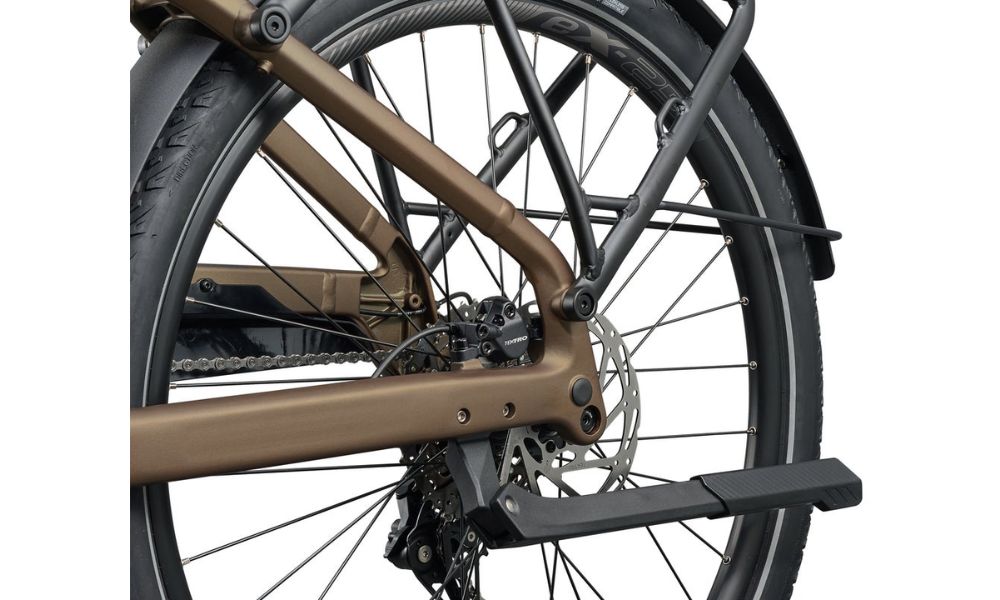

Kickstand: KSA40 direct mount kickstand

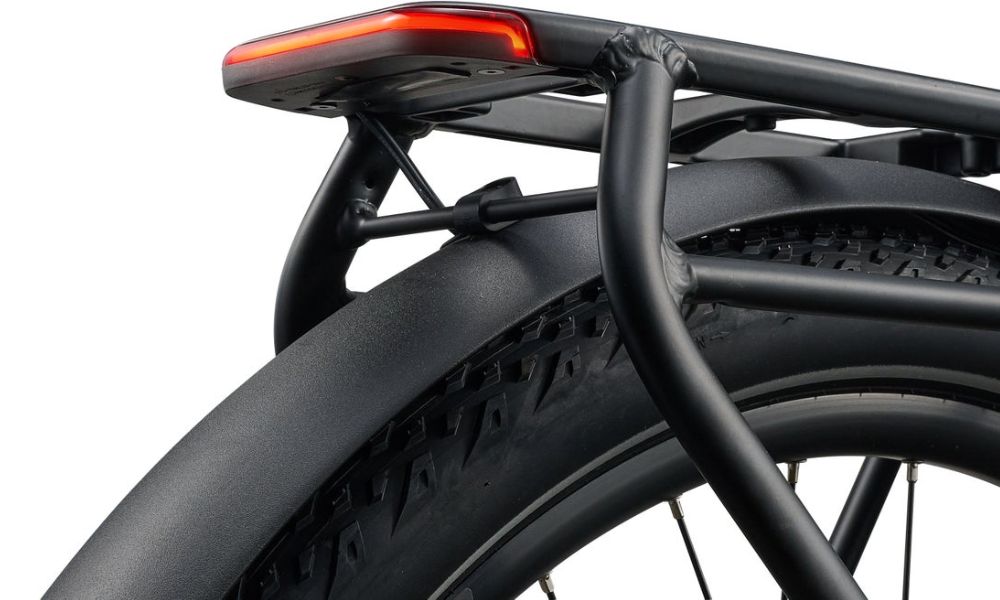

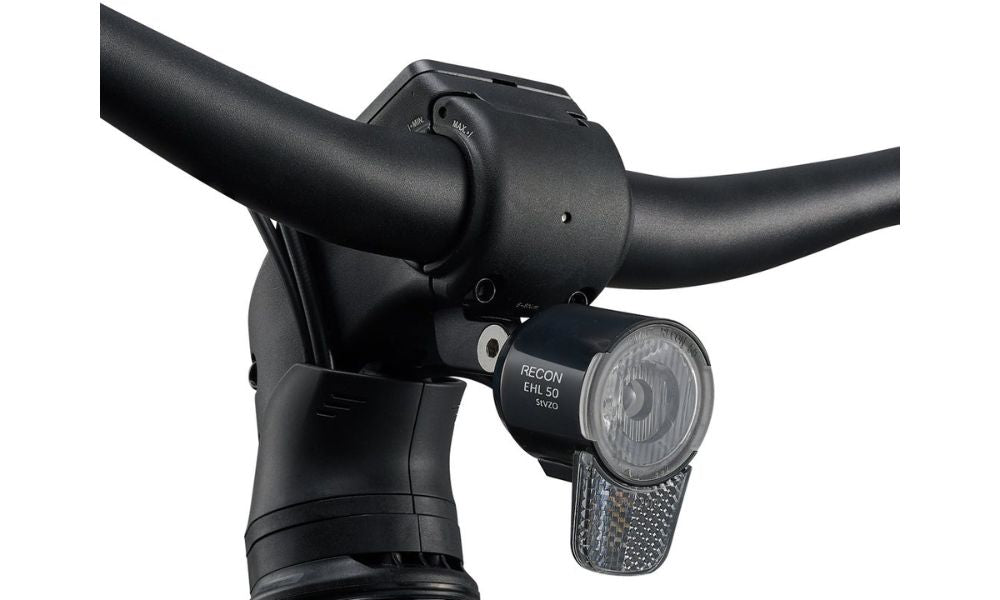

Lights: Recon E HL50 StVZO [F] Rear Rack Integrated tail light [R]
Lock: ABUS Xplus battery lock, Aegis E-lock
Mudguards: Aluminium fenders

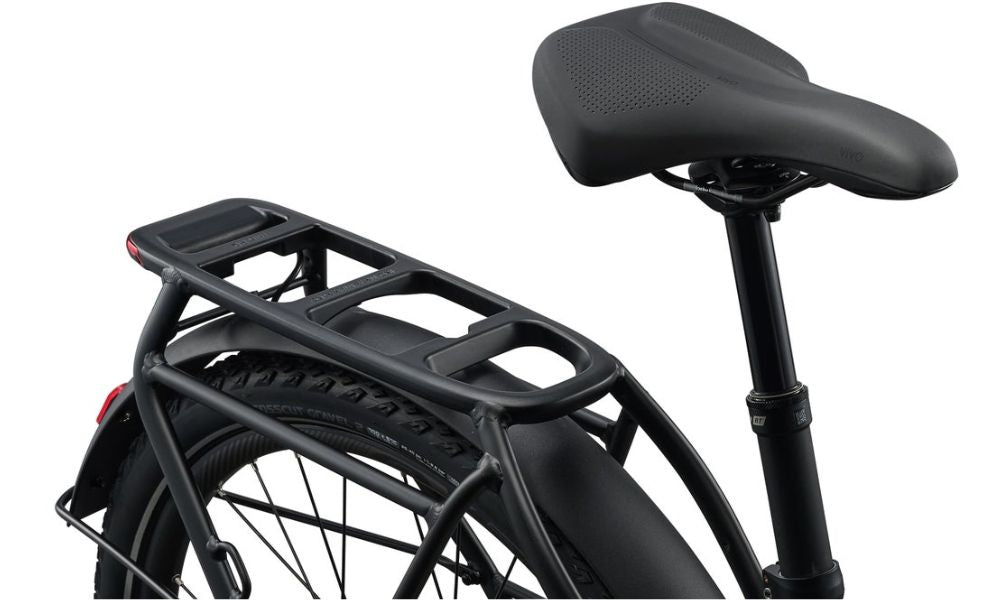

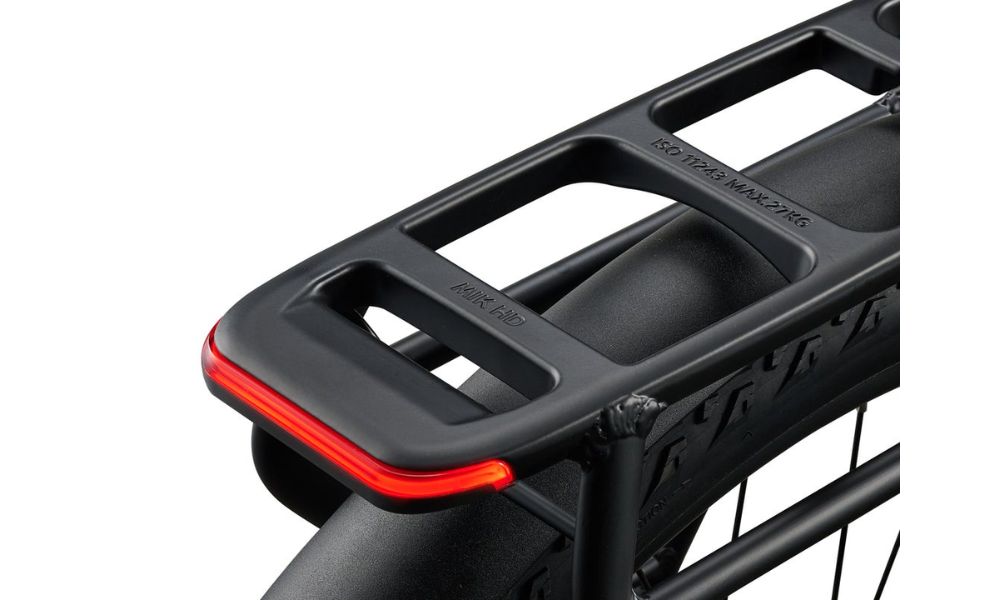

Carrier: MIK rack. System bag & basket compatible Tail light integrated
Giant 2026 Explore E+ 3
| M | L | XL | |
|---|---|---|---|
| A Seat Tube Length (mm) | 485 | 535 | 585 |
| B Seat Tube Angle | 73.0° | 73.0° | 73.0° |
| C Top Tube Length (mm) | 590 | 610 | 630 |
| D Head Tube Length (mm) | 140 | 155 | 170 |
| E Head Tube Angle | 69.5° | 69.5° | 69.5° |
| F Fork Rake (mm) | 42 | 42 | 42 |
| H Wheelbase (mm) | 1121 | 1142 | 1163 |
| I Chain Stay Length (mm) | 455 | 455 | 455 |
| J Bottom Bracket Drop (mm) | 60 | 60 | 60 |
| K Stack (mm) | 619 | 633 | 648 |
| L Reach (mm) | 400 | 416 | 432 |
| M Stand Over Height (mm) | 775 | 808 | 844 |
| O Stem Length (mm) | 70 | 80 | 90 |
| Q Wheel Size | 700C | 700C | 700C |
