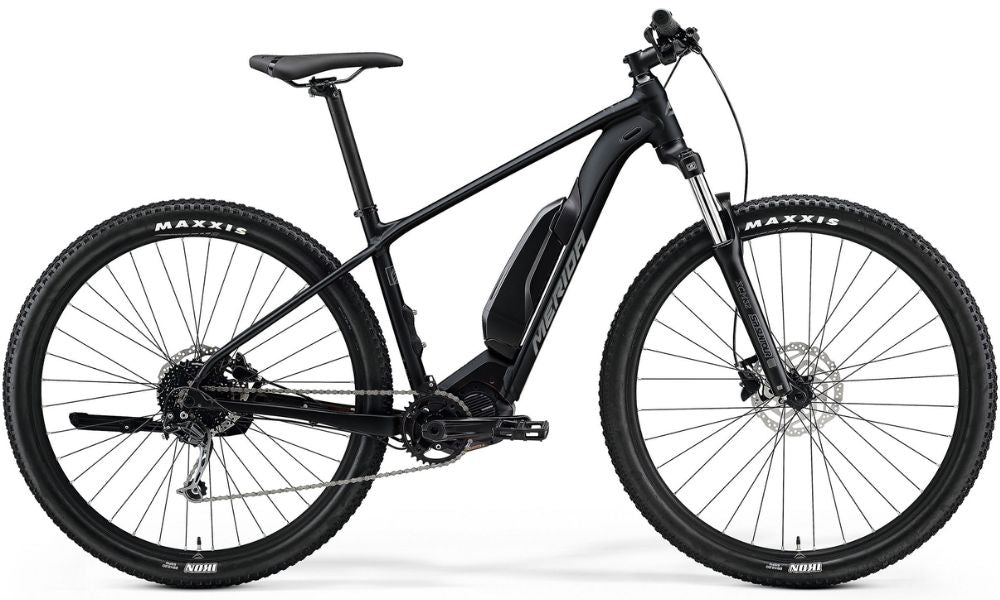

Merida 2026 eBIG Nine 300 SE
You don't need to spend a fortune to enjoy the world of e-biking. Our budget-focused eBIG.NINE 300 SE models deliver a quality ride thanks to an aluminium frame and powerful but refined Shimano EP5 drive unit, but with the convenience of an easily removable externally mounted 504 Wh battery. Powerful, all-weather Shimano hydraulic disc brakes are on hand to keep control and the tough, long-lasting CUES drivetrain offers plenty of gearing for off-road adventures or the city streets.
Arguably the most versatile e-bike in our range, the tried and tested eBIG.NINE embodies the perfect balance of day-to-day usability and sporty leisure activity. It's a bike that can handle serious off-road riding but can also handle the commute to work with ease - especially if you want to have some fun on the way. The high-quality aluminium frame integrates a choice of 630 or 750 Wh battery sleekly into the downtube, with a more economical frame featuring semi-integrated 504 Wh battery on some models. All feature powerful and smooth Shimano drive units that will power you up any hill. Ready to be equipped with mudguards and even a side stand (or available as the EQ fully equipped version), the eBIG.NINE will help you make the most of any situation.
Merida 2026 eBIG NIne 300 SE
Frame
Size:M, L, XLColour: Metallic Black/Gunmetal Greybr> Frame: eBIG.NINE LITE,
Fork: Suntour XCM34-Boost LOR DS, 100mm, Tapered, 51mm fork offset, 29x2.4" max WHS,
Shock:
Drivetrain
Crankset: Prowheel EB11, 165mm for all sizesPedals:
Chain: KMC Z8.3 EPT
Bottom Bracket:
Rear Derailleur: Shimano Essa,
Front Derailleur:
Derailleur Shifter: Shimano ALTUS,
Freewheel/Cassette: Shimano HG300, 11-45,8,
Braking System
Brakes: [F] and [R] Shimano MT-200, 2 pistonBrake Levers:
Wheels
Tyres: [F] and [R] Kenda Booster, 29x2.2", wireWheels/Rims: MERIDA COMP TK, 20 IWR, MAT aluminium,
Hubs: [F] Shimano QC300, 100x9 WHF, 32 SPH, Centerlock [R] Shimano TC500-HM-B, 148x12 WHR, 36 SPH, Centerlock
Other
Handlebar: MERIDA EXPERT, MAT aluminium, 680 WHB, 15 RHBStem: MERIDA COMP CC, MAT aluminium, 31.8 DSH, 7 ASD
Seat Post: MERIDA COMP CC, MAT aluminium, 30.9 DSP, 0 SSB
Saddle: MERIDA Expert TK, 168 width
E-Bike
Drive Unit: Shimano EP5, 60NmBattery: Shimano EN604 Battery, 504Wh
Display: Shimano SC-EN500
Charger:
Extras
Lights: [F] CG-119PG-BLACK(1) [R] CG-404RG-BLK
| Frame Size | M | L | XL |
| Tyre Sizes | 29" | 29" | 29" |
| ST seat tube [mm] | 430 | 480 | 530 |
| TT top tube [mm] | 590 | 610 | 630 |
| CS chain stay length [mm] | 458 | 458 | 458 |
| HTA head tube angle [°] | 69.5 | 69.5 | 69.5 |
| STA seat tube angle [°] | 73.5 | 73.5 | 73.5 |
| BD bottom bracket drop [mm] | 65 | 65 | 65 |
| HT head tube [mm] | 115 | 125 | 135 |
| FL fork length [mm] | 511 | 511 | 511 |
| R reach [mm] | 402 | 420 | 437 |
| S stack [mm] | 634 | 643 | 652 |
| WB wheel base [mm] | 1123 | 1143 | 1164 |
| SH stand over height [mm] | 733 | 777 | 819 |
