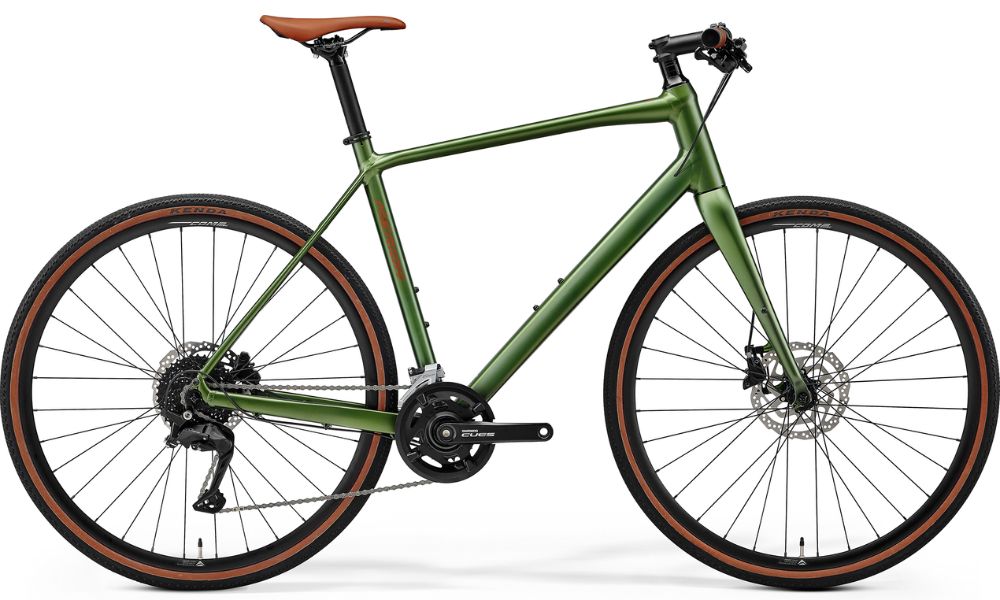

Merida 2026 Speeder 100
The entry level into our SPEEDER range, but still featuring a lightweight aluminium frame, full carbon forks and quality Shimano components. A fun packed and efficient commuter and fitness mile muncher.
--
Our entry model into our SPEEDER range, the SPEEDER 100 brings the same high-quality aluminium frame and full carbon fork to the table as its more high-end family members, but combines it with high-value components. Powerful disc brakes enable perfect speed control, while the broad gear range of the double chain ring drivetrain makes climbing a breeze and keeps top speeds high. Multiple fixing points allow bottle cages, fenders, kickstand and a rear rack to be fitted.
Fast and lightweight, the SPEEDER shares its genes with our road bike range. The geometry offers an extended reach for added stability while providing a more upright and comfortable riding position. The sporty yet comfort inspired geometry paired with control enhancing flat handlebars and powerful disc brakes make the SPEEDER ideal for fast commuting or fitness rides. Wider tyres and more tyre clearance underline the comfort element even further and give the SPEEDER more grip when it counts. Road.cc call the 900 an 'excellent fast flat-bar road bike with awesome performance' and the 200 'an enjoyable flat-barred flyer for fitness, commuting and everyday riding'.
- Lightweight aluminium frame with full carbon fork
- Shimano double chain ring drivetrain
- Sporty yet comfortable geometry and seating position
- Flat handlebar setup
- Powerful Shimano hydraulic disc brakes
- Multiple fixing points for fenders and a rear rack
Merida 2026 Speeder 100
Frame
Size: S, M, L
Colour: Silk Fog Green(Brown)
Frame: SPEEDER LITE III, MAT aluminium, 700x35C max. WHS, 100x9/135x9 AST, BSA BBR
Fork: MERIDA SPEEDER CF2, Tapered, MAT carbon , 700x35C max. WHS
Shock: ,
Drivetrain
Crankset: Shimano CUES U4002, 22-36t
Pedals:
Chain:KMC xGlide
Bottom Bracket: Shimano UN101 LL123
Rear Derailleur: Shimano CUES U3020
Front Derailleur: Shimano CUES FD-U4010-L
Shifter: [F] Shimano Cues U4000-L [R] Shimano Cues U-4000-R
Freewheel/Cassette: SunRace U98 CS-U98, 11-36t, 9sp
Braking System
Brakes: [F] Shimano MT200, 2 piston, hydraulic brake [R] Shimano MT200 / UR300 , 2 piston
Brake Levers:
Wheels
Tyres: [F] and [R] Kenda Piedmond Tanwall, 700x35C
Wheels/Rims: MERIDA COMP SL, 17 IWR, 22 HRI, MAT aluminium, Tubeless ready (tubeless tape and valves not included)
Hubs: [F] Shimano HB-QC300, 100x9 WHF, 32 SPH, centerlock [R] Shimano FH-QC300-HM, 135x9 WHR, 32 SPH, centerlock
Other
Handlebar: MERIDA EXPERT CC, MAT aluminium, 600 WHB, Flat
Stem: MERIDA EXPERT CC, MAT aluminium, 31.8 DSH, 7 ASD
Seat Post: MERIDA COMP CC, 30.9 DSP, 5 SSB, MAT aluminium
Saddle: MERIDA COMP SL, 22% recycled material, V-mount
Merida 2026 Speeder 100
| Frame Size | XXS | XS | S | M | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" |
| ST seat tube [mm] | 470 | 500 | 520 | 540 | 560 | 590 |
| TT top tube [mm] | 555 | 561 | 571 | 583 | 597 | 610 |
| CS chain stay length [mm] | 438 | 438 | 438 | 438 | 438 | 438 |
| HTA head tube angle [°] | 70 | 70.5 | 71 | 71.5 | 72 | 72 |
| STA seat tube angle [°] | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| BD bottom bracket drop [mm] | 65 | 65 | 65 | 65 | 65 | 65 |
| HT head tube [mm] | 150 | 160 | 170 | 190 | 215 | 240 |
| FL fork length [mm] | 395 | 395 | 395 | 395 | 395 | 395 |
| R reach [mm] | 389 | 392 | 398 | 404 | 410 | 416 |
| S stack [mm] | 562 | 573 | 585 | 606 | 631 | 655 |
| WB wheel base [mm] | 1051 | 1053 | 1058 | 1066 | 1075 | 1088 |
| SH stand over height [mm] | 744 | 769 | 787 | 806 | 828 | 855 |
