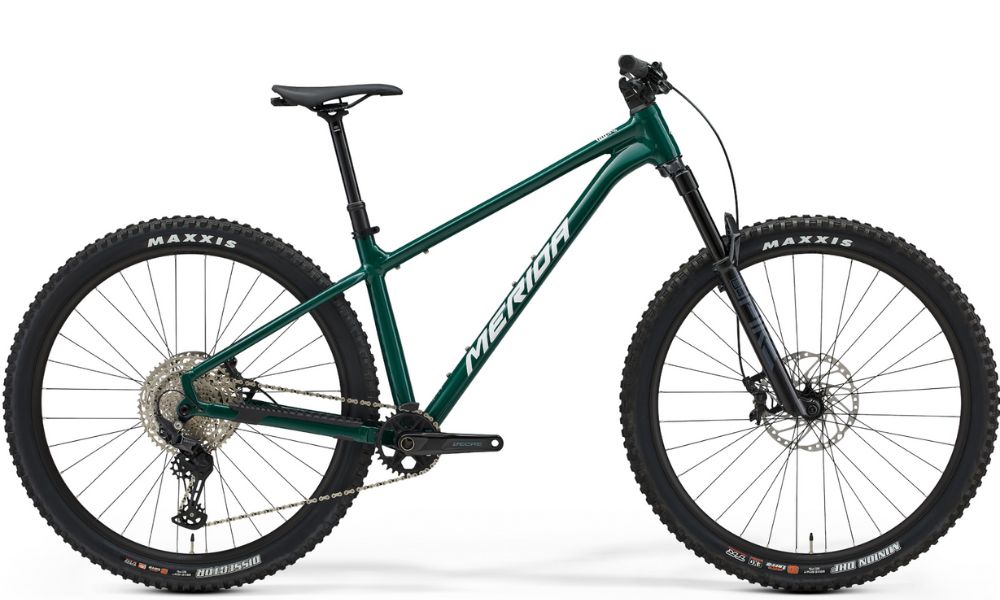

Merida 2026 Big Trail 600
The perfect ingredients for your next trail session - and it's a looker too. Grin-inducing progressive geometry paired with a tough frame and long travel fork to soak up punishment make it ready to go.
The BIG.TRAIL 600 is the top dog of our progressive trail hardtail lineup. The third generation of our trail hardtail builds on an award-winning heritage - and it turns things up a notch. It's more capable and fun than ever, thanks to new geometry that boosts the descending ability to scary-fast levels and the climbing ability up to 'mountain goat'. We've also made sure the show is as good as the go, with sleeker and more refined looks, plus extra frame protection to keep it that way.
The BIG.TRAIL is back and better than ever! Hailed by the international mountain bike press as one of the best trail hardtails around, we've tweaked it so it goes up, down and along even faster - which obviously means more fun. With updated, progressive geometry, the new BIG.TRAIL builds on an incredibly successful heritage, with a slack head angle and extended reach helping tame the gnarliest trails and a steeper seat angle that makes climbing up to do it again a breeze. We've also given it a slicker and tricker look and improved the frame protection too, so it'll stay looking good for longer. Join the BIG.TRAIL family and enjoy hassle-free trail fun in spades. Available from XSmall to XLarge, perfect for finding your preferred size and reach options.
- Durable double butted aluminium frame
- Shimano 4-piston Deore brakes and RockShox Pike 140 mm trail fork
- Progressive trail bike geometry with long reach, slack head angle and steep seat angle
- 29er wheels specced with 2.5" front and 2.4" rear tyre with aggressive trail pattern
- Extremely low standover height paired with long travel dropper posts
- 12-speed Shimano Deore drivetrain
Merida 2026 Big Trail 600
Frame
Size: M, L, XL
Colour: Deep Forest Green/White
Frame: BIG.TRAIL TFS II, MAT aluminium, 29x2.4" max. WHS, 148x12 AST, BSA BBR
Fork: Rock Shox Pike, Air, 140 STR, tapered, platform, 44mm fork offset, 29x2.6 max. WHS,
Shock:
Drivetrain
Crankset: Shimano Deore M6120, 32t
Pedals:
Chain: KMC X12
Bottom Bracket: Shimano MT501, 24mm
Rear Derailleur: Shimano Deore M6100, SGS
Front Derailleur:
Derailleur Shifter: [F] Shimano SL-MT500-IL [R] Shimano Deore M6100
Freewheel/Cassette: Shimano Deore M6100, 10-51t, 12sp
Braking System
Brakes: [F] and [R] Shimano Deore M6120, 4 piston
Brake Levers:
Wheels
Tyres: [F] Maxxis Minion DHF, 29x2.5", EXO wire, tubeless ready [R] Maxxis Dissector, 29x2.4", fold, TR EXO+ 3C MaxxTerra
Wheels/Rims: Reynolds 309 Enduro Comp, 30 IWR, MAT aluminium, Tubeless ready (tubeless tape installed), 29"
Hubs: [F] Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock [R] Shimano TC500-MS-B, 148x12 WHR, 32 SPH, Centerlock
Other
Handlebar: MERIDA EXPERT TR II, MAT aluminium, 780 WHB, 30 RHB
Stem: MERIDA EXPERT eTRII, MAT aluminium, 35 DSH, 0 ASD
Seat Post: MERIDA EXPERT TR II, 34.9 DSP, 0 SSB, XSHORT: 150mm travel - SHORT/MID : 170mm travel - LONG: 200mm travel - XLONG: 230mm travel
Saddle: MERIDA COMP SL, 25% recycled material, V-mount, incl. MERIDA minitool
Merida 2026 Big Trail 600
| Frame Size | XShort | Short | Mid | Long | XLong |
| Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
| ST seat tube [mm] | 385 | 400 | 420 | 445 | 475 |
| TT top tube [mm] | 559 | 581 | 603 | 630 | 657 |
| CS chain stay length [mm] | 435 | 435 | 435 | 435 | 435 |
| HTA head tube angle [°] | 64 | 64 | 64 | 64 | 64 |
| STA seat tube angle [°] | 76.5 | 76.5 | 76.5 | 76.5 | 76.5 |
| BD bottom bracket drop [mm] | 70 | 70 | 70 | 70 | 70 |
| HT head tube [mm] | 90 | 100 | 110 | 120 | 130 |
| FL fork length [mm] | 551 | 551 | 551 | 551 | 551 |
| R reach [mm] | 415 | 435 | 455 | 480 | 505 |
| S stack [mm] | 627 | 636 | 645 | 654 | 663 |
| WB wheel base [mm] | 1165 | 1189 | 1214 | 1243 | 1272 |
| SH stand over height [mm] | 715 | 721 | 724 | 726 | 729 |
| Str Stack To Reach Ratio Pc | 1.51 | 1.46 | 1.42 | 1.36 | 1.31 |
| Seat Post Mounting Depth Max Mm | 300 | 315 | 335 | 360 | 390 |
