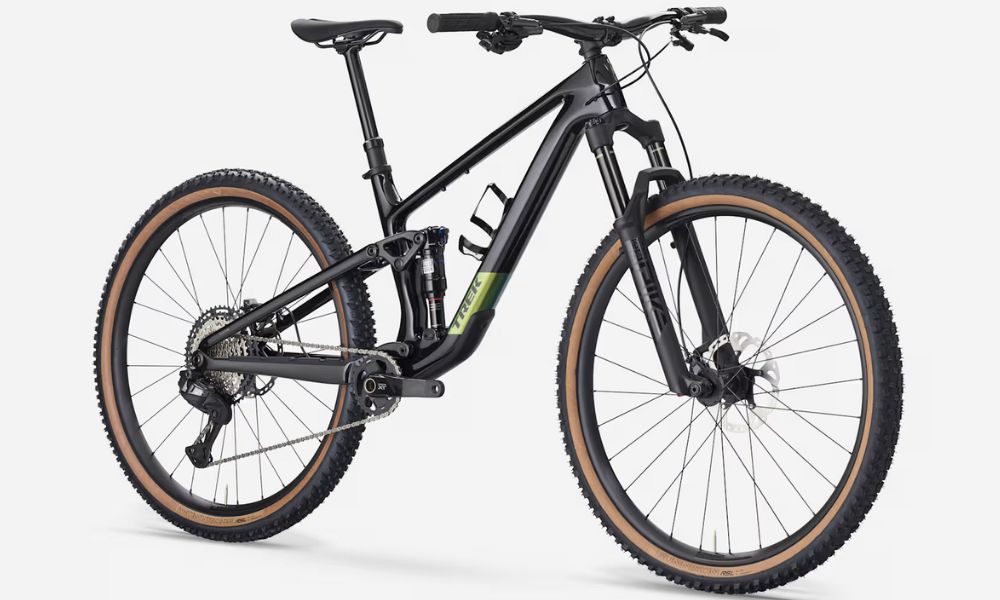

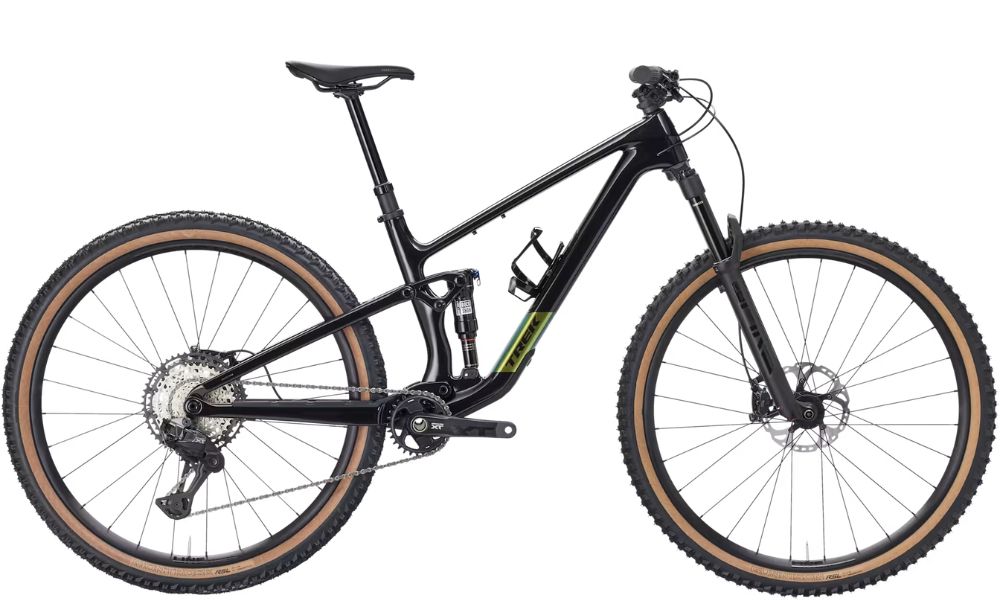

Trek 2026 Top Fuel 9.8 XT Di2 Gen 4
The Top Fuel 9.8 is a lightweight carbon trail bike built to rip up climbs and stay playful on descents. It gives you the confidence you want through roots and rocks, thanks to a 120 mm/130 mm (rear/front) RockShox suspension package with a Pike Select+ fork and Deluxe Ultimate shock. Plus, you get ultra-smooth and fast shifts from a 12-speed Shimano XT Di2 wireless drivetrain.
Trek 2026 Top Fuel 9.8 XT Di2 Gen 4
Frame
Size: S, M, ML, L, XL
Colour: Dark Star
Frame: OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, 4-way Mino Link, ABP, Boost148, 120 mm travel

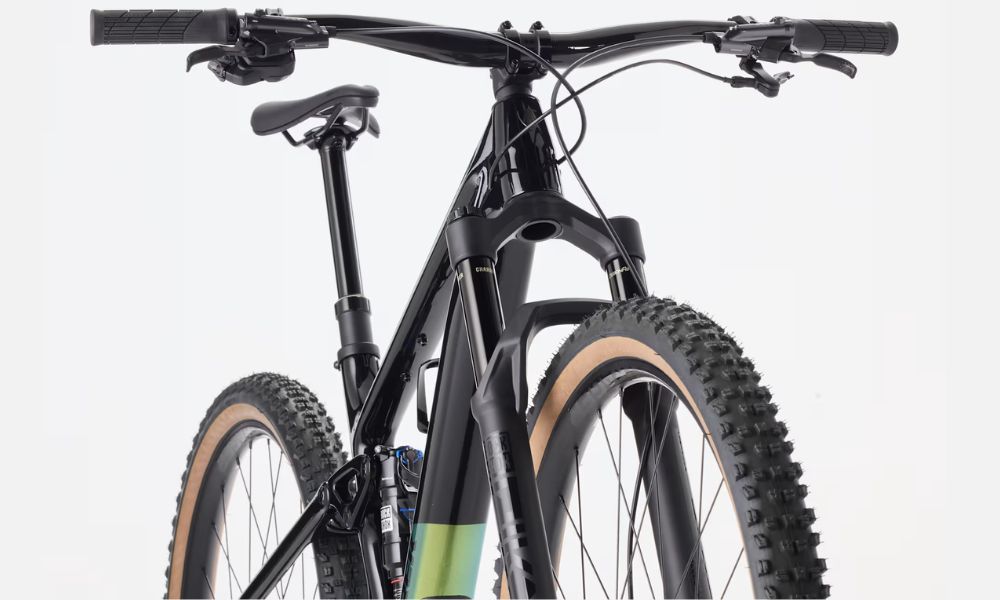

Fork: RockShox Pike Select+, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 130 mm travel

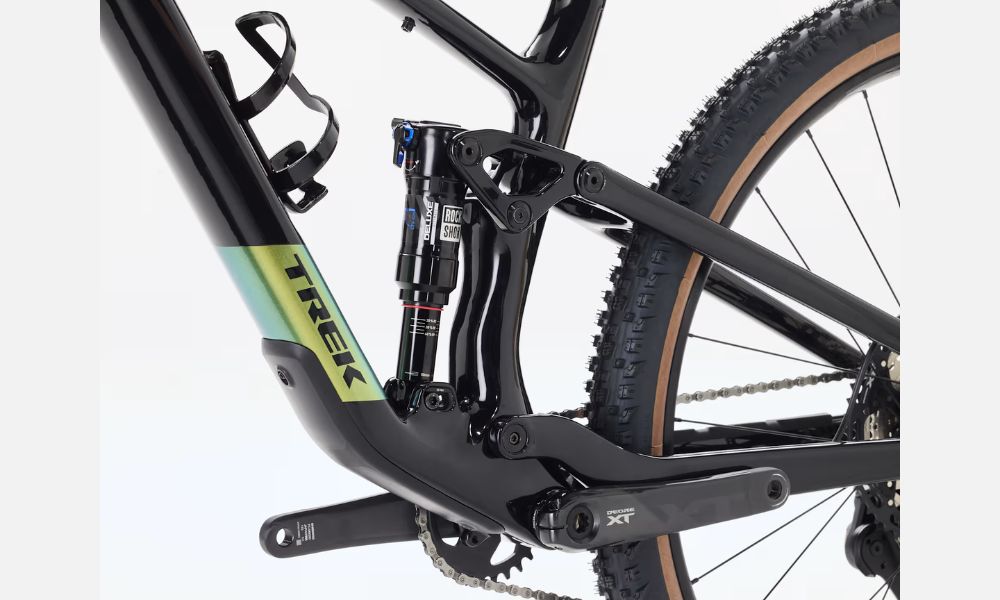

Shock: RockShox Deluxe Ultimate RCT, 185 mm x 50 mm
Drivetrain

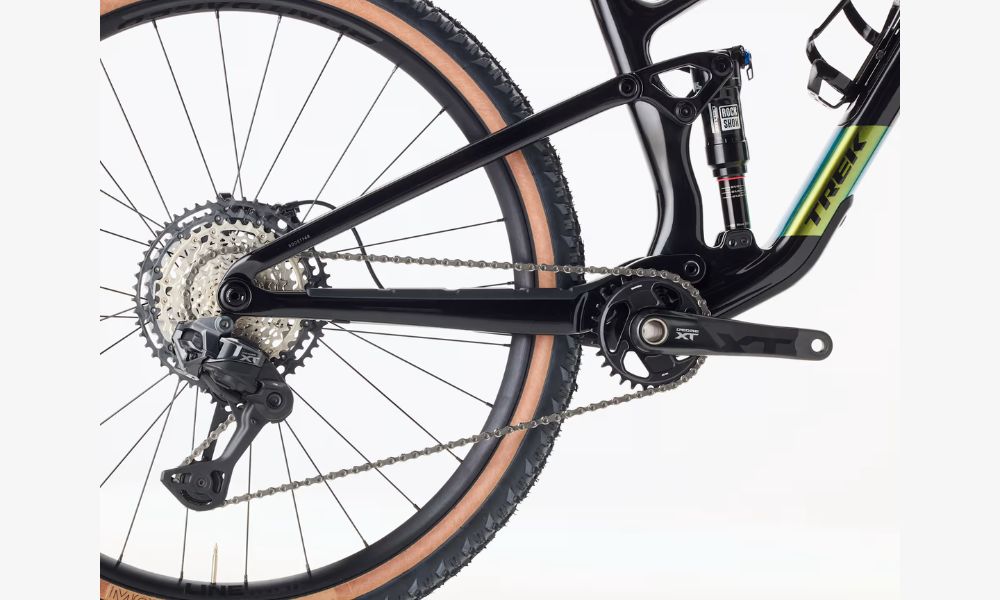

Crankset: Shimano XT 8200, 30T, 55 mm chain-line, 170 mm length
Pedals:
Chain: Shimano Ultegra/XT M8100, 12-speed
Bottom Bracket: Shimano BB-MT501 BSA
Rear Derailleur: Shimano XT M8250, long cage
Front Derailleur:
Derailleur Shifter: Shimano XT Di2 M8250, 12-speed
Freewheel/Cassette: Shimano XT M8200, 10-51, 12-speed
Braking System
Brakes: Shimano XT M8200 4-piston hydraulic disc
Brake Levers:
Wheels
Tyres: [F] Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40 [R] Bontrager Montrose RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40"
Wheels/Rims: [F] Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" [R] Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru-axle, 29"
Hubs:
Other

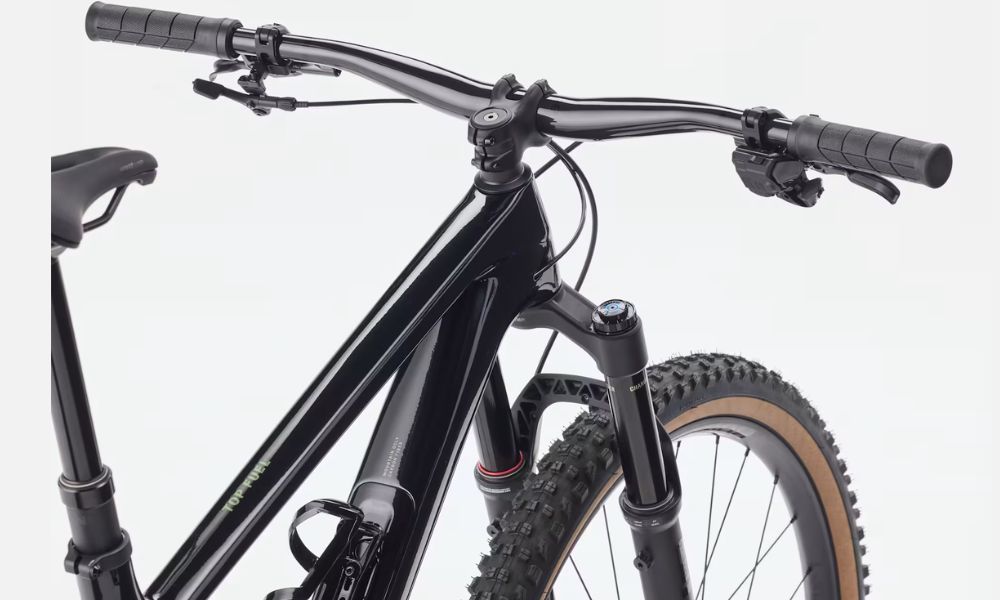

Handlebar: Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
Stem: Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 35 mm length
Seat Post: S - Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9 mm, 310mm length M - 170mm travel, 450mm Length L, XL - 200mm travel, 5156mm Length
Saddle: Verse Short Comp, steel rails, 145 mm width
Trek 2026 Top Fuel 9.8 XT Di2 Gen 4
All measurements provided in cm unless otherwise stated.
| Frame size letter | Geometry position | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | High | 27.5" | 36.0 | 69.5° | 76.5° | 10.5 | 65.9° | 55.8 | 35.1 | 1.0 | 43.4 | 4.3 | 11.1 | 115.0 | 70.5 | 42.2 | 56.6 |
| S | Low | 27.5" | 36.0 | 69.0° | 76.0° | 10.5 | 65.5° | 55.9 | 34.5 | 1.6 | 43.5 | 4.3 | 11.5 | 115.1 | 70.0 | 41.7 | 57.0 |
| M | High | 29" | 41.0 | 70.5° | 77.3° | 10.5 | 65.9° | 58.7 | 35.4 | 2.6 | 43.4 | 4.3 | 12.1 | 118.8 | 75.5 | 45.2 | 59.9 |
| M | Low | 29" | 41.0 | 70.0° | 76.9° | 10.5 | 65.5° | 58.8 | 34.8 | 3.2 | 43.5 | 4.3 | 12.5 | 118.8 | 75.0 | 44.7 | 60.3 |
| ML | High | 29" | 42.0 | 70.5° | 76.6° | 11.0 | 65.9° | 61.1 | 35.4 | 2.6 | 43.9 | 4.3 | 12.1 | 121.0 | 75.7 | 46.7 | 60.4 |
| ML | Low | 29" | 42.0 | 70.0° | 76.2° | 11.0 | 65.5° | 61.2 | 34.8 | 3.2 | 44.0 | 4.3 | 12.5 | 121.0 | 75.2 | 46.2 | 60.7 |
| L | High | 29" | 43.5 | 70.5° | 76.3° | 11.5 | 65.9° | 63.0 | 35.4 | 2.6 | 43.9 | 4.3 | 12.1 | 122.7 | 75.8 | 48.2 | 60.8 |
| L | Low | 29" | 43.5 | 70.0° | 75.9° | 11.5 | 65.5° | 63.1 | 34.8 | 3.2 | 44.0 | 4.3 | 12.5 | 122.7 | 75.3 | 47.7 | 61.2 |
| XL | High | 29" | 47.0 | 70.5° | 75.6° | 13.5 | 65.9° | 67.2 | 35.4 | 2.6 | 44.4 | 4.3 | 12.1 | 127.0 | 76.3 | 51.2 | 62.6 |
| XL | Low | 29" | 47.0 | 70.0° | 75.2° | 13.5 | 65.5° | 67.3 | 34.8 | 3.2 | 44.5 | 4.3 | 12.5 | 127.1 | 75.8 | 50.7 | 63.0 |
