Merida 2026 One FORTY 400
The same ground-breaking trail bike geometry as it's more expensive brethren, just paired to an all-aluminium frame and kit that delivers the performance you need, without the chunky price tag.
The ONE-FORTY 400 brings an unheard of level of climbing and descending performance into a high-value package built around our test and award-winning aluminium frame. It's got exactly the same ground-breaking geometry as its more expensive brethren, just paired with kit that delivers the performance you need, without the price tag. Dropper posts on all models, a wide-range 11-speed Shimano drivetrain and no-nonsense suspension from Marzocchi get the job done without fuss.
The test and award-winning ONE-FORTY is the ultimate trail bike, made for the toughest trails in the world. It’s the pinnacle of modern trail riding, with a super-steep 80° seat angle, low front end and bottom bracket allow it to clear the most technical climbs, while longer reach figures across all sizes and a well-balanced 65° head angle mean it’s still more than capable of ripping any descent. With our AGILOMETER sizing system, riders can run a longer or shorter reach frame independently of their height, with suspension that becomes more progressive as you size up to better cope with heavier/harder riders. We’ve focused on weight reduction and rolling speed too, for improved efficiency. All bikes come with long travel dropper posts, WIRE PORT cable routing and a reliable threaded bottom bracket plus carbon frames have on-board tool storage and Fidlock magnetic bottle cages.
- Full aluminium frame with FAST kinematic suspension and AGILOMETER sizing
- Radical trail geometry with full 29er wheels
- Marzocchi suspension, 150 mm front, 143 mm rear
- Durable, wide-range Shimano CUES 11-speed drivetrain
- 230 mm dropper post on XLong, 200 mm on Long, 170 mm on Mid and 150 mm on Short and XShort
- Powerful 4-piston SRAM DB4 hydraulic disc brakes
Merida 2026 One Forty 400
Frame
Size: X-Short, Short, Mid, Long, X-Long

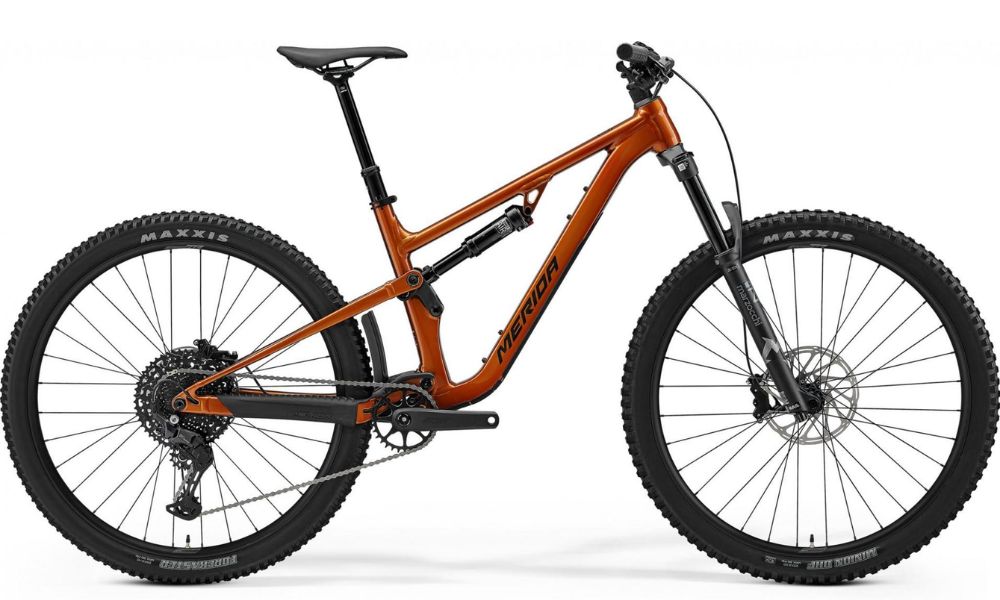

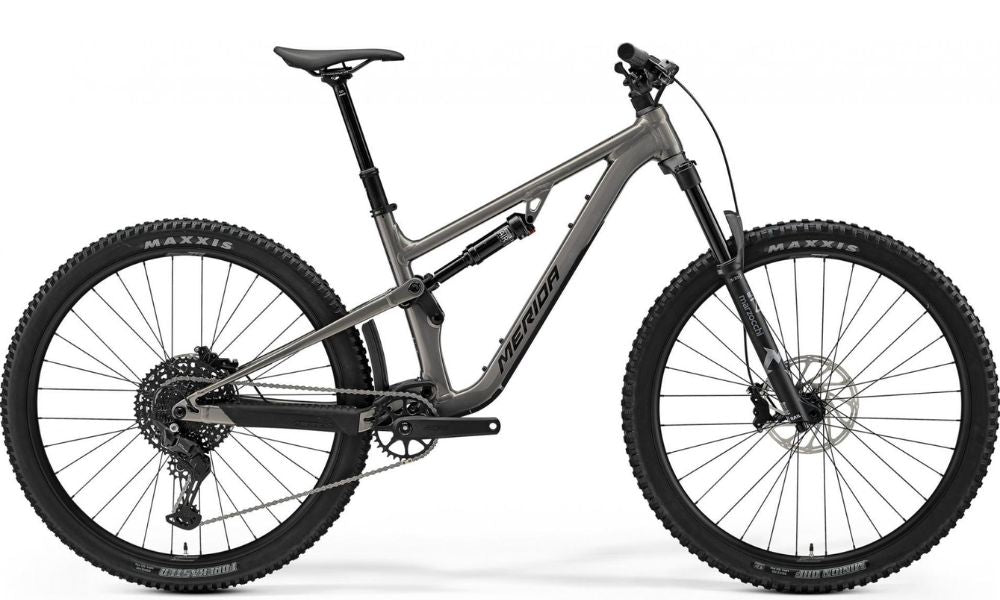

Colour: Warm SLate Grey(Golden Black) and Wild Honey(Golden Black)
Frame: ONE-FORTY LITE III, 143 STR 29", MAT aluminium, 29x2.5" max. WHS, 148x12 AST, BSA BBR,
Fork: Marzocchi Z2, Air, 150 STR, Tapered, 44mm fork offset, 29x2.6" max. WHS,
Shock: Marzocchi Bomber inline,
Drivetrain
Crankset: MERIDA Expert TR II, 32t
Pedals:
Chain: KMC xGlide,
Bottom Bracket: Samox BSA 24mm EB2401,
Rear Derailleur: Shimano CUES U6000, Shadow Plus
Front Derailleur:
Shifter: Shimano CUES U6000,
Freewheel/Cassette: SunRace 10-50t CS-UX400 EA5, 10-50t, 11sp Linkglide
Braking System
Brakes: Sram DB4, 4 piston
Brake Levers:
Wheels
Tyres: [F] Maxxis Minion DHF, 29x2.5", wire, [R] Maxxis Forekaster, 29x2.4", wire,
Wheels/Rims: MERIDA COMP TR II, 110x15 WHF, 148x12 WHR, 28 IWR, MAT aluminium, Tubeless ready (tubeless tape and valves not included), 29",
Hubs: [F] Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock [R] Shimano TC500-HM-B, 148x12 WHR, 32 SPH, Centerlock
Other
Handlebar: MERIDA COMP TR, MAT aluminium, 780 WHB, 20 RHB
Stem: MERIDA COMP TR, MAT aluminium, 35 DSH, 0 ASD
Seat Post: MERIDA EXPERT TR II, 34.9 DSP, 0 SSB, XSHORT/SHORT: 150mm travel - MID: 170mm travel - LONG: 200mm travel - XLONG: 230mm travel
Saddle: MERIDA COMP SL, 25% recycled material, V-mount, incl. MERIDA minitool
Merida 2026 One Forty 400
| Frame Size | XShort | Short | Mid | Long | XLong |
| Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
| ST seat tube [mm] | 400 | 410 | 425 | 445 | 470 |
| TT top tube [mm] | 532 | 559 | 586 | 618 | 649 |
| CS chain stay length [mm] | 437.5 | 437.5 | 437.5 | 437.5 | 437.5 |
| HTA head tube angle [°] | 65 | 65 | 65 | 65 | 65 |
| STA seat tube angle [°] | 80 | 80 | 80 | 80 | 80 |
| BD bottom bracket drop [mm] | 35 | 35 | 35 | 35 | 35 |
| HT head tube [mm] | 95 | 95 | 95 | 105 | 120 |
| FL fork length [mm] | 557 | 557 | 557 | 557 | 557 |
| R reach [mm] | 426 | 453 | 480 | 509 | 535 |
| S stack [mm] | 607 | 607 | 607 | 616 | 629 |
| WB wheel base [mm] | 1177 | 1204 | 1232 | 1265 | 1298 |
| SH stand over height [mm] | 730 | 735 | 738 | 735 | 730 |
