- Description
- Specifications
- Geomerty

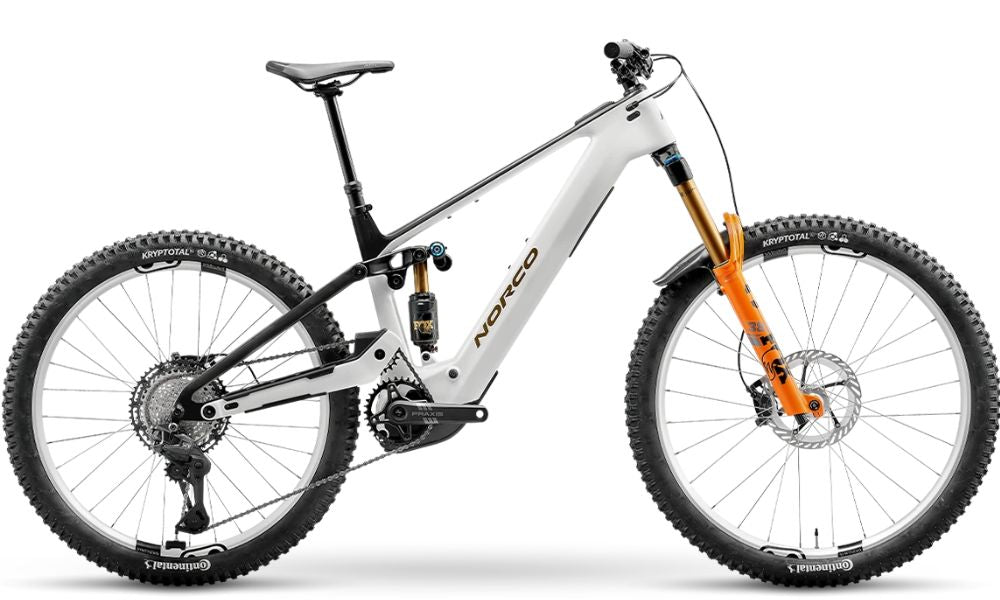

Norco 2026 Range VLT CX C1
A low-weight, full-power VLT with the newest Bosch technology, made to charge the steeps all day.
The new Bosch Performance Line CX drive unit is lighter and quieter than previous models, without losing the exceptional torque and power the CX system is known for.
The VPSHP (Virtual Pivot Suspension | High Pivot) layout has a rearward axle path that moves out of the way of square-edged hits, maintaining momentum and smooth handling through the rough.
- A more powerful drive system that's lighter, quieter, and more natural feeling than ever before
- Balanced geometry for maximum control and handling
- VPSHP suspension platform - High pivot flow to eat up rough terrain with confidence
- Bombproof components – spec'd for the toughest trails
- Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes
- No Other Way Limited Lifetime Warranty
Norco 2026 Range VLT CX C1
Frame
Size: S2, S3, S4 and S5
Colour: Neve White/Raw Black
Frame: Carbon Frame, 160mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned

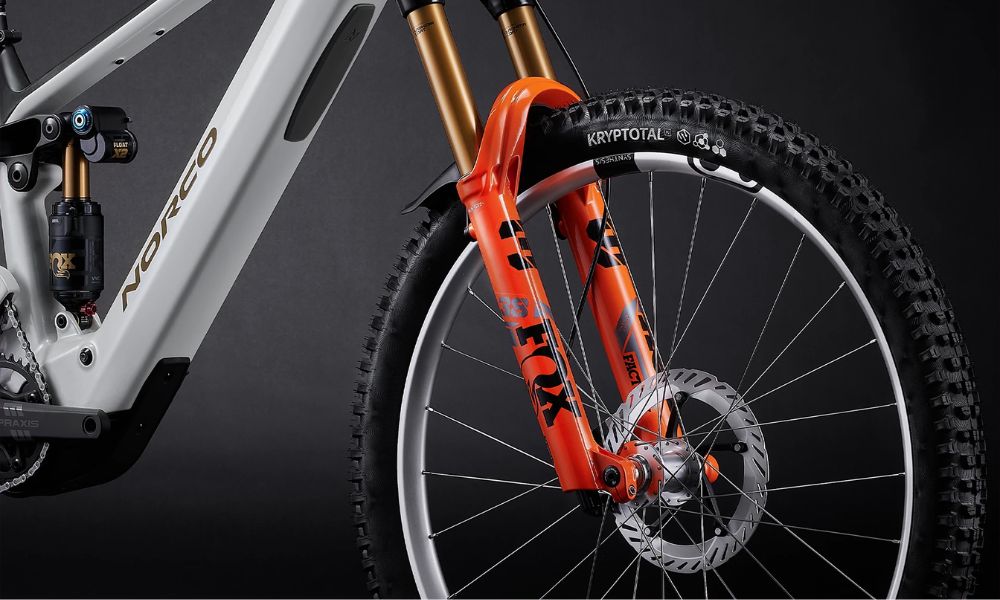

Fork: Fox 38 Factory Float, Grip X2, HSC / LSC / LSR, 170mm, 44mm Offset, Fender Include
Shock: Fox Factory Float X2, 205x65mm TR,HSC/LSC, HSR/LSR 2 pos-Adj
Drivetrain

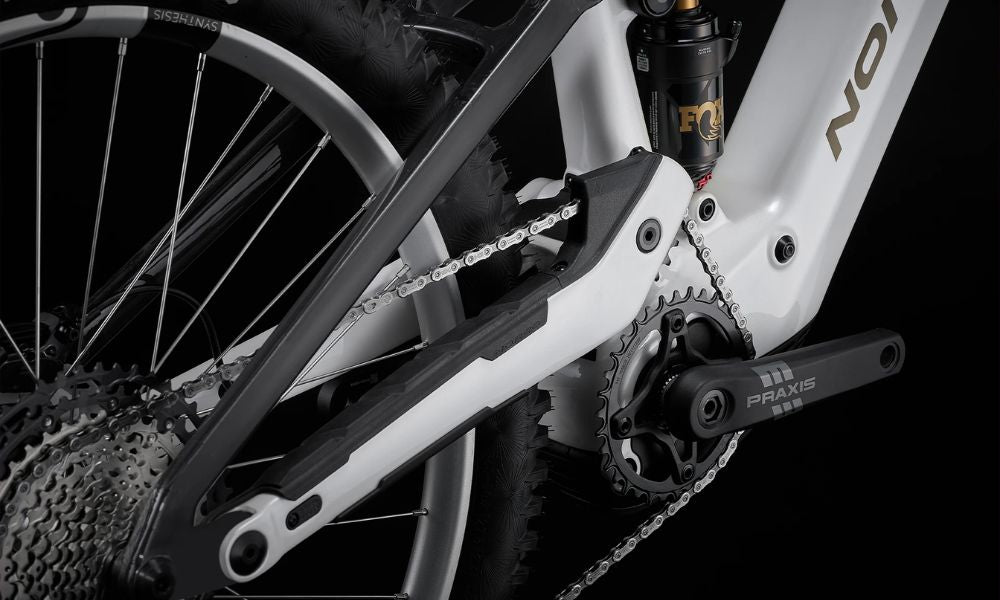

Crankset: Praxis Carbon Bosch Cranks, 34T,165mm
Pedals:
Chain: Shimano Deore XT CN-M8100, 12sp
Bottom Bracket: Bosch BES3 DU
Rear Derailleur: Shimano Deore XT RD-M8250, SGS, 12sp (EMBARGO)
Front Derailleur:
Derailleur Shifter: Shimano Deore XT SW-M8250-IR, 12spd (EMBARGO)
Freewheel/Cassette: Shimano Deore XT CS-M8200-12, 10-51T, 12sp
Braking System
Brakes: Shimano XT M8220 4-P, Mettalic pads
Brake Levers: Shimano XT BL-M8200
Wheels
Tyres: 14 x 2.125" Wanda P-1135
Wheels/Rims: Crank Bros. Synthesis Alloy, F- 31.5mm 28h, R- 29.5mm 32h, 29”-27.5 F/R
Hubs: [F] Crank Bros. Synthesis Enduro, 15x110mm Boost, 32h, 6 Bolt [R] Crank Bros. Synthesis Enduro, 12x148mm Boost, Micro Spline, 32h, 6 Bolt
Other

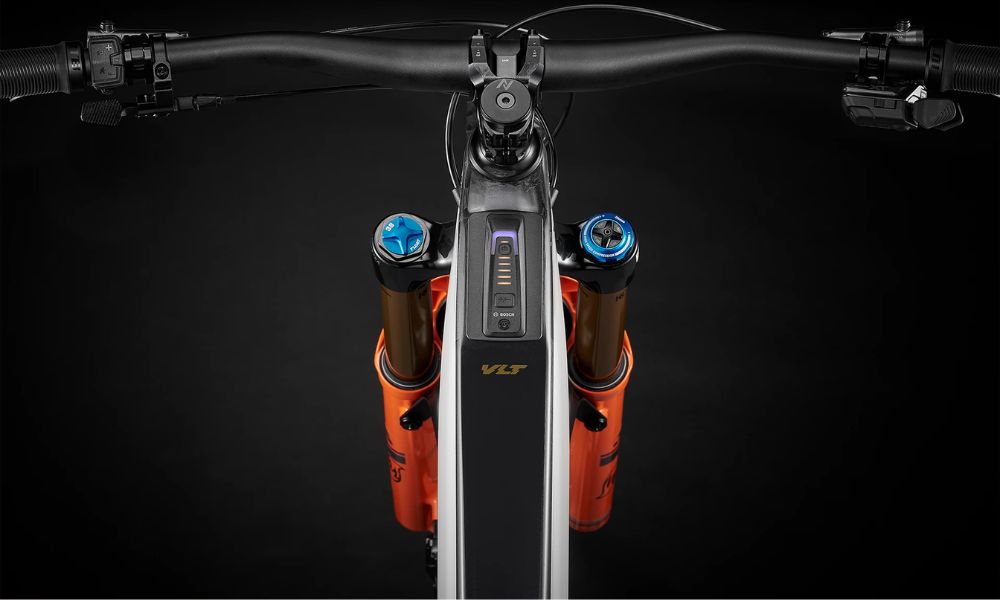

Handlebar: Norco 6061 DB Alloy, 800mm, 25mm Rise
Stem: 6061 Alloy, 40mm Length, 35mm Clamp
Seat Post: TranzX YSI08 RAD+ Travel Adjust Dropper, 31.6mm, 150mm (S2) -170mm (S3) -200mm (S4, S5)
Saddle: Fizik Terra Aidon X5
E-Bike

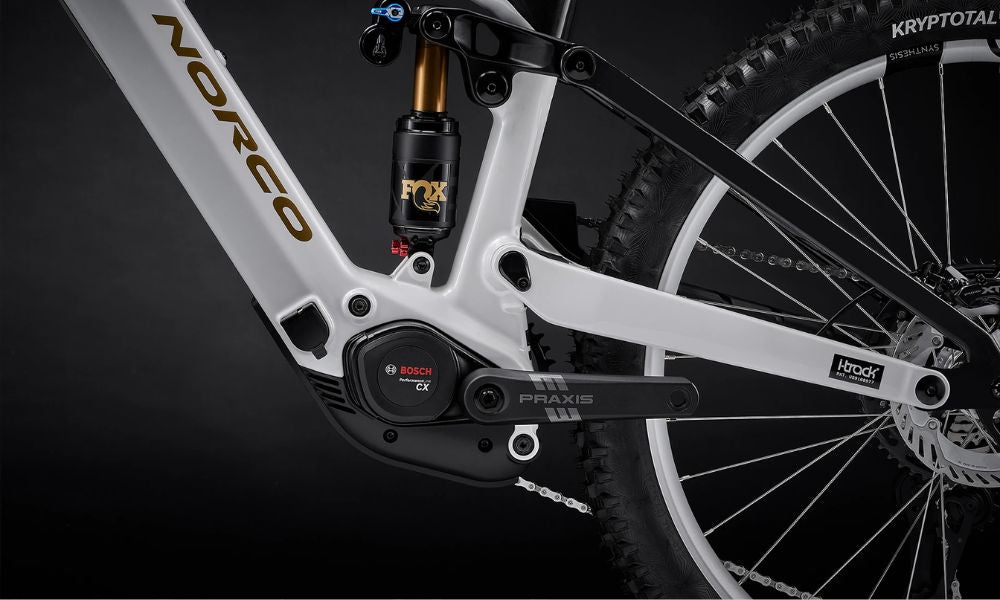

Drive Unit: Bosch Performance Line CX, 100 Nm
Battery: Bosh Power Tube 800 Wh
Controller:
Display:
Charger:
Norco 2026 Range VLT CX C1
| 2 | 3 | 4 | 5 | ||
|---|---|---|---|---|---|
| Wheel Size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | |
| Travel (mm front/mm rear) | 170/160 | ||||
| Reach | 441 | 466 | 491 | 516 | |
| Stack | 631 | 640 | 650 | 659 | |
| HTA | Head Tube Angle | 63.5 | |||
| OS | Fork Offset | 44 | |||
| ST | Seat Tube Length | 395 | 415 | 445 | 475 |
| STA | Effective Seat Tube Angle | 76.5 | 77 | 77.25 | 77.5 |
| RC | Rear Centre Length | 432 | 436 | 440 | 444 |
| RC | Rear Centre Length at Sag | 442 | 446 | 450 | 454 |
| BBDF/R | Bottom Bracket Drop (Front/Rear) | 20.5/0 | |||
| BBH | Bottom Bracket Height | 353 | |||
| HTT | Horizontal Top Tube | 589 | 613 | 637 | 661 |
| WB | Wheelbase | 1228 | 1261 | 1295 | 1328 |
| SOH | Standover | 705 | 711 | 718 | 733 |
| HT | Head Tube Length | 115 | 125 | 135 | 145 |
| Trail | 138 | ||||
| Recommended Seatpost Drop | 150 | 170 | 200 | ||
| Maximum Post Insertion | 250 | 270 | 300 | 330 | |
| Stem Length | 40 | ||||
| Crank Length | 165 | ||||
| Tire Size | 2.35" - 2.6" | ||||
| Water Bottle Compatible | 1 x 620 mL | 1 x 750 mL | |||
