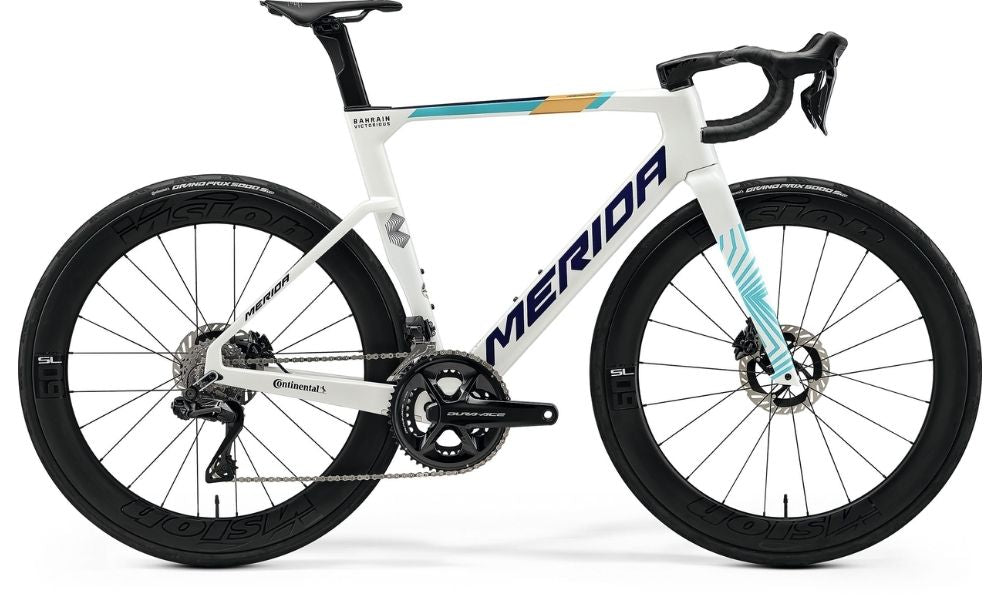

Merida 2026 Reacto Team
If only the best is good enough, then the REACTO TEAM is the bike for you. With multiple test wins, perfect scores and an array of awards under its belt, the REACTO TEAM remains a class leader in the aero bike segment.
Race proven and WorldTour-winning aero bike. As one of the most test-winning and awarded bikes in recent history, the REACTO TEAM combines low weight, outstanding aerodynamic, perfect cable integration and impressive aero bike comfort. Loaded with top-end equipment from Shimano, Vision, FSA and Continental this bike is equally at home at top end race meetings as it is on challenging club rides.
Unadulterated aero road speed. The latest version of the REACTO took the cycling press by storm. A long string of test wins, perfect scores and awards confirm our successful symbiosis of the race-proven DNA of the previous model with the latest trends and technologies. Cycling Weekly calls it 'without doubt one of the most complete bikes available on the market', Cyclingnews 'an utterly brilliant and faultless machine' and Cycling Plus were 'hugely impressed'. From serious racer via enthusiast to the ambitious road rider, the REACTO is a great bike for many people. Its outstanding aerodynamic performance, reduced weight, sharp handling and super quick acceleration makes it the perfect bike for criterium racers and sprinters. At the same time, the class-leading comfort gives it the ability to play out its aerodynamic advantage also on the cobblestones – or the idyllic but potholed littered lanes of your favourite training ride.
- Super-light CF5 carbon aero frame (approx. 950 g - in size M)
- Shimano Dura-Ace 12-speed Di2 groupset
- Power meterFSA 5D ACR one-piece cockpit
- Vision Metron 60 SL wheelset with Continental 5000S TR 28 mm tyres
- MERIDA S-FLEX carbon aero post and DISC COOLER technology
Merida 2026 Reacto Team
Frame
Size: S, M, L
Colour: TEal/White Team
Frame: REACTO CF5 IV, MAT carbon, 700x30C max. WHS, 100x12/ 142x12 AST, BB86,5 BBR,
Fork: REACTO CF5 IV DISC, MAT carbon, 700x30C max. WHS,
Shock:
Drivetrain
Crankset: Shimano Dura Ace, 52-36t, Power Meter,
Pedals:
Chain: Shimano M9100-12,
Bottom Bracket: Shimano SM-BB92-41B, Pressfit 86.5
Rear Derailleur: Shimano Dura Ace Di2,
Front Derailleur: Shimano Dura Ace Di2,
Derailleur Shifter: Shimano Dura Ace disc Di2,
Freewheel/Cassette: Shimano Dura-Ace R9200, 11-30, 12sp,
Braking System
Brakes: Shimano Dura Ace, Hydraulic disc
Brake Levers:
Wheels
Tyres: Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready
Wheels/Rims: Vision Metron 60 SL Clincher TL Disc, 100x12 WHF, 142x12 WHR, 21 IWR, 60 HRI, Centerlock, MAT carbon, Tubeless tape ready
Hubs: [F] [R]
Other
Handlebar: Vision Metron 5D ACR EVO, MAT carbon, 380mm (3S-XXS-XS-S), 400mm (M-L), 420mm (XL),
Stem: Vision Metron 5D ACR EVO, MAT carbon
Seat Post: MERIDA Team CW, Aero shape, 15 SSB, Carbon
Saddle: Prologo Nago R4 PAS, Nack
Merida 2026 Reacto Team
| Frame Size | 3XS | XXS | XS | S | M | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" | 28" |
| ST seat tube [mm] | 440 | 470 | 500 | 520 | 540 | 560 | 590 |
| TT top tube [mm] | 505 | 520 | 536 | 545 | 560 | 575 | 590 |
| CS chain stay length [mm] | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| HTA head tube angle [°] | 70.5 | 70.5 | 72 | 72.5 | 73.5 | 73.5 | 74 |
| STA seat tube angle [°] | 75.5 | 74.5 | 74 | 74 | 73.5 | 73 | 73 |
| BD bottom bracket drop [mm] | 70 | 70 | 70 | 66 | 66 | 66 | 66 |
| HT head tube [mm] | 100 | 105 | 112 | 128 | 140 | 155 | 176 |
| FL fork length [mm] | 385 | 385 | 385 | 385 | 385 | 385 | 385 |
| R reach [mm] | 373 | 377 | 384 | 390 | 395 | 400 | 409 |
| S stack [mm] | 512 | 517 | 529 | 542 | 557 | 571 | 593 |
| WB wheel base [mm] | 979 | 985 | 983 | 990 | 990 | 999 | 1010 |
| SH stand over height [mm] | 727 | 746 | 771 | 792 | 810 | 826 | 853 |
