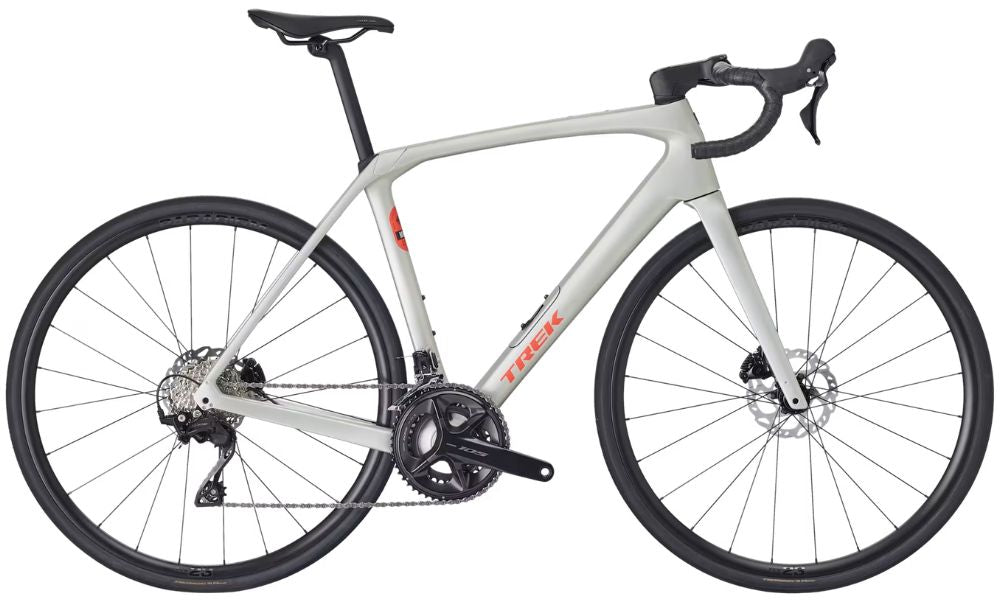

Trek 2026 Domane SL 5 Gen 4
The Domane SL 5 is an endurance road bike ready to comfortably take on rough roads and long miles in comfort. It's crafted with a lightweight 500 Series OCLV Carbon frame speced with a reliable Shimano 105 drivetrain, and aluminium wheels and aluminium handlebars to balance performance and price.
Trek 2026 Domane SL 5 Gen 4
Frame
Size: 52, 54, 56, 58
Colour: Matte Lunar Silver
Frame: 500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12 mm thru axle
Fork: Domane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle
Shock:
Drivetrain
Crankset: Shimano 105 R7100, 50/34
Pedals:
Chain: Shimano SLX M7100, 12-speed
Bottom Bracket: Praxis, T47 threaded, internal bearing
Rear Derailleur: Shimano 105 R7100, 36T max cog
Front Derailleur: Shimano 105 R7100, braze-on, down swing
Shifter: Shimano 105 R7120, 12-speed
Freewheel/Cassette: Shimano 105 7101, 11-34, 12-speed
Braking System
Brakes: Shimano CL700, CentreLock, 160 mm
Brake Levers:
Wheels
Tyres: Bontrager Kwaremont Pro TLR, tubeless ready, folding bead, Race Dual-Compound, 120 tpi, 700x32 mm
Wheels/Rims: [F] Bontrager Paradigm Comp 23, Tubeless Ready, 23 mm rim width, 100x12 mm thru-axle [R] Bontrager Paradigm 23, Tubeless Ready, 23 mm rim width, Shimano 11-/12-speed freehub, 142x12 thru axle
Hubs: [F] [R]
Other
Handlebar: Size: 50, 52Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop
Stem: Size: 52, 54 Trek RCS Pro, -7-degree, 90 mm length Size: 56, 58 Trek RCS Pro, -7-degree, 100 mm length
Seat Post: KVF aero carbon seat post, 20 mm offset, 280 mm length SIZE: 58, 60, 62 320mm length
Saddle: Verse Short Comp, steel rails, 14i/th
Trek 2026 Domane SL 5 Gen 4
| Frame size number | Wheel size | A — Seat tube | B — Seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack | Saddle rail height min (w/short mast) | Saddle rail height max (w/short mast) | Saddle rail height min (w/tall mast) | Saddle rail height max (w/tall mast) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47cm | 700c | 42.0 | 74.6° | 11.0 | 71.0° | 50.9 | 8.0 | 42.0 | 5.3 | 6.1 | 98.6 | 68.6 | 36.4 | 52.7 | 55.5 | 62.0 | 58.5 | 65.0 |
| 50cm | 700c | 45.0 | 74.6° | 13.0 | 71.1° | 51.9 | 8.0 | 42.0 | 5.3 | 6.0 | 99.6 | 71.6 | 36.8 | 54.6 | 58.5 | 65.0 | 61.5 | 68.0 |
| 52cm | 700c | 47.5 | 74.2° | 14.5 | 71.3° | 53.0 | 8.0 | 42.0 | 5.3 | 5.9 | 100.3 | 73.5 | 37.1 | 56.1 | 61.5 | 68.0 | 64.5 | 71.0 |
| 54cm | 700c | 50.0 | 73.7° | 16.0 | 71.3° | 54.2 | 8.0 | 42.0 | 5.3 | 5.9 | 101.0 | 75.4 | 37.4 | 57.5 | 64.0 | 70.5 | 67.0 | 73.5 |
| 56cm | 700c | 52.5 | 73.3° | 17.5 | 71.9° | 55.4 | 7.8 | 42.0 | 4.8 | 6.1 | 100.8 | 77.6 | 37.7 | 59.1 | 67.0 | 73.5 | 70.0 | 76.5 |
| 58cm | 700c | 54.8 | 73.0° | 19.5 | 72.0° | 56.7 | 7.8 | 42.5 | 4.8 | 6.0 | 102.2 | 79.6 | 38.0 | 61.1 | 69.0 | 75.5 | 72.0 | 78.5 |
| 60cm | 700c | 56.7 | 72.8° | 22.0 | 72.1° | 57.9 | 7.5 | 42.5 | 4.8 | 5.9 | 103.2 | 81.7 | 38.3 | 63.2 | 71.0 | 77.5 | 74.0 | 80.5 |
| 62cm | 700c | 58.6 | 72.5° | 24.5 | 72.1° | 59.3 | 7.5 | 42.5 | 4.8 | 5.9 | 104.2 | 83.5 | 38.6 | 65.6 | 73.0 | 79.5 | 76.0 | 82.5 |
