Silverback 2026 SE Series Trail 9
Built for Real Trails, Not Perfect Conditions.
A fast, confident trail bike built for real‑world singletrack. The aluminium frame blends stiffness and comfort, backed by 130 mm front and rear travel for smooth, predictable control. Balanced geometry keeps you centred on climbs and stable on descents, with a short seat tube for easy dropper use and great standover. Dual bottle mounts add range. The reliable single‑pivot suspension delivers clean trail feel and long‑term durability, while the 9‑speed drivetrain keeps things simple, tough and ready for progression.

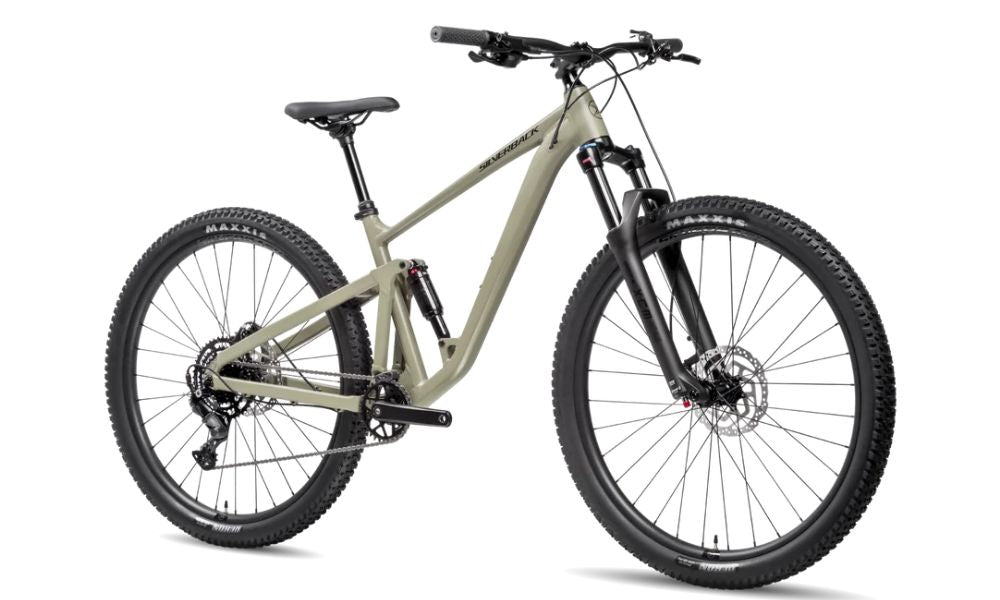

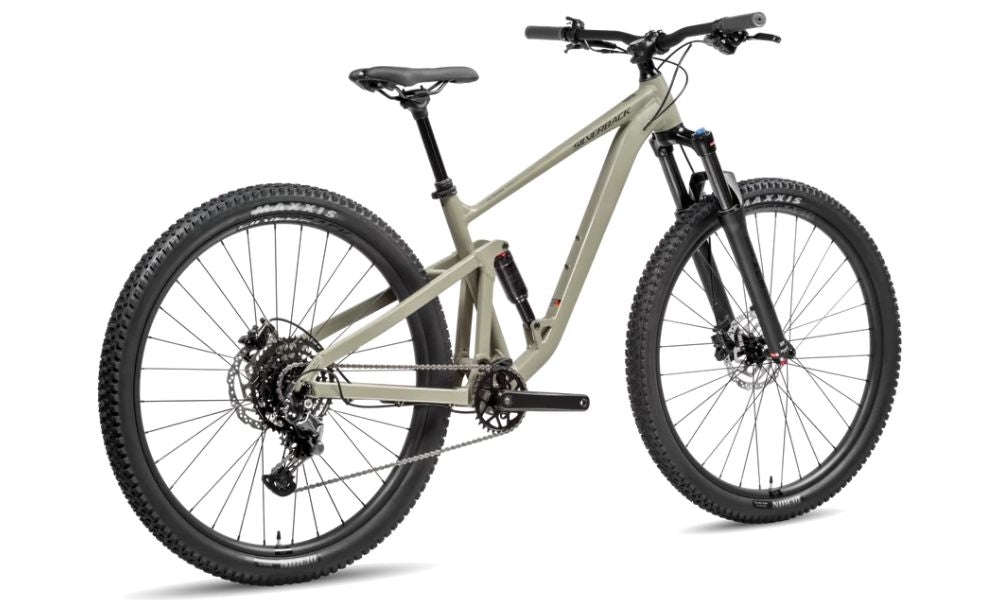

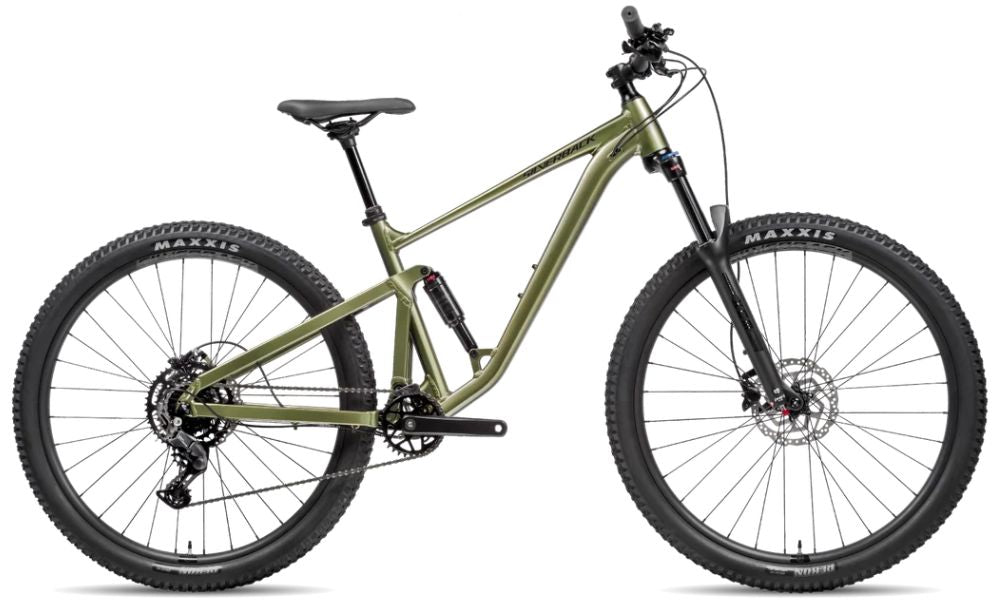

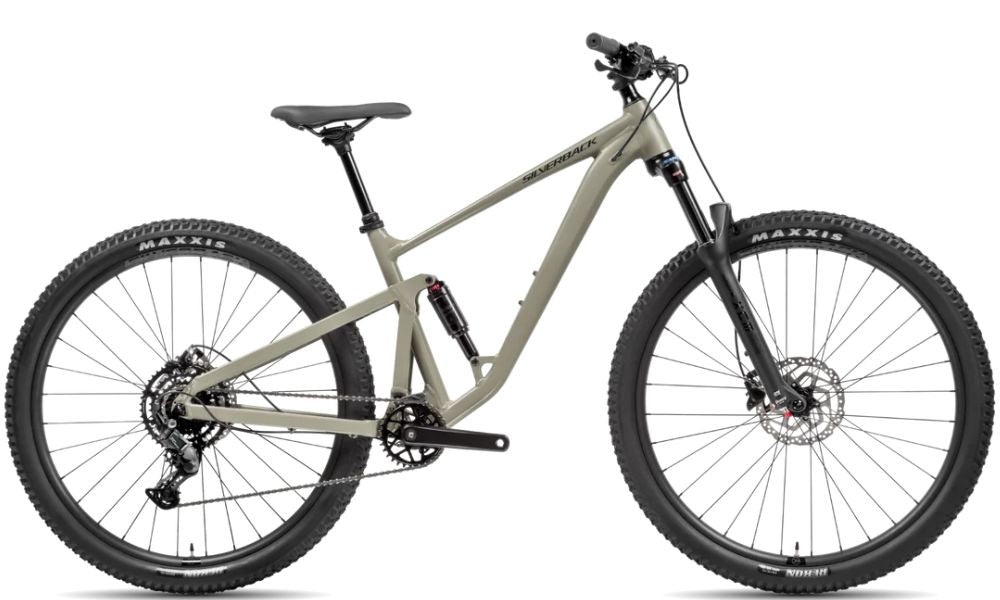

Silverback 2026 SE Series Trail 9
Frame
Size: SM, MD, LG, XL
Colour: Stormy Sand and Metallic Green Olive
Frame: Alloy Trail Dual suspension Frame. True single pivot design, 130mm Rear Travel. BSA Bottom Bracket. Boost 148 SBC through axle dropouts.

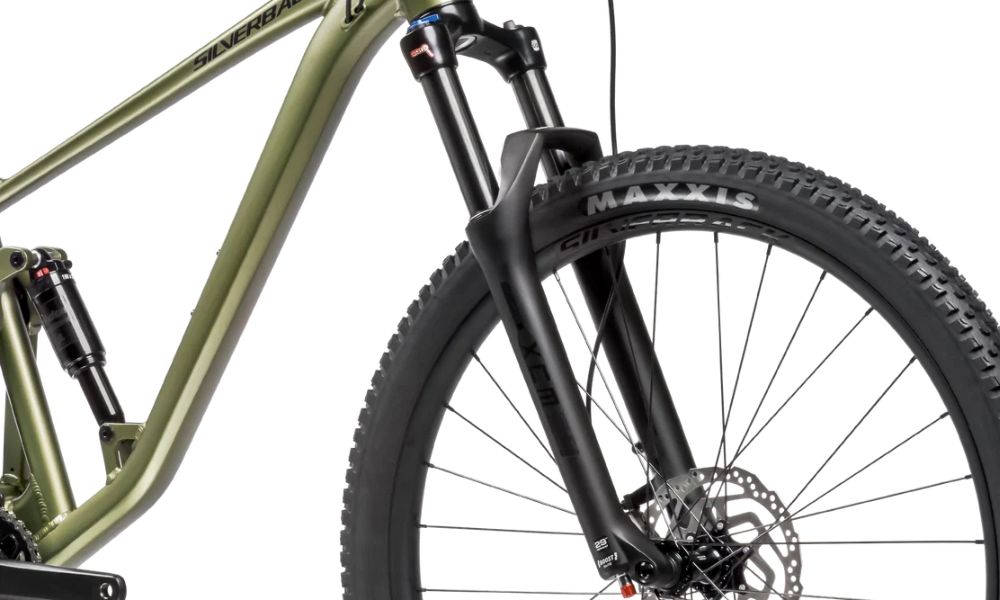

Fork: SR Suntour XCM34 DS LO-R Coil, 130mm Travel, Boost, Hydraulic Lockout & Low speed rebound adjust

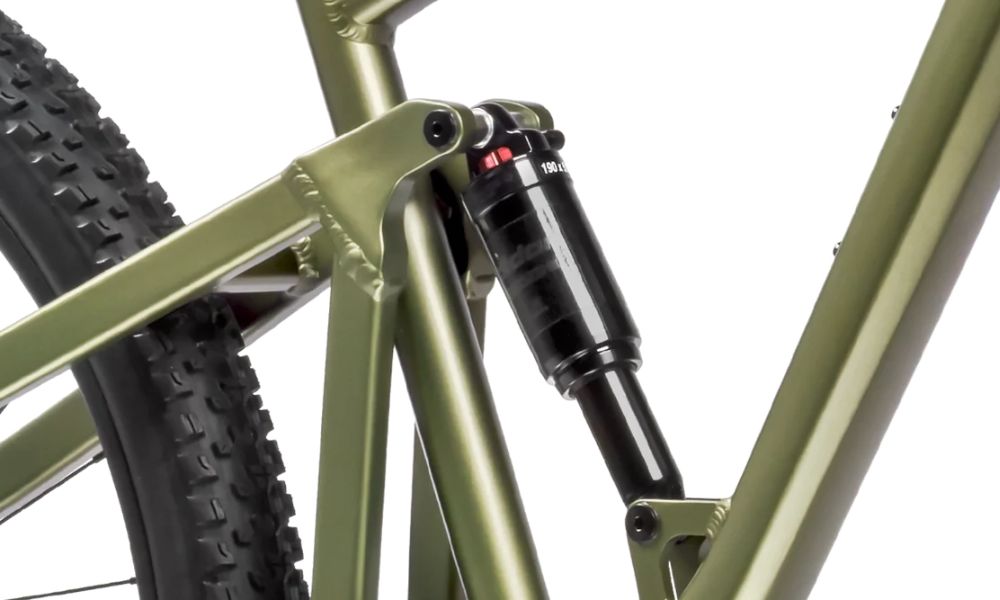

Shock: Suntour Raidon R, Custom Tuned, Hardware: 43x10 Top, 20x10mm Bottom, 190x51mm
Drivetrain
Crankset: Alloy, 32T narrow-wide chainring, 170-175mm crank arms
Pedals:
Chain: Shimano CN-LG500 LG, 9/10/11 Speed
Bottom Bracket: BSA73

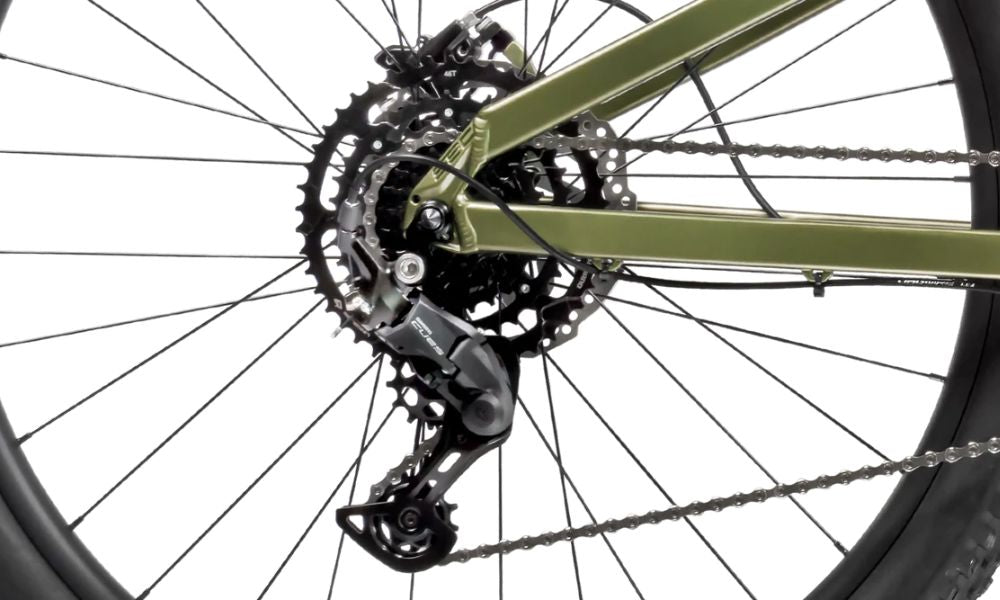

Rear Derailleur: Shimano RD-U4000 CUES
Front Derailleur:
Derailleur Shifter: Shimano SL-U4000-9R
Freewheel/Cassette: Shimano CS-LG300-9 CUES 9-Speed, 11-46T
Braking System
Brakes: Shimano MT200 2-piston Hydraulic Disc, Resin Pads
Brake Levers:
Wheels
Tyres: Maxxis Rekon 29x2.4", Wire bead
Wheels/Rims: Silverback Trail, 32H, 30mm Internal width, Tubeless ready

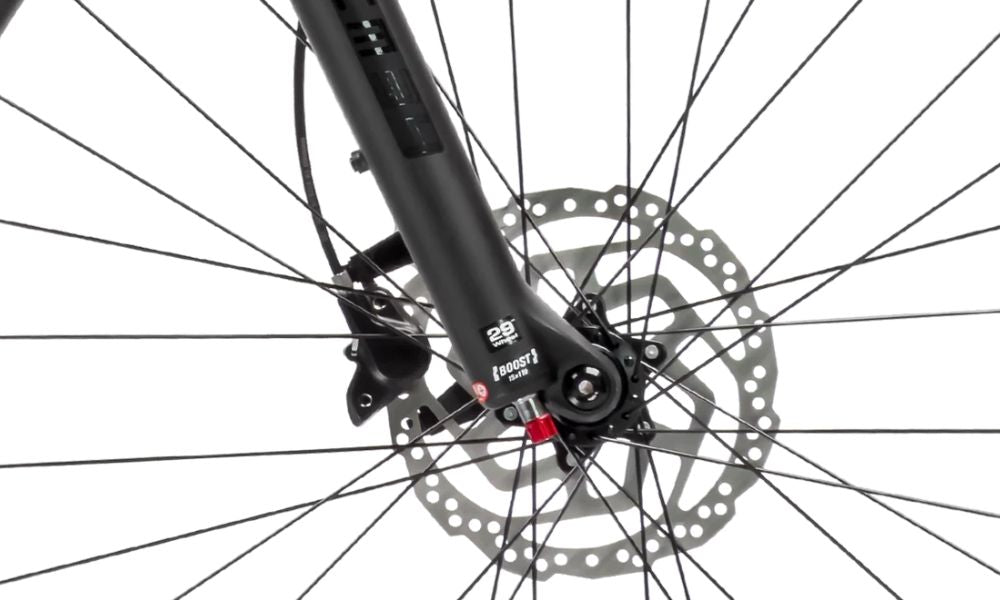

Hubs: [F] Shimano HB-TC500-15-B, Centre Lock, 32H, 15mm Thru-Axle, OLD: 110mm [R] Shimano FH-TC500-HM-B Freehub, Centre Lock, 8-11 Speed, 12mm Thru-Axle, 32H, OLD: 148mm
Other
Handlebar: Alloy Handlebar, Dia: Ø31.8mm, 9° Back sweep, 20mm Rise, Width: 780mm
Stem: Alloy, Ø31.8mm, Extension: 45mm, Rise: 3°
Seat Post: Silverback Dropper Post, Remote Lever, Ø30.9mm, S:100/M:125/L:125/XL:125mm Travel
Saddle: SURFACE Alloy w/Steel Bolt
Silverback 2026 SE SEries Trail 9
| map | type(mm unless specified) | S (27.5") | S (29") | M (29") | L (29") | XL (29") |
|---|---|---|---|---|---|---|
| Rider height(cm) | 154-170 | 154-170 | 170-180 | 180-190 | 188-210 | |
| Rider inseam(cm) | 70-77 | 70-77 | 77-82 | 82-86 | 85-95 | |
| A | Seat tube c/t | 390 | 390 | 420 | 435 | 460 |
| B | Seat tube angle | 76° | 76° | 76° | 76° | 76° |
| C | Head tube angle | 67° | 67° | 67° | 67° | 67° |
| D | Top Tube | 567 | 575 | 598 | 621 | 655 |
| E | Reach | 420 | 420 | 440 | 460 | 490 |
| F | Chainstay length | 445 | 456 | 456 | 456 | 456 |
| G | bb height | 337 | 339 | 339 | 339 | 339 |
| H | head tube length | 100 | 100 | 110 | 120 | 130 |
| I | stack | 589 | 625 | 634 | 644 | 653 |
| J | standover | 732 | 764 | 759 | 767 | 765 |
| K | Wheelbase | 1161 | 1178 | 1202 | 1226 | 1260 |
