Giant 2026 Reign Advanced E+ 0
Please contact store for availability on 04 589 2822 or support@cyclescience.co.nz

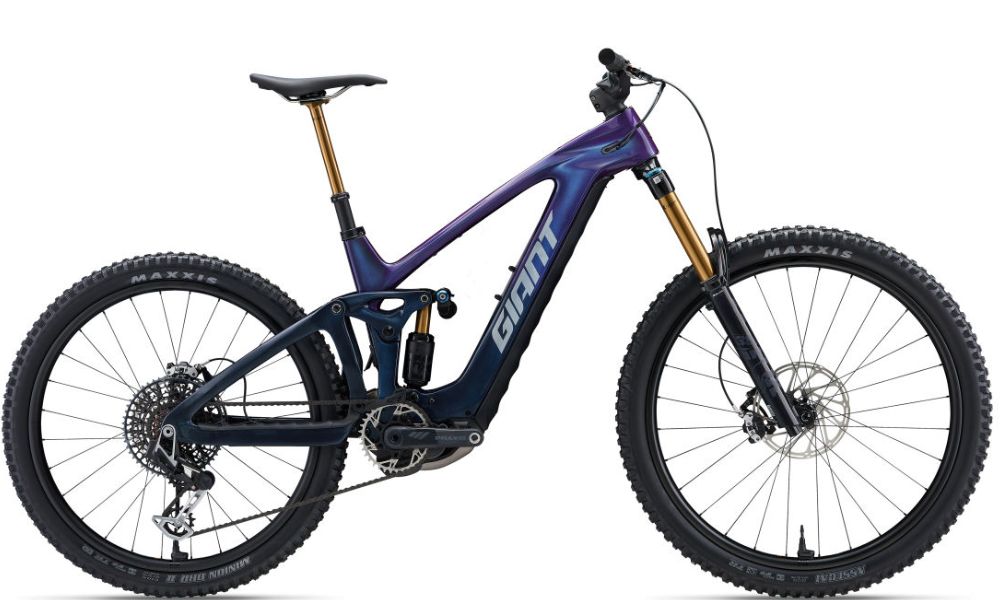

Giant 2026 Reign Advanced E+ 0
Frame
Size: S, M, L, XL
Colour: Purple Haze/Metallic Navy
Frame: Advanced-grade composite, Advanced Forged Composite Upper Rocker, 170mm Maestro suspension system, flip chip, UDH hanger 12x148mm thru-axle
Fork: Fox 38 Factory E-Tuned, 180mm travel, 44mm offset, GRIP X2 damper, Boost Kabolt-X 110x15mm
Shock: Fox Float X2 Factory, EVOL Large Volume sleeve, 2 position lever, custom tuned
Drivetrain

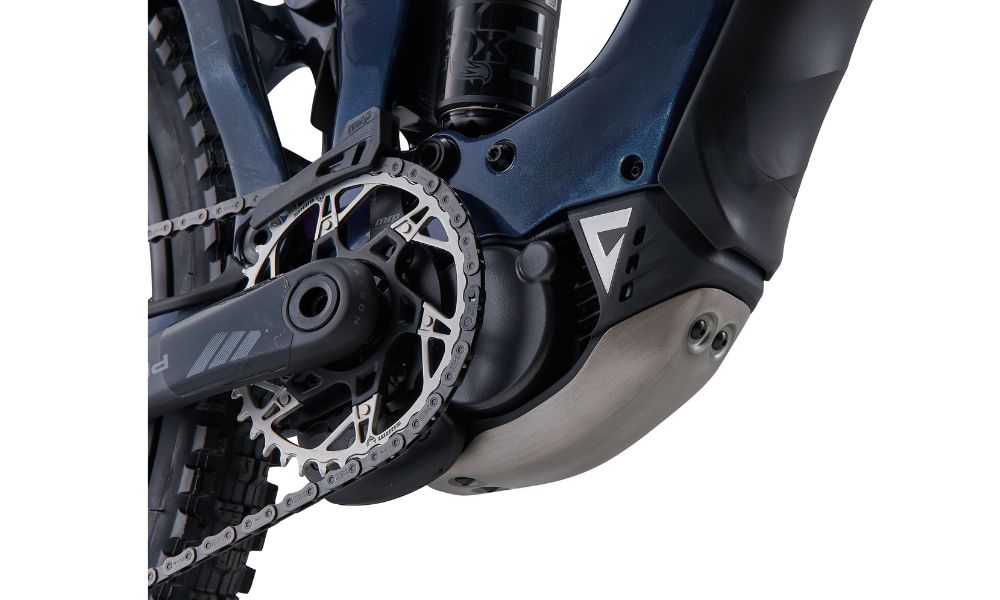

Crankset: Praxis Performance Carbon e-crank arms SRAM Eagle T-Type steel direct mount, 36T chain ring S:160mm, M: 160mm, L:160mm, XL:160mm
Pedals:
Chain: SRAM X0 T-Type
Bottom Bracket:
Rear Derailleur: SRAM XX Eagle T-Type AXS
Front Derailleur:
Derailleur Shifter: SRAM AXS Pod, Rocker Paddle, 1x12
Freewheel/Cassette: SRAM X0 XS-1295 Eagle T-Type 10-52T
Braking System
Brakes: SRAM Maven Ultimate, hydraulic, SRAM HS2 rotors [F]200mm, [R]200mm
Brake Levers: SRAM Maven Ultimate
Wheels
Tyres: Maxxis Assagai 29x2.5" foldable, Tubeless, EXO+, 3C MaxxGrip [F] Maxxis Minion DHR II 27.5x2.4" foldable, Tubeless, DoubleDown, 3C MaxxGrip Compound [R]
Wheels/Rims: Giant E-TRX Hookless Tubeless ready Carbon 29""[F] 27.5""[R] 30mm inner width
Hubs: Giant E-TRX MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 SRAM XD Drive Body Pawl Driver (6 Pawl 72T) Thru-axle [R]
Other
Handlebar: Giant Contact SLR Trail, integrated carbon 1-piece handlebar, 35mm Rize, 40/45/50mm Reach Adjust, +3/0/-3degree Angle Adjust System
Stem: Giant Contact SLR Trail, integrated carbon 1-piece handlebar, 35mm Rize, 40/45/50mm Reach Adjust, +3/0/-3degree Angle Adjust System
Seat Post: Fox Transfer Factory dropper, remote S: 150mm travel / 30.9 x 411mm M:180mm travel / 30.9 x 476mm L: 210mm travel / 30.9 x 551mm XL: 210mm travel / 30.
Saddle: Giant Romero SL
E-Bike
Drive Unit: Giant SyncDrive Pro 3, 48v, 90Nm, powered by Yamaha

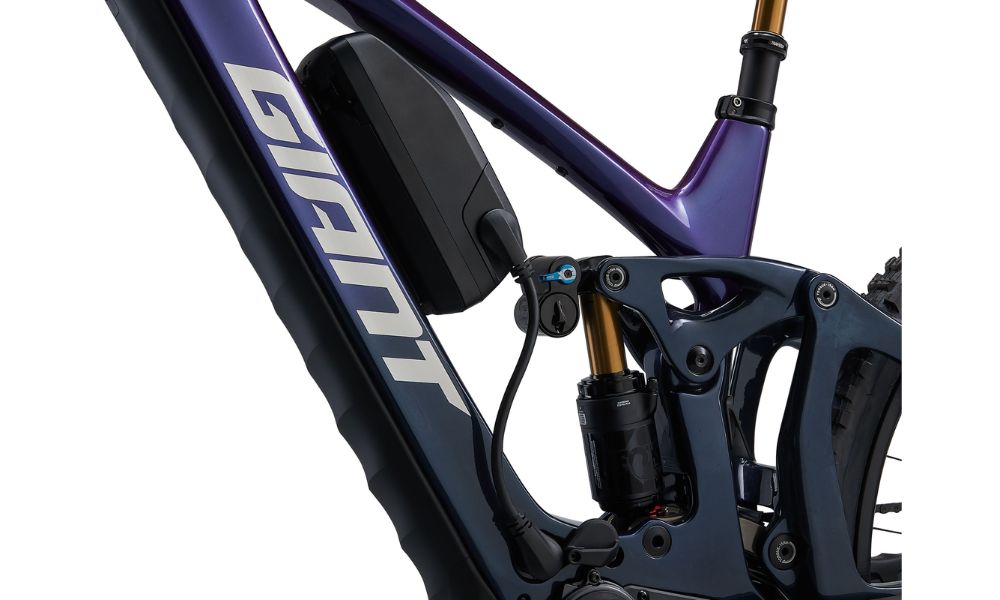

Battery: Giant EnergyPak Smart 560Wh, integrated, 48V, Giant EnergyPak Plus 280 range extender

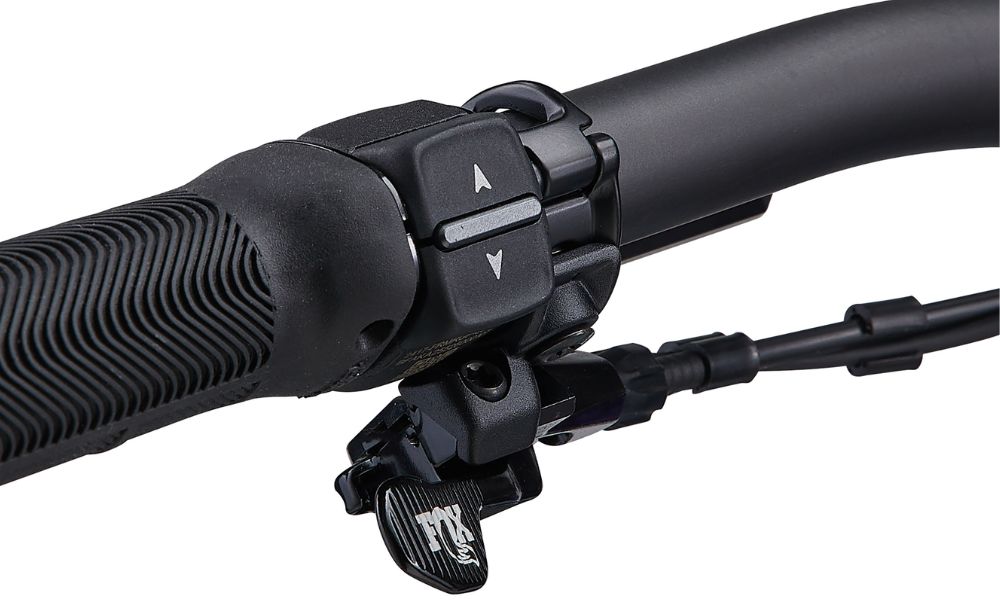

Controller: RideControl Ergo 4, grip integrated

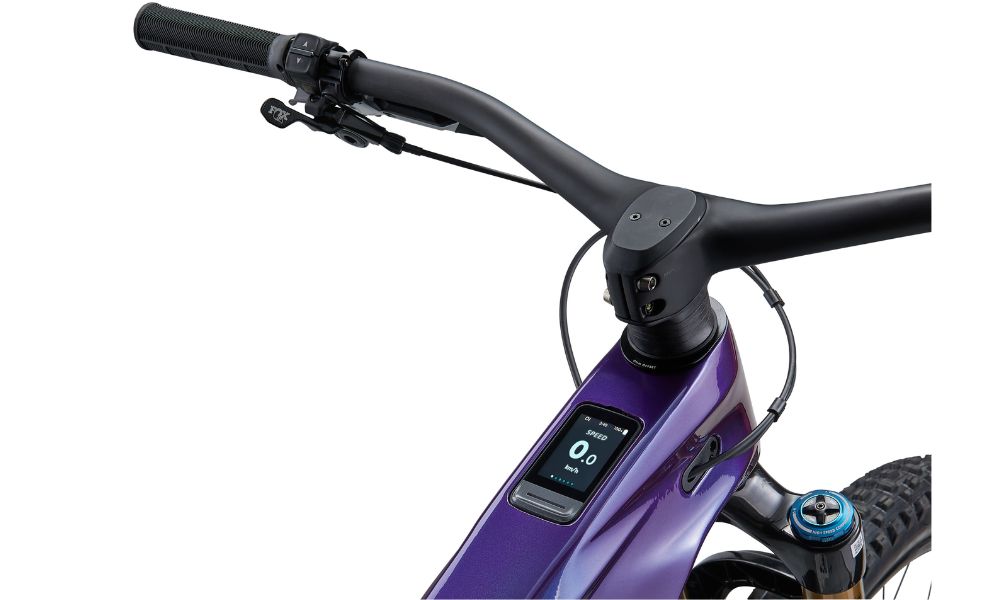

Display: RideControl GO LUX, frame integrated LED display ANT+
Charger: EnergyPak 4A smart charger
Giant 2026 Reign Advanced E+ 0
| S | M | L | XL | |
|---|---|---|---|---|
| LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | |
| A Seat Tube Length (mm) | 400 | 425 | 450 | 475 |
| A1 Seat Post Insertion Depth (mm) | 235 | 260 | 285 | 310 |
| B Seat Tube Angle | 77.1° | 77.5° | 77.9° | 77.1° | 77.5° | 77.9° | 77.1° | 77.5° | 77.9° | 77.1° | 77.5° | 77.9° |
| C Top Tube Length (mm) | 570 | 569 | 568 | 602 | 601 | 600 | 625 | 624 | 623 | 657 | 656 | 655 |
| D Head Tube Length (mm) | 95 | 105 | 120 | 135 |
| E Head Tube Angle | 63.1° | 63.5° | 63.9° | 63.1° | 63.5° | 63.9° | 63.1° | 63.5° | 63.9° | 63.1° | 63.5° | 63.9° |
| F Fork Rake (mm) | 44 | 44 | 44 | 44 |
| G Trail (mm) | 133.3 | 130.3 | 127.4 | 133.3 | 130.3 | 127.4 | 133.3 | 130.3 | 127.4 | 133.3 | 130.3 | 127.4 |
| H Wheelbase (mm) | 1226 | 1226 | 1227 | 1261 | 1261 | 1261 | 1287 | 1288 | 1288 | 1323 | 1323 | 1324 |
| I Chain Stay Length (mm) | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 |
| J Bottom Bracket Drop (mm) | 10 | 5 | 10 | 5 | 10 | 5 | 10 | 5 |
| K Stack (mm) | 647 | 645 | 642 | 656 | 654 | 651 | 669 | 667 | 665 | 683 | 680 | 678 |
| L Reach (mm) | 426 | 430 | 435 | 456 | 460 | 465 | 476 | 480 | 485 | 505 | 510 | 514 |
| O Stem Length (mm) | 40 | 40 | 40 | 40 |
| P Crank Length (mm) | 160 | 160 | 160 | 160 |
| Q Wheel Size | R27.5" / F29" | R27.5" / F29" | R27.5" / F29" | R27.5" / F29" |
