Giant 2027 Trance Advanced E+ 2
BIKES ARRIVING FROM NOVEMBER
Please contact store for availability or to PRE-ORDER on 04 589 2822 or support@cyclescience.co.nz
Full power that’s fully connected. The new Trance Advanced E+ and Giant E+ System were engineered as one for a full-power, fully controlled E-MTB experience. The frame, Maestro suspension, powertrain and software work together to give you instant power from 0 RPM, with sustained support and controlled grip that keeps you connected to the trail.
ADVANCED CONTROL
Raw power matters, but it’s the smooth balance of torque and control that truly shapes your ride. While most E-MTBs must compromise their suspension designs around off-the-shelf motors, we engineered the SyncDrive Pro 4 motor and Maestro suspension together using a custom motor housing to accommodate Maestro’s proven dual-link suspension kinematics. The Synchronized Power Matrix senses the ride and adjusts the support to your tuning. When steep climbs turn loose, Traction Control detects rear wheel slip and refines the assist, so power finds grip and you stay in control. A mixed-wheel setup—29-inch front for smooth roll-over, 27.5-inch rear for added agility—and 3-position flip-chip geometry let you dial in handling to your riding style and terrain.
ALWAYS-ON POWER
The new 48V SyncDrive Pro 4 motor delivers lightning-fast response (0.28 seconds) and 120Nm of torque from the first crank of your pedals, starting at 0 rpm. It’s designed to read force, not rotation. Best of all, it doesn’t taper at speed, delivering 850W of peak power across the full cadence range. Weighing just 21.9kg with a new 840Wh battery, the new Trance Advanced E+ 0 handles like a lighter bike and holds power where others fade.
FULL-POWER CONFIDENCE
More power and torque lead to more stress on everything. The new Trance Advanced E+ is built to handle the forces of full-power E-MTB riding with engineered durability across the board. The new TRX and TRA HD WheelSystems feature high-torque titanium ratchet hubs that are 20% stronger than the previous generation and 25% stronger in fatigue testing than leading competitors. A new high-torque KMC chain delivers 35% stronger pin strength versus leading benchmark 12-speed chains. The EnergyPak 840 battery has a 2,300-cycle lifespan. And it’s all backed by Giant’s global retailer and service network.
Giant 2027 Trance Advanced E+ 2
Frame
Size: S, M, L, XL

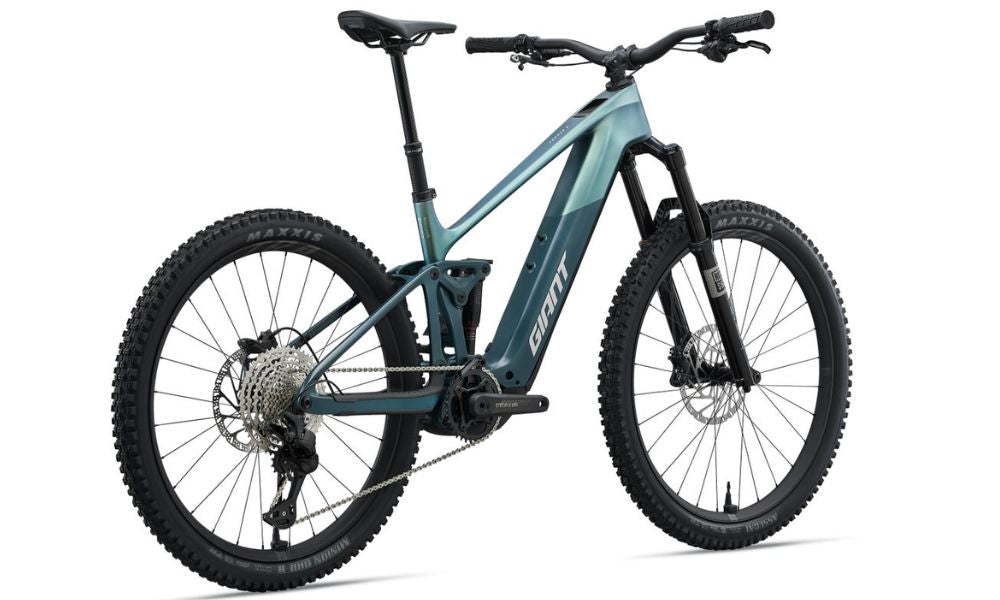

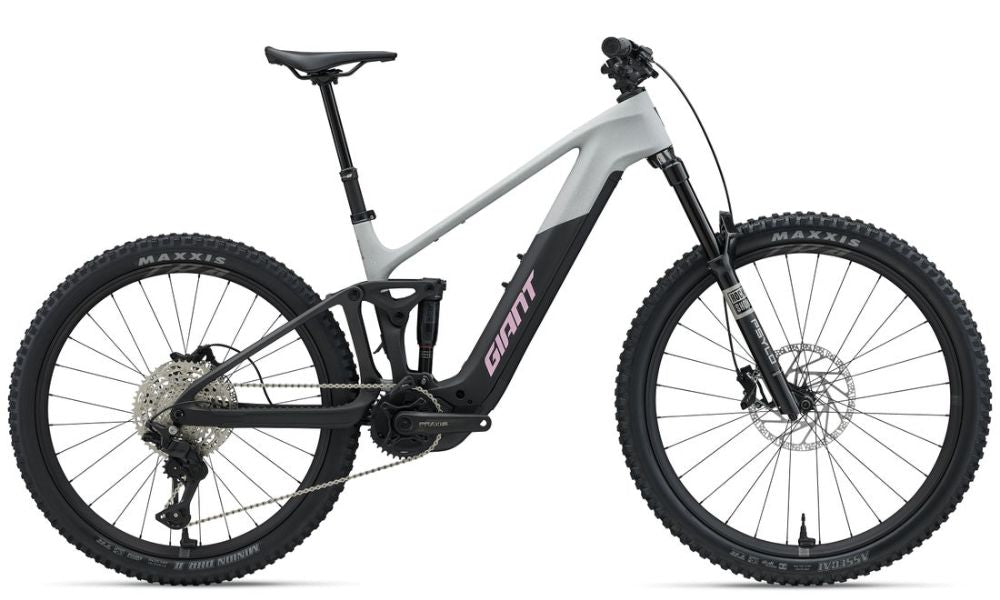

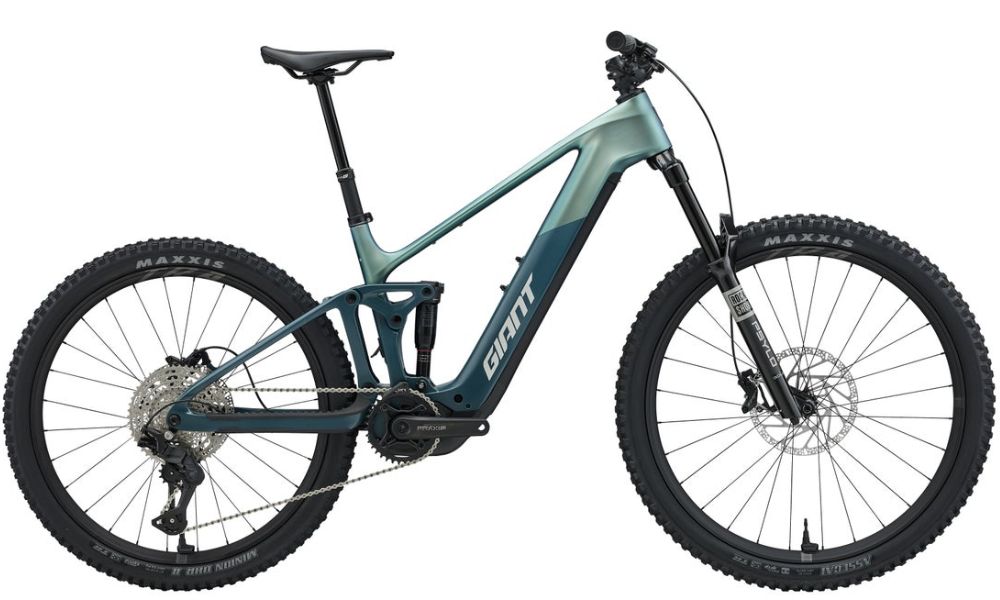

Colour: Moon Dust/Carbon or Fanatic Teal/Deep Lake

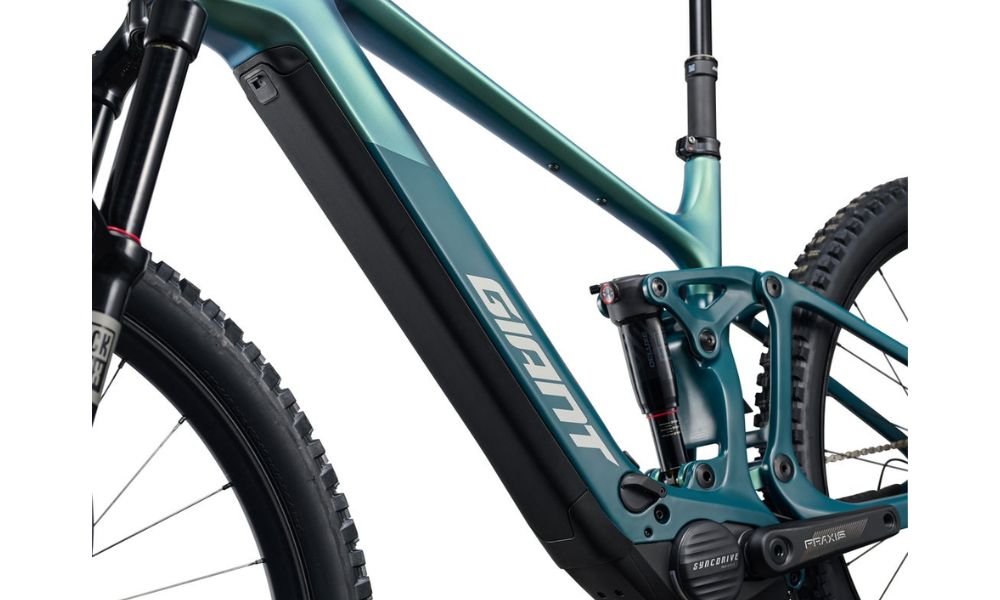

Frame: Advanced-grade composite, Advanced Forged Composite Upper Rocker, 150mm Maestro suspension system, 3 position flip chip, UDH hanger 12x148mm thru-axle

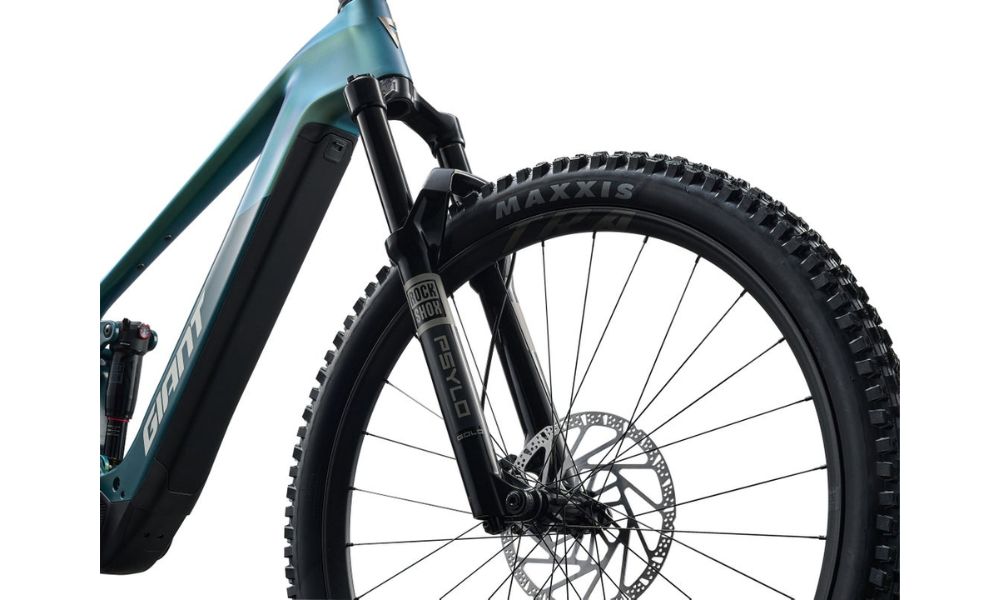

Fork: RockShox Psylo Gold RC, 160mm travel, 44mm offset, Isolator RC damper, Maxle Stealth 15x110 thru-axle

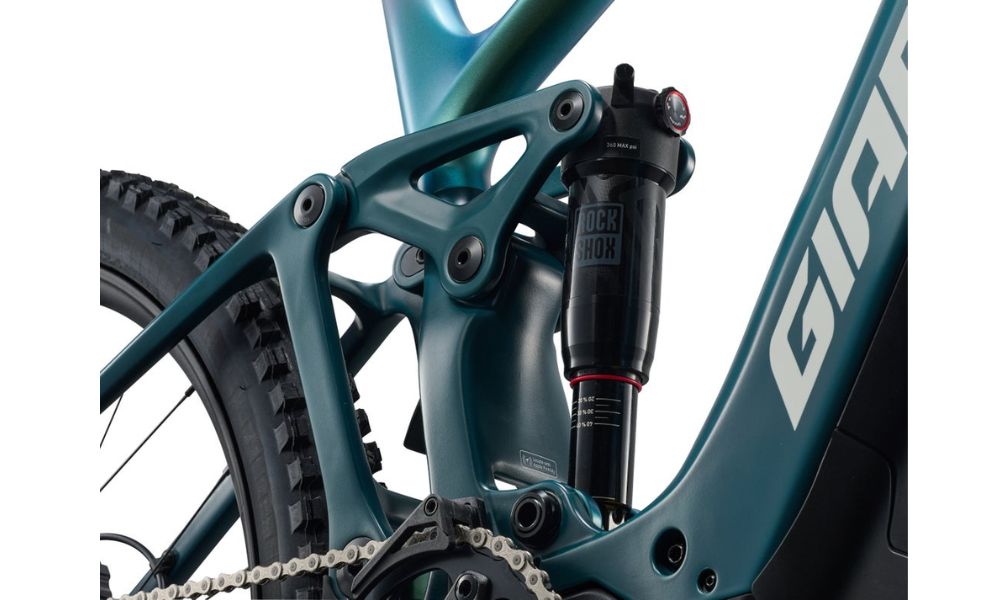

Shock: RockShox Deluxe Select, custom tuned
Drivetrain
Crankset: "Praxis e-HD alloy crank arms Praxis steel direct mount, 36T chain ring S:155mm, M: 155mm, L:155mm, XL:155mm"
Pedals:
Chain: KMC eFlatHT
Bottom Bracket:

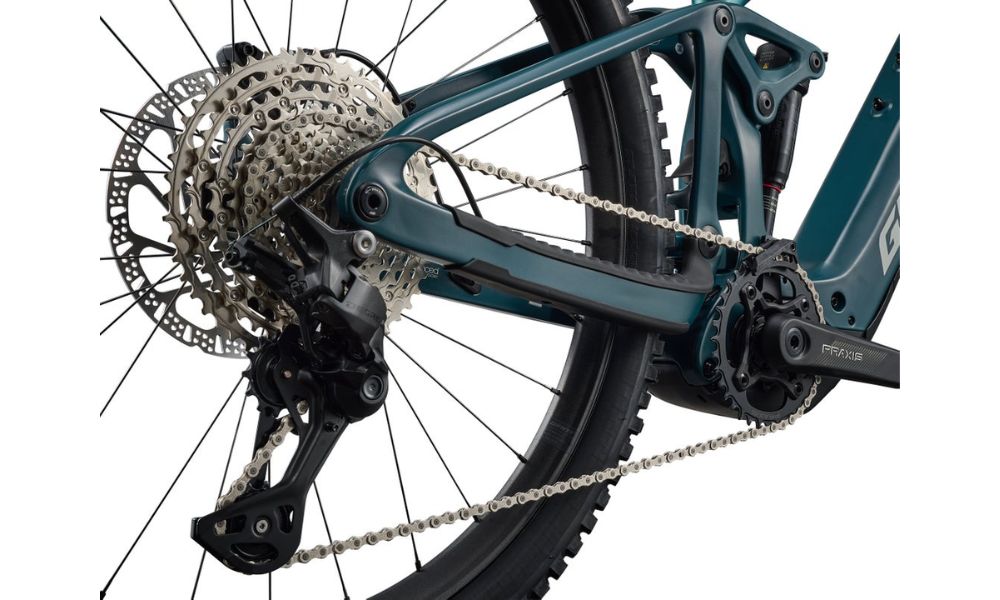

Rear Derailleur: Shimano Deore, Shadow+
Front Derailleur:
Derailleur Shifter: Shimano Deore, 1x12
Freewheel/Cassette: Shimano Deore CS-M6200, 10-51T
Braking System

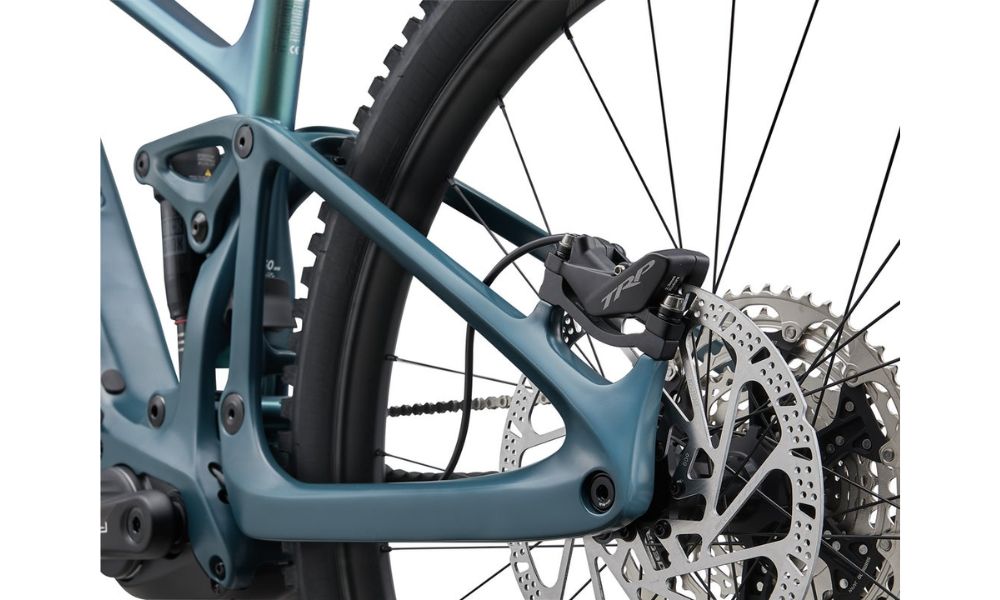

Brakes: TRP EVO Comp, hydraulic, TRP 2.3mm rotors [F]220mm, [R]203mm
Brake Levers: TRP EVO Comp
Wheels
Tyres: [F] "Maxxis Assagai 29x2.5"" foldable, Tubeless, EXO+, 3C Maxx Grip [R] Maxxis Minion DHR II 27.5x2.4"" foldable, Tubeless, EXO+ 3C Maxx Terra
Wheels/Rims: "Giant E-TRA Hookless Tubeless ready Alloy 29"" [F] 27.5"" [R] 30mm inner width"
Hubs: [F] Giant E-TRA MTB Alloy Hub, 6 Bolt, 28H [R] Giant E-TRA MTB Alloy Hub, HG Drive Body 72T Helical-Bevel Ratchet Driver, 6 Bolt, 28H
Other
Handlebar: Giant Contact TR35, 35mm Rise
Stem: Giant Contact SL 35mm S:40mm, M:40mm, L:40mm, XL:40mm
Seat Post: Giant Contact Switch AT travel-adjustable dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Saddle: Giant Romero HD
E-Bike

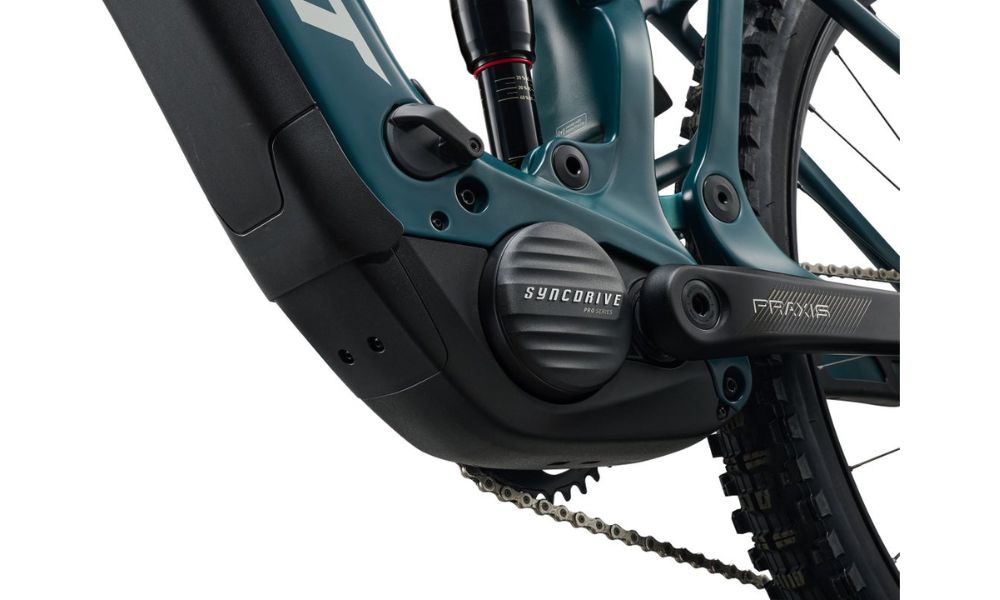

Drive Unit: Giant SyncDrive Pro4, 120Nm, 48V, 850W Peak Power, 45Km/h max assist
Battery: "EnergyPak Smart 840Wh EnergyPak Plus 280 range extender compatible"

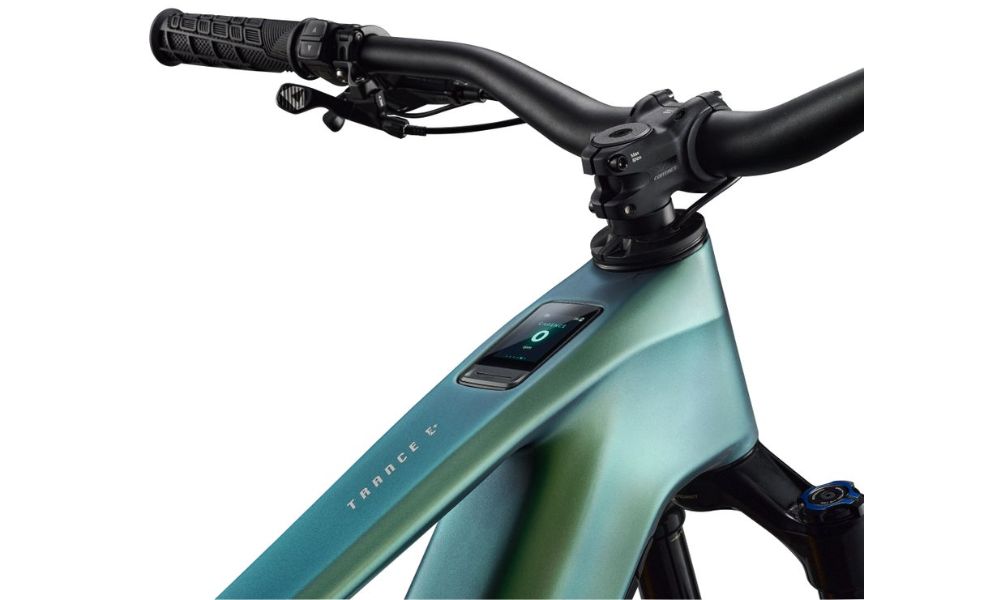

Display: "RideControl GO LUX, frame integrated LED display ANT+ "
UI/Remote: "Giant RideControl Ergo 5 wireless Integrated E+ System "
Charger: 48V 4A Smart Charger X
Giant 2027 Trance Advanced E+ 2
-
- S
-
162 cm
174 cm
-
- M
-
168 cm 184 cm
-
- L
-
178 cm 192 cm
-
- XL
-
184 cm 200 cm
| S | M | L | XL | |
|---|---|---|---|---|
| LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | |
| A Seat Tube Length (mm) | 400 | 425 | 450 | 475 |
| A1 Seat Post Insertion Depth (mm) | 245 | 270 | 295 | 310 |
| B Seat Tube Angle | 76.6° | 77.0° | 77.4° | 76.6° | 77.0° | 77.4° | 76.6° | 77.0° | 77.4° | 76.6° | 77.0° | 77.4° |
| C Top Tube Length (mm) | 568 | 567 | 566 | 605 | 604 | 603 | 630 | 629 | 628 | 662 | 661 | 660 |
| D Head Tube Length (mm) | 110 | 120 | 130 | 140 |
| E Head Tube Angle | 64.1° | 64.5° | 64.9° | 64.1° | 64.5° | 64.9° | 64.1° | 64.5° | 64.9° | 64.1° | 64.5° | 64.9° |
| F Fork Rake (mm) | 44 | 44 | 44 | 44 |
| G Trail (mm) | 135.9 | 135.9 | 135.9 | 135.9 |
| H Wheelbase (mm) | 1200 | 1199 | 1197 | 1239 | 1237 | 1236 | 1267 | 1265 | 1264 | 1300 | 1299 | 1298 |
| I Chain Stay Length (mm) | 443 | 443 | 443 | 443 | 443 | 443 | 443 | 443 | 443 | 443 | 443 | 443 |
| J Bottom Bracket Drop (mm) | 17 | 12 | 7 | 17 | 12 | 7 | 17 | 12 | 7 | 17 | 12 | 7 |
| K Stack (mm) | 634 | 631 | 629 | 643 | 640 | 638 | 652 | 649 | 647 | 661 | 659 | 658 |
| L Reach (mm) | 422 | 425 | 428 | 457 | 460 | 463 | 477 | 480 | 484 | 504 | 510 | 513 |
| N Handlebar Width (mm) | 800 | 800 | 800 | 800 |
| O Stem Length (mm) | 40 | 40 | 40 | 40 |
| P Crank Length (mm) | 155 | 155 | 155 | 155 |
| Q Wheel Size | 29" [F], 27.5" [R] | 29" [F], 27.5" [R] | 29" [F], 27.5" [R] | 29" [F], 27.5" [R] |
