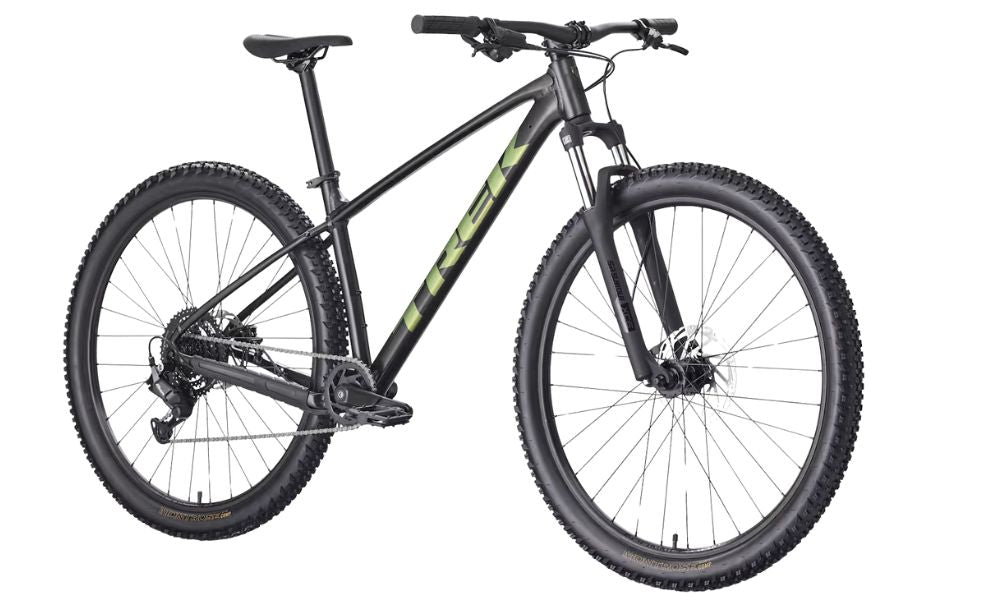

Trek 2026 Marlin 4 Gen 3
Marlin 4 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 8-speed Shimano ESSA shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
Trek 2026 Marlin 4 Gen 3
Frame
Size: XS, S, M, ML, L, XL

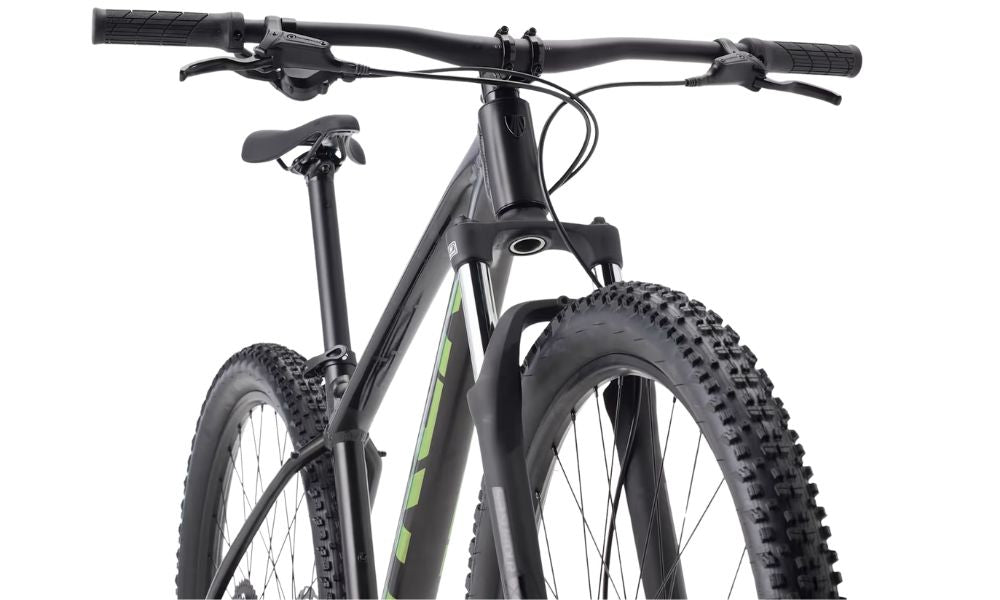

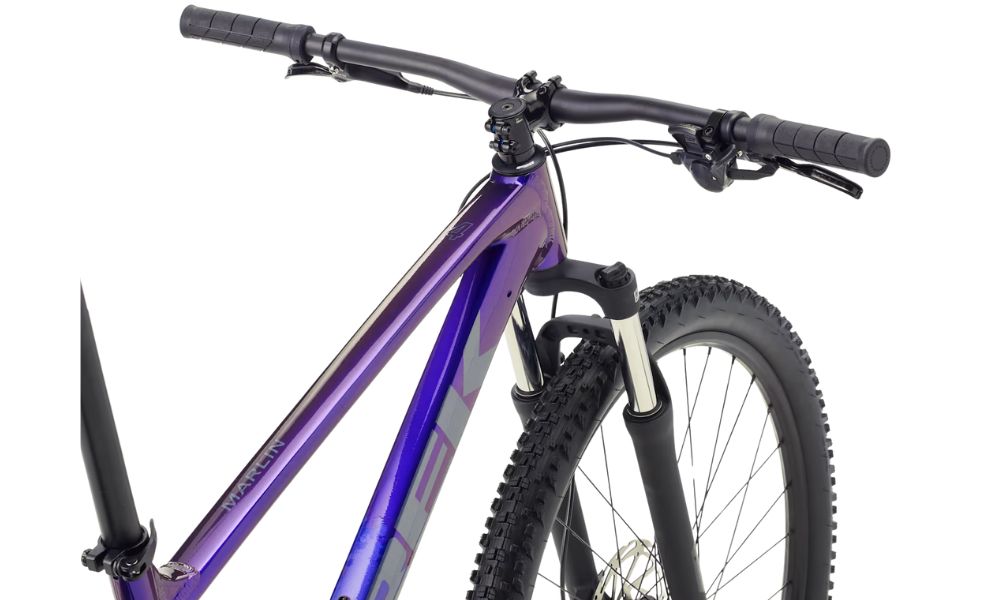

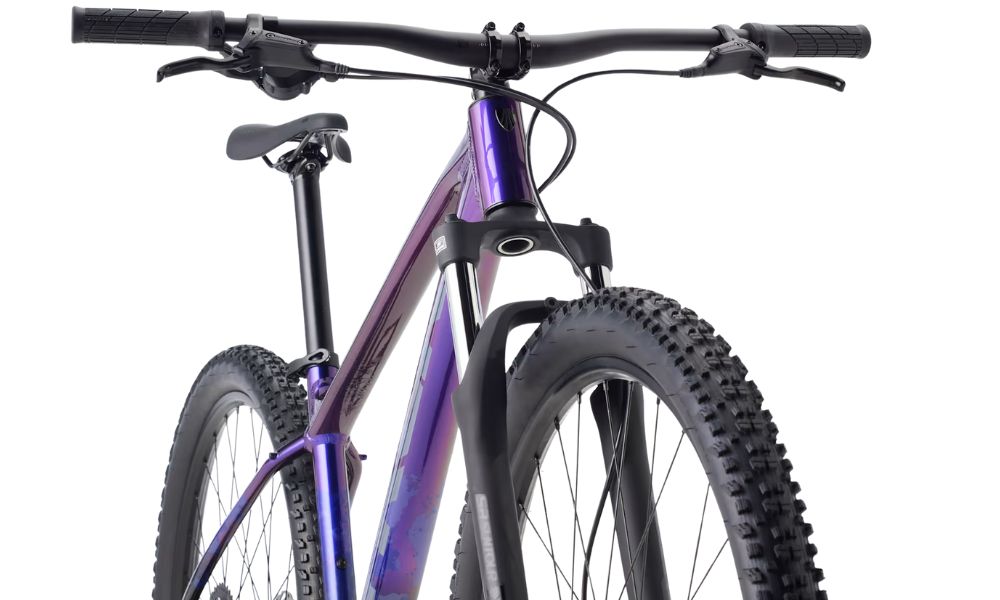

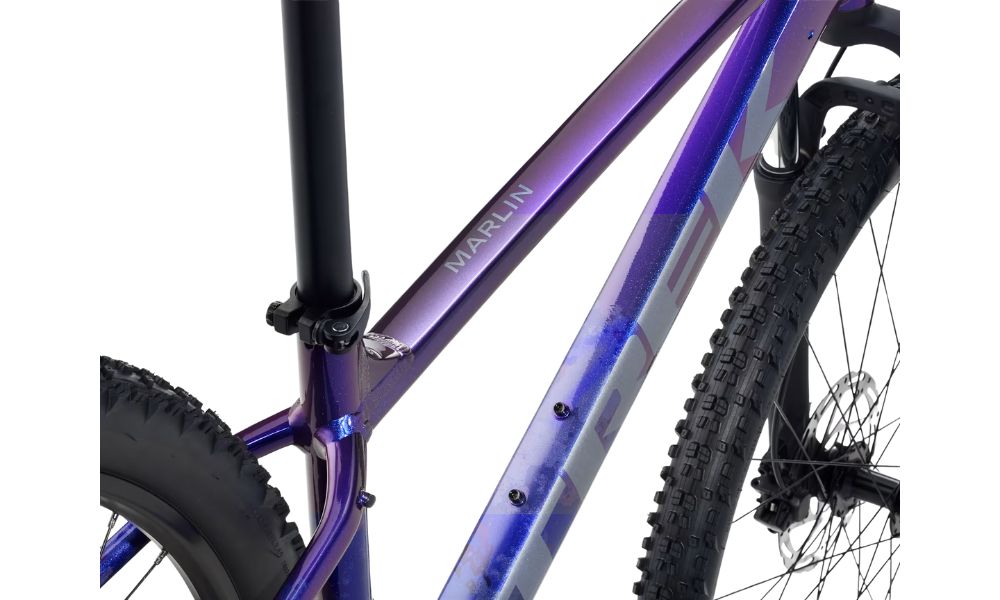

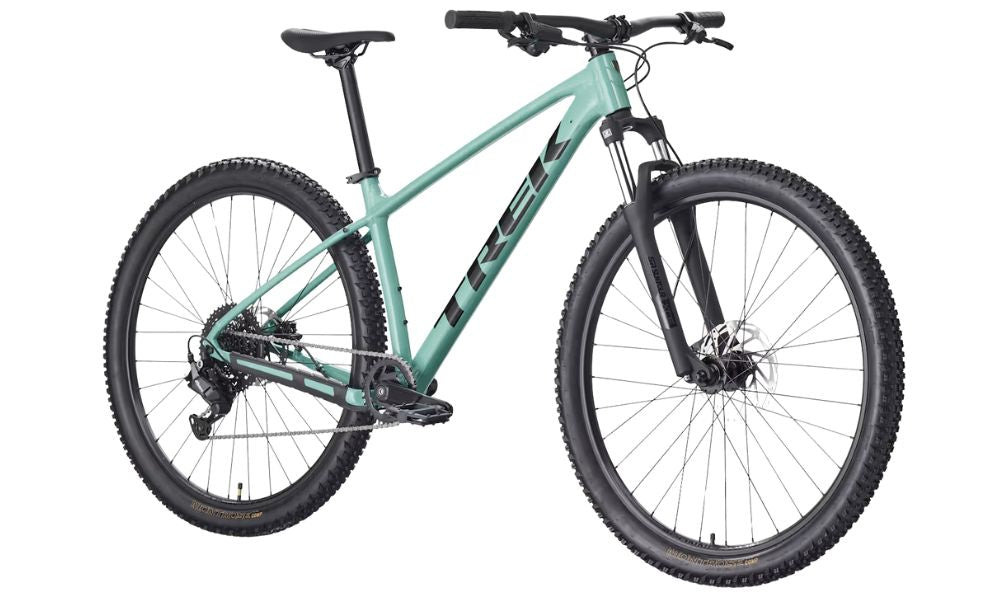

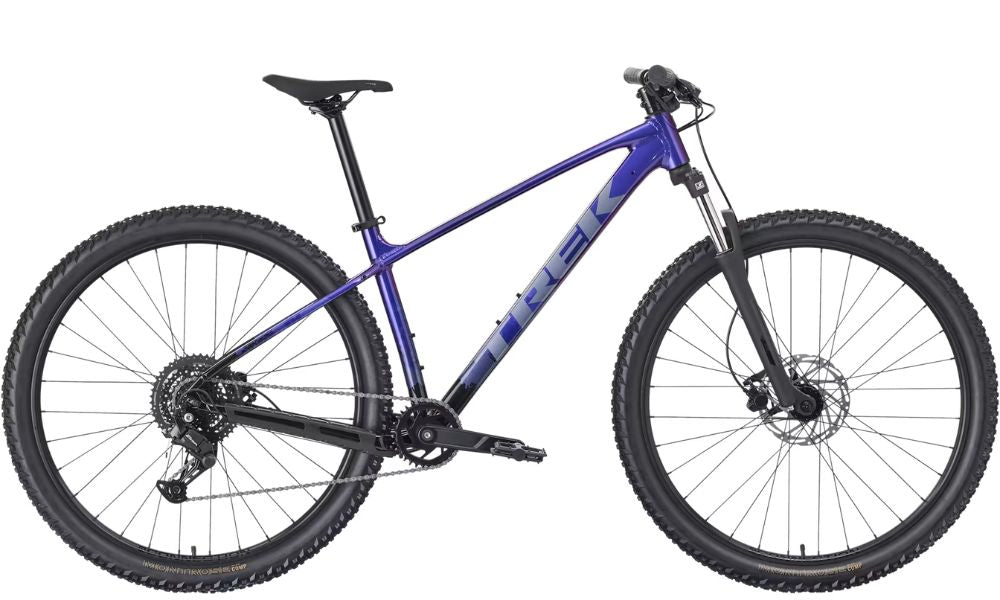

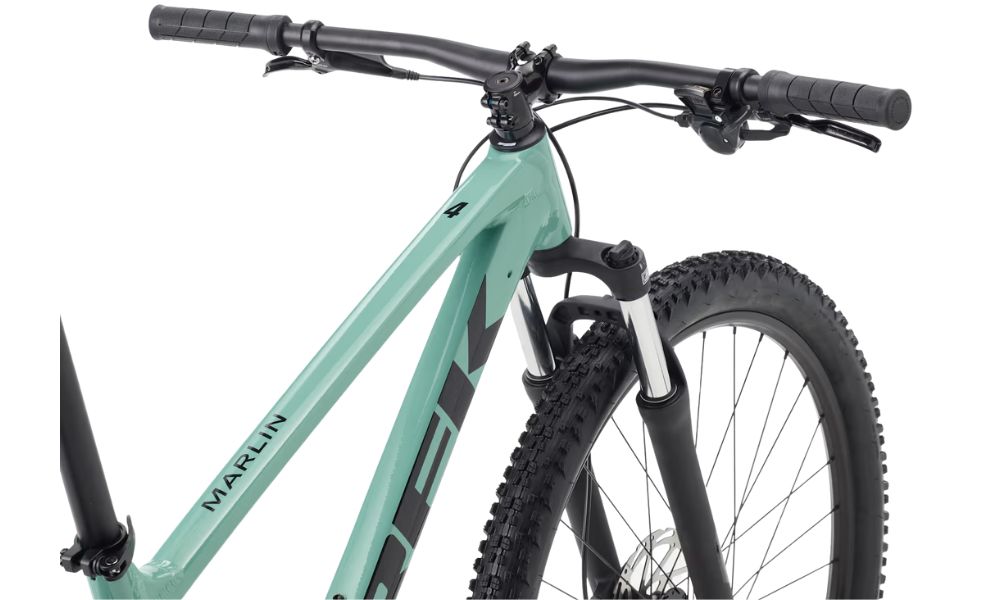

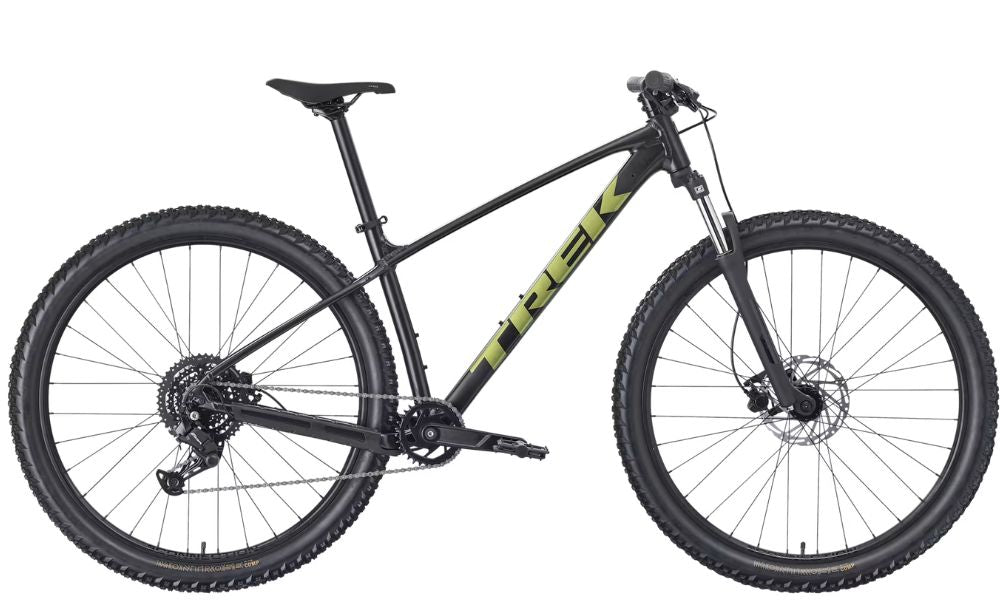

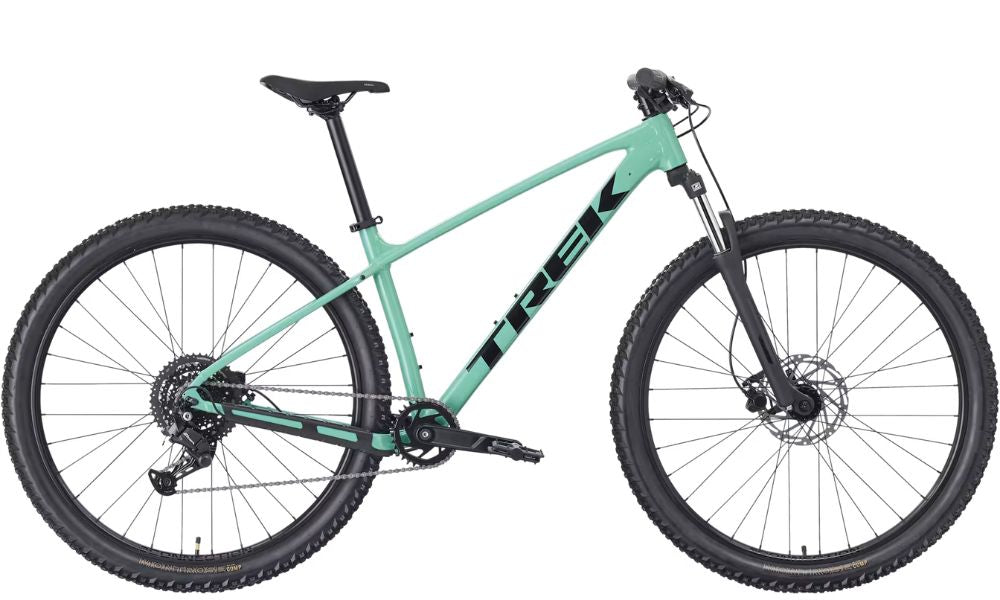

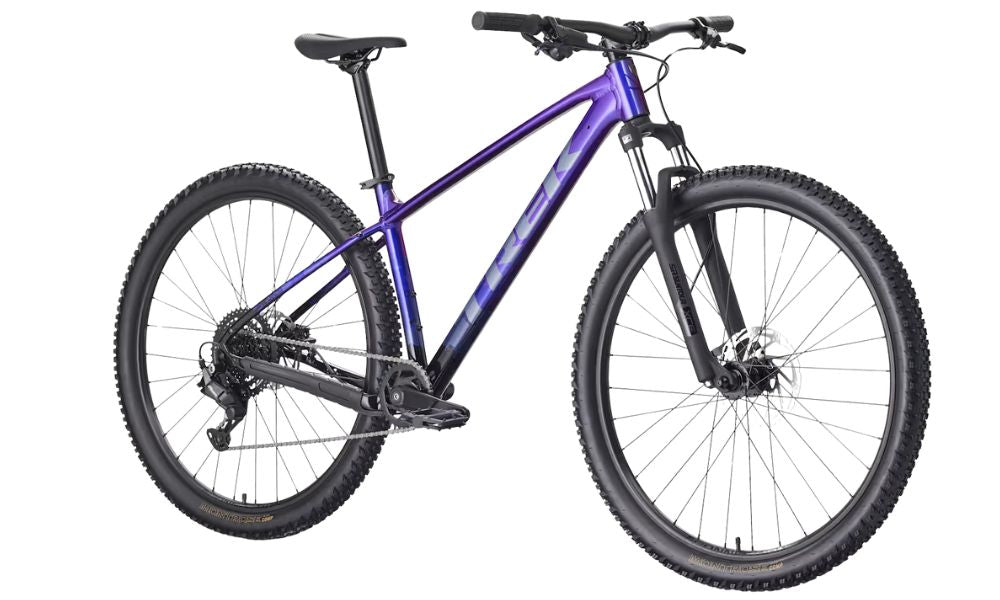

Colour: Matte Dark Web, Purple Flip/Black Fade or Blue Sage

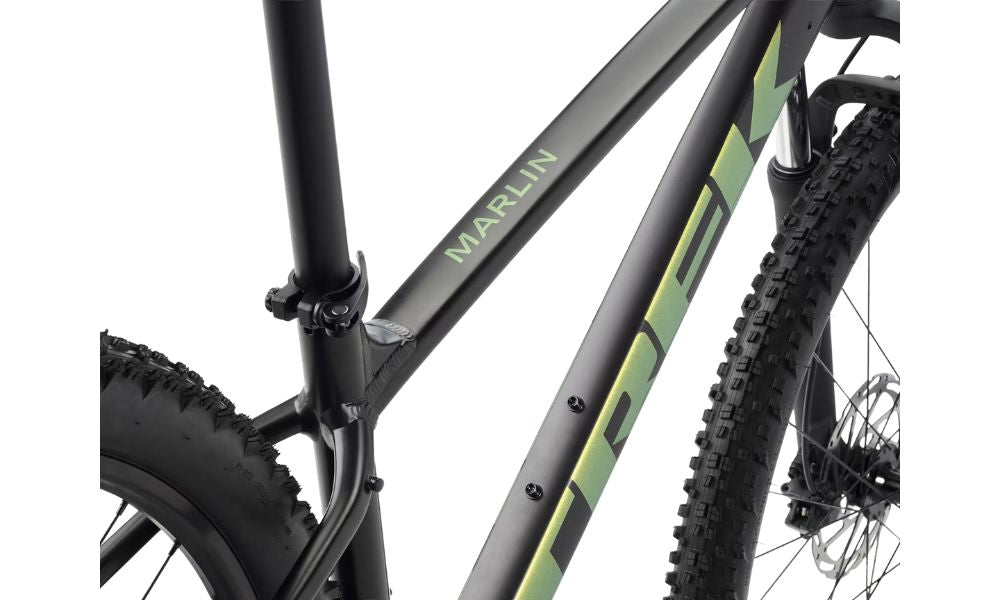

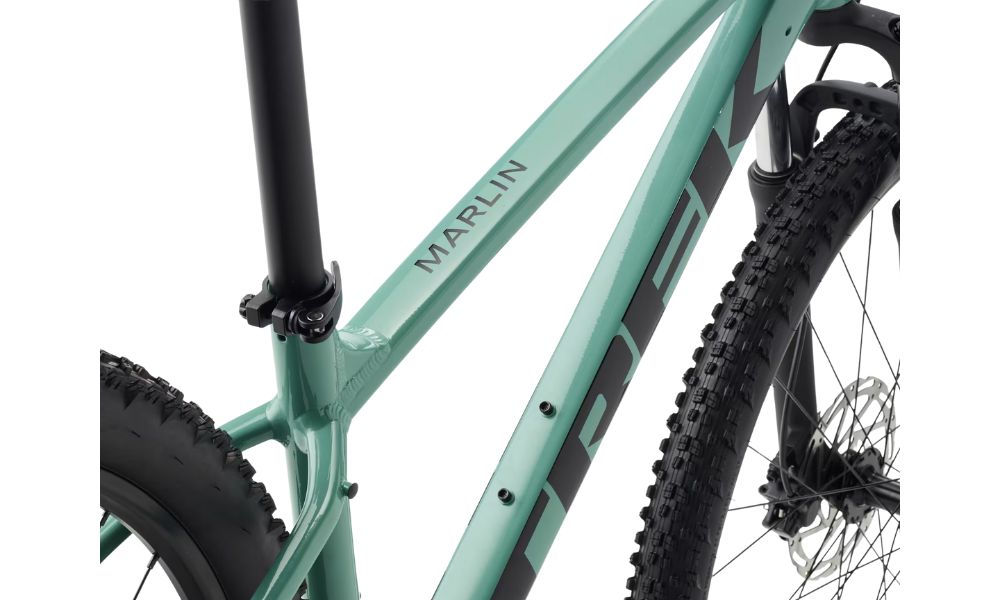

Frame: XS: Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew S, M, ML, L, XL: Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Fork: XS: SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel S: SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel M< ML, L, XL: SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Shock: NA

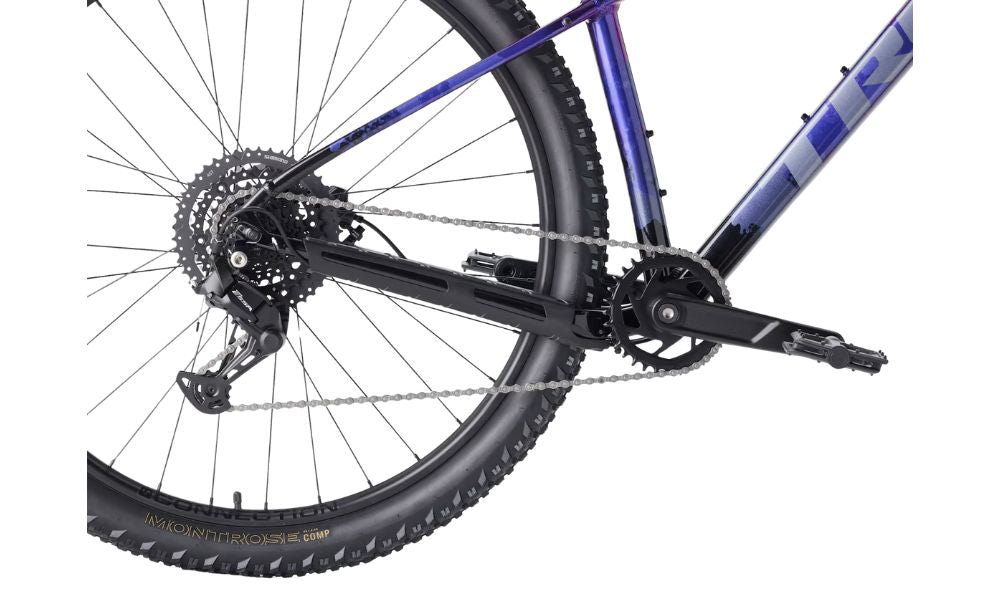

Drivetrain

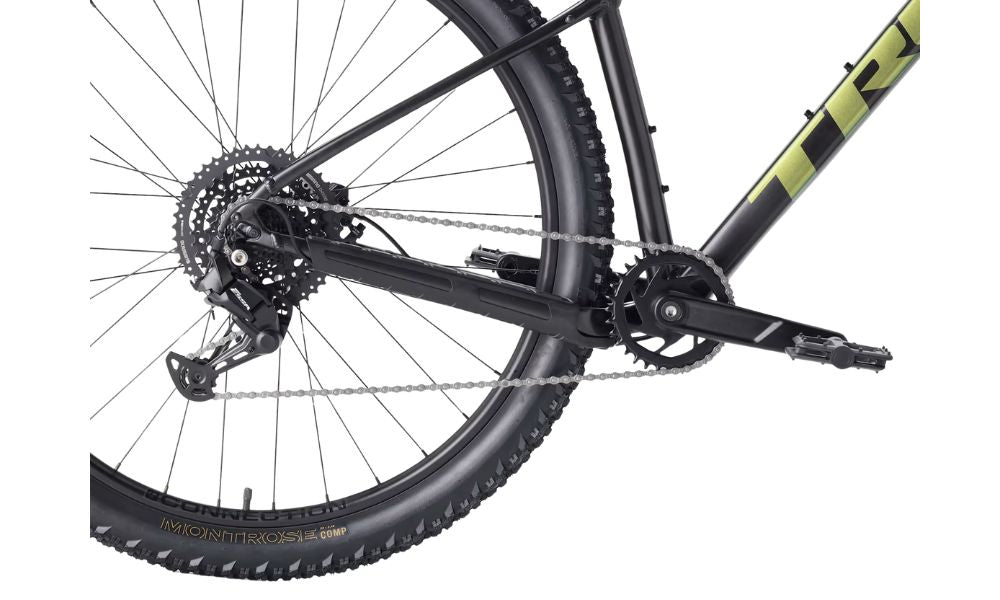

Crankset: ProWheel alloy, 32T narrow-wide steel ring, XS: 160 mm S, M, ML: 170mm, L, XL: 175mm
Pedals:
Chain: KMC Z8.3, 8-speed
Bottom Bracket:
Rear Derailleur: Shimano ESSA U2000
Front Derailleur:
Derailleur Shifter: Shimano M315, 8-speed
Freewheel/Cassette: Shimano HG300, 11-45, 8-speed
Braking System
Brakes: XS , S: Tektro HD-M276 hydraulic disc XS , S , M , ML , L , XL: Power BH-M286TF hydraulic disc, 160 mm rotor M , ML , L , XL: Tektro HD-M275 hydraulic disc M , ML , L , XL: Power BH-M286TF hydraulic disc, 180 mm rotor
Brake Levers:
Wheels
Tyres: XS , S: Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.40" M , ML , L , XL: Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40"
Wheels/Rims: Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Hubs: [F] Formula DC-20, alloy, 6-bolt, 100x5 mm [R] Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm
Other

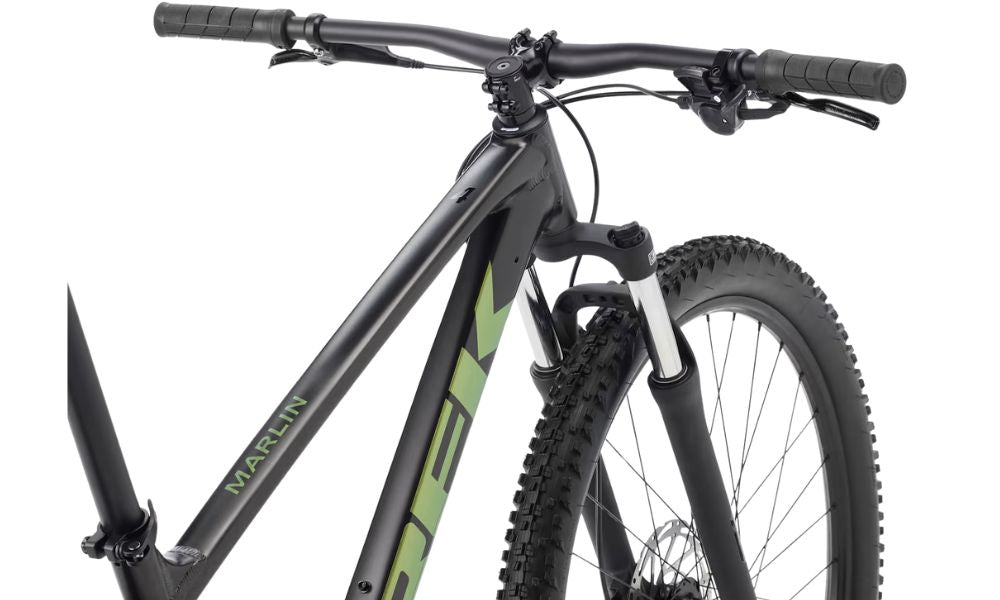

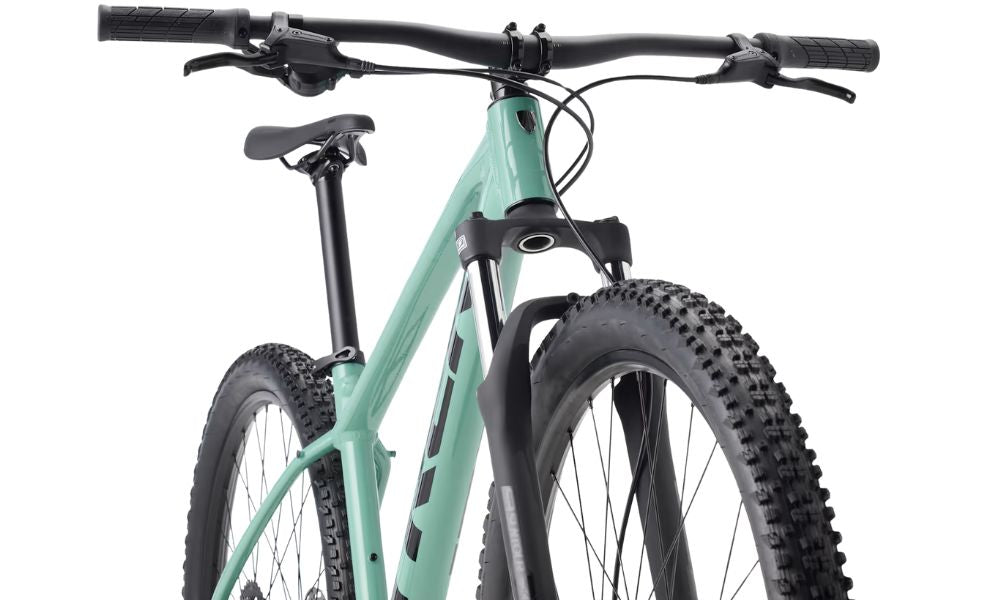

Handlebar: Bontrager alloy, 31.8 mm XS: 5mm rise, 690mm width S: 15mm rise, 720mm width M , ML , L , XL: 15mm rise , 750mm width
Stem: Bontrager Comp, 31.8 mm, 7-degree XS: 35mm M, ML, L: 50mm XL: 60mm
Seat Post: Bontrager alloy, 31.6 mm, 12 mm offset XS, S, M: 330mm length ML, L, XL: 400mm length
Saddle: Bontrager Verse Short, stainless steel rails
Trek 2026 Marlin 4 Gen 3
All measurements provided in cm unless otherwise stated.
| Frame size number | Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14.5" | XS | 27.5" | 34.0 | 73.8° | 74.0° | 9.0 | 66.5° | 55.1 | 31.3 | 4.5 | 43.3 | 4.2 | 11.0 | 109.2 | 65.8 | 39.0 | 56.3 |
| 15.5" | S | 27.5" | 37.0 | 73.8° | 74.0° | 10.0 | 66.5° | 57.9 | 31.3 | 4.5 | 43.3 | 4.2 | 11.0 | 112.1 | 69.2 | 41.5 | 57.2 |
| 17.5" | M | 29" | 41.9 | 71.9° | 73.0° | 9.0 | 69.5° | 60.2 | 31.0 | 5.8 | 43.8 | 4.2 | 9.3 | 110.0 | 74.8 | 41.8 | 60.2 |
| 18.5" | ML | 29" | 44.4 | 71.9° | 73.0° | 9.0 | 69.5° | 61.8 | 31.0 | 5.8 | 43.8 | 4.2 | 9.3 | 111.6 | 75.8 | 43.4 | 60.2 |
| 19.5" | L | 29" | 47.0 | 71.9° | 73.0° | 10.0 | 69.5° | 63.8 | 31.0 | 5.8 | 43.8 | 4.2 | 9.3 | 113.7 | 75.7 | 45.1 | 61.1 |
| 21.5" | XL | 29" | 52.1 | 71.9° | 73.0° | 12.0 | 69.5° | 65.9 | 31.0 | 5.8 | 43.8 | 4.2 | 9.3 | 115.9 | 76.9 | 46.6 | 63.0 |
