Velduro 2027 Rogue R M2S

$16,990.00

Size

Colour

Quantity

Please manually select shipping rates at checkout

Finance Plans Available

Description
Specifications
Geometry

Description

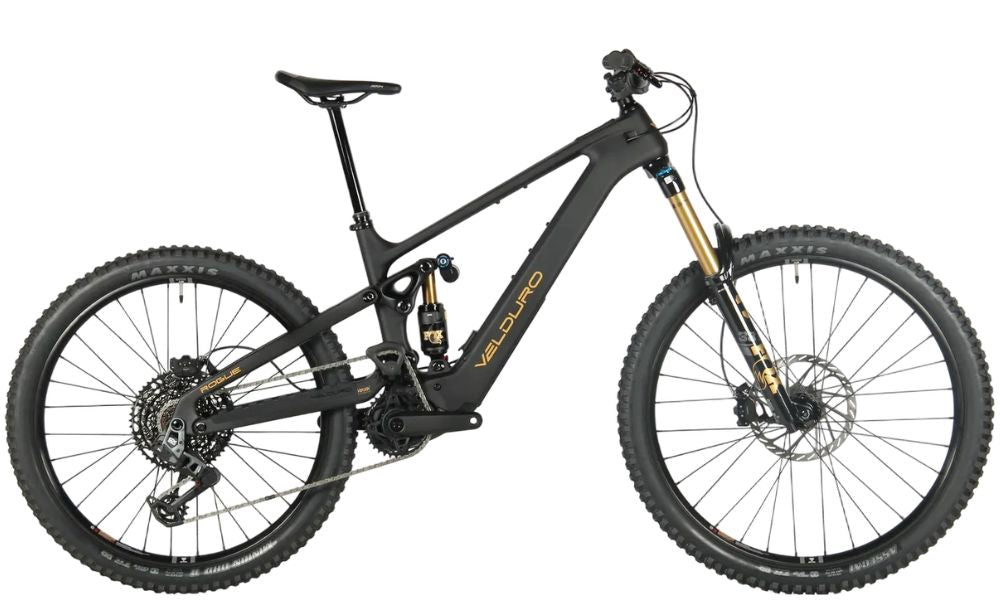

Velduro 2027 Rogue R M2S

Meet the Rogue R. Engineered for the ultimate MX enduro experience. Featuring custom-tuned FOX suspension, SRAM AXS GX Eagle 10-52T drivetrain, and powerful Maven Silver four-piston brakes, this bike is built to perform. Weighing just 23.6 kg and powered by an 800 Wh battery, the Rogue R delivers all-day capability with i-track enhanced suspension for unmatched control and responsiveness on any terrain. This is the ultimate Avinox M2S powered enduro EMTB!

I-Track's Patented Suspension System
Full Build Weight - 23.6kg
Carbon Fibre Monocoque Frame
SRAM GX ASX Electric Shifter
Warranty: Frame 5-Years | Avinox Drive System 2-Years | Wheels 5-Years | others 1-Year

Specifications

Velduro 2027 Rogue R M2S

Frame

Size: S, M, L, XL
Colour: Carbon
Frame: Carbon fibre enduro frame, 165mm rear travel, up to 170mm with 27.5 rear wheel, mid-pivot, battery integrated, rear wheel flip chip, shock position flip chip, inner cable routing, Boost 12x148mm,16T idler, with oversize bearings.
Fork: Fox 38 F-S 2026, 29 inch, 170mm, Grip X2, 15X110mm
Shock: Fox float X2 F-S 2026, 205X65mm (custom factory tuned for the Rogue)

Drivetrain

Crankset: Avinox SL crank 155mm
Pedals:
Chain: Sram GX Flat top Chain
Bottom Bracket:
Rear Derailleur: Sram AXS GX eagle transmission derailleur w/ power cable
Front Derailleur:
Shifter: Sram AXS pod controller
Freewheel/Cassette: Sram XS-1275 10-52T

Braking System

Brakes: Sram Mavan Silver 4- Pistion hydraulic brake
Brake Levers:

Wheels

Tyres: [F] Maxxis Assegai M356Ru 29*2.5 3C Grip/DD/TR BK [R] Maxxis Minion DHR2 M327 Ru27.5*2.4 3C Terra/DD/TR BK
Wheels/Rims: Velduro e-Enduro carbon, EC-30
Hubs: [F] Alloy, 2 sealed cartridge bearings, 15x110 thru-axle, 28h, straight-pull, 6-bolt [R] Alloy, 4 sealed cartridge bearings, 148x12 thru-axle, 28h, straight-pull, 6-bolt, 78T

Other

Handlebar: OneUp, alloy, 800L, 35R.
Stem: ONEUP Stem 42mm forged
Seat Post: ONEUP V3 mechanical Dia.31.6 S: 180mm travel, M/L: 210mm travel, XL: 240mm travel
Saddle: Fizik Terra Aidon X5

E-Bike

Drive Unit: AVINOX M2S 250W 130Nm, Boost to 150Nm, 1300W Peak Power
Battery: AVINOX 36V 800Wh
Display: AVINOX DP100
UI/Remote:
Charger: AVINOX 4A 168W

Geometry

Velduro 2027 Rogue R M2S

Rogue EMTB Geometry
		S	M	L	XL
A	Eff. Seattube Length (mm)	390	410	430	465
B	Headtube Angle (°)	63.5	63.5	63.5	63.5
C	Eff. Toptube Length (mm)	582	604	623	647.5
D	Reach (mm)	440	466	485	515
E	Act. Seattube Angle (°)	75.5	75.5	75.5	75.5
F	Seattube Offset (mm)	30	30	30	30
G	Eff. Seattube Angle (°)	78	78	78	78
H	Chainstay Length (mm)	440	440	440	440
I	BB Drop at Rear Wheel (mm)	10.5	10.5	10	10
J	BB Drop at Front Wheel (mm)	34	34	34	34
K	Headtube Length (mm)	110	110	120	125
L	Axle to Crown (mm)	584	584	584	584
M	Fork Offset (mm)	44	44	44	44
N	Trail (mm)	140	140	140	140
O	Stack (mm)	634	634	643.5	648
P	Wheelbase (mm)	1229	1255	1276	1311
Q	BB Height (mm)	343.5	343.5	344	344
Recommended Height (CM)		160-172	172-182	180-188	185-195

*Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products at the time of sale. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs. Please read our Terms & Conditions
