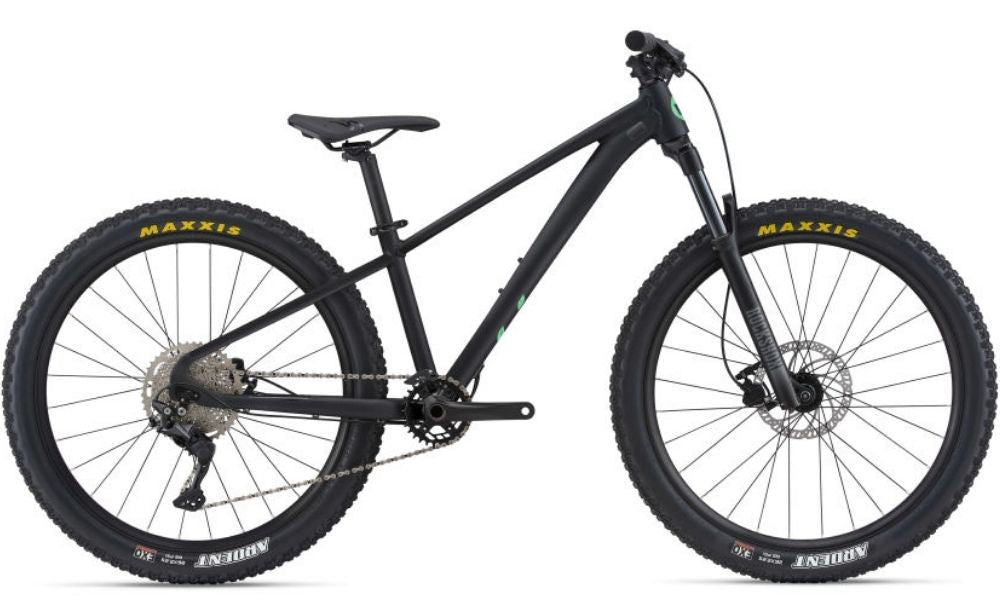

Liv 2022 STP 26
Designed for young riders looking to try out the dirt or pumptrack, this all-new shredder is built on a lightweight, super-strong aluminum frame with quick, responsive 26-inch wheels.
Built with a lightweight, strong and durable ALUXX-Grade Aluminum frameset, the bike cruises the pump tracks, trails, and streets with ease.
Quick and Responsive
The frame geometry is designed for 26-inch wheels and a low saddle height, with a taller front end for a responsive, predictable ride quality.
Powerful disc brakes and a 120 mm suspension fork with a lockout option gives her a safe and confidence-inspiring control.
Frame: ALUXX-Grade Aluminium
Fork: "RockShox Recon Silver RL, 15x110mm 120mm, with remote lockout"
Crankset: Alloy forged, 30t, Regular 155mm, Large 165mm
Chain: KMC X10
Bottom Bracket: Cartridge
Rear Derailleur: Shimano Deore RD-M5120
Front Derailleur: N/A
Derailleur Shifter: Shimano Deore, 1x10
Freewheel/Cassette: Shimano CSM-4100, 11x46
Tires: Maxxis Ardent, 26x2.25"
Wheels/Rims: Giant 26", alloy
Hubs: Giant Disc, 28h, QR, alloy, disc
Brakes: Tektro TDK143, hydraulic [F]160mm, [R]160mm rotors
Brake Levers: Tektro TDK143
Handle Bar: Giant Sport, alloy, 31.8mm
Stem Headset: Forged alloy, 0-degree
Grips: Giant Sole-O
Saddle: Giant Sport
Seat Post: Alloy, two-bolt, 30.9mm
|A||SEAT TUBE LENGTH (mm)||340||390|
|B||SEAT TUBE ANGLE||73.5°||73.5°|
|C||TOP TUBE LENGTH (mm)||545||575|
|D||HEAD TUBE LENGTH (mm)||100||110|
|E||HEAD TUBE ANGLE||67.0°||67.0°|
|F||FORK RAKE (mm)||42||42|
|I||CHAIN STAY LENGTH (mm)||435||435|
|J||BOTTOM BRACKET DROP (mm)||30||30|
|O||STEM LENGTH (mm)||50||50|
|P||CRANK LENGTH (mm)||155||155|
*Specifications are subject to change. Please read our Terms & Conditions
