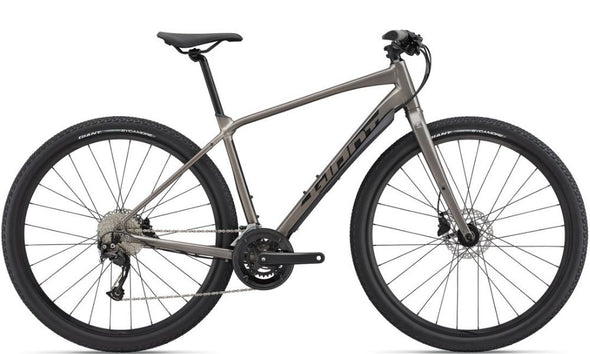

Giant 2022 ToughRoad SLR 2
When the pavement ends, the adventures begin. Climb a rugged mountain pass, roll through gravel, or venture onto forest trails. ToughRoad SLR lets you do it all.
Lightweight Agility
The frameset is constructed with ALUXX SLR, Giant’s lightest grade of aluminum, and a composite fork.
Comfort and Stability
Flat-bar frame geometry puts rider in a position that balances efficiency with confidence on rough roads, paths or trails.
Integrated Rack Mounts
Compatible with front and rear racks, allowing easy cargo capacity for daily trips or longer treks.
Frame
Colour: Metal
Frame: ALUXX SLR-Grade aluminium, disc
Fork: Advanced-Grade Composite, alloy OverDrive steerer, disc
Shock: N/A
Weight: N/A
Drivetrain
Crankset: ProWheel forged alloy, 28/44 with chainguard S:170mm, M:170mm, L:175mm, XL:175mm
Pedals: N/A
Chain: KMC X9 with Missing Link
Bottom Bracket: Cartridge
Rear Derailleur: Shimano Alivio
Front Derailleur: Shimano Acera
Derailleur Shifter: Shimano Altus, 2x9
Freewheel/Cassette: Shimano CS-HG201, 11x36
Wheels
Tires: Giant Sycamore S, 700x50c, FlatGuard Deflect 2
Wheels/Rims: Giant double wall aluminum
Hubs: Alloy, 32h
Braking System
Brakes: Shimano BL-MT200 hydraulic, [F]160mm, [R]160mm rotors
Brake Levers: Shimano BL-MT200
Other
Handle Bar: Giant Connect XC, 31.8mm
Stem Headset: Giant Contact, 8-degree S:60mm, M:70mm, L:80mm, XL:90mm
Grips: Giant Connect Ergo
Saddle: Giant Sport
Seat Post: Giant D-Fuse
Extras
X-DeFender protection, 53mm max tyre size
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (mm) | 420 | 460 | 510 | 550 |
| B | SEAT TUBE ANGLE | 73.0° | 73.0° | 72.0° | 71.5° |
| C | TOP TUBE LENGTH (mm) | 585 | 595 | 605 | 620 |
| D | HEAD TUBE LENGTH (mm) | 125 | 150 | 170 | 190 |
| E | HEAD TUBE ANGLE | 71.5° | 71.5° | 72.0° | 72.0° |
| F | FORK RAKE (mm) | 42 | 42 | 42 | 42 |
| G | TRAIL (mm) | 78.3 | 78.3 | 74.9 | 74.9 |
| H | WHEELBASE (mm) | 1067 | 1078 | 1071 | 1080 |
| I | CHAIN STAY LENGTH (mm) | 450 | 450 | 450 | 450 |
| J | BOTTOM BRACKET DROP (mm) | 70 | 70 | 70 | 70 |
| K | STACK (mm) | 578 | 602 | 623 | 642 |
| L | REACH (mm) | 408 | 411 | 403 | 405 |
| M | STAND OVER HEIGHT (mm) | 724 | 754 | 795 | 864 |
| O | STEM LENGTH (mm) | 90 | 100 | 110 | 110 |
| P | CRANK LENGTH (mm) | 170 | 175 | 175 | 175 |
| Q | WHEEL SIZE | 700C | 700C | 700C | 700C |
*Specifications are subject to change. Please read our Terms & Conditions
