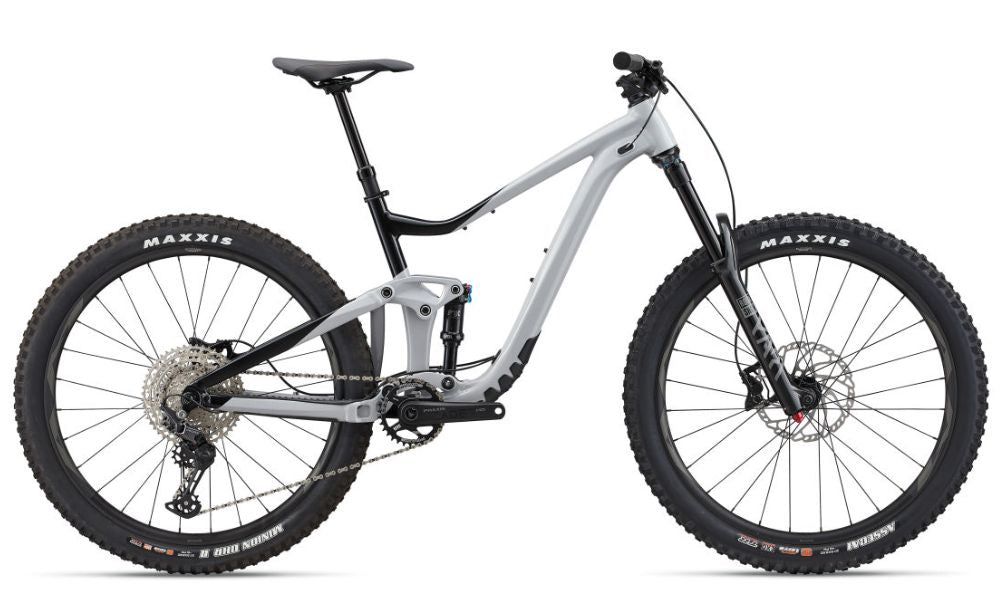

Giant 2022 Trance X 3
Float through rock gardens, hit the jumps, and find the faster line. With quick-handling 27.5 wheels and adjustable frame geometry, this lively trail bike is a party on wheels.
Adjustable frame geometry
New flip chip feature lets you change the headtube and seattube angles, as well as the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style.
27.5 agility and control
27.5-inch wheels balance agility and control, giving you the ability to roll over rugged terrain, flick the bike at speed, change lines, and explode out of corners.
Progressive suspension
Updated Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 145mm of rear travel (and 160mm up front), it has an Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frame weight.
Giant 2022 Trance X 3
Frame
Colour: Good Grey/BLack
Frame: ALUXX SL-Grade aluminium front and rear triangles, 145mm Maestro suspension, flip chip, UDH hanger, 12x148mm thru-axle, 55mm Chainline
Fork: RockShox Yari RC, Motion Control, DebonAir, 37mm offset, 160mm, 15x110 Stealth, custom tuned for Giant
Shock: Fox Float DPS Performance, custom tuned for Giant
Crankset: Praxis Cadet M24 HD, 32t S:165mm, M:170mm, L:170mm, XL:170mm
Pedals: N/A
Chain: KMC X-12
Bottom Bracket: Praxis, press fit
Rear Derailleur: Shimano Deore
Front Derailleur: N/A
Derailleur Shifter: Shimano Deore, 1x12
Freewheel/Cassette: Shimano Deore, 10x51
Wheels
Tires: [F] Maxxis Assegai 27.5x2.6, 3C MaxxTerra, EXO, TR [R] Maxxis Minion DHRII 27.5x2.6, 3C MaxxTerra, EXO, TR, tubeless
Wheels/Rims: Giant AM 27.5, alloy
Hubs: Alloy, sealed bearing
Braking System
Brakes: Shimano Deore BR-MT420, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
Brake Levers: Shimano BL-MT401
Other
Handle Bar: Giant Contact TR35, alloy, 35mm
Stem Headset:
Saddle: Giant Romero
Seat Post: Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 150mm travel / 30.9 x 440mm L: 170mm travel / 30.9 x 450mm XL: 170mm travel / 30.9 x 450mm
Giant 2022 Trance X 3
| S | M | L | XL | ||
|---|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
| A | SEAT TUBE LENGTH (mm) | 420 | 430 | 465 | 496 |
| B | SEAT TUBE ANGLE | 77.2° | 78.0° | 76.3° | 77.0° | 76.3° | 77.0° | 76.3° | 77.0° |
| C | TOP TUBE LENGTH (mm) | 562 | 560 | 595 | 593 | 622 | 620 | 649 | 647 |
| D | HEAD TUBE LENGTH (mm) | 95 | 105 | 115 | 125 |
| E | HEAD TUBE ANGLE | 63.7° | 64.5° | 63.8° | 64.5° | 63.8° | 64.5° | 63.8° | 64.5° |
| F | FORK RAKE (mm) | 37 | 37 | 37 | 37 |
| G | TRAIL (mm) | 138 | 132 | 138 | 132 | 138 | 132 | 138 | 132 |
| H | WHEELBASE (mm) | 1179 | 1177 | 1203 | 1202 | 1233 | 1231 | 1262 | 1260 |
| I | CHAIN STAY LENGTH (mm) | 433 | 430 | 433 | 430 | 433 | 430 | 433 | 430 |
| J | BOTTOM BRACKET DROP (mm) | 30 | 20 | 30 | 20 | 30 | 20 | 30 | 20 |
| K | STACK (mm) | 596 | 590 | 605 | 599 | 614 | 608 | 623 | 617 |
| L | REACH (mm) | 427 | 435 | 447 | 455 | 472 | 480 | 497 | 505 |
| M | STAND OVER HEIGHT (mm) | 709 | 718 | 714 | 723 | 740 | 750 | 762 | 772 |
| O | STEM LENGTH (mm) | 40 | 40 | 50 | 50 |
| P | CRANK LENGTH (mm) | 165 | 170 | 170 | 170 |
| Q | WHEEL SIZE | 27,5" | 27,5" | 27,5" | 27,5" |
*Specifications are subject to change. Please read our Terms & Conditions
